Exercise 1 — Cambridge IGCSE 0580 Mar 2023 Paper 32 Q2
Show mark scheme
Cambridge IGCSE·Mathematics 0580·Core
Statistical Graphs
Key knowledge — Statistics
Formulas & equations
Mean = Σfx ÷ Σf (for frequency tables)Range = maximum − minimumInterquartile range (IQR) = Q3 − Q1Median from cumulative frequency: read off at n/2Q1 at n/4; Q3 at 3n/4Frequency density = frequency ÷ class width (for histograms)
Key facts & rules
- Mean uses all values — affected by outliers.
- Median is the middle value when ordered — not affected by outliers.
- Mode is the most frequent value.
- For grouped data: use midpoints to estimate the mean.
- Cumulative frequency graph: S-shaped curve; read median and quartiles from it.
- Box-and-whisker plots: show median, Q1, Q3, min and max.
- Positive correlation: both variables increase together. Negative: one increases as other decreases.
- The line of best fit passes through the mean point (x̄, ȳ).
IGCSE Statistics — Statistical graphs Practice Core
7 Cambridge IGCSE 0580 questions on statistical graphs at the Core tier — each with its full mark scheme. For the Extended tier on the same skill, click here.
How to approach statistical graphs — open the study guide
Statistical graphs on IGCSE 0580
Practice with past paper questions on statistical graphs at the Core tier.
Practice exercises
Exercise 2 — Cambridge IGCSE 0580 Mar 2024 Paper 12 Q11
Show mark scheme
Exercise 3 — Cambridge IGCSE 0580 Mar 2024 Paper 12 Q13
Show mark scheme
Exercise 4 — Cambridge IGCSE 0580 Jun 2023 Paper 12 Q8
Show mark scheme
Exercise 5 — Cambridge IGCSE 0580 Jun 2024 Paper 12 Q9
Show mark scheme

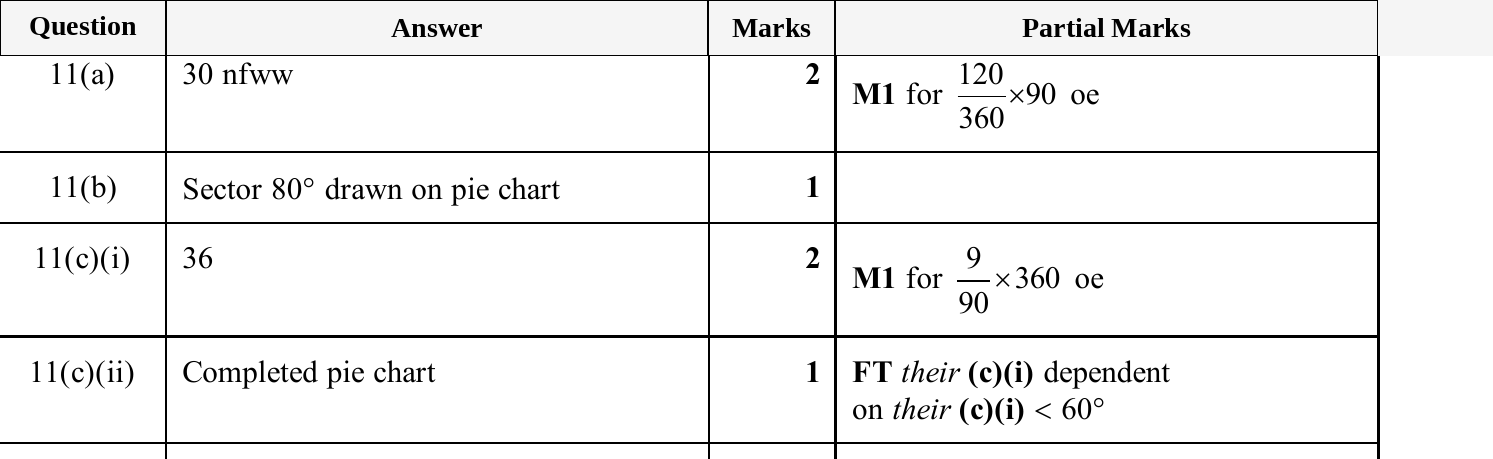

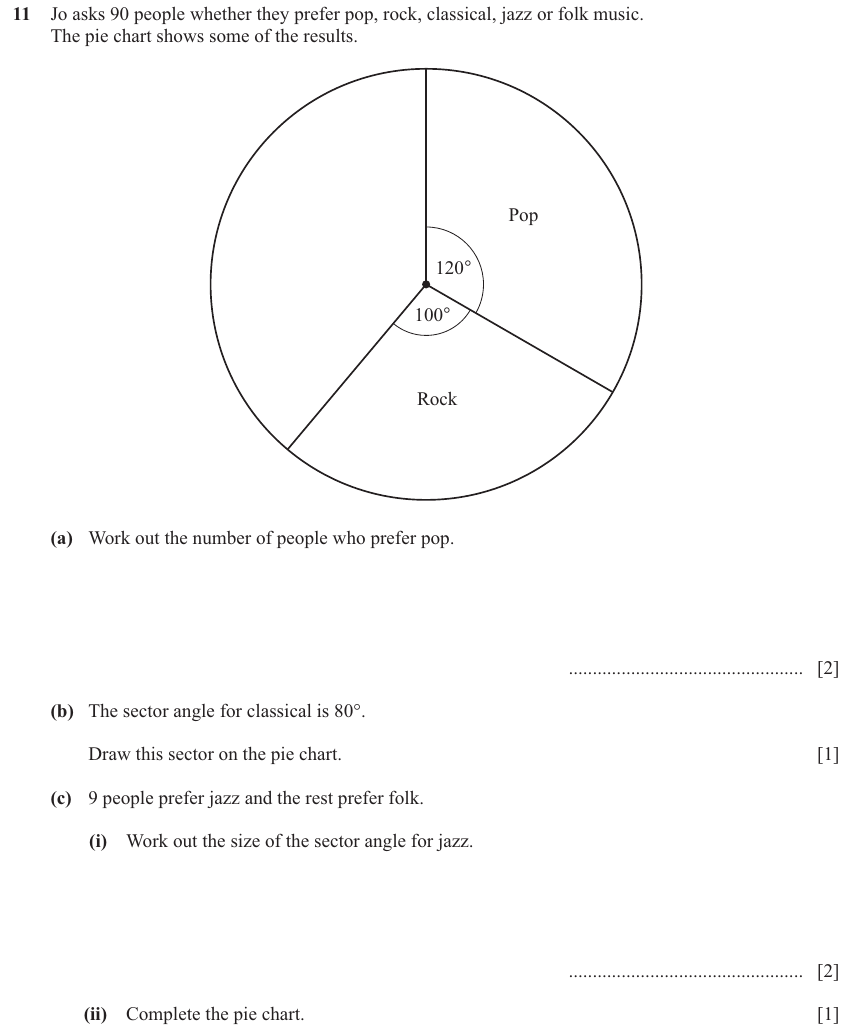

Exercise 6 — Cambridge IGCSE 0580 Jun 2025 Paper 13 Q11
Show mark scheme

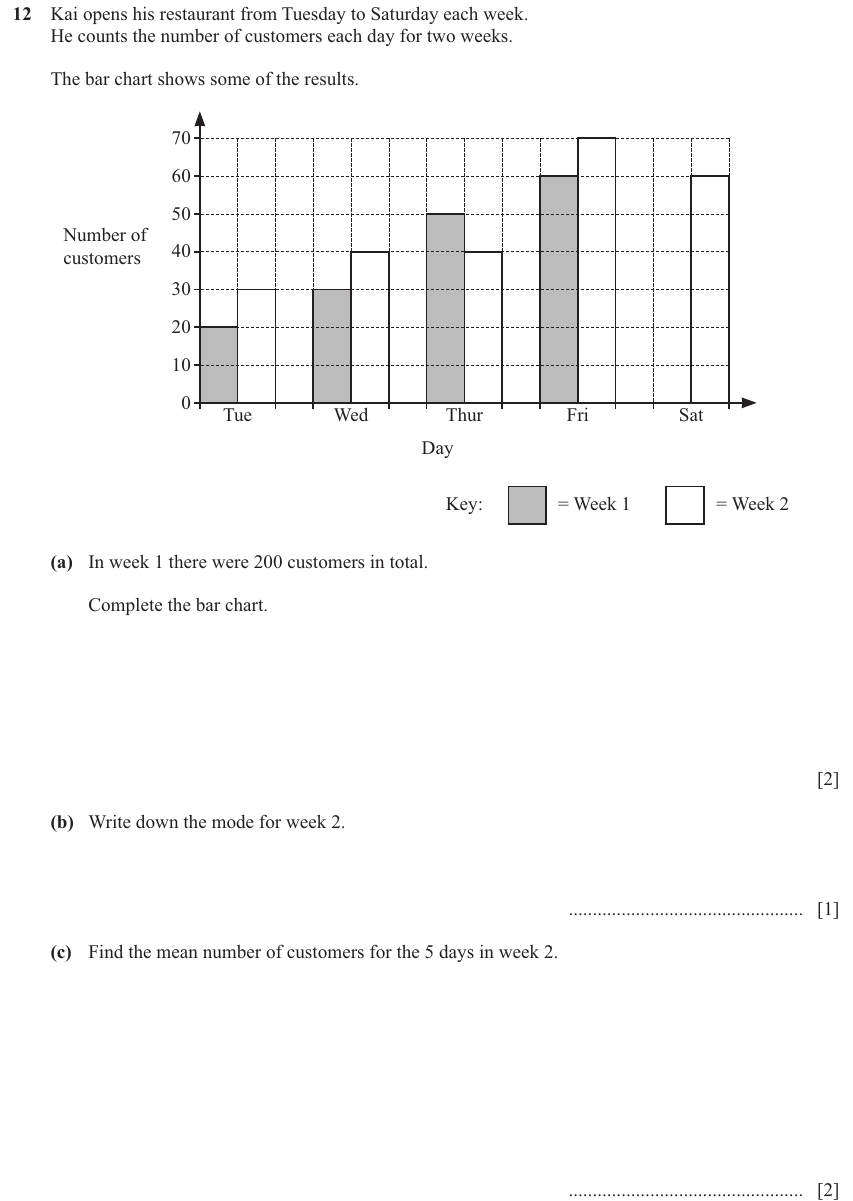

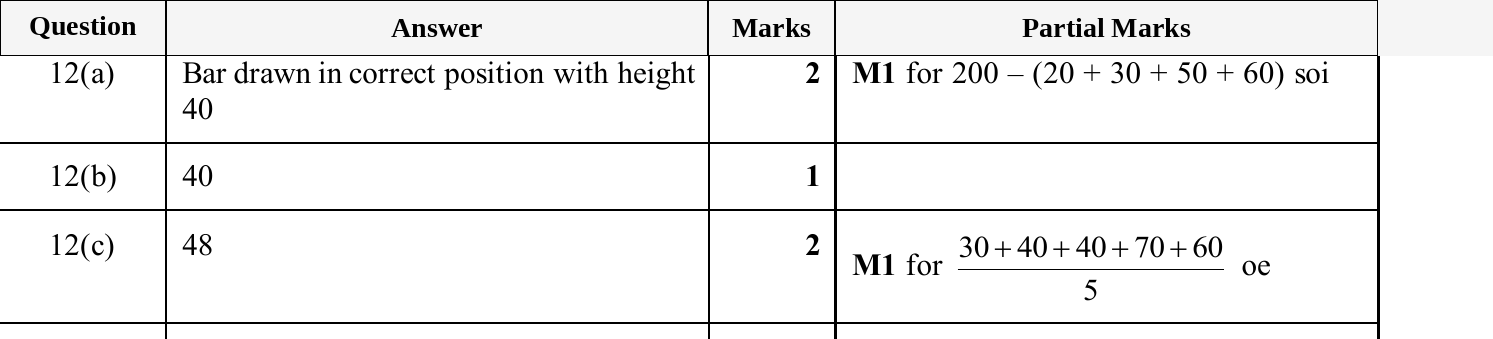

Exercise 7 — Cambridge IGCSE 0580 Jun 2025 Paper 33 Q12
Show mark scheme
