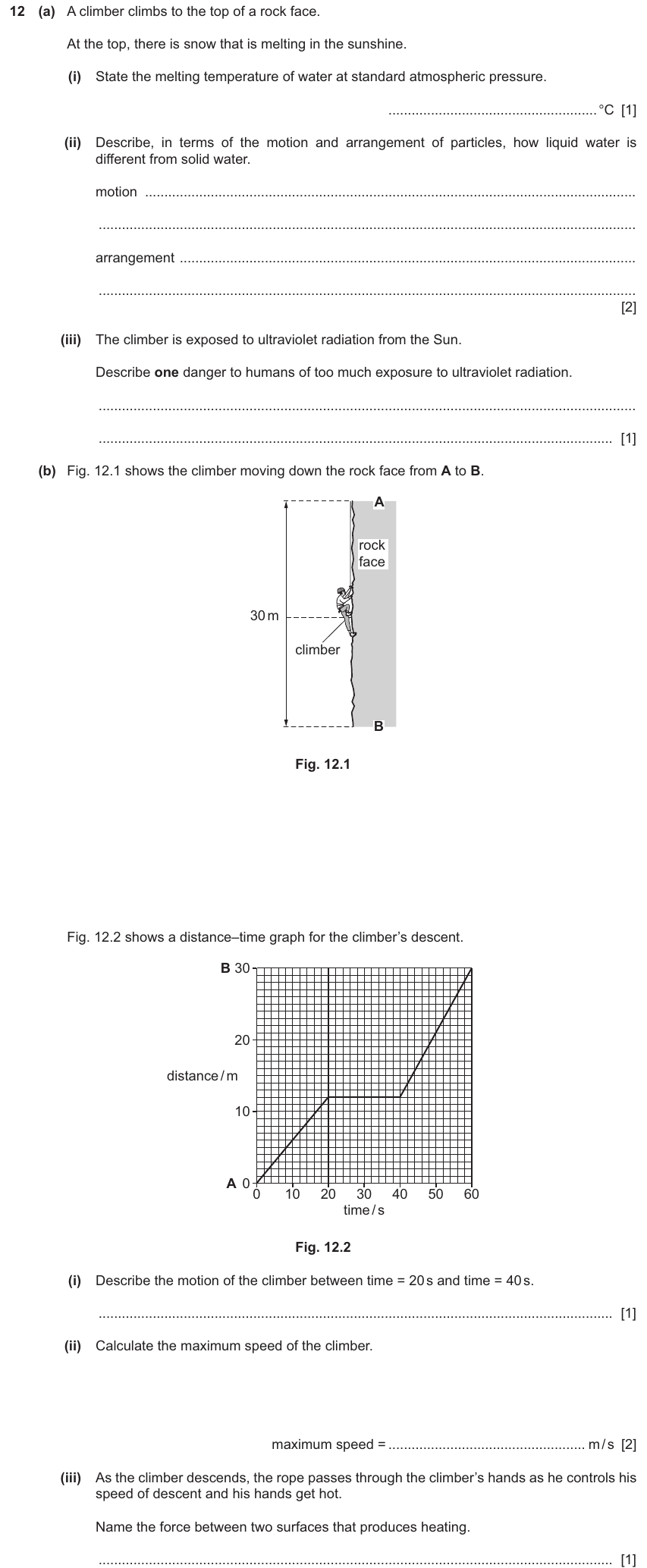

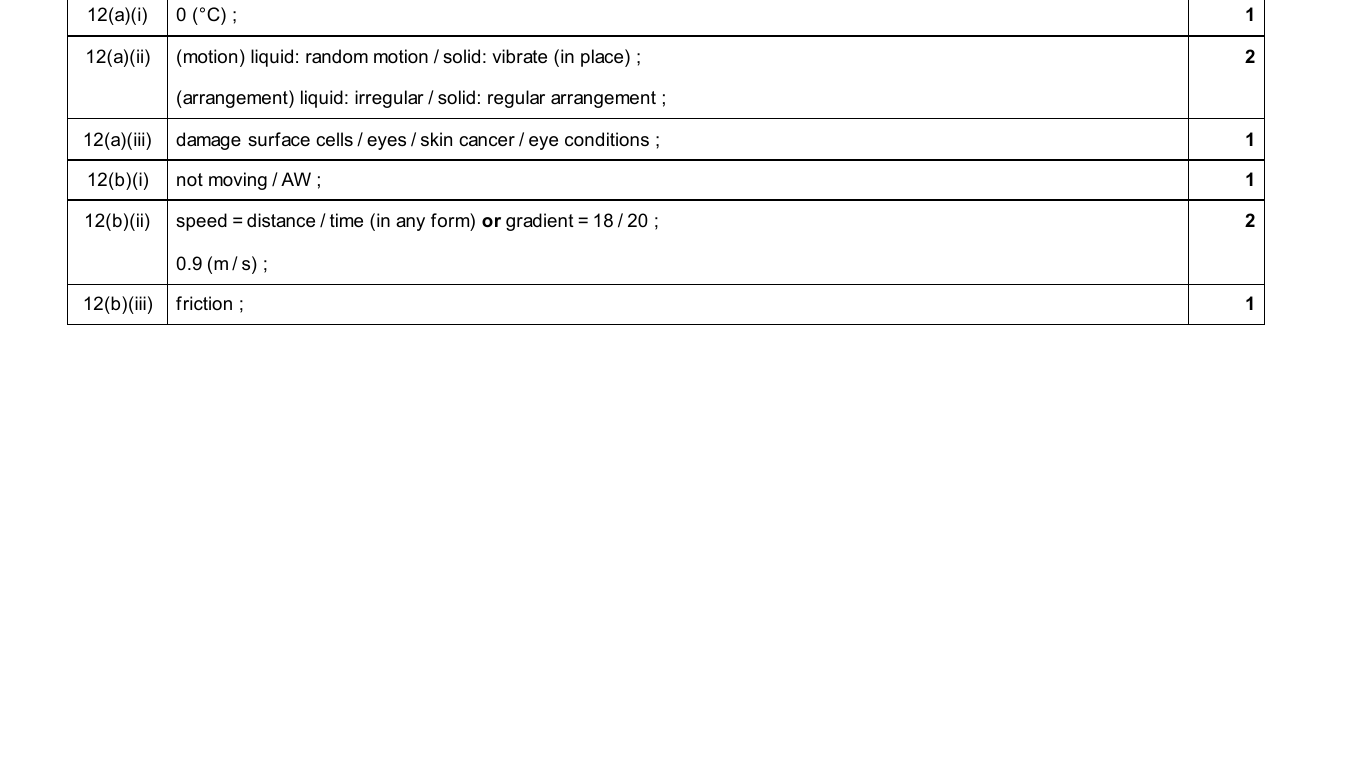

Exercise 1 — IGCSE 0654 Jun 2025 Paper 31 Q12
Show mark scheme
Cambridge IGCSE·Co-ordinated Sciences 0654·Physics
Speed Velocity Acceleration
Key knowledge — Measurement Motion
Formulas & equations
Speed = distance ÷ timeAcceleration = change in velocity ÷ time = (v − u) ÷ tv = u + ats = ut + ½at²v² = u² + 2ass = ½(u + v)t
Key facts & rules
- Distance-time graph: gradient = speed. Horizontal line = stationary. Curved = acceleration.
- Velocity-time graph: gradient = acceleration. Area under graph = distance travelled.
- Scalar: magnitude only (speed, distance, mass, temperature, time).
- Vector: magnitude AND direction (velocity, displacement, acceleration, force, momentum).
- Free fall: acceleration due to gravity g ≈ 10 m/s² (or 9.8 m/s²).
- Uniform acceleration: constant change in velocity per second.
IGCSE Physics — Speed, velocity & acceleration
56 Cambridge IGCSE 0654 questions on speed, velocity & acceleration, across all three components.
About speed, velocity & acceleration on IGCSE 0654
Every Cambridge IGCSE Co-ordinated Sciences 0654 question on speed, velocity & acceleration (Measurement & motion, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.
Theory
Speed, velocity & acceleration — Core theory questions4 total · Paper 3

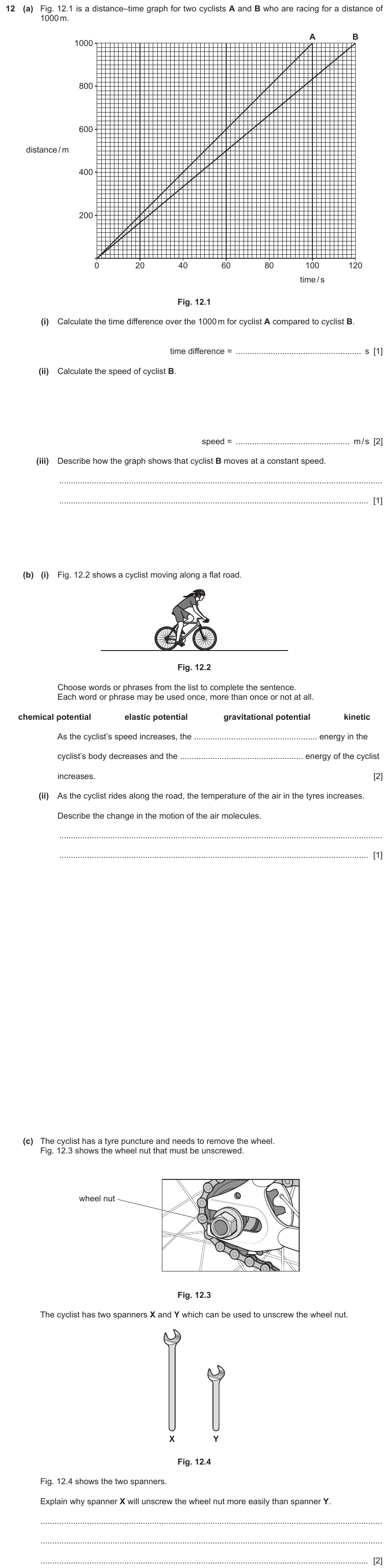

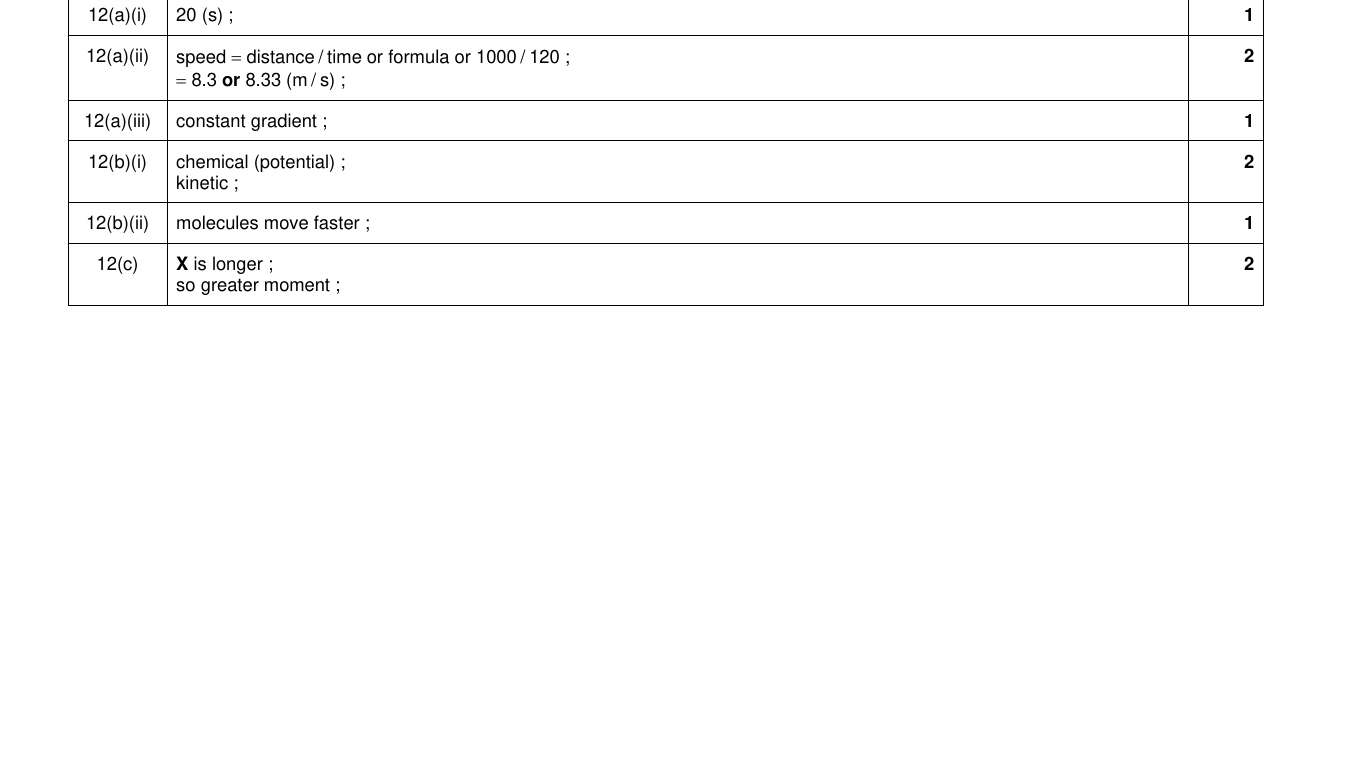

Exercise 2 — IGCSE 0654 Nov 2023 Paper 33 Q12
Show mark scheme

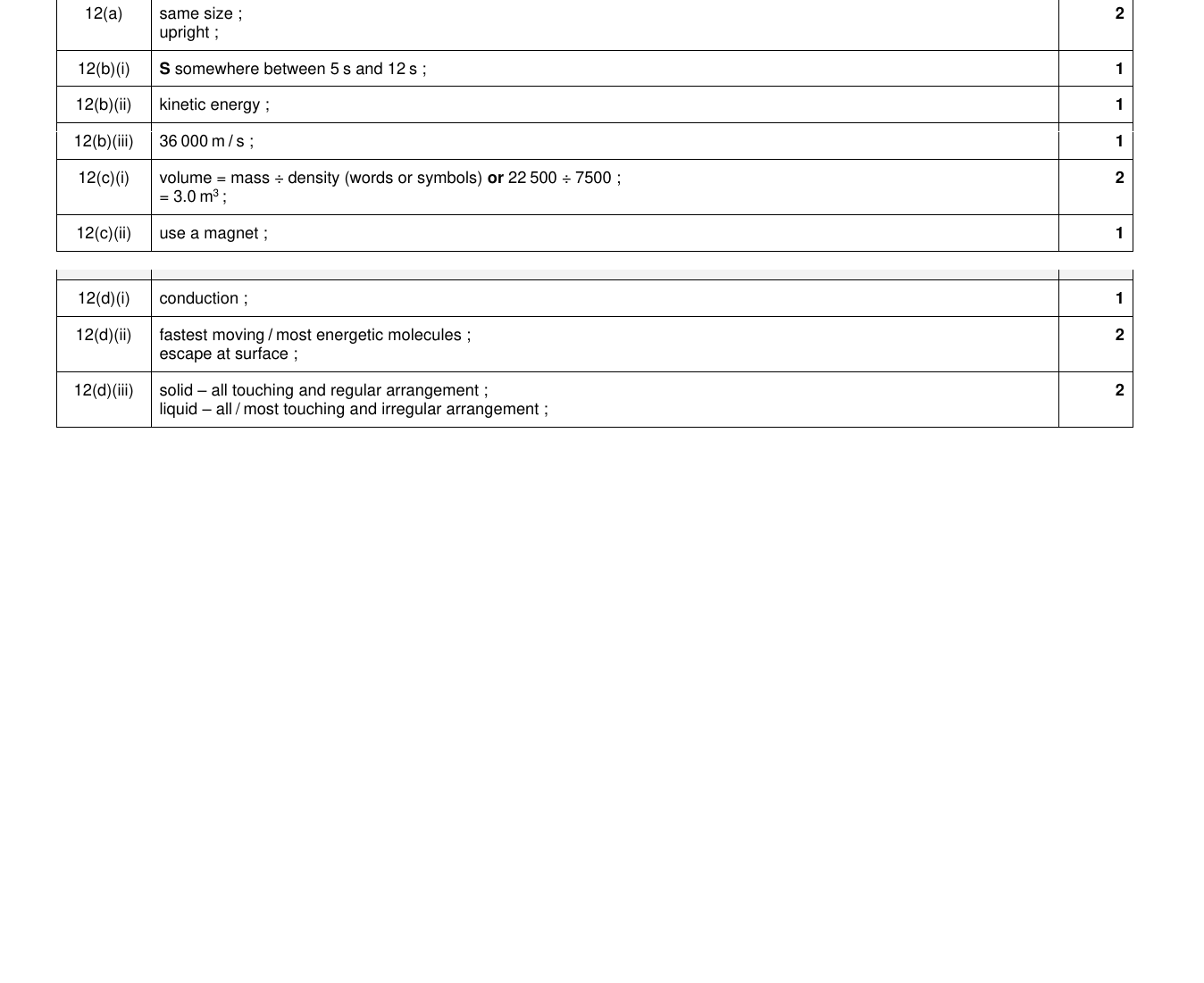

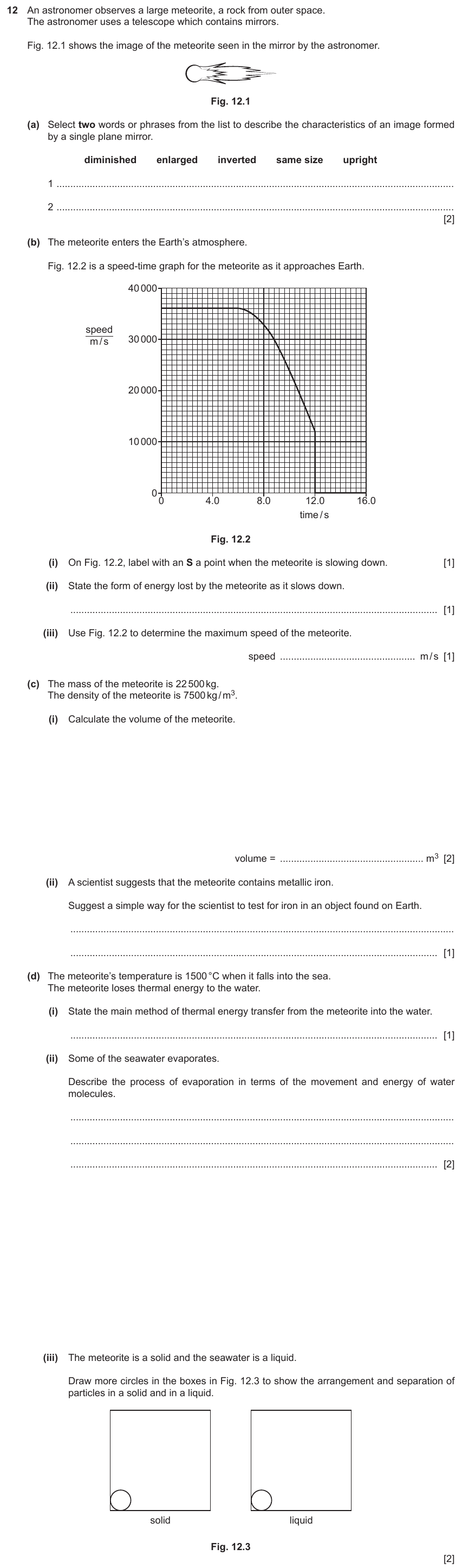

Exercise 3 — IGCSE 0654 Nov 2022 Paper 33 Q12
Show mark scheme
Speed, velocity & acceleration — Extended theory questions11 total · Paper 4

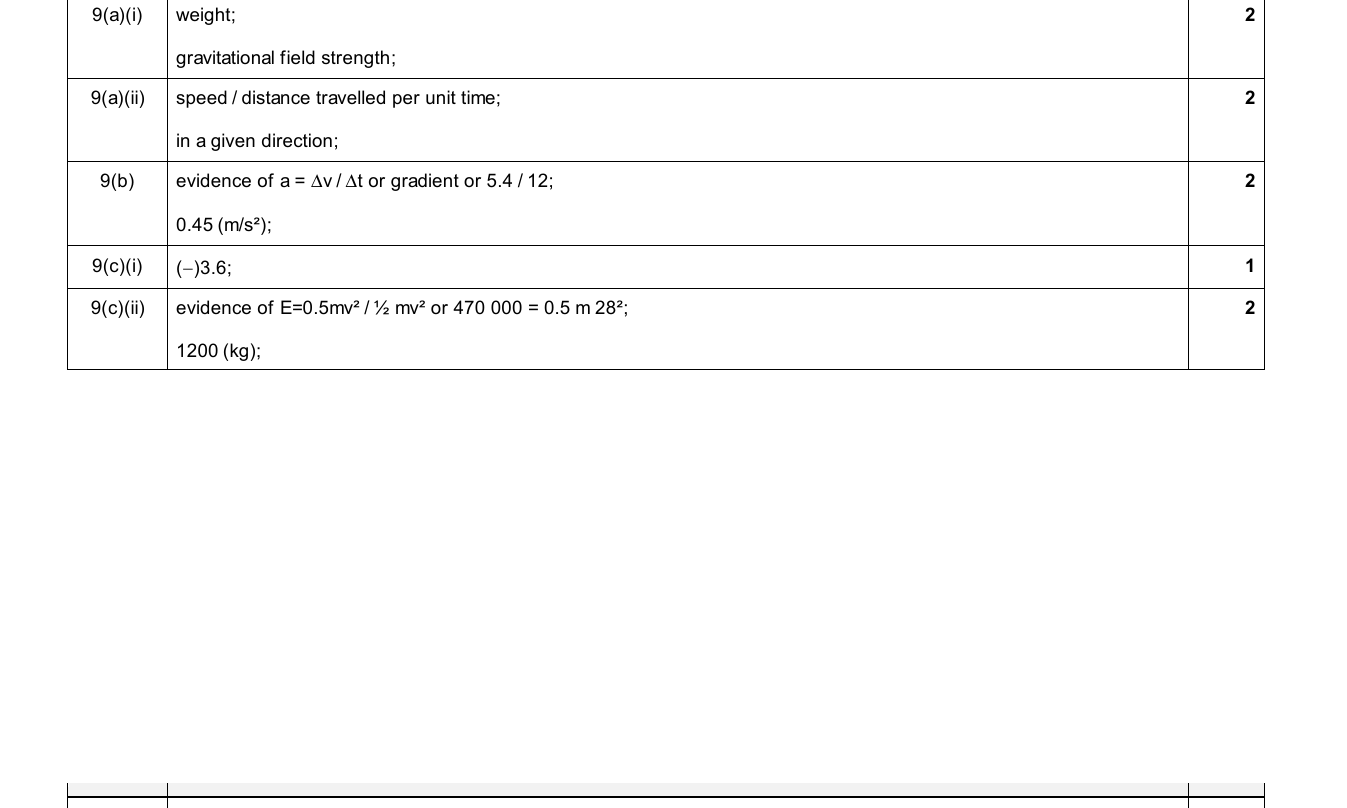

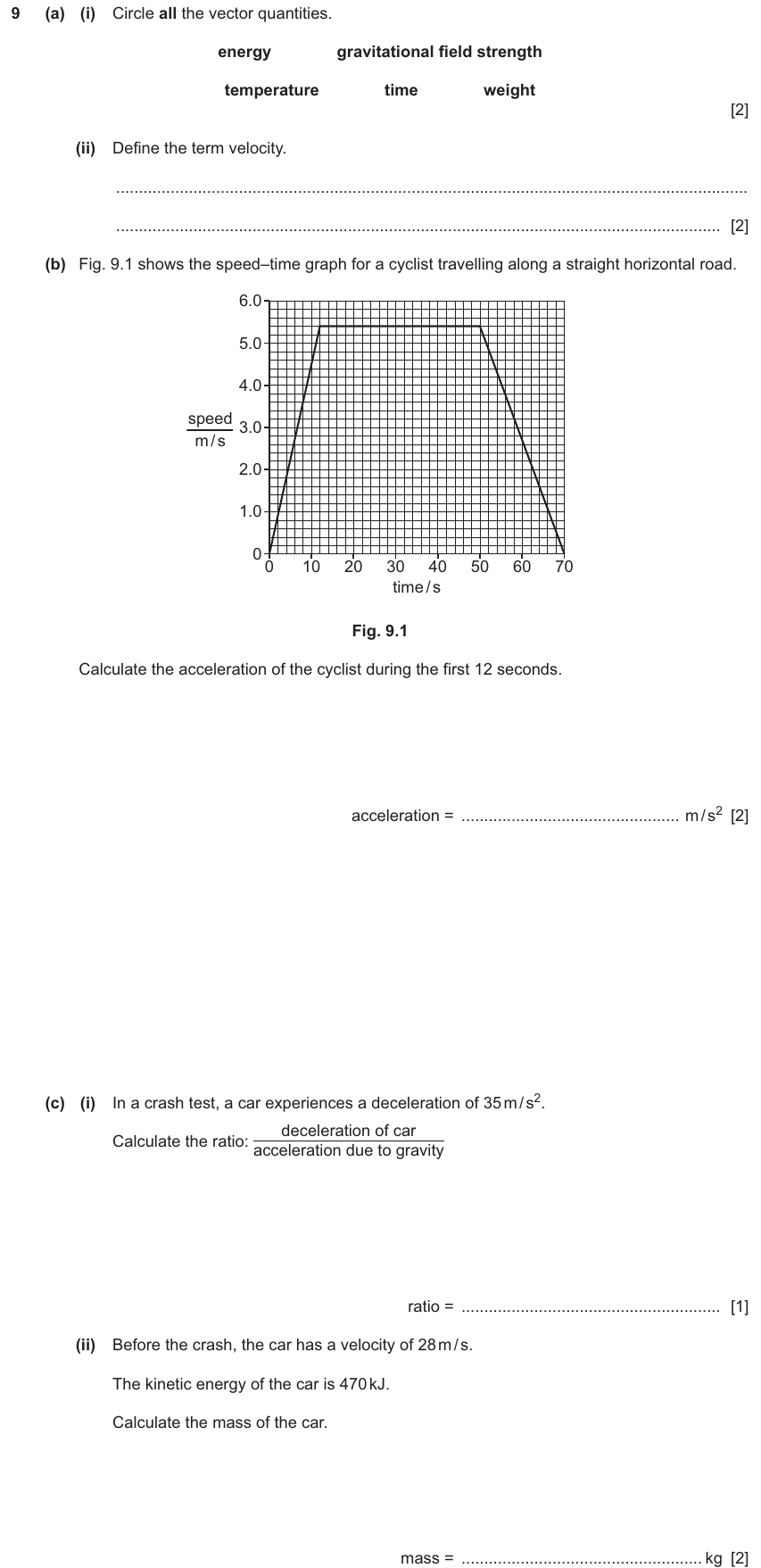

Exercise 4 — IGCSE 0654 Jun 2025 Paper 43 Q9
Show mark scheme

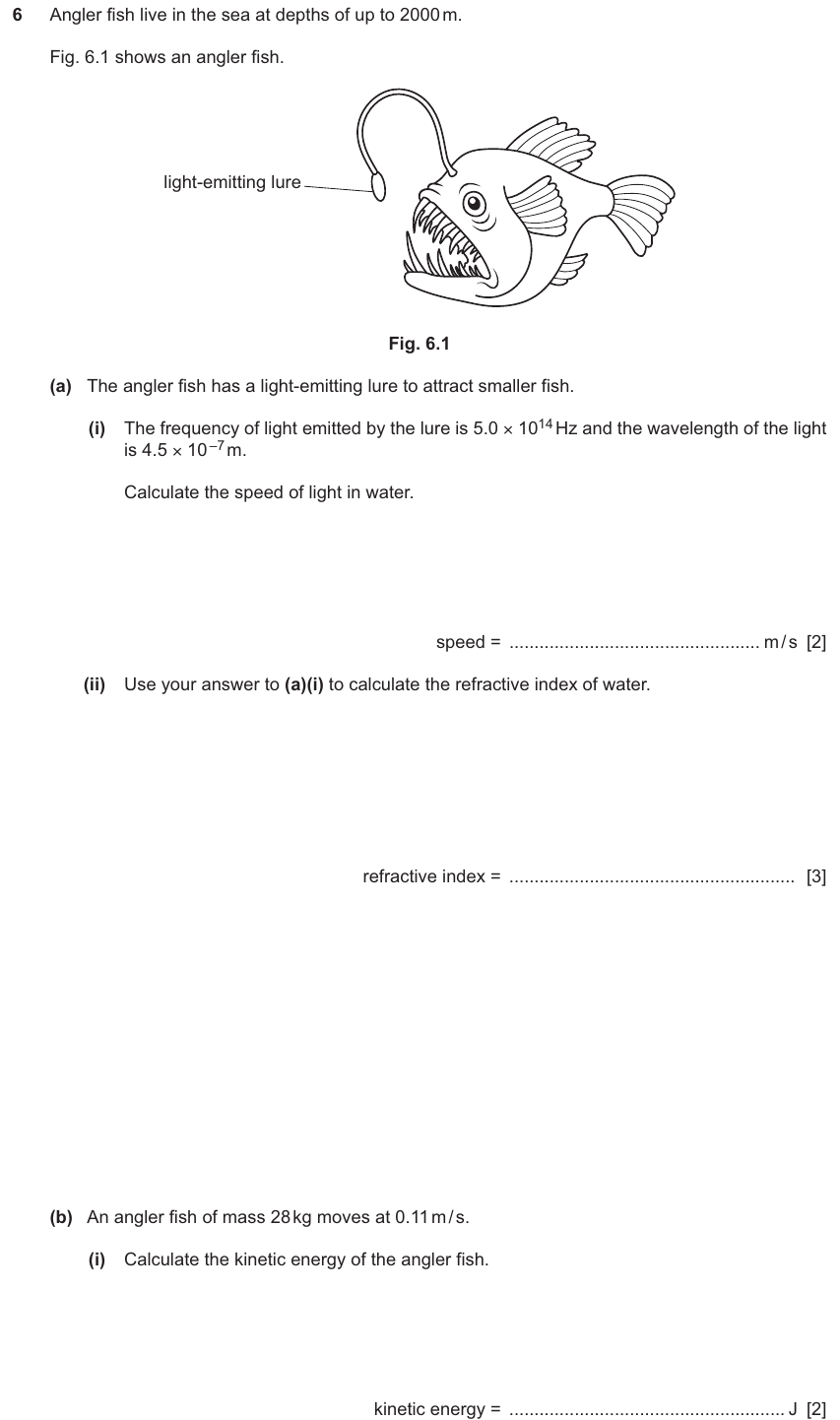

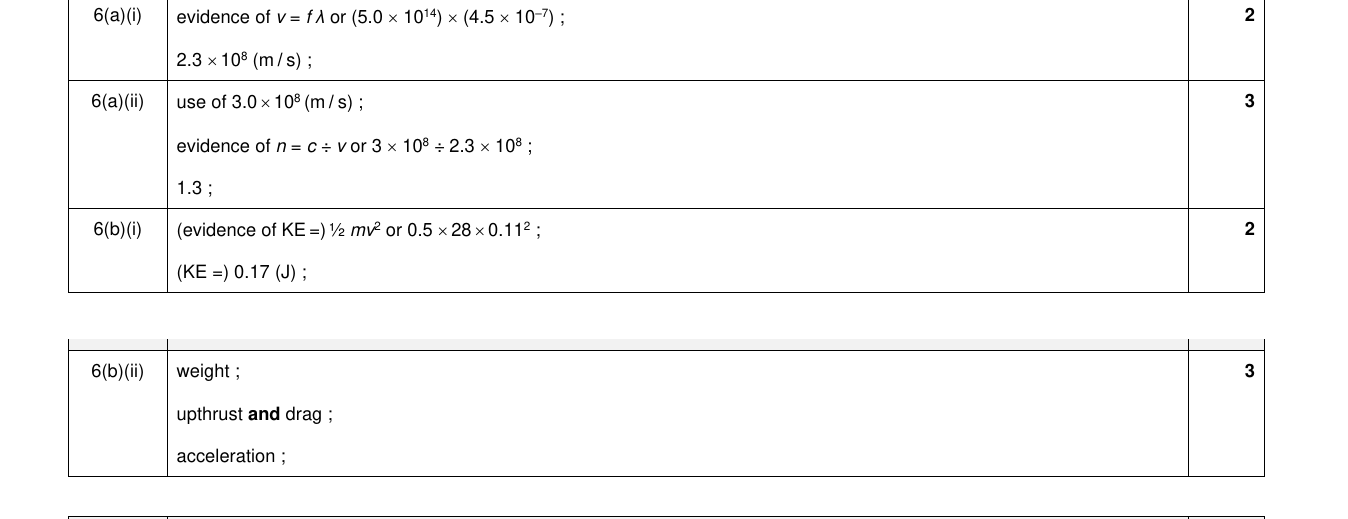

Exercise 5 — IGCSE 0654 Nov 2024 Paper 42 Q6
Show mark scheme

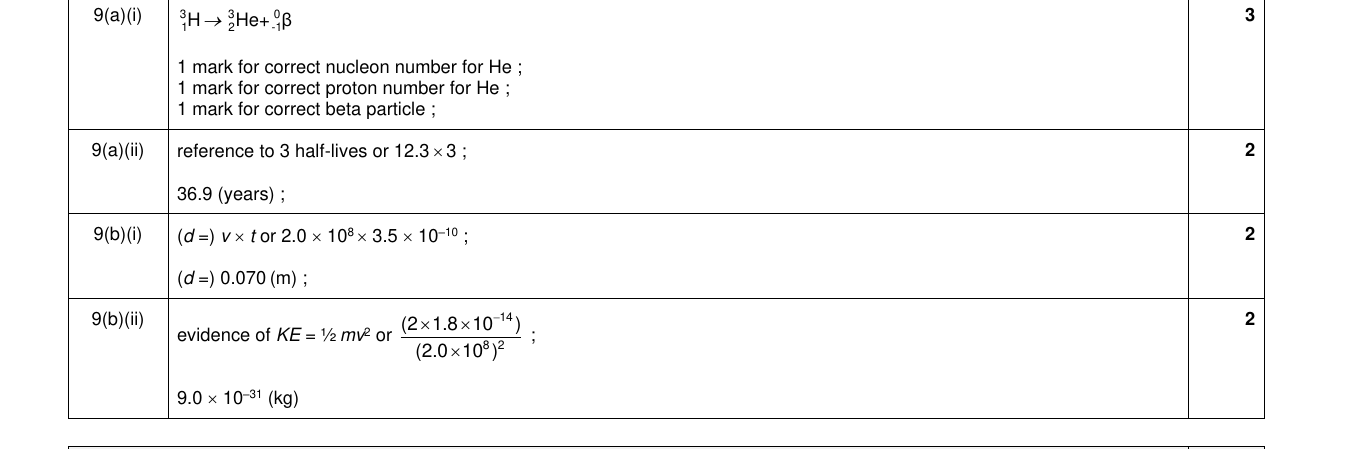

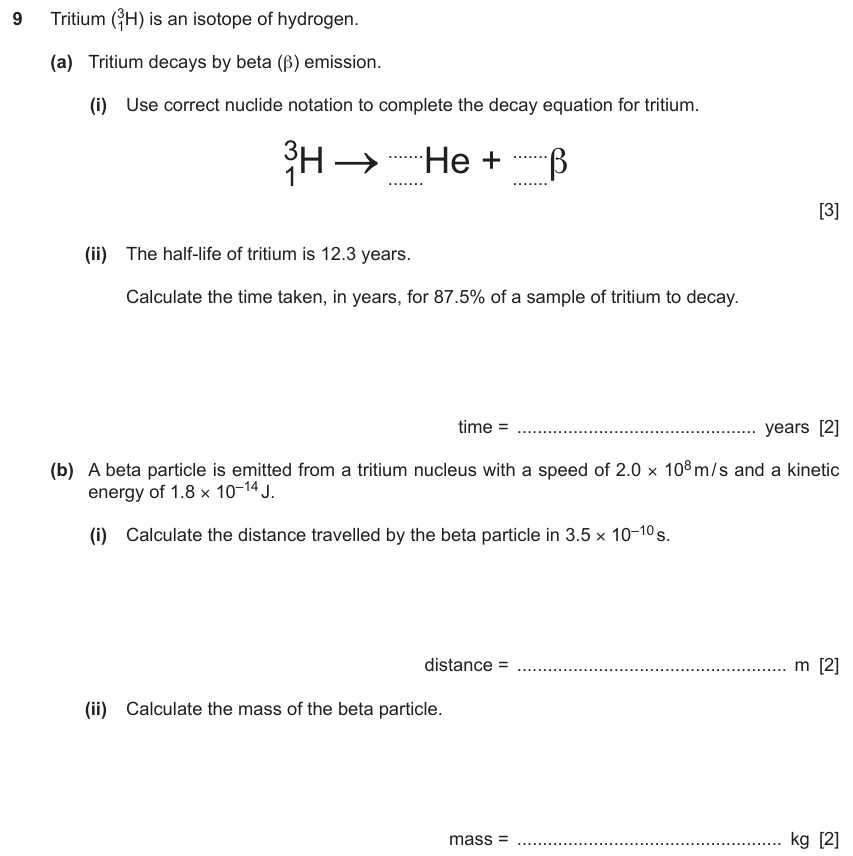

Exercise 6 — IGCSE 0654 Nov 2024 Paper 41 Q9
Show mark scheme
Multiple choice
Speed, velocity & acceleration — Core multiple choice questions16 total · Paper 1

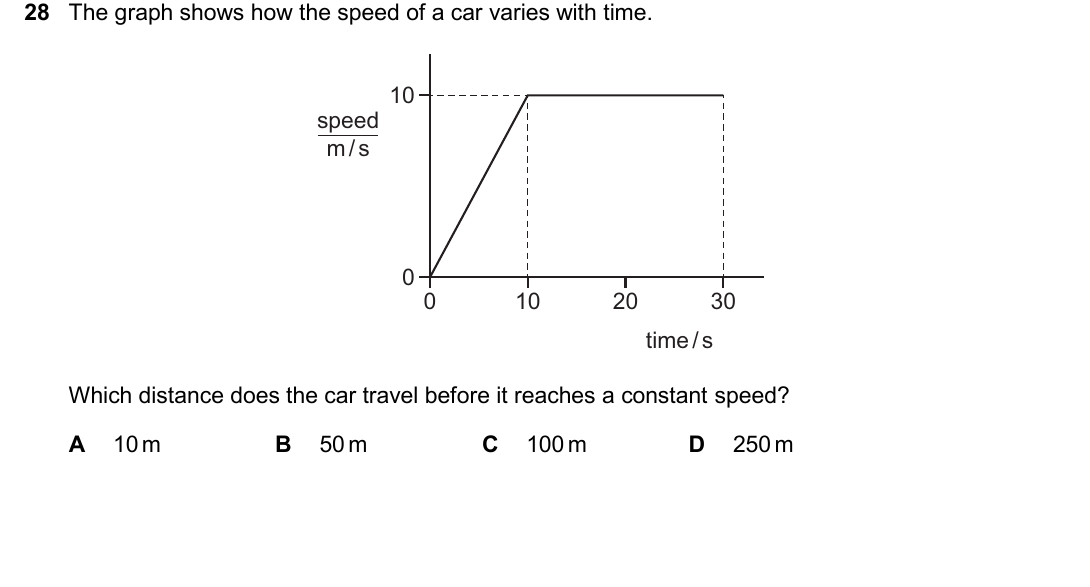

Exercise 1 — IGCSE 0654 March 2025 Paper 12 Q28
Show answer
Correct answer: B

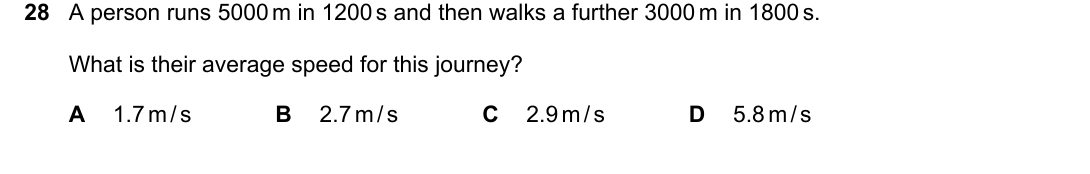

Exercise 2 — IGCSE 0654 Oct/Nov 2024 Paper 11 Q28
Show answer
Correct answer: B

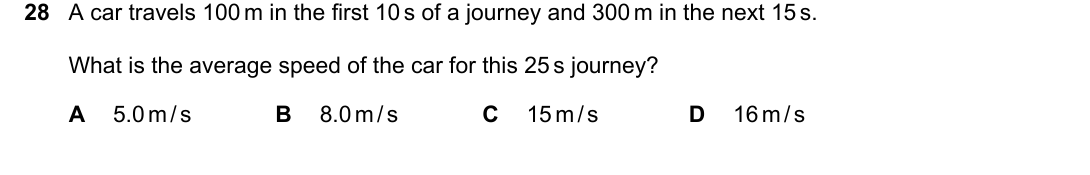

Exercise 3 — IGCSE 0654 March 2024 Paper 12 Q28
Show answer
Correct answer: D

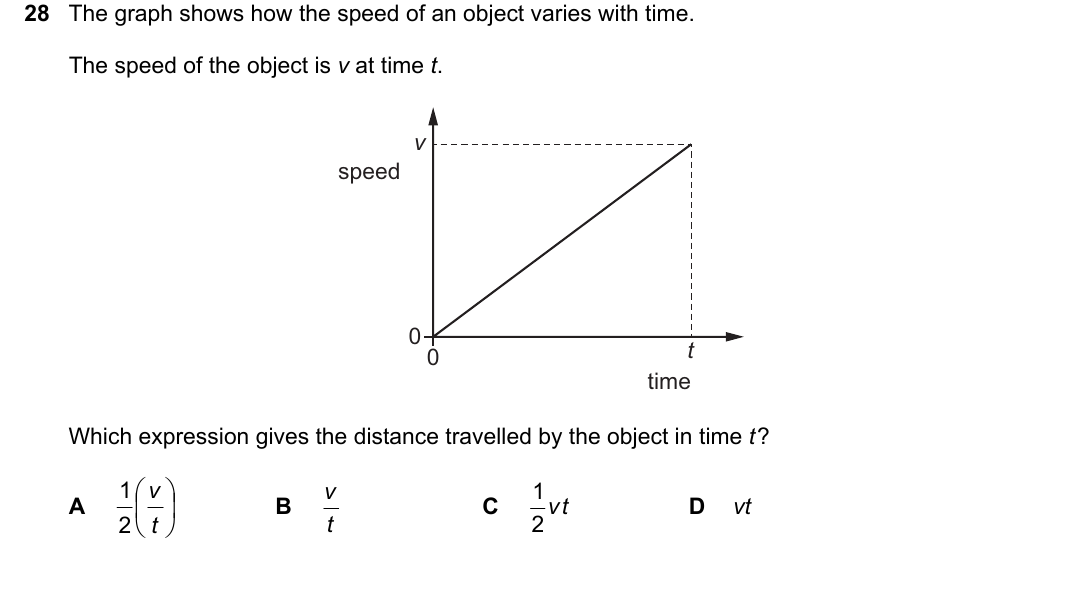

Exercise 4 — IGCSE 0654 May/June 2024 Paper 12 Q28
Show answer
Correct answer: C
Speed, velocity & acceleration — Extended multiple choice questions25 total · Paper 2

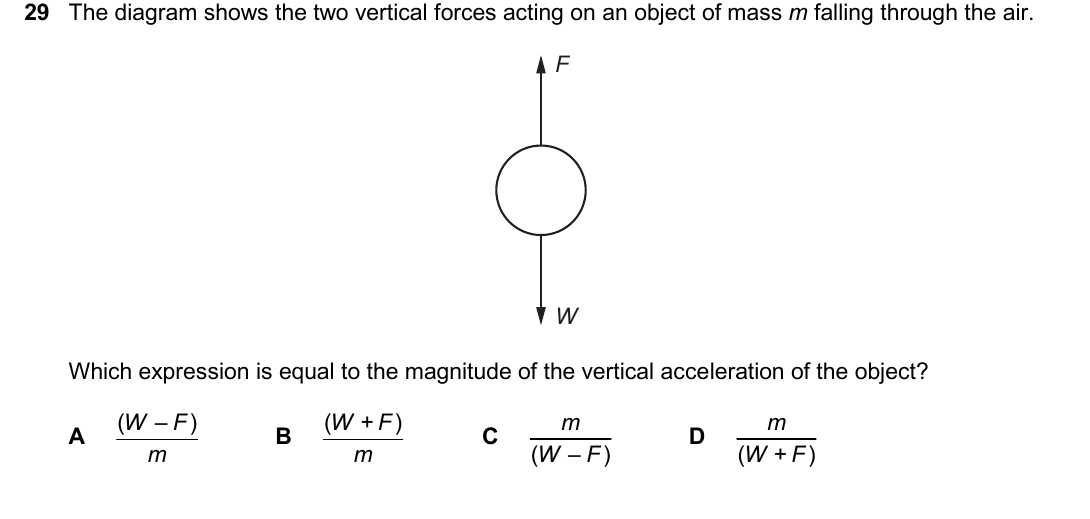

Exercise 5 — IGCSE 0654 Oct/Nov 2025 Paper 21 Q29
Show answer
Correct answer: A

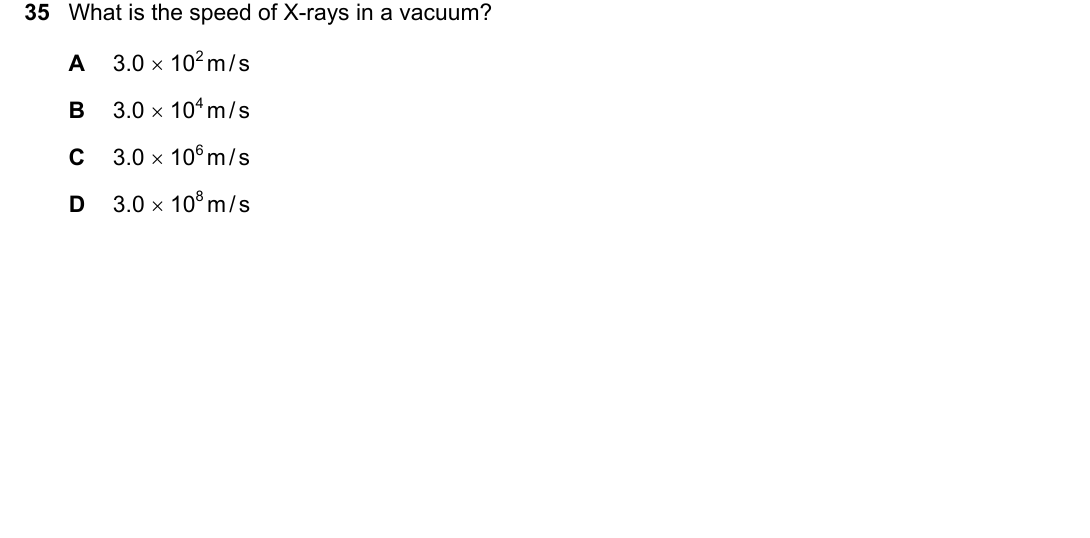

Exercise 6 — IGCSE 0654 May/June 2025 Paper 21 Q35
Show answer
Correct answer: D

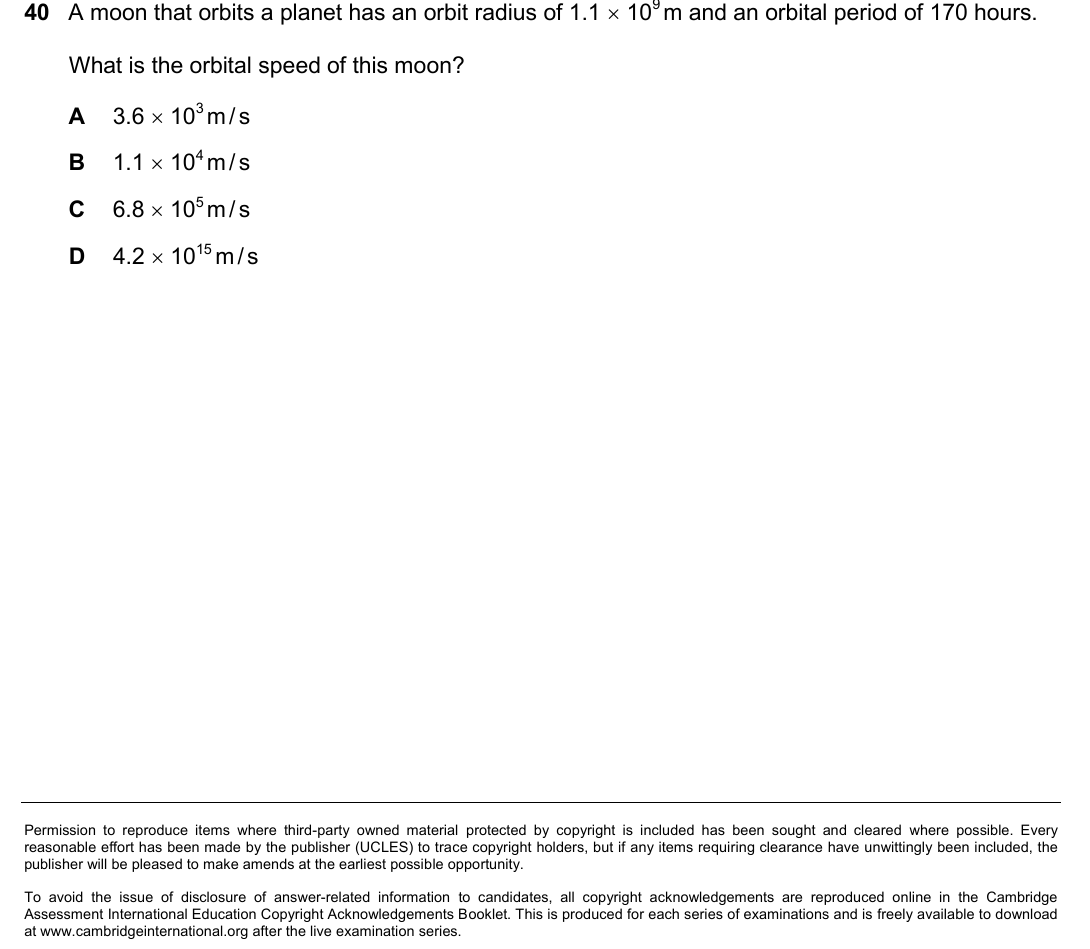

Exercise 7 — IGCSE 0654 Oct/Nov 2025 Paper 21 Q40
Show answer
Correct answer: B

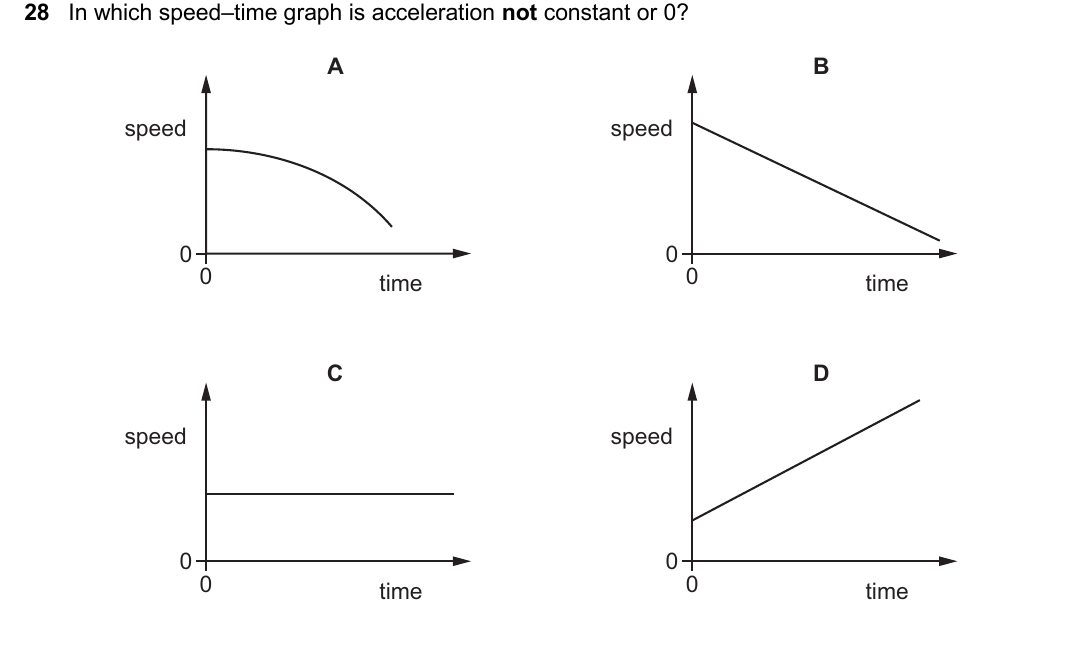

Exercise 8 — IGCSE 0654 May/June 2025 Paper 22 Q28
Show answer
Correct answer: A
