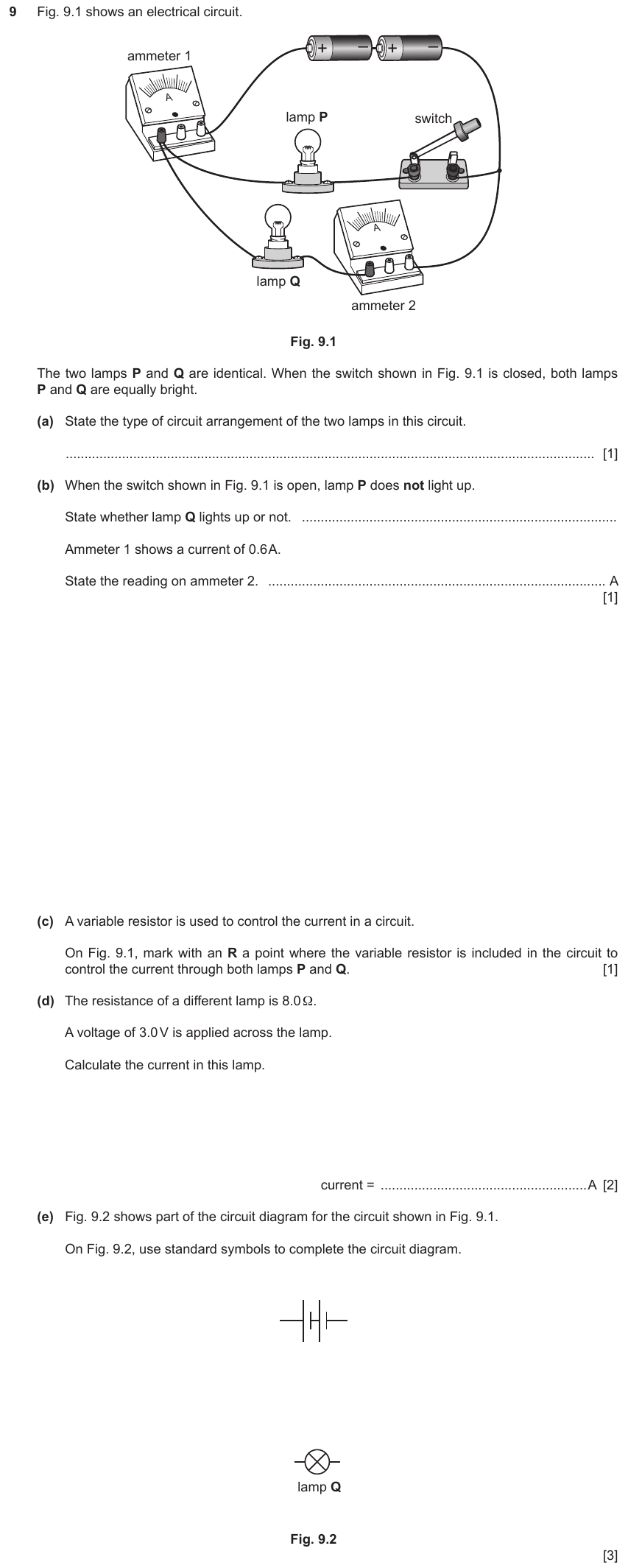

Exercise 1 — IGCSE 0653 Mar 2023 Paper 32 Q9
Show mark scheme
parallel
Cambridge IGCSE·Combined Sciences 0653·Physics
Electricity Magnetism
Key knowledge — Electricity Magnetism
Formulas & equations
Ohm's law: V = IR (voltage = current × resistance)Power: P = IV = I²R = V²/REnergy: E = IVt = PtSeries circuit: R_total = R₁ + R₂ + …Parallel circuit: 1/R_total = 1/R₁ + 1/R₂ + …Charge: Q = It (coulombs = amperes × seconds)Transformer: V₁/V₂ = N₁/N₂ (ideal: V₁I₁ = V₂I₂)
Key facts & rules
- Current: flow of charge (electrons in metals). Unit: ampere (A). Measured with ammeter (in series).
- Voltage (pd): energy transferred per unit charge. Unit: volt (V). Measured with voltmeter (in parallel).
- Resistance: opposition to current. Unit: ohm (Ω).
- Series circuit: same current everywhere; voltage splits; resistance adds.
- Parallel circuit: same voltage across each branch; current splits; total resistance less than smallest.
- Direct current (DC): current always in same direction (batteries).
- Alternating current (AC): current reverses direction periodically (mains electricity, 50 Hz in UK).
- Magnetic field: caused by moving charges/current. Right-hand rule for solenoid.
- Motor effect: current-carrying conductor in magnetic field experiences a force (F = BIl).
- Electromagnetic induction: moving conductor in magnetic field (or changing flux) induces EMF.
- Step-up transformer: more turns on secondary → higher voltage, lower current.
- Step-down transformer: fewer turns on secondary → lower voltage, higher current.
IGCSE Physics — Electricity & Magnetism
118 Cambridge IGCSE 0653 Combined Sciences past paper questions on electricity & magnetism, across Theory, Multiple Choice and Alternative to Practical.
About Electricity & Magnetism on IGCSE 0653
Electric circuits carry current driven by a potential difference. Ohm's law relates voltage, current and resistance. Magnetic fields are produced by current-carrying conductors, and electromagnetic induction underpins generators and transformers.
What's covered:
- Current, voltage and resistance: V = IR
- Series and parallel circuits
- Electrical power: P = IV
- Resistance: factors and combining resistors
- Magnetic fields of bar magnets and solenoids
- The motor effect and Fleming's left-hand rule
- Electromagnetic induction and generators
- Transformers: step-up and step-down
Theory
Electricity & Magnetism — Core5 · Paper 3

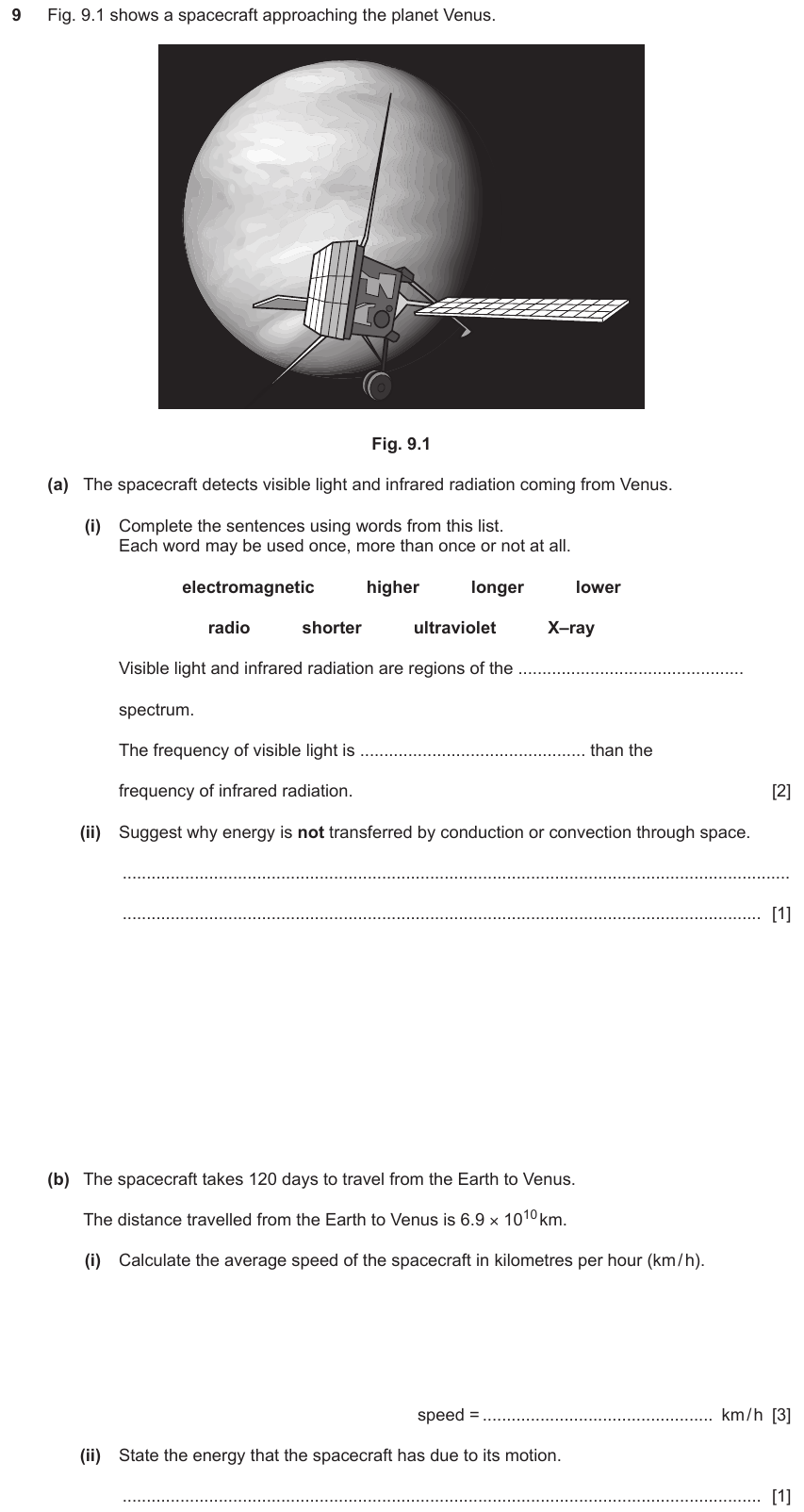

Exercise 2 — IGCSE 0653 Mar 2024 Paper 32 Q9
Show mark scheme
electromagnetic

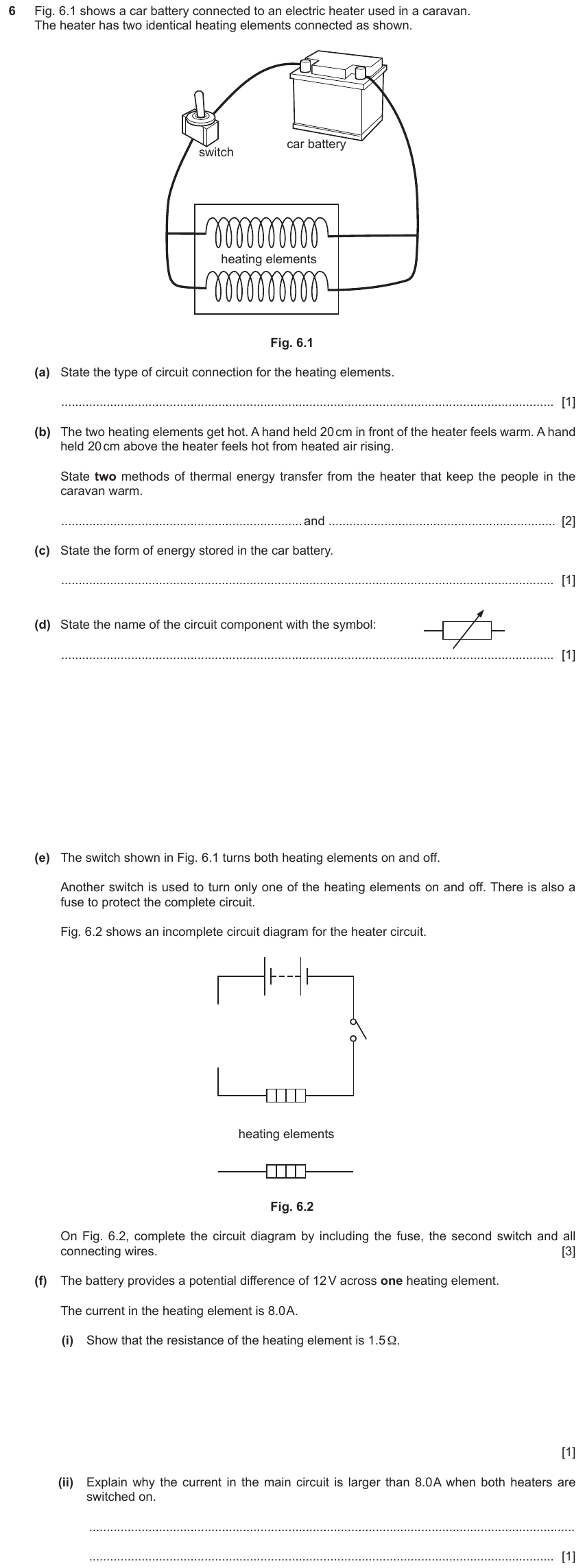

Exercise 3 — IGCSE 0653 May/Jun 2023 Paper 33 Q6
Show mark scheme
parallel

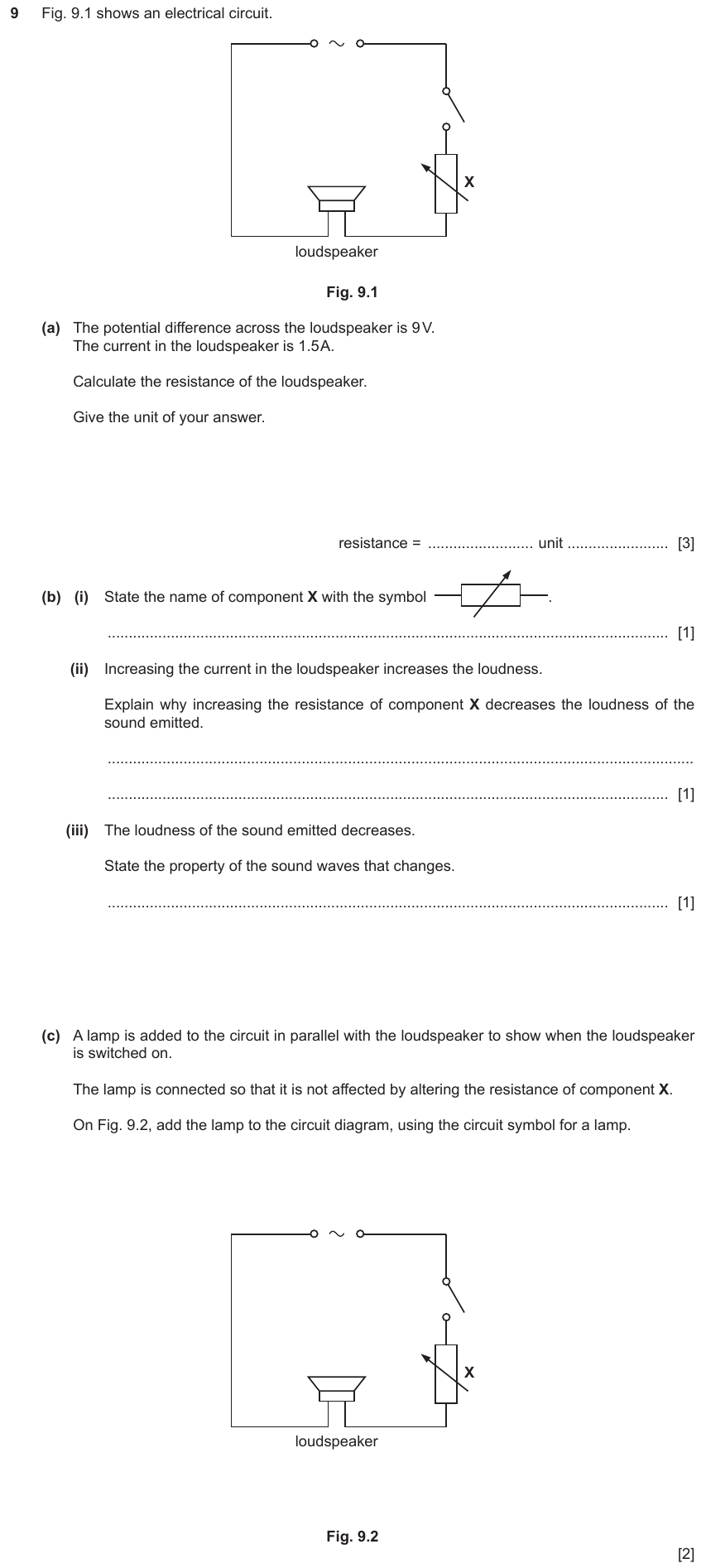

Exercise 4 — IGCSE 0653 May/Jun 2023 Paper 32 Q9
Show mark scheme
resistance = voltage current (in any form) / (R) = 9 1.5

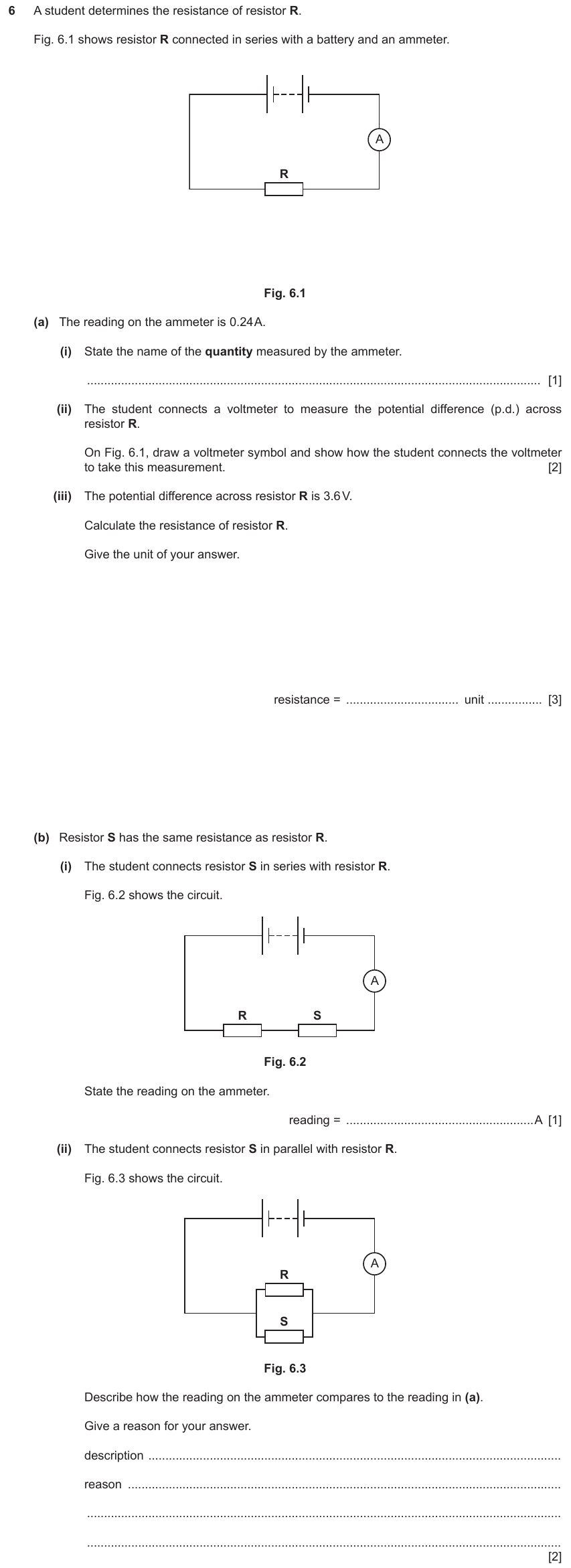

Exercise 5 — IGCSE 0653 Oct/Nov 2023 Paper 31 Q6
Show mark scheme
current
Electricity & Magnetism — Extended5 · Paper 4

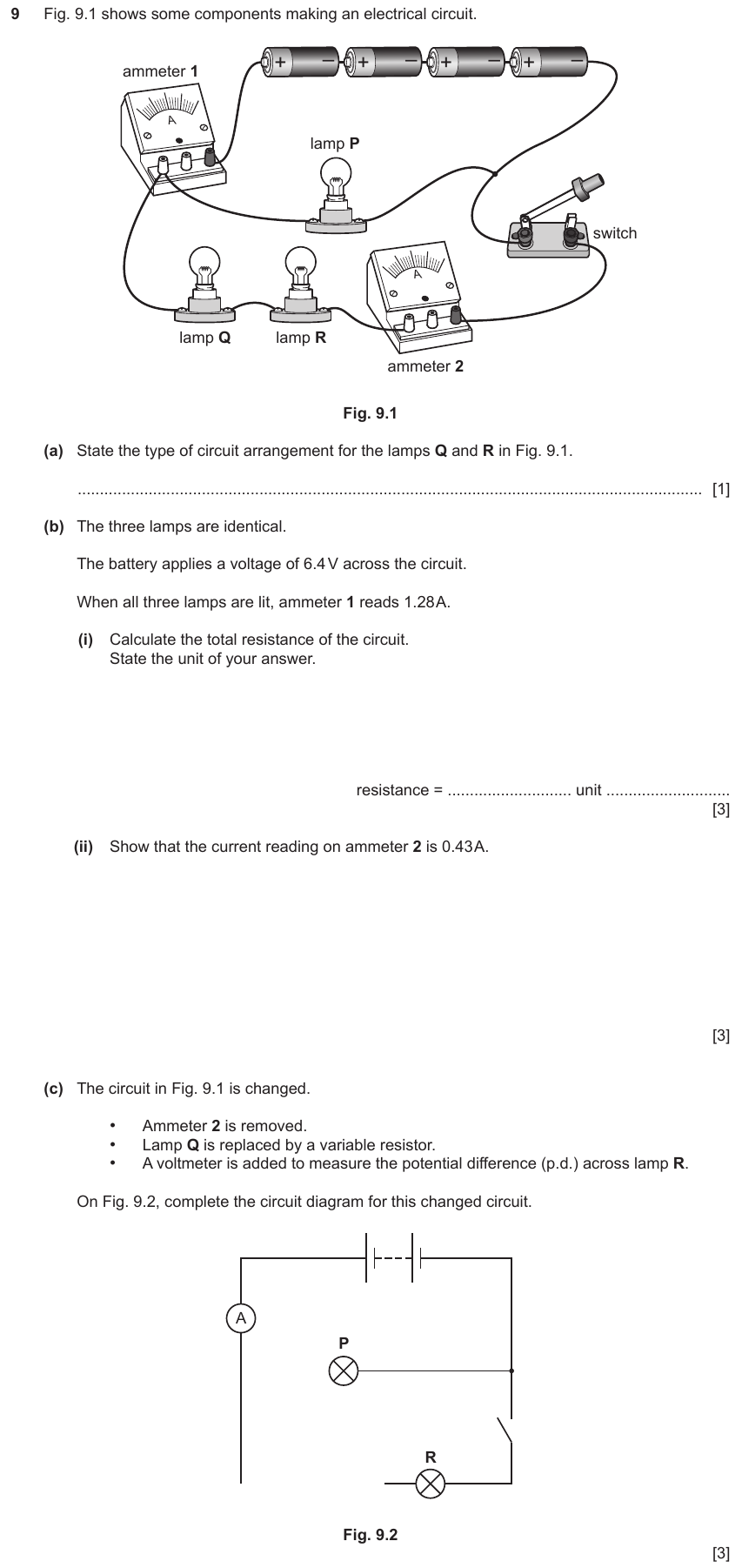

Exercise 1 — IGCSE 0653 Mar 2023 Paper 42 Q9
Show mark scheme
series

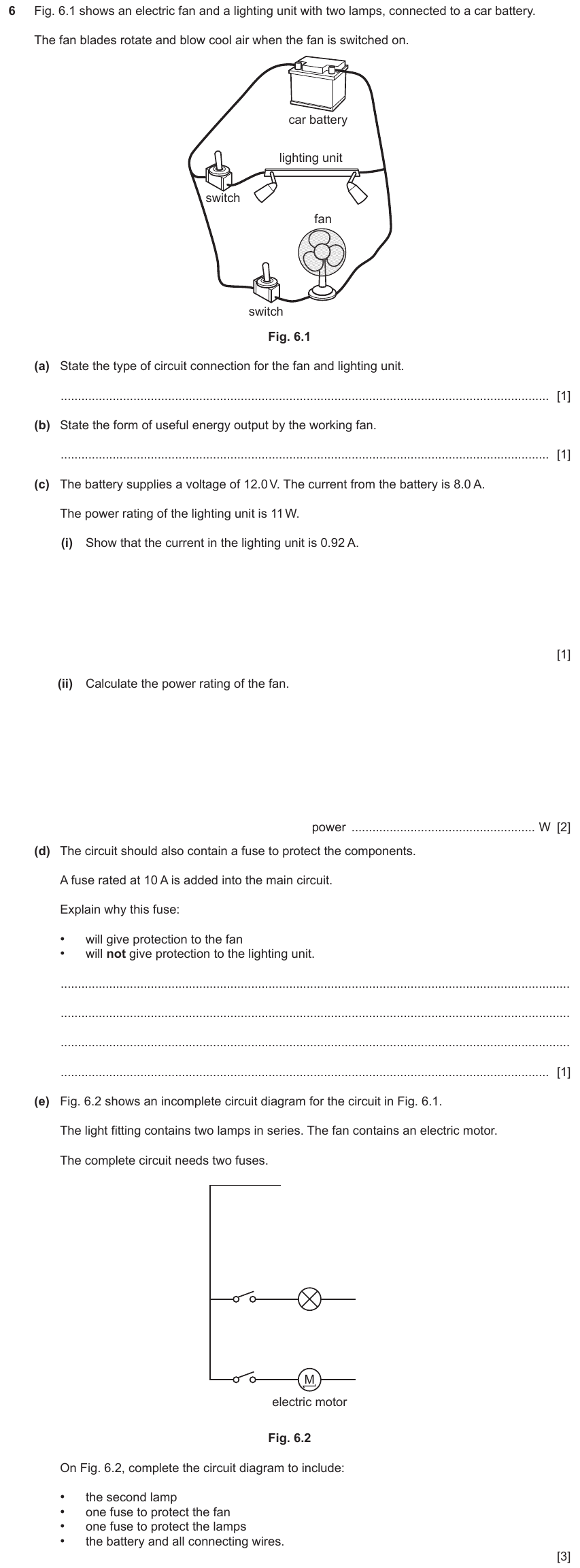

Exercise 2 — IGCSE 0653 May/Jun 2023 Paper 43 Q6
Show mark scheme
parallel

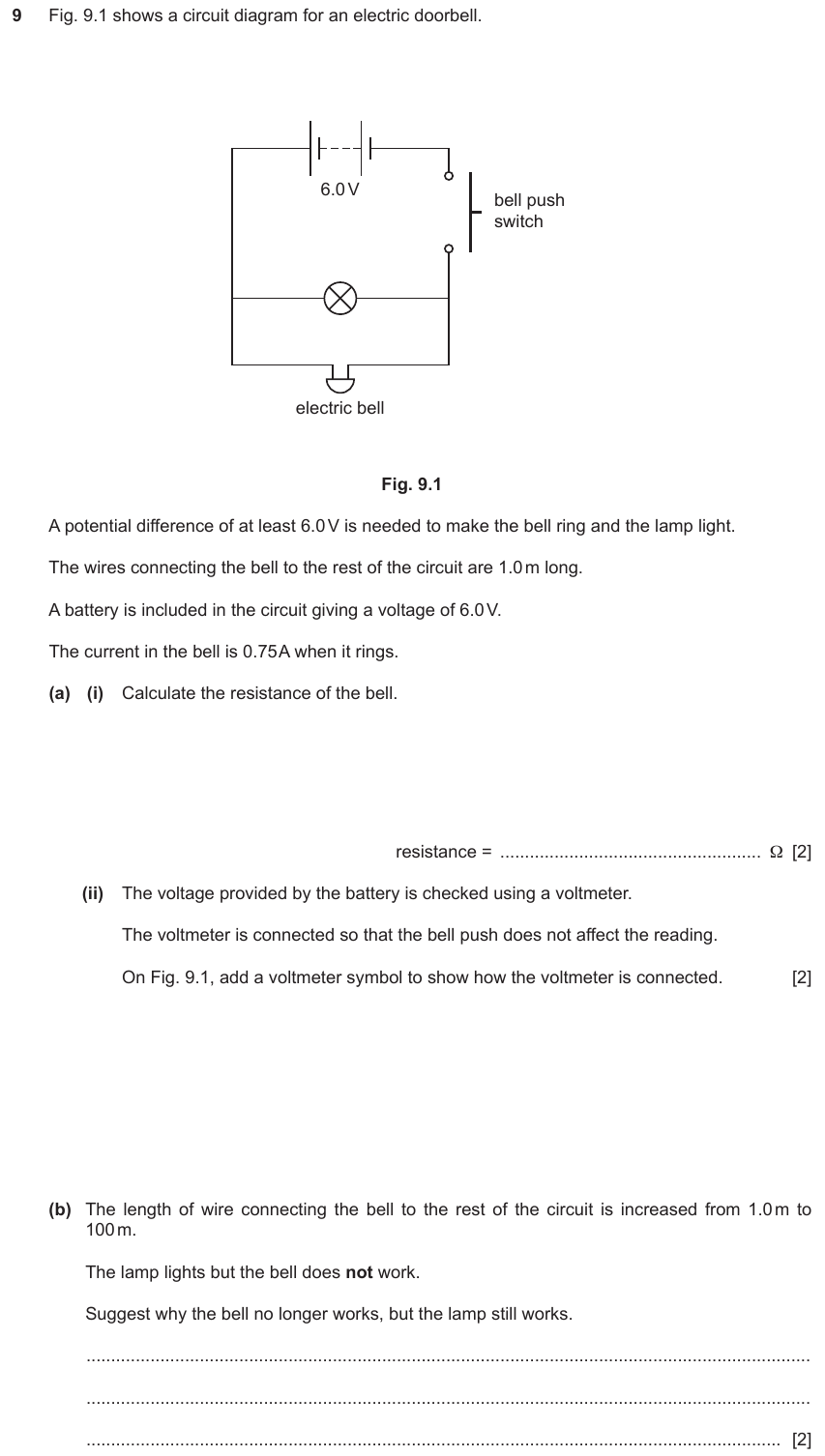

Exercise 3 — IGCSE 0653 May/Jun 2023 Paper 42 Q9
Show mark scheme
resistance = p.d. current (stated or evidence of use) / (R =) 6.0 0.75

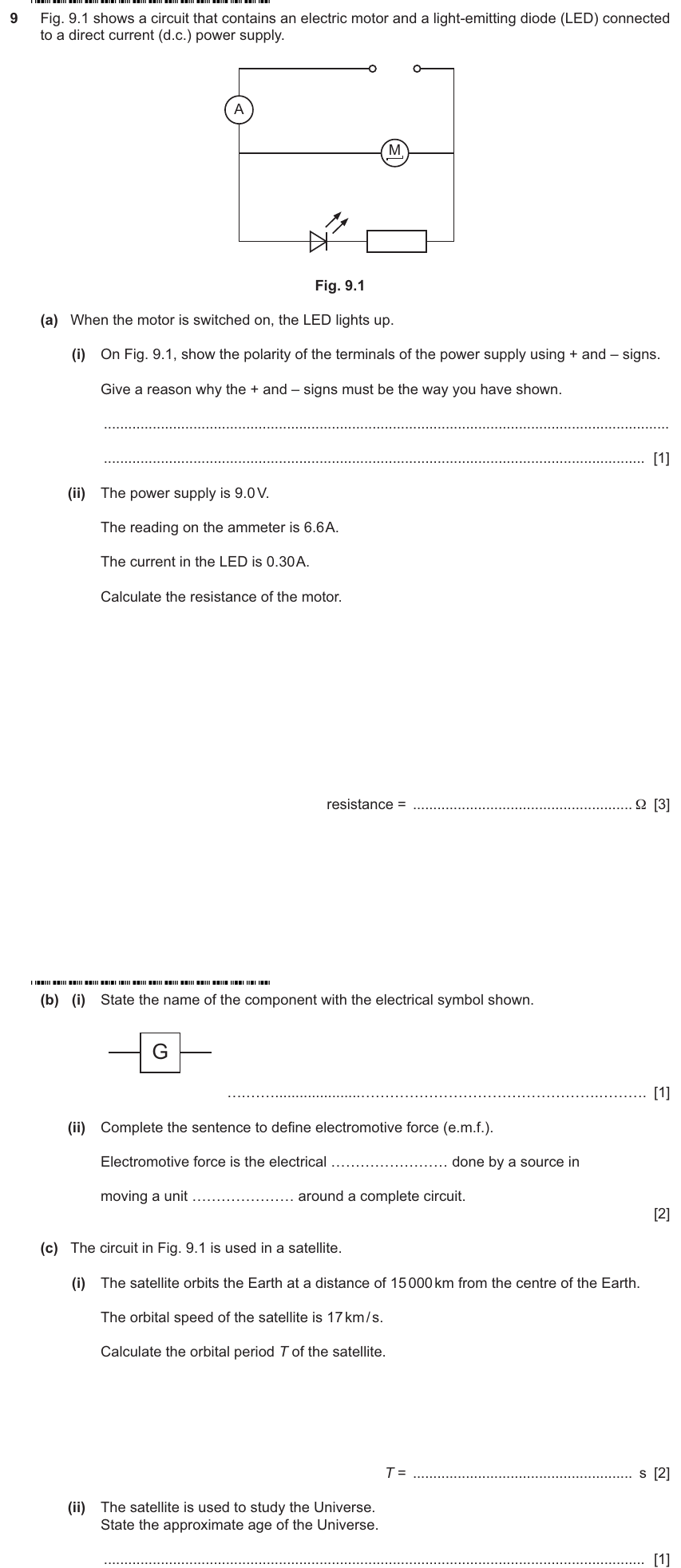

Exercise 4 — IGCSE 0653 May/Jun 2025 Paper 41 Q9
Show mark scheme
current in motor = 6.6 – 0.30 = 6.3 A

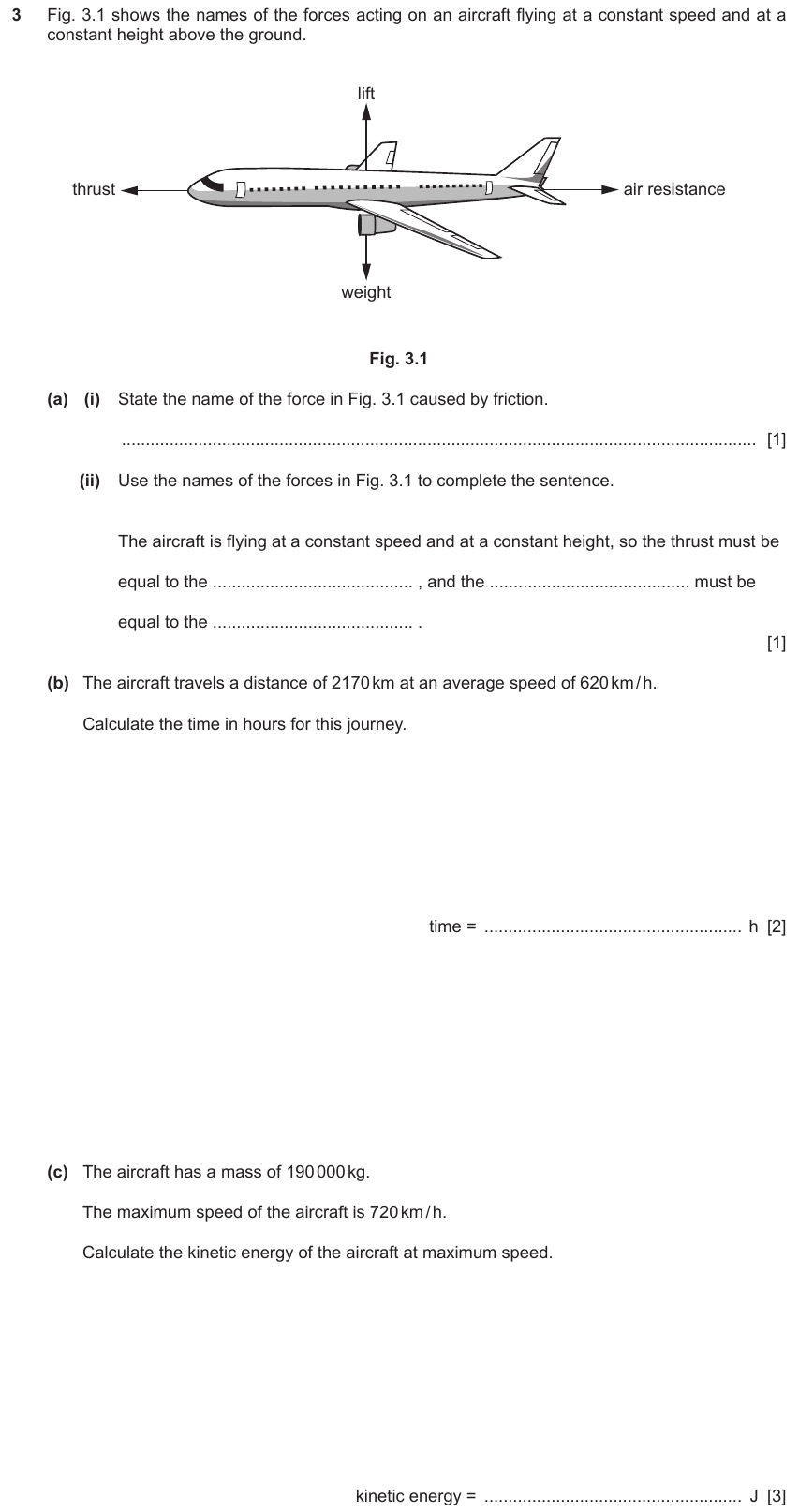

Exercise 5 — IGCSE 0653 Oct/Nov 2023 Paper 41 Q3
Show mark scheme
air resistance
Multiple choice
Electricity & Magnetism — Core MCQ52 · Paper 1

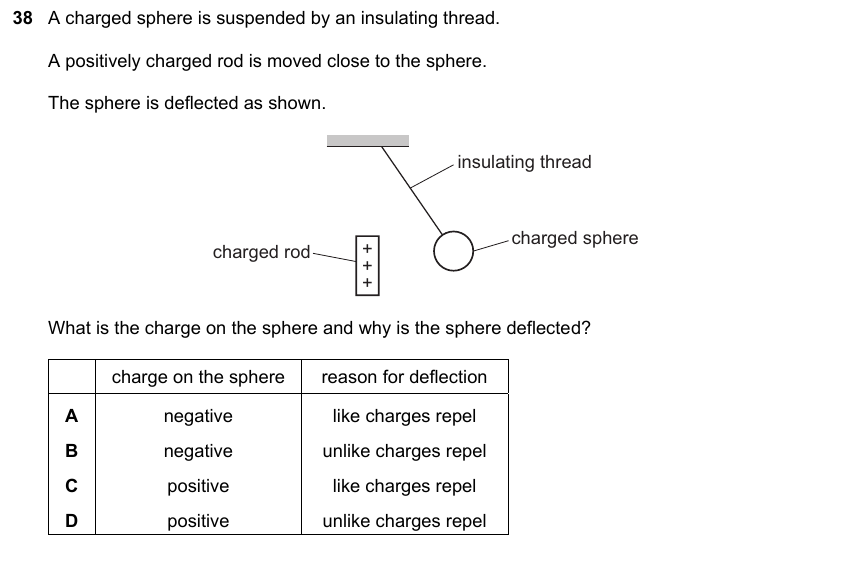

Question 1 — IGCSE 0653 Mar 2023 Paper 12 Q38
Show answer
Correct answer: C

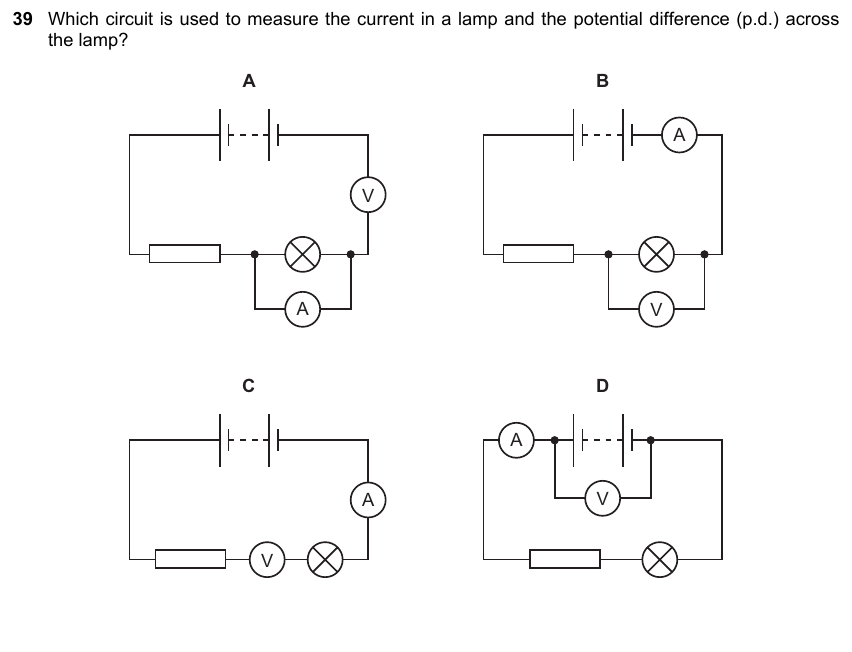

Question 2 — IGCSE 0653 Mar 2023 Paper 12 Q39
Show answer
Correct answer: B

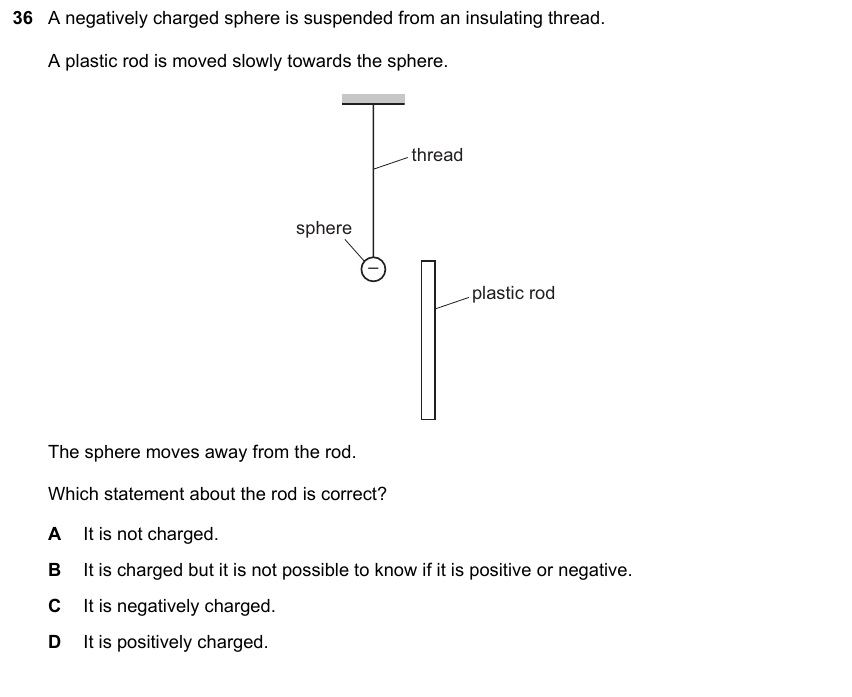

Question 3 — IGCSE 0653 Mar 2024 Paper 12 Q36
Show answer
Correct answer: C

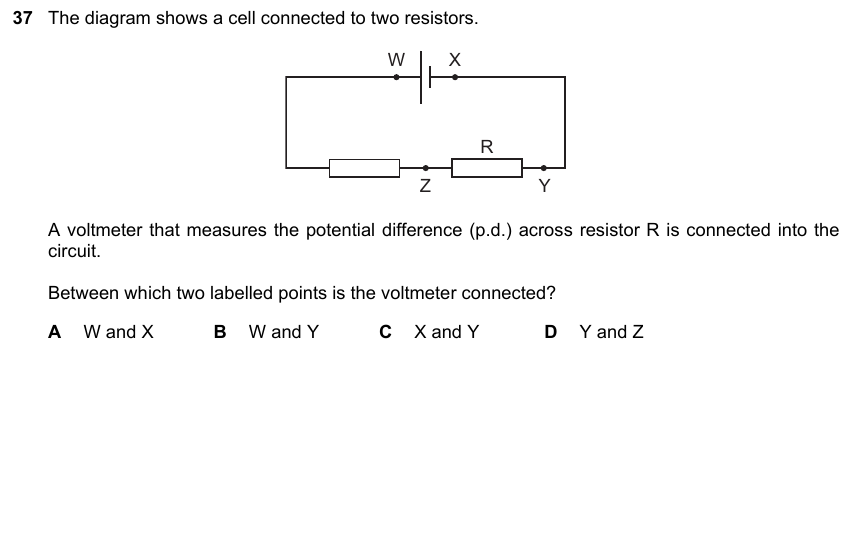

Question 4 — IGCSE 0653 Mar 2024 Paper 12 Q37
Show answer
Correct answer: D

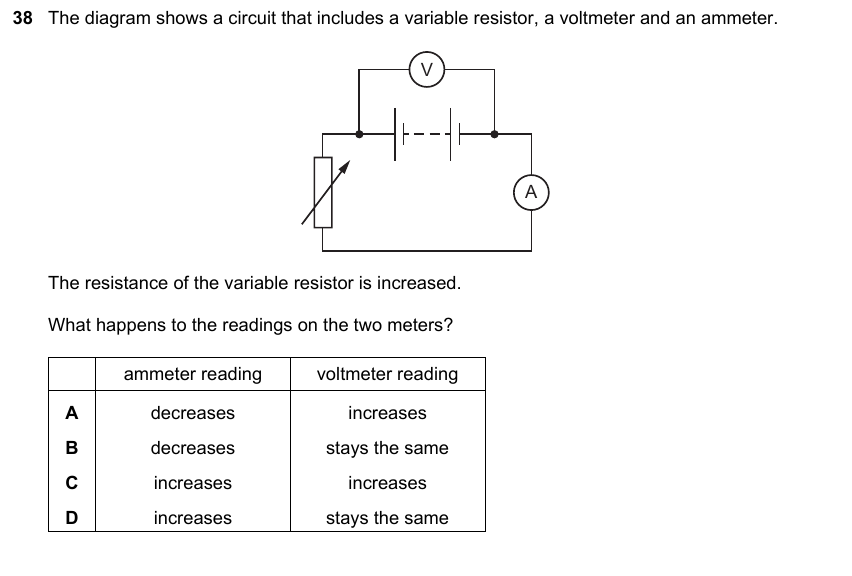

Question 5 — IGCSE 0653 Mar 2024 Paper 12 Q38
Show answer
Correct answer: B

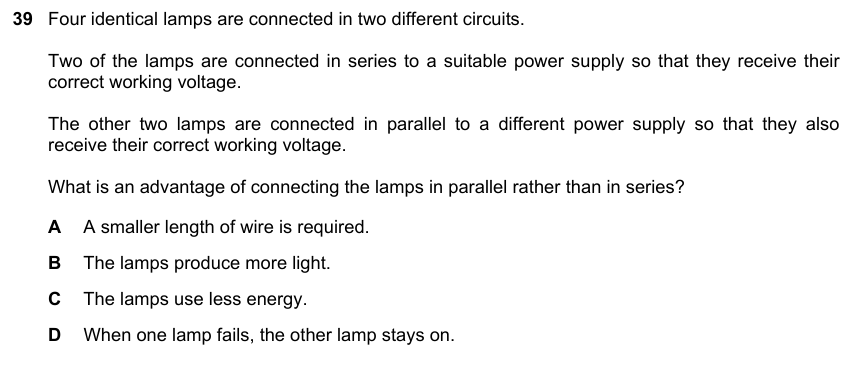

Question 6 — IGCSE 0653 Mar 2024 Paper 12 Q39
Show answer
Correct answer: D

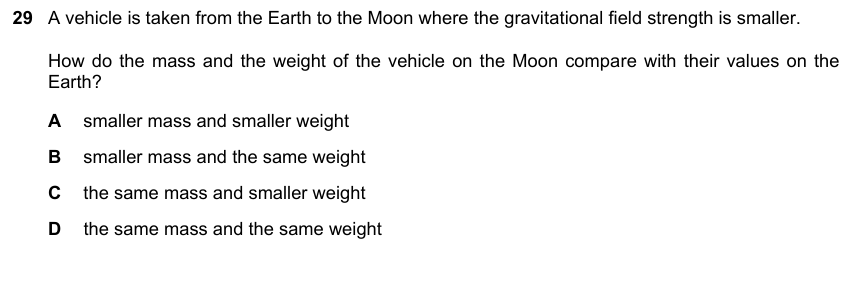

Question 7 — IGCSE 0653 May/Jun 2023 Paper 12 Q29
Show answer
Correct answer: C

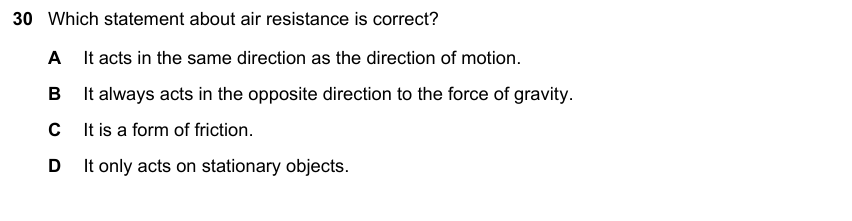

Question 8 — IGCSE 0653 May/Jun 2023 Paper 12 Q30
Show answer
Correct answer: C

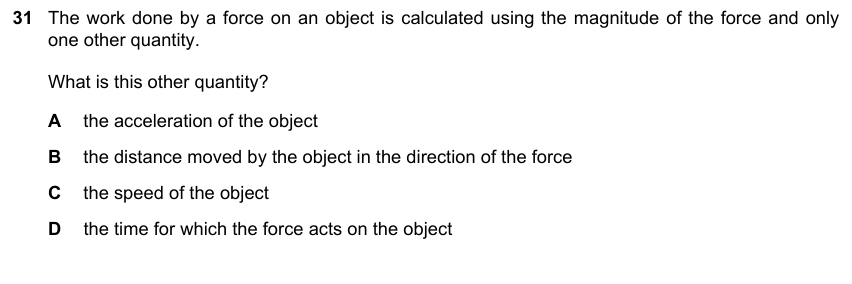

Question 9 — IGCSE 0653 May/Jun 2023 Paper 12 Q31
Show answer
Correct answer: B

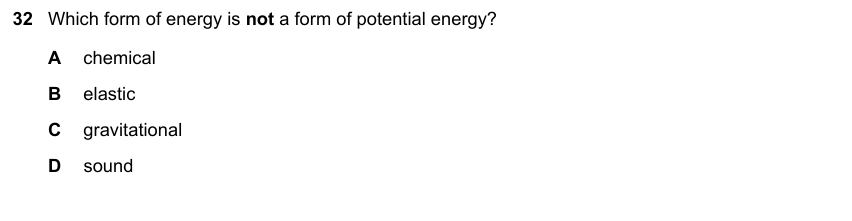

Question 10 — IGCSE 0653 May/Jun 2023 Paper 12 Q32
Show answer
Correct answer: D

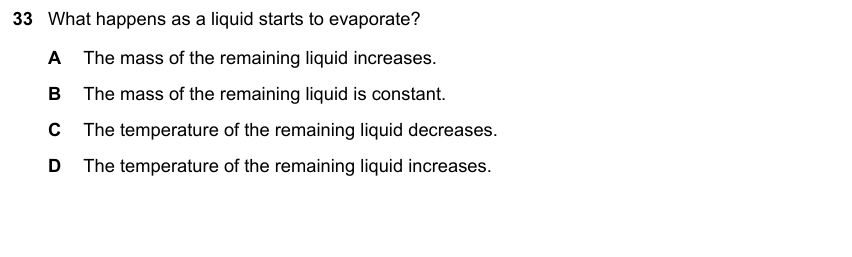

Question 11 — IGCSE 0653 May/Jun 2023 Paper 12 Q33
Show answer
Correct answer: C

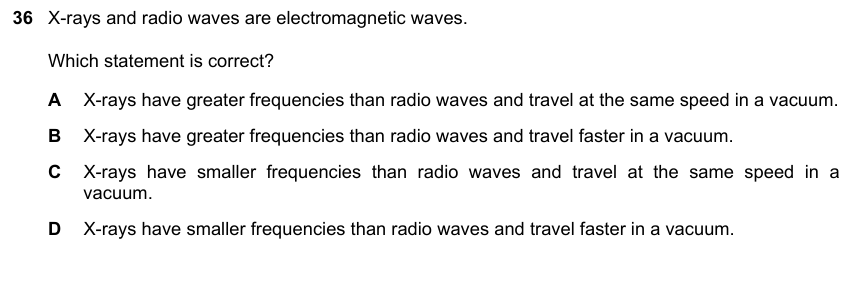

Question 12 — IGCSE 0653 May/Jun 2023 Paper 13 Q36
Show answer
Correct answer: A

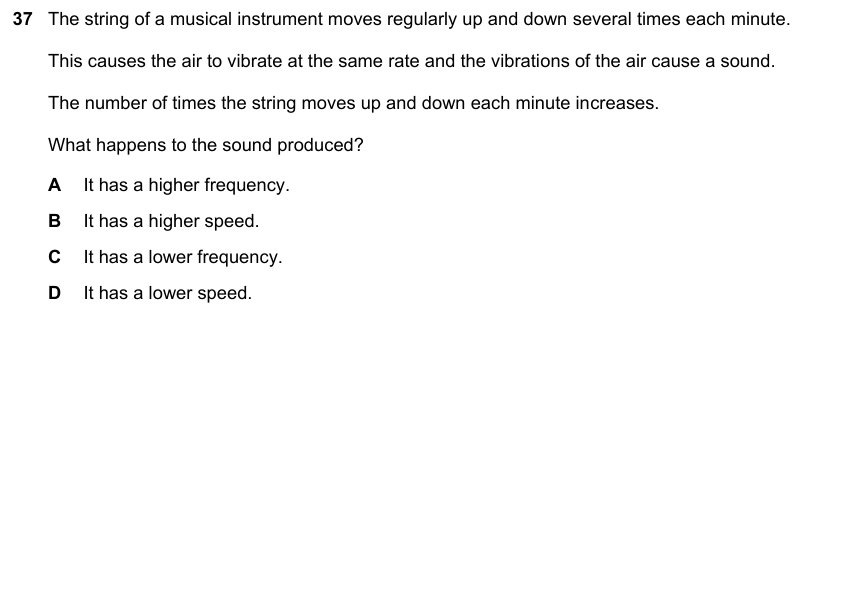

Question 13 — IGCSE 0653 May/Jun 2023 Paper 11 Q37
Show answer
Correct answer: A

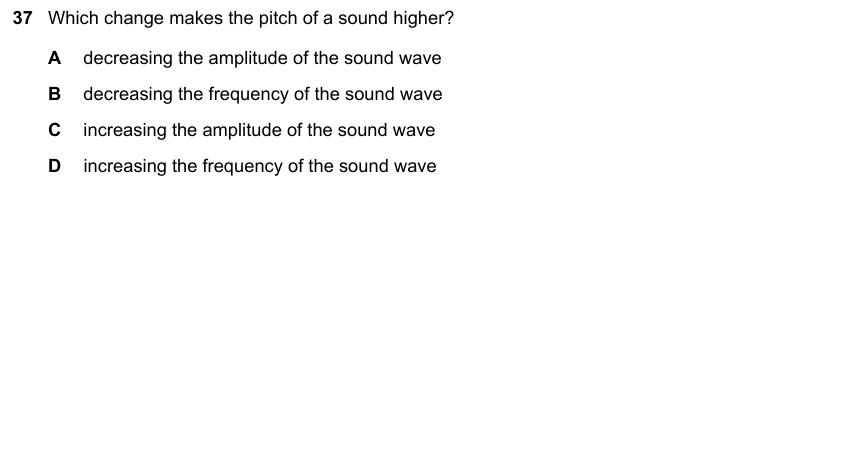

Question 14 — IGCSE 0653 May/Jun 2023 Paper 12 Q37
Show answer
Correct answer: D

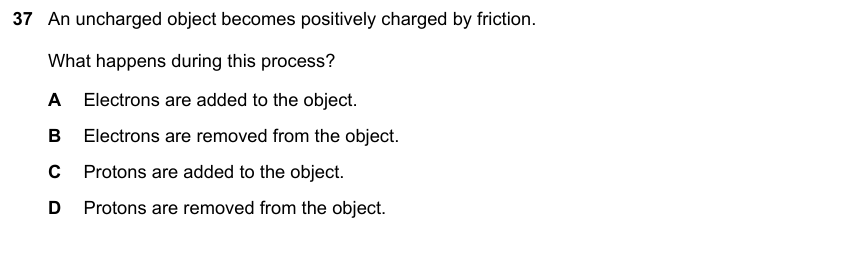

Question 15 — IGCSE 0653 May/Jun 2023 Paper 13 Q37
Show answer
Correct answer: B

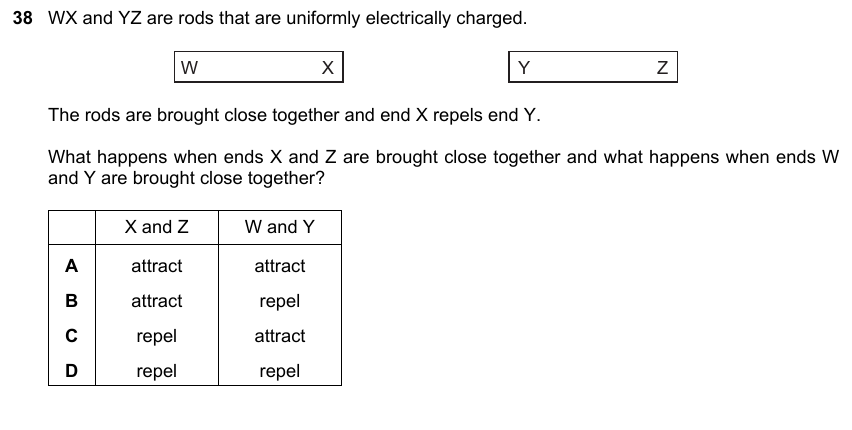

Question 16 — IGCSE 0653 May/Jun 2023 Paper 11 Q38
Show answer
Correct answer: D
Question 17 — IGCSE 0653 May/Jun 2023 Paper 12 Q38
Show answer
Correct answer: D

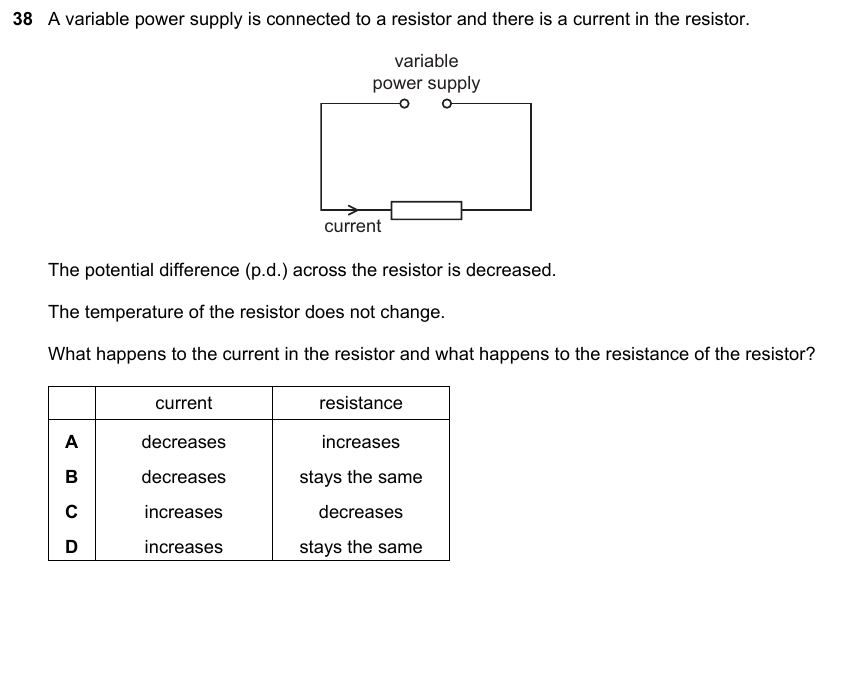

Question 18 — IGCSE 0653 May/Jun 2023 Paper 13 Q38
Show answer
Correct answer: B

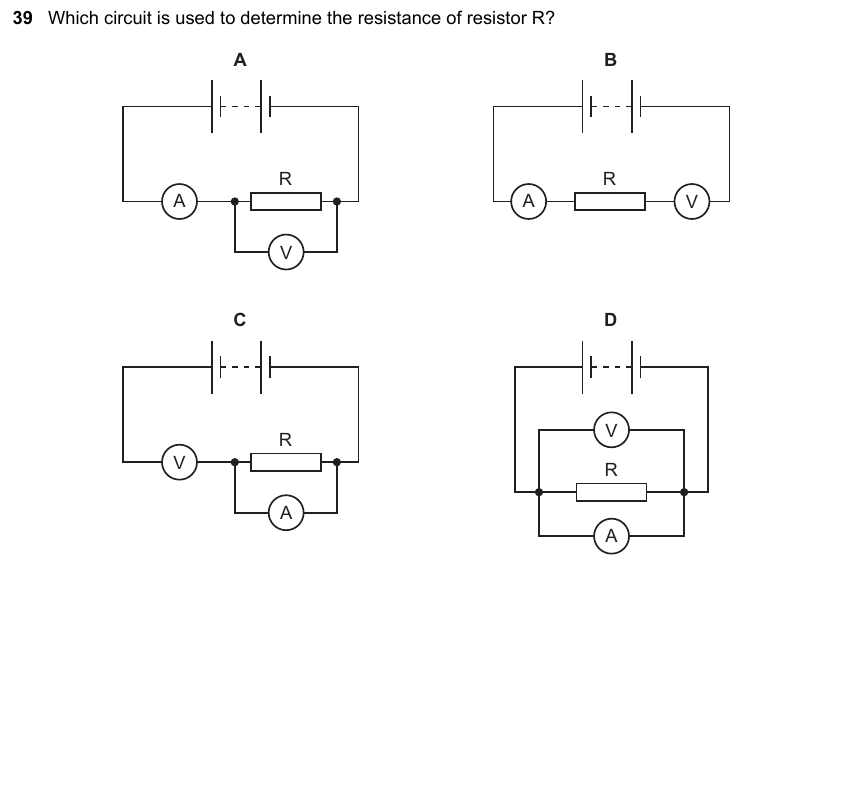

Question 19 — IGCSE 0653 May/Jun 2023 Paper 11 Q39
Show answer
Correct answer: A

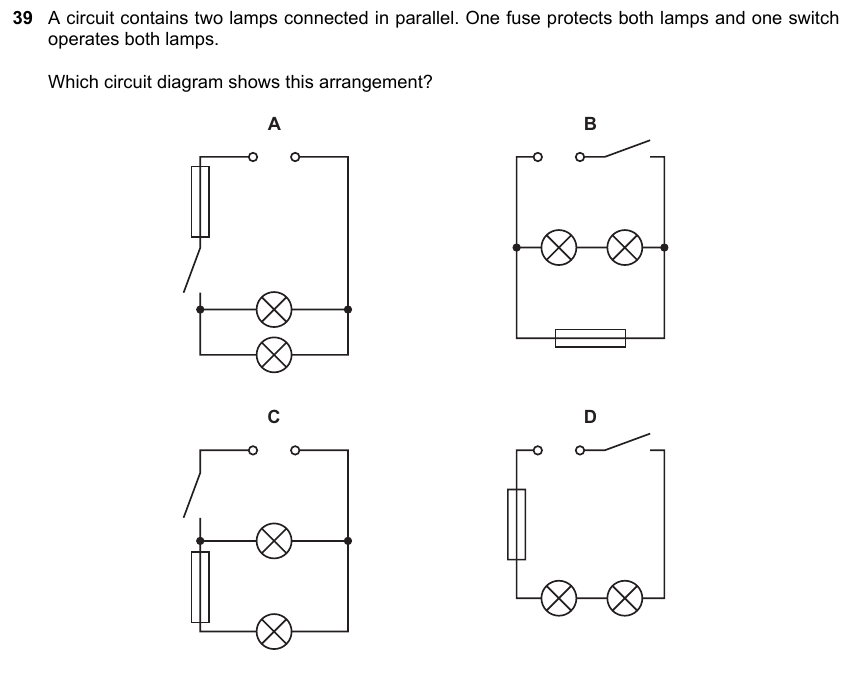

Question 20 — IGCSE 0653 May/Jun 2023 Paper 12 Q39
Show answer
Correct answer: A

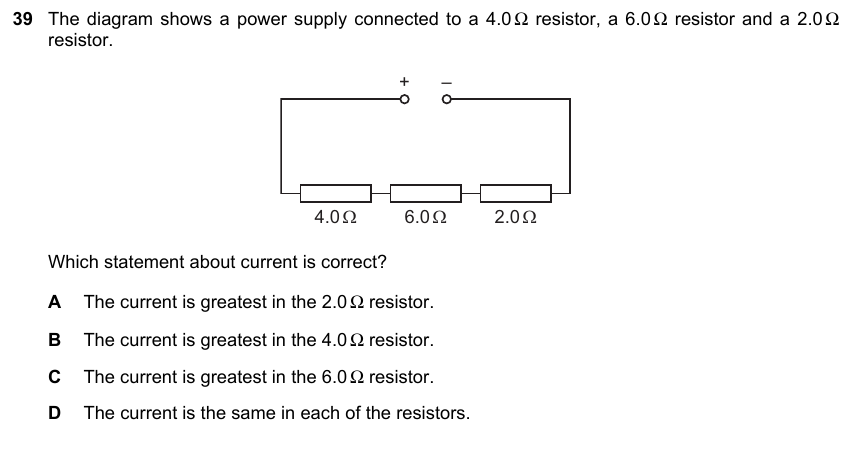

Question 21 — IGCSE 0653 May/Jun 2023 Paper 13 Q39
Show answer
Correct answer: D

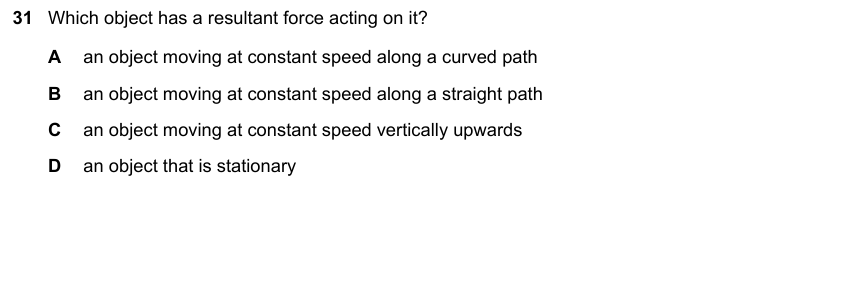

Question 22 — IGCSE 0653 May/Jun 2024 Paper 11 Q31
Show answer
Correct answer: A

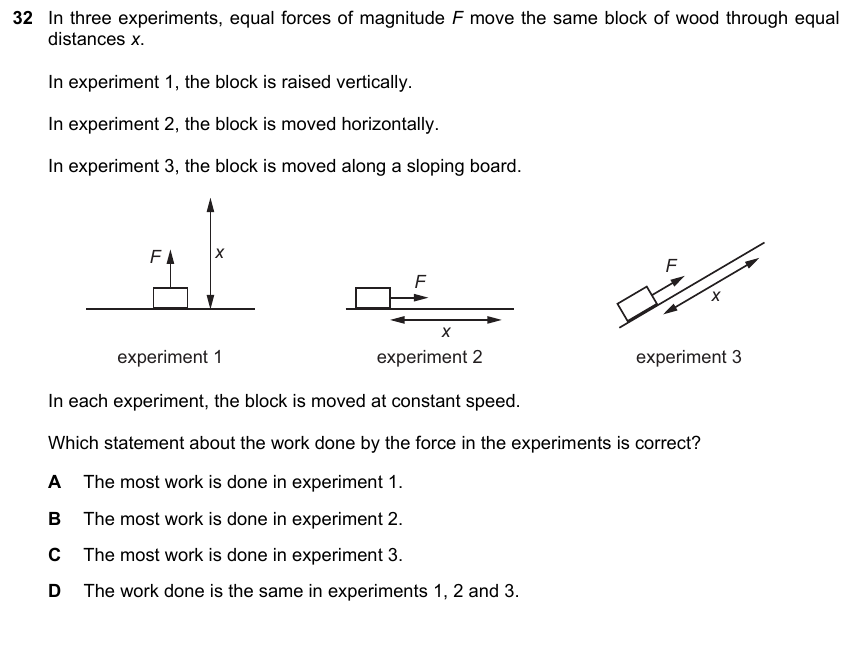

Question 23 — IGCSE 0653 May/Jun 2024 Paper 11 Q32
Show answer
Correct answer: D

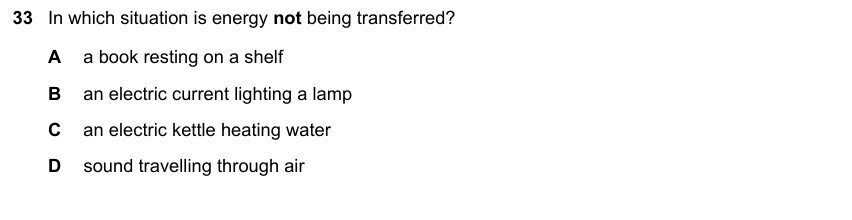

Question 24 — IGCSE 0653 May/Jun 2024 Paper 11 Q33
Show answer
Correct answer: A

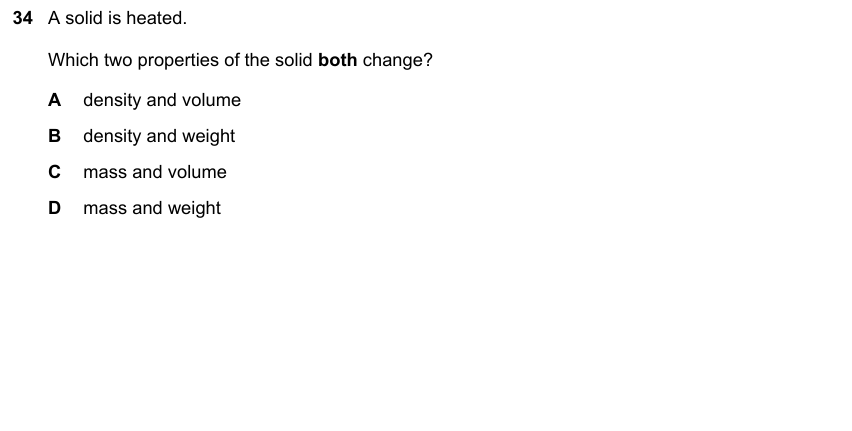

Question 25 — IGCSE 0653 May/Jun 2024 Paper 13 Q34
Show answer
Correct answer: A

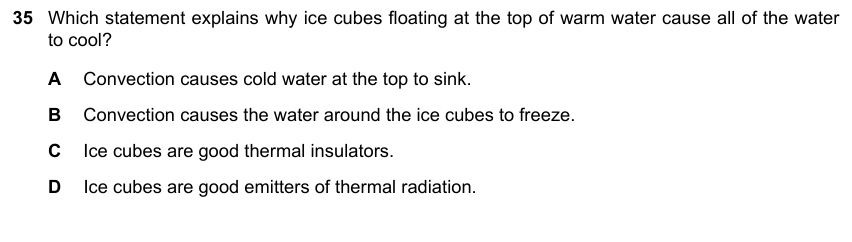

Question 26 — IGCSE 0653 May/Jun 2024 Paper 13 Q35
Show answer
Correct answer: A

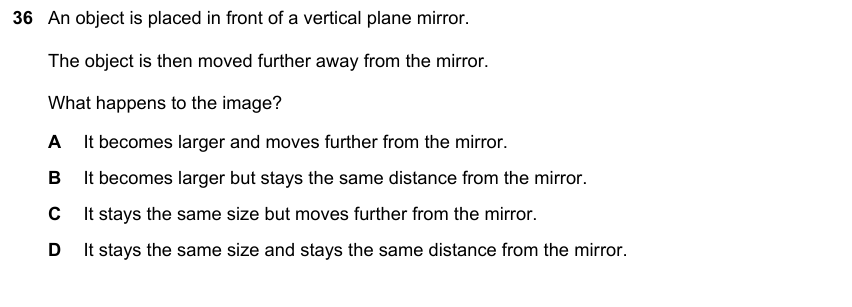

Question 27 — IGCSE 0653 May/Jun 2024 Paper 13 Q36
Show answer
Correct answer: C

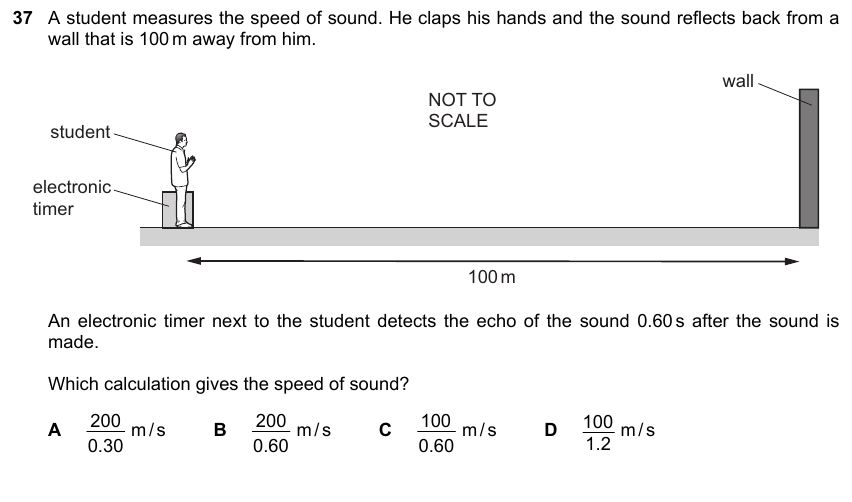

Question 28 — IGCSE 0653 May/Jun 2024 Paper 11 Q37
Show answer
Correct answer: B

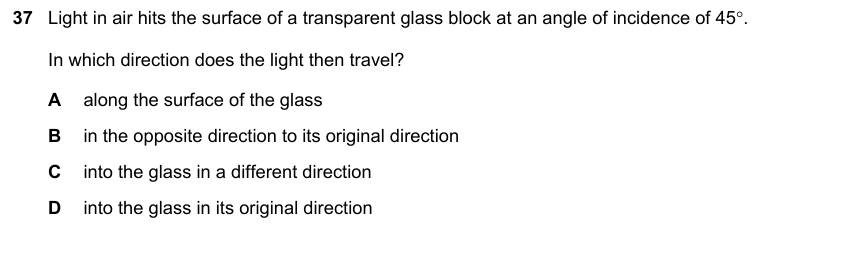

Question 29 — IGCSE 0653 May/Jun 2024 Paper 13 Q37
Show answer
Correct answer: C

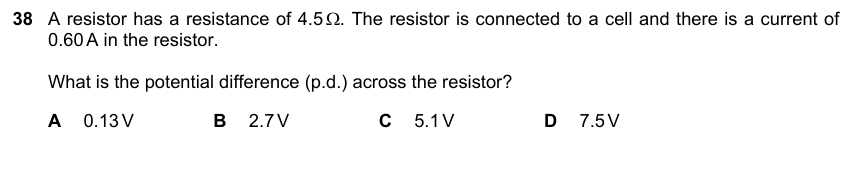

Question 30 — IGCSE 0653 May/Jun 2024 Paper 11 Q38
Show answer
Correct answer: B

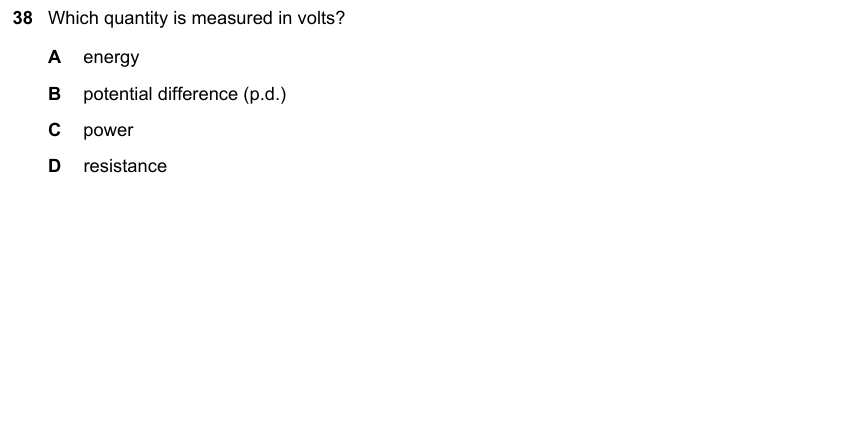

Question 31 — IGCSE 0653 May/Jun 2024 Paper 13 Q38
Show answer
Correct answer: B

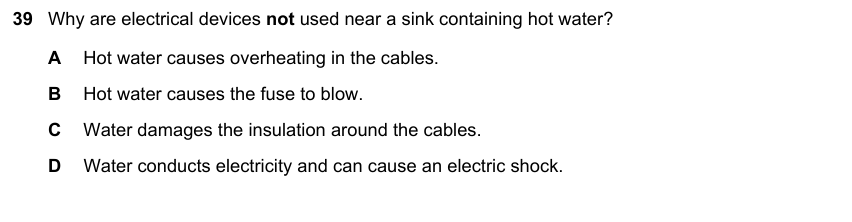

Question 32 — IGCSE 0653 May/Jun 2024 Paper 11 Q39
Show answer
Correct answer: D

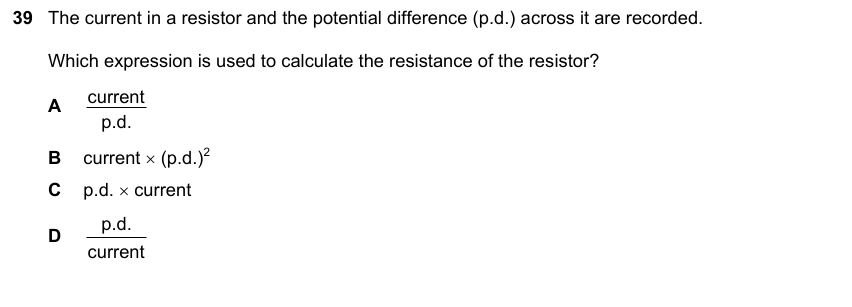

Question 33 — IGCSE 0653 May/Jun 2024 Paper 13 Q39
Show answer
Correct answer: D

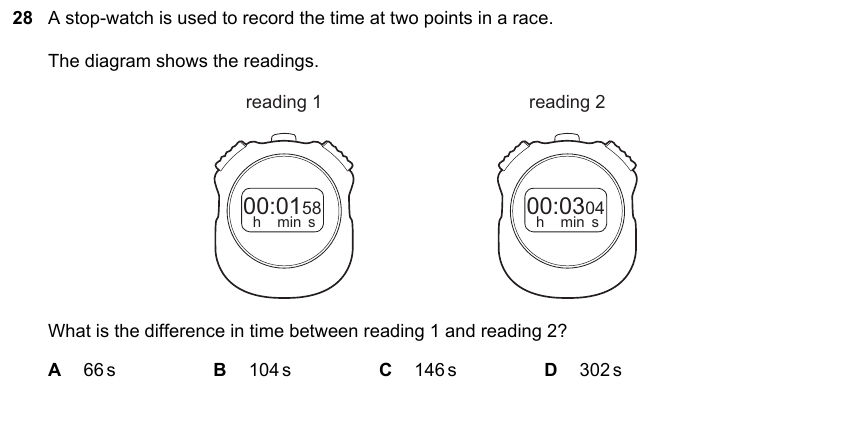

Question 34 — IGCSE 0653 May/Jun 2025 Paper 13 Q28
Show answer
Correct answer: A

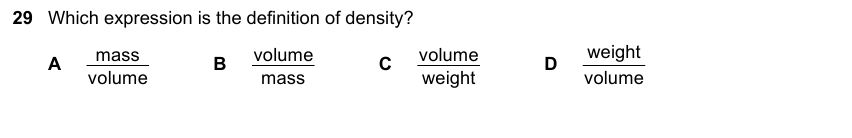

Question 35 — IGCSE 0653 May/Jun 2025 Paper 13 Q29
Show answer
Correct answer: A

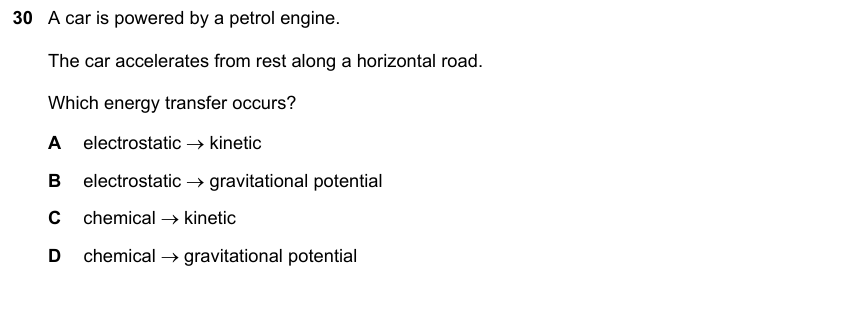

Question 36 — IGCSE 0653 May/Jun 2025 Paper 13 Q30
Show answer
Correct answer: C

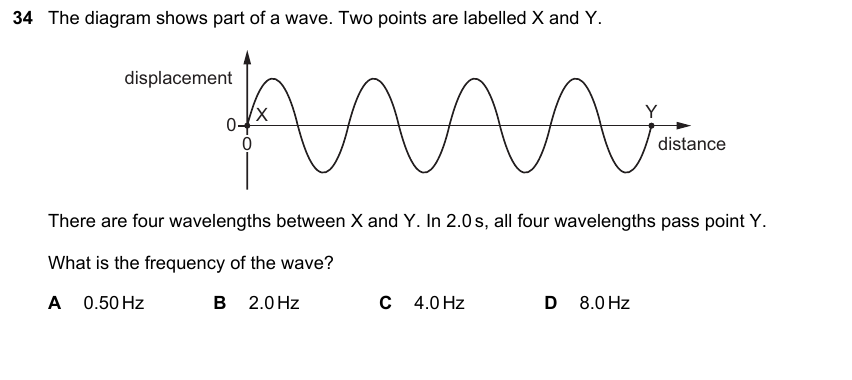

Question 37 — IGCSE 0653 May/Jun 2025 Paper 11 Q34
Show answer
Correct answer: B

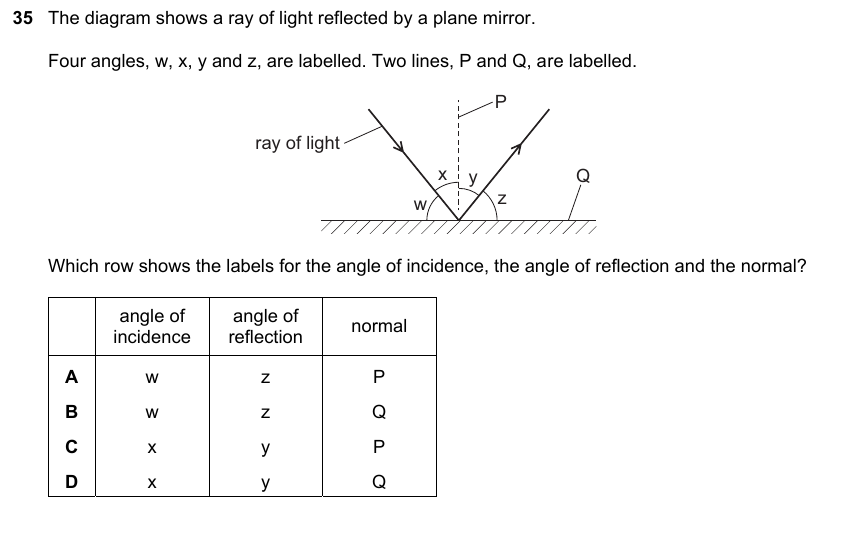

Question 38 — IGCSE 0653 May/Jun 2025 Paper 11 Q35
Show answer
Correct answer: C

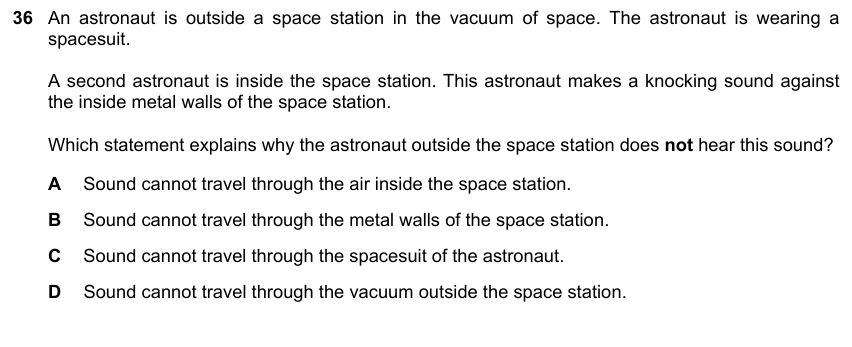

Question 39 — IGCSE 0653 May/Jun 2025 Paper 11 Q36
Show answer
Correct answer: D

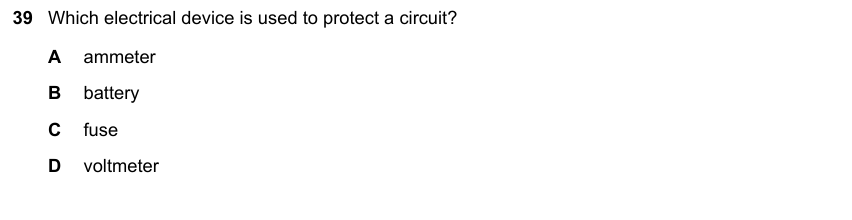

Question 40 — IGCSE 0653 May/Jun 2025 Paper 11 Q37
Show answer
Correct answer: D

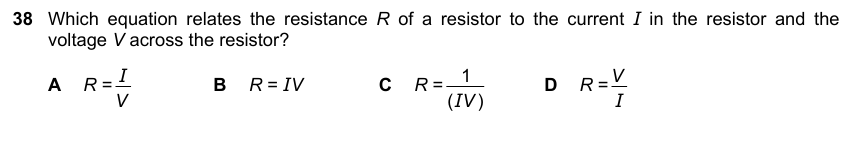

Question 41 — IGCSE 0653 May/Jun 2025 Paper 11 Q38
Show answer
Correct answer: D
Question 42 — IGCSE 0653 May/Jun 2025 Paper 11 Q39
Show answer
Correct answer: C

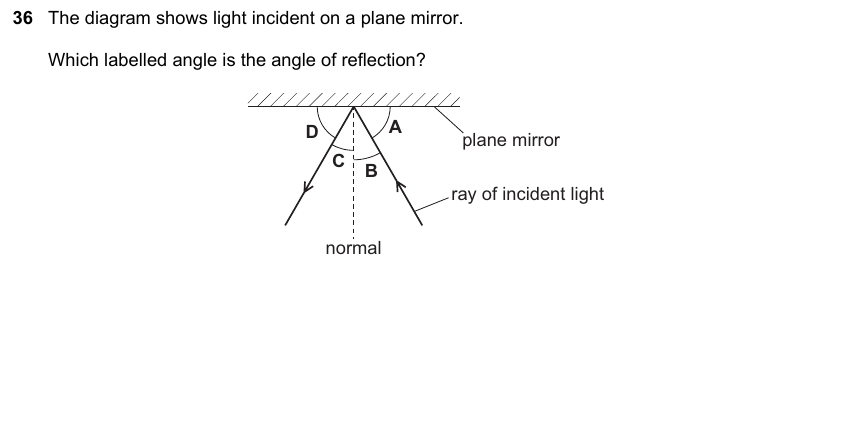

Question 43 — IGCSE 0653 Oct/Nov 2023 Paper 11 Q36
Show answer
Correct answer: C

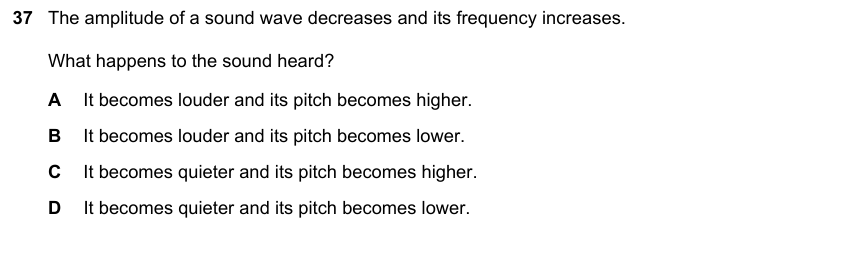

Question 44 — IGCSE 0653 Oct/Nov 2023 Paper 11 Q37
Show answer
Correct answer: C
Question 45 — IGCSE 0653 Oct/Nov 2023 Paper 12 Q37
Show answer
Correct answer: D

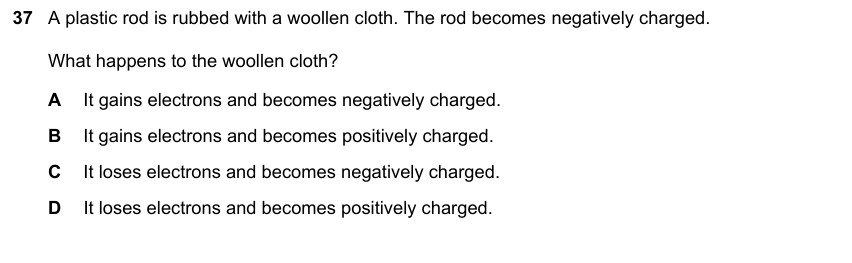

Question 46 — IGCSE 0653 Oct/Nov 2023 Paper 13 Q37
Show answer
Correct answer: D

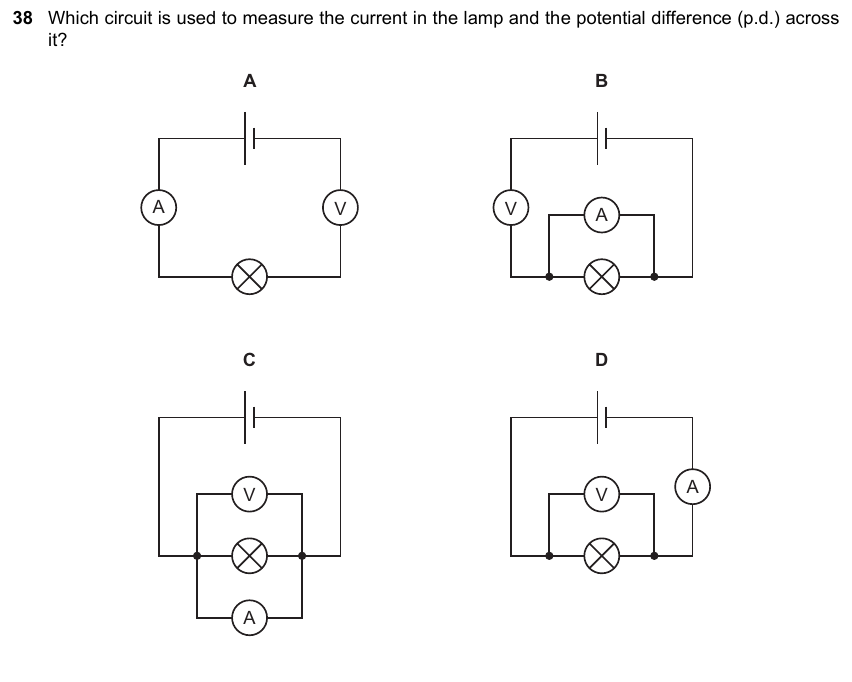

Question 47 — IGCSE 0653 Oct/Nov 2023 Paper 11 Q38
Show answer
Correct answer: D
Question 48 — IGCSE 0653 Oct/Nov 2023 Paper 12 Q38
Show answer
Correct answer: C

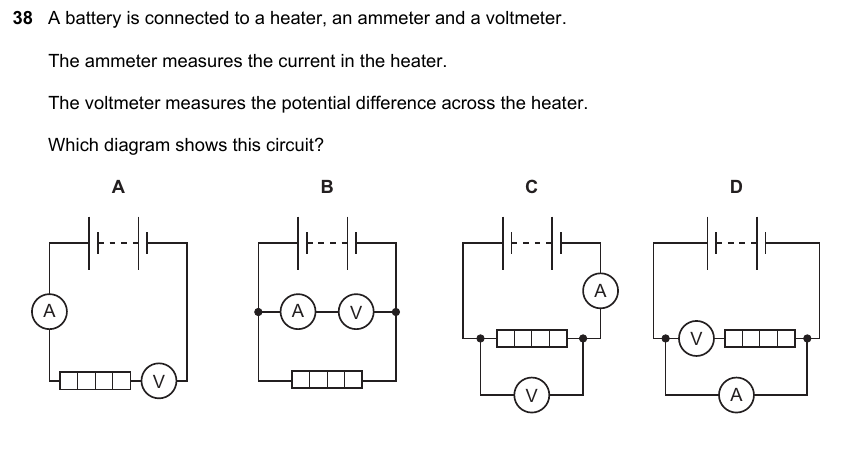

Question 49 — IGCSE 0653 Oct/Nov 2023 Paper 13 Q38
Show answer
Correct answer: C

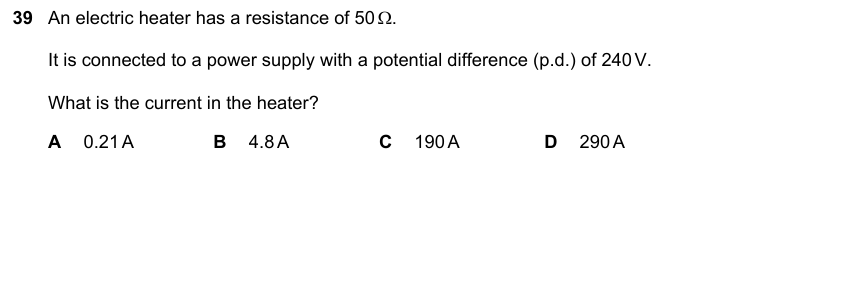

Question 50 — IGCSE 0653 Oct/Nov 2023 Paper 11 Q39
Show answer
Correct answer: B
Question 51 — IGCSE 0653 Oct/Nov 2023 Paper 12 Q39
Show answer
Correct answer: C

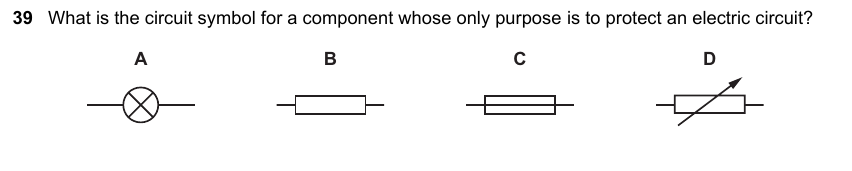

Question 52 — IGCSE 0653 Oct/Nov 2023 Paper 13 Q39
Show answer
Correct answer: C
Electricity & Magnetism — Extended MCQ46 · Paper 2

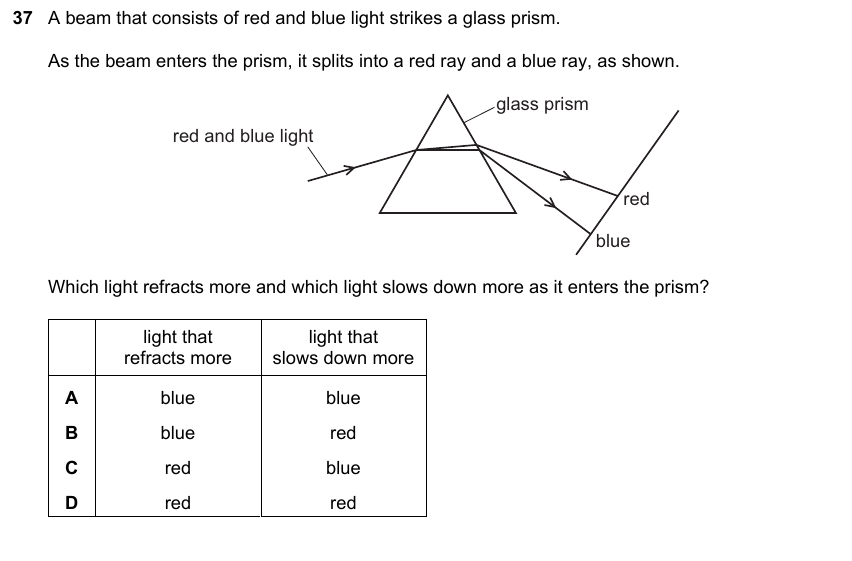

Question 1 — IGCSE 0653 Mar 2023 Paper 22 Q37
Show answer
Correct answer: A

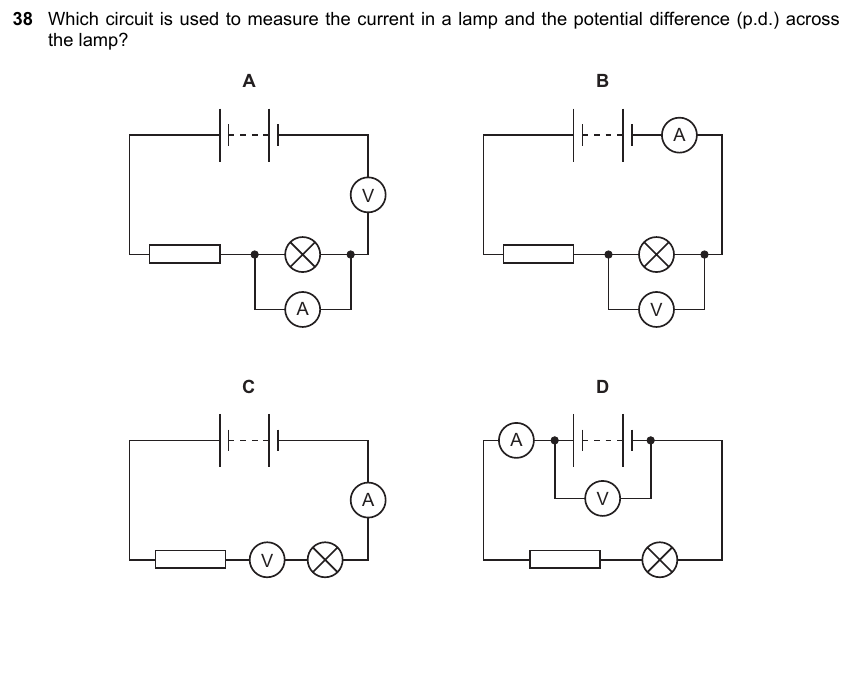

Question 2 — IGCSE 0653 Mar 2023 Paper 22 Q38
Show answer
Correct answer: B

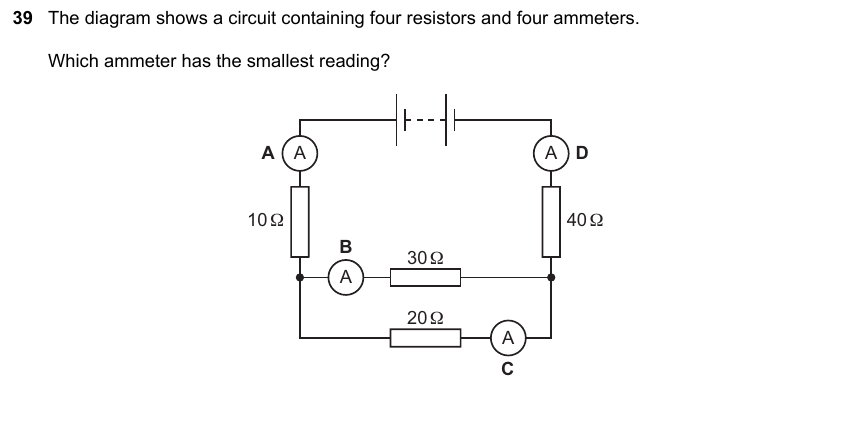

Question 3 — IGCSE 0653 Mar 2023 Paper 22 Q39
Show answer
Correct answer: B

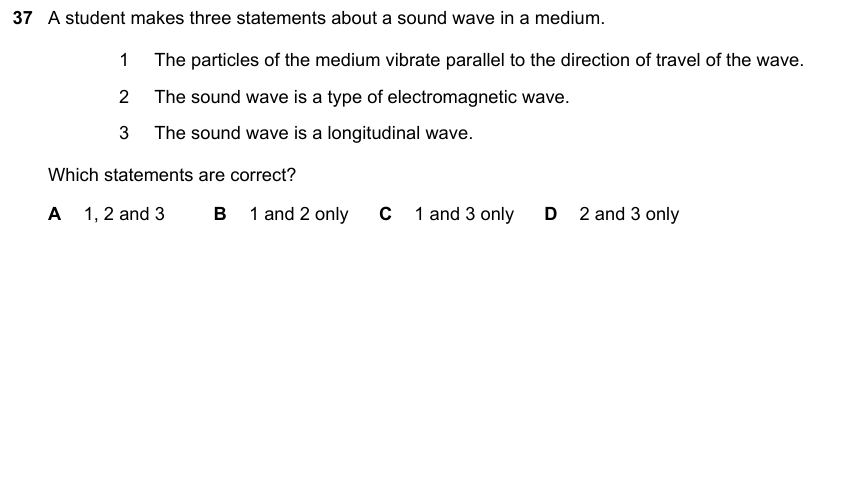

Question 4 — IGCSE 0653 Mar 2024 Paper 22 Q37
Show answer
Correct answer: C

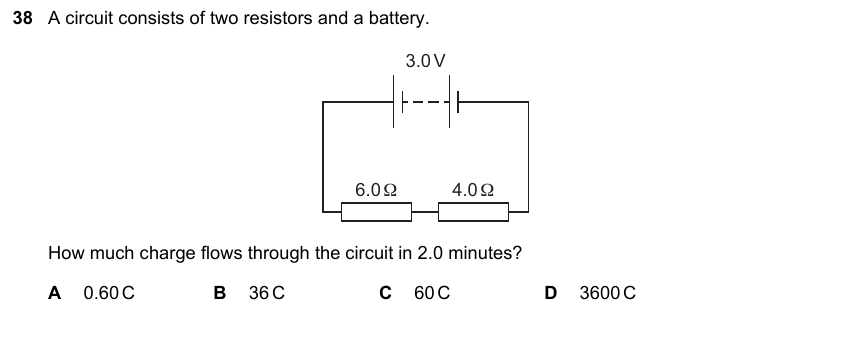

Question 5 — IGCSE 0653 Mar 2024 Paper 22 Q38
Show answer
Correct answer: B

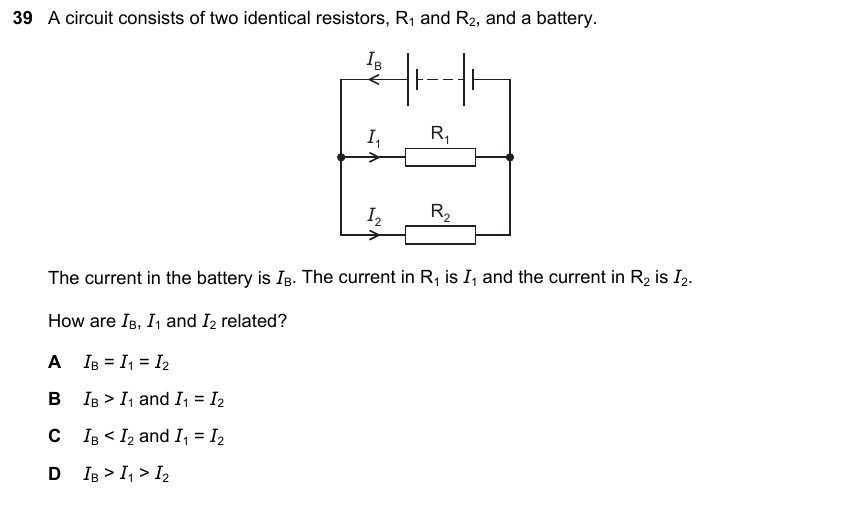

Question 6 — IGCSE 0653 Mar 2024 Paper 22 Q39
Show answer
Correct answer: B

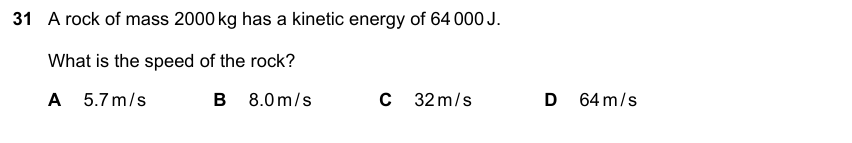

Question 7 — IGCSE 0653 May/Jun 2023 Paper 22 Q31
Show answer
Correct answer: B

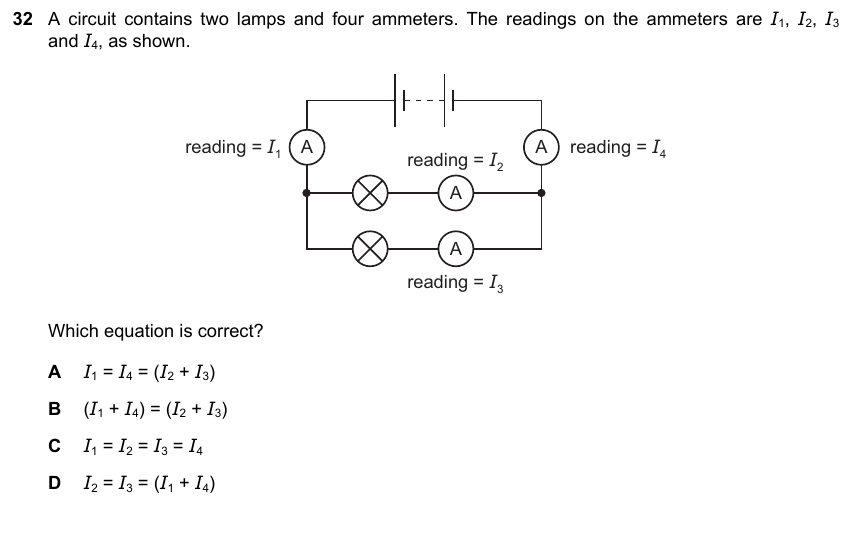

Question 8 — IGCSE 0653 May/Jun 2023 Paper 22 Q32
Show answer
Correct answer: A

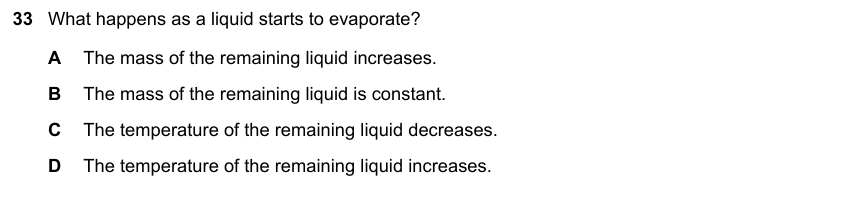

Question 9 — IGCSE 0653 May/Jun 2023 Paper 22 Q33
Show answer
Correct answer: C

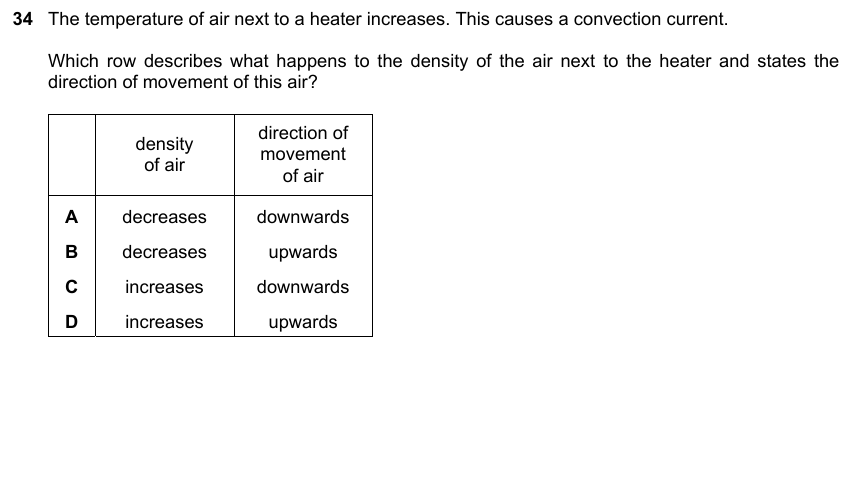

Question 10 — IGCSE 0653 May/Jun 2023 Paper 22 Q34
Show answer
Correct answer: B

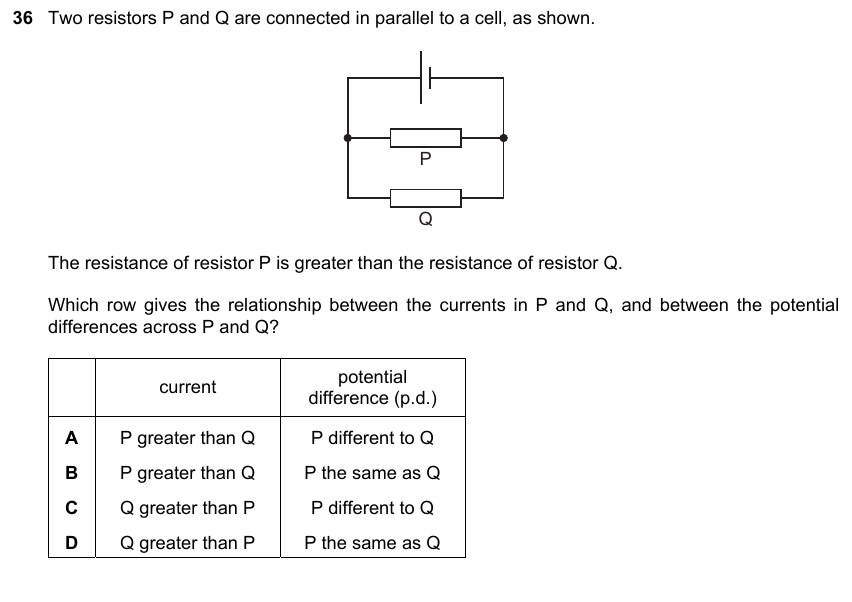

Question 11 — IGCSE 0653 May/Jun 2023 Paper 23 Q36
Show answer
Correct answer: D

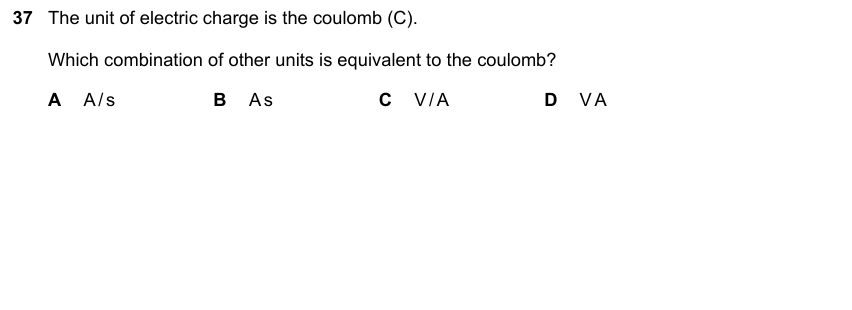

Question 12 — IGCSE 0653 May/Jun 2023 Paper 21 Q37
Show answer
Correct answer: B

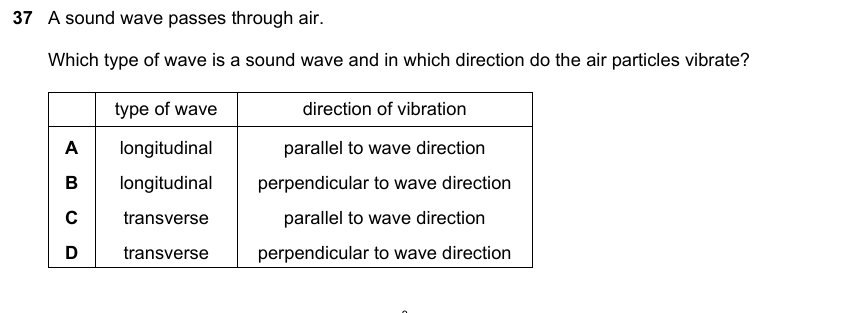

Question 13 — IGCSE 0653 May/Jun 2023 Paper 23 Q37
Show answer
Correct answer: A

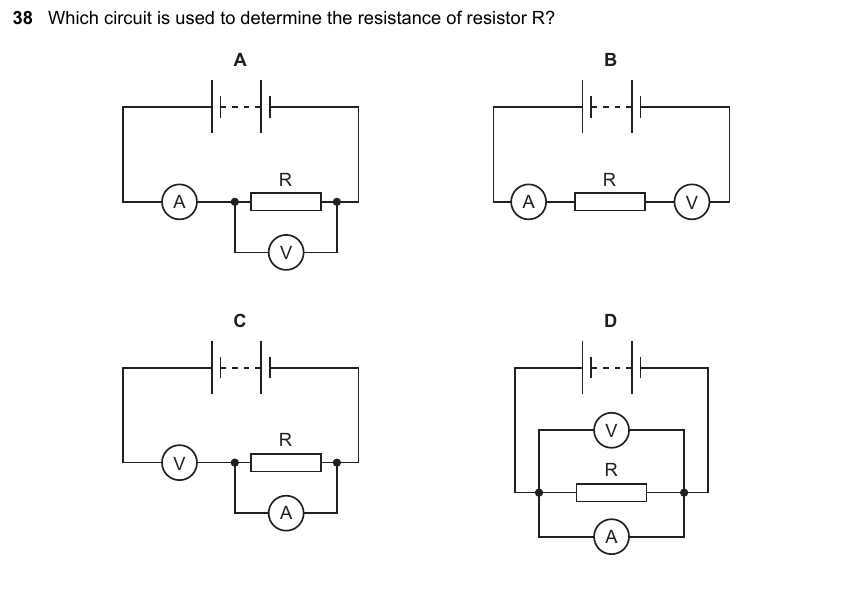

Question 14 — IGCSE 0653 May/Jun 2023 Paper 21 Q38
Show answer
Correct answer: A

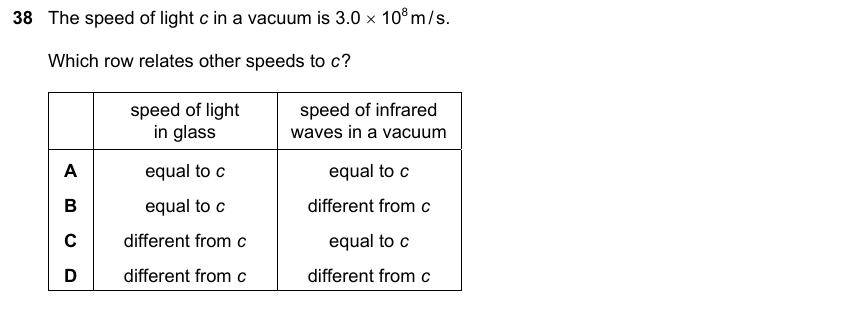

Question 15 — IGCSE 0653 May/Jun 2023 Paper 23 Q38
Show answer
Correct answer: C

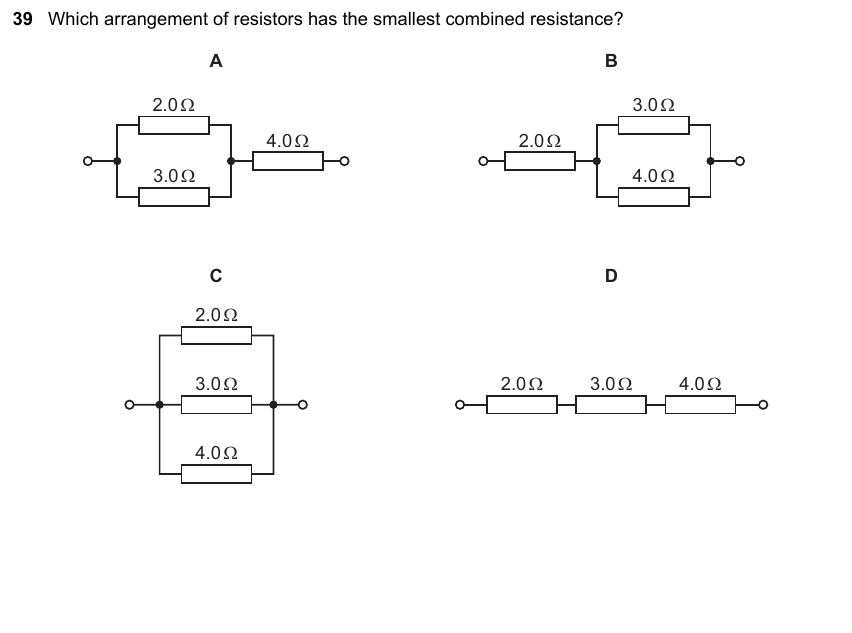

Question 16 — IGCSE 0653 May/Jun 2023 Paper 21 Q39
Show answer
Correct answer: C
Question 17 — IGCSE 0653 May/Jun 2023 Paper 22 Q39
Show answer
Correct answer: D

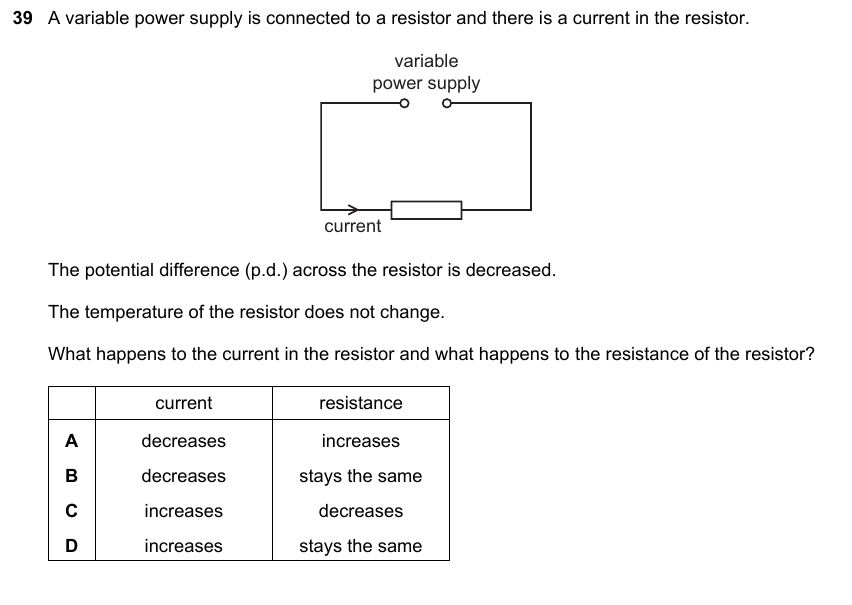

Question 18 — IGCSE 0653 May/Jun 2023 Paper 23 Q39
Show answer
Correct answer: B

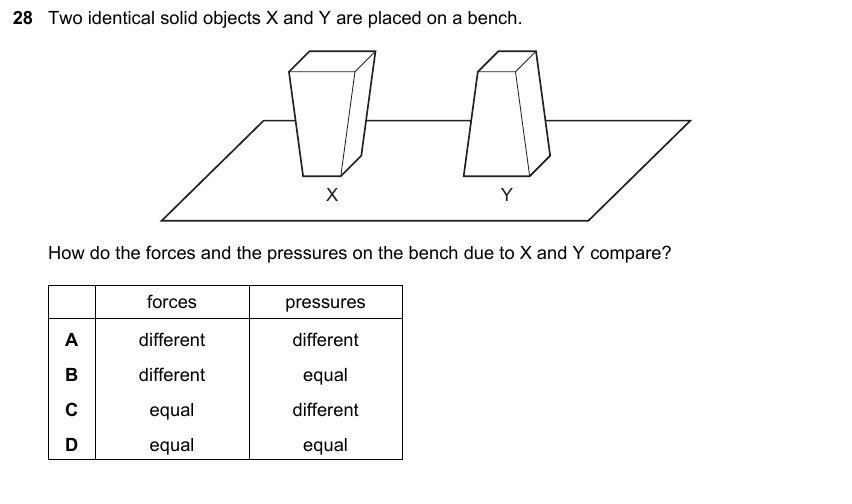

Question 19 — IGCSE 0653 May/Jun 2024 Paper 22 Q28
Show answer
Correct answer: C

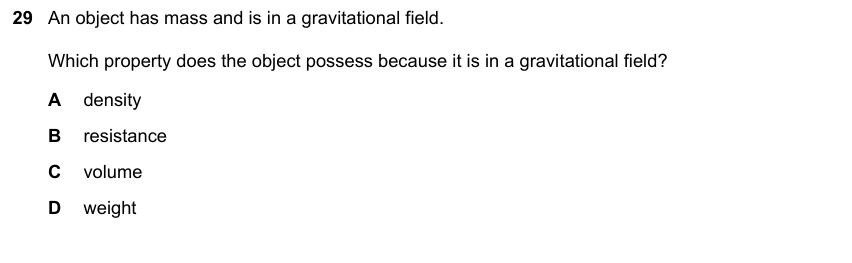

Question 20 — IGCSE 0653 May/Jun 2024 Paper 22 Q29
Show answer
Correct answer: D

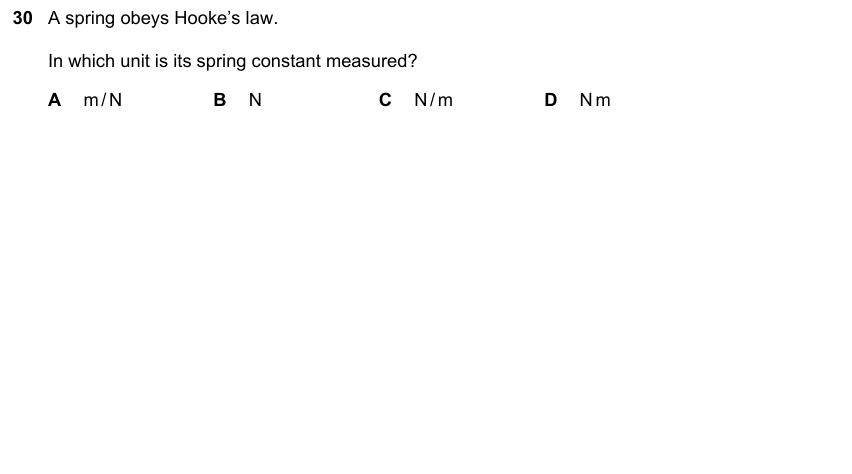

Question 21 — IGCSE 0653 May/Jun 2024 Paper 22 Q30
Show answer
Correct answer: C

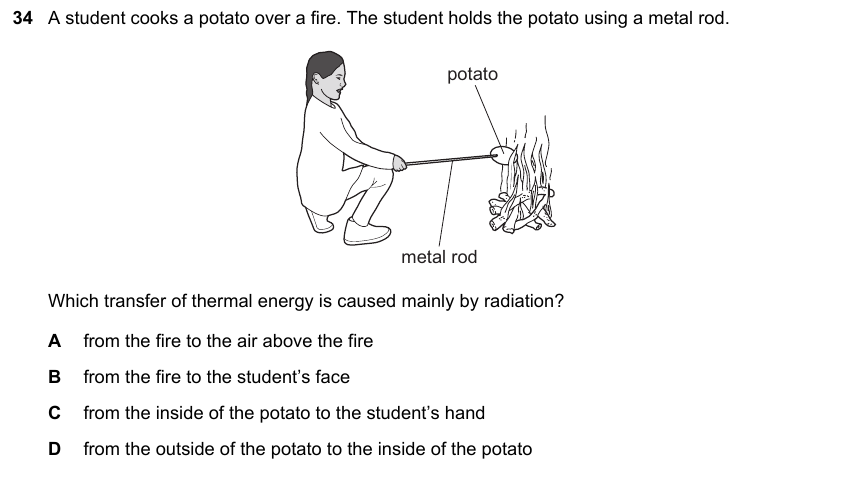

Question 22 — IGCSE 0653 May/Jun 2024 Paper 22 Q34
Show answer
Correct answer: B

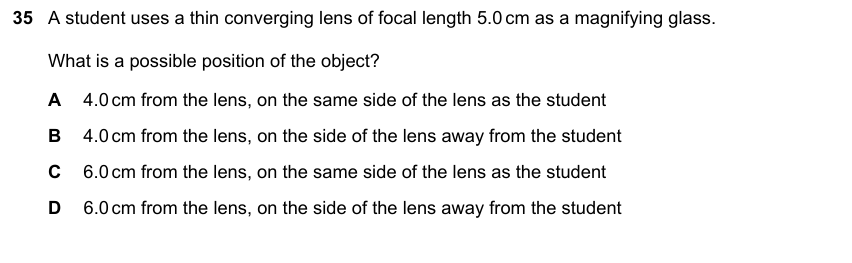

Question 23 — IGCSE 0653 May/Jun 2024 Paper 22 Q35
Show answer
Correct answer: B

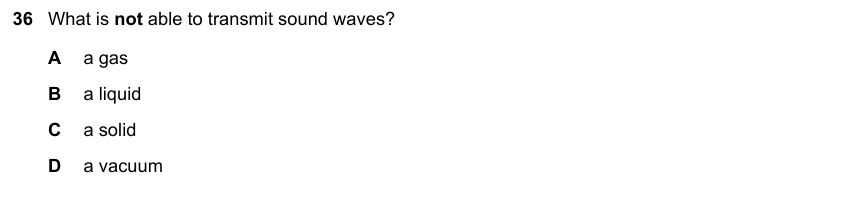

Question 24 — IGCSE 0653 May/Jun 2024 Paper 22 Q36
Show answer
Correct answer: D

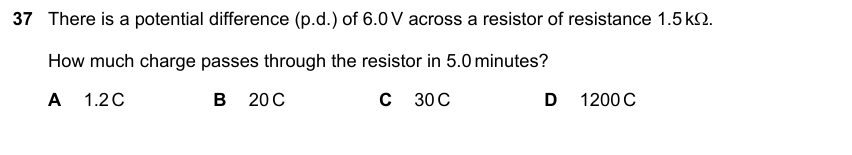

Question 25 — IGCSE 0653 May/Jun 2024 Paper 22 Q37
Show answer
Correct answer: A

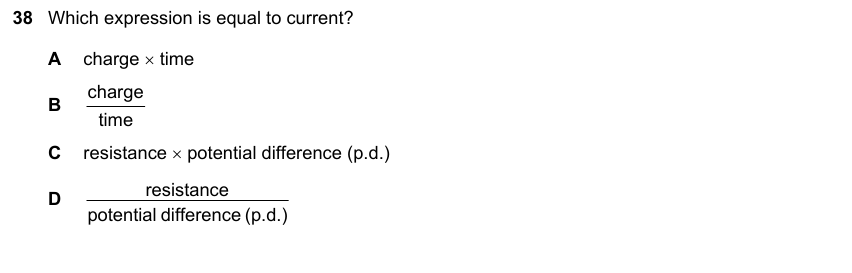

Question 26 — IGCSE 0653 May/Jun 2024 Paper 21 Q38
Show answer
Correct answer: B

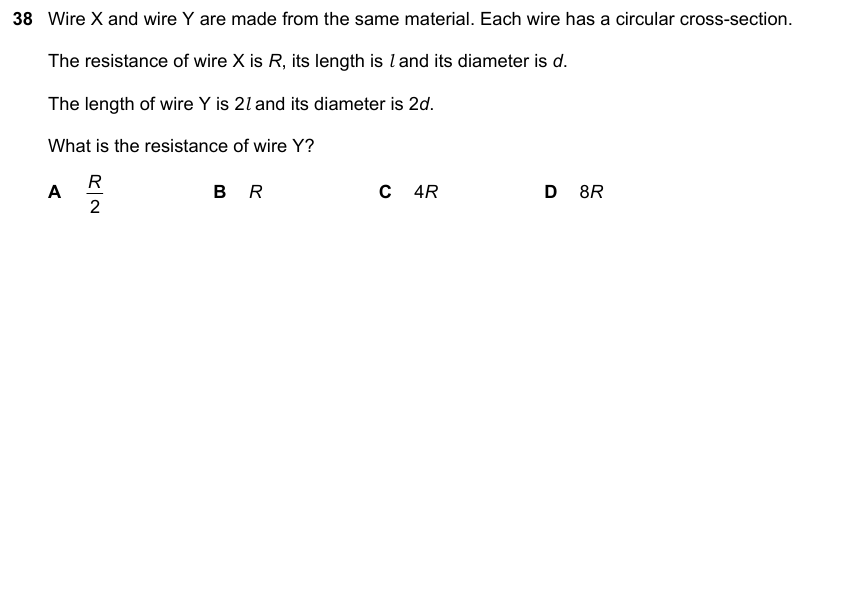

Question 27 — IGCSE 0653 May/Jun 2024 Paper 22 Q38
Show answer
Correct answer: A

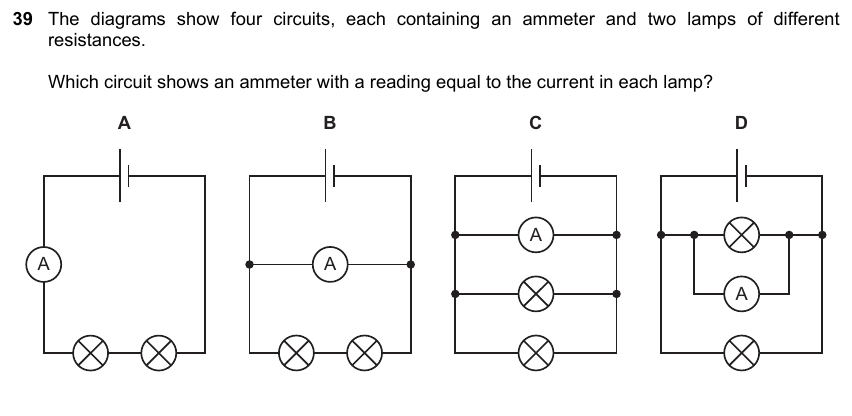

Question 28 — IGCSE 0653 May/Jun 2024 Paper 21 Q39
Show answer
Correct answer: A

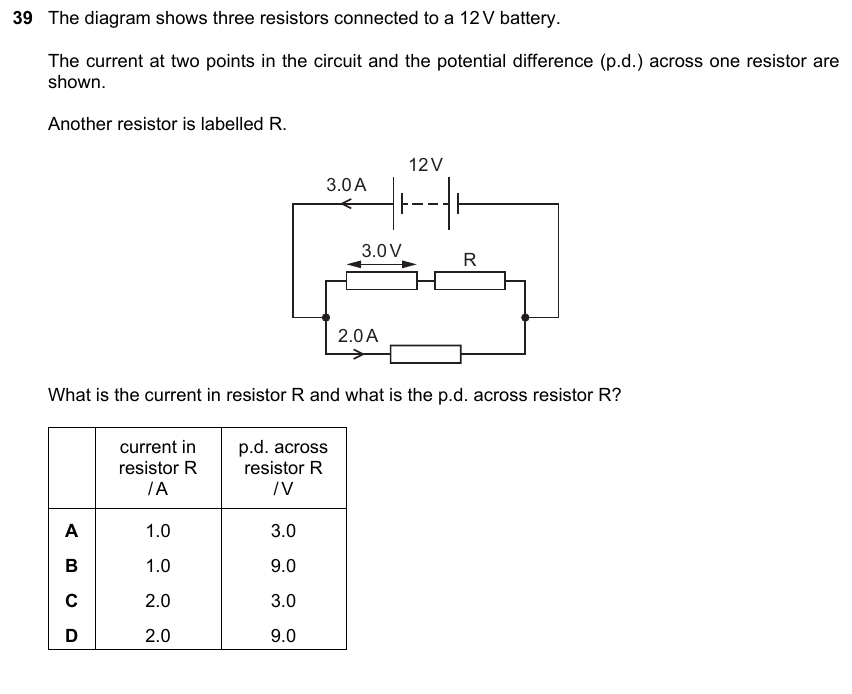

Question 29 — IGCSE 0653 May/Jun 2024 Paper 22 Q39
Show answer
Correct answer: B

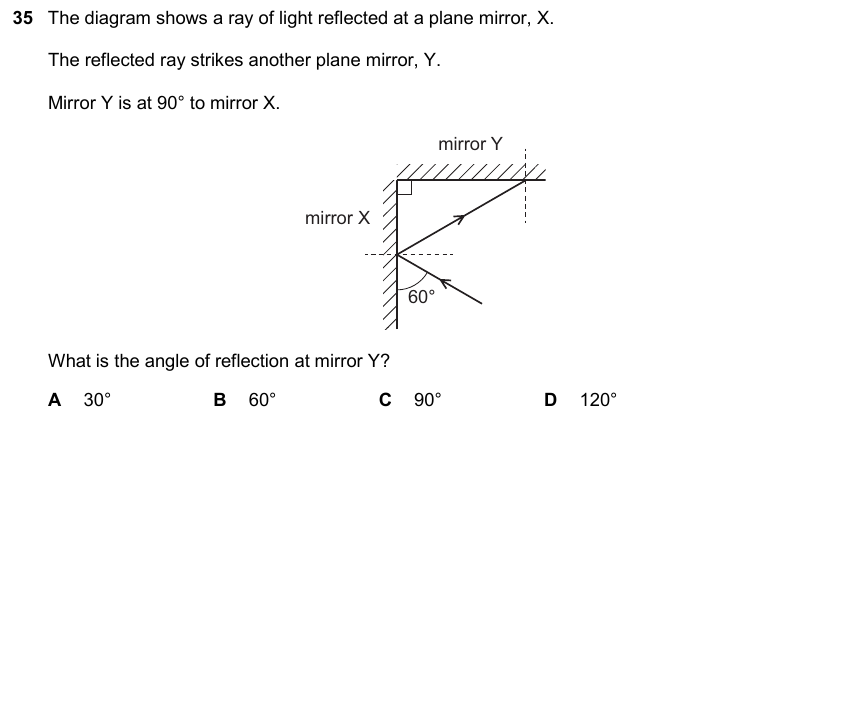

Question 30 — IGCSE 0653 May/Jun 2025 Paper 21 Q35
Show answer
Correct answer: B

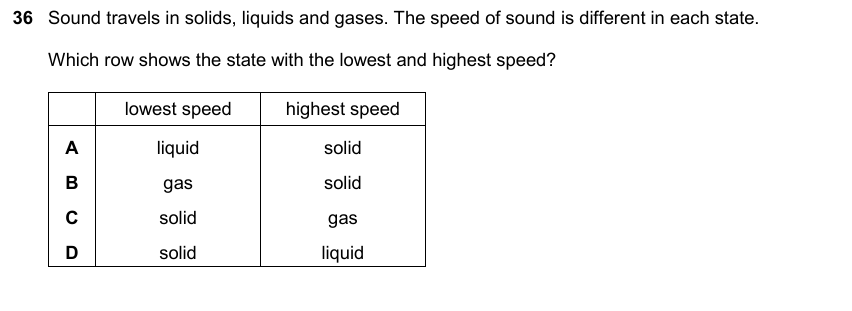

Question 31 — IGCSE 0653 May/Jun 2025 Paper 21 Q36
Show answer
Correct answer: B
Question 32 — IGCSE 0653 May/Jun 2025 Paper 21 Q37
Show answer
Correct answer: B

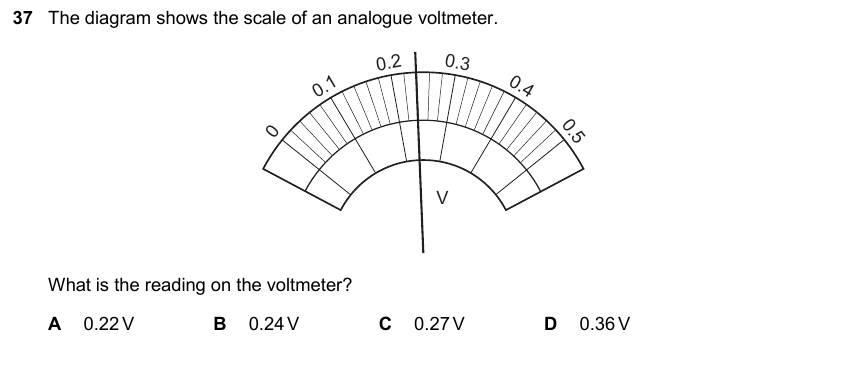

Question 33 — IGCSE 0653 May/Jun 2025 Paper 23 Q37
Show answer
Correct answer: B

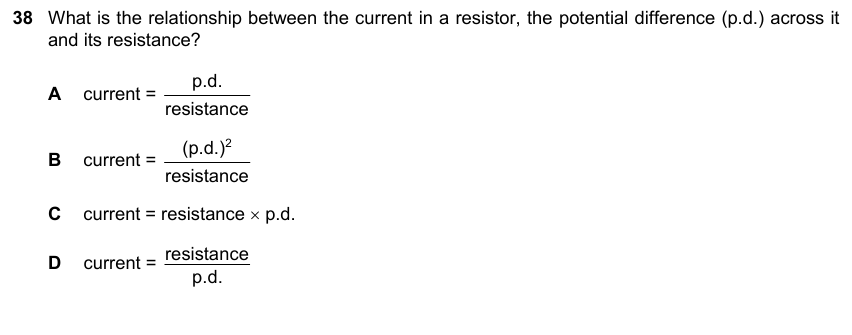

Question 34 — IGCSE 0653 May/Jun 2025 Paper 23 Q38
Show answer
Correct answer: A

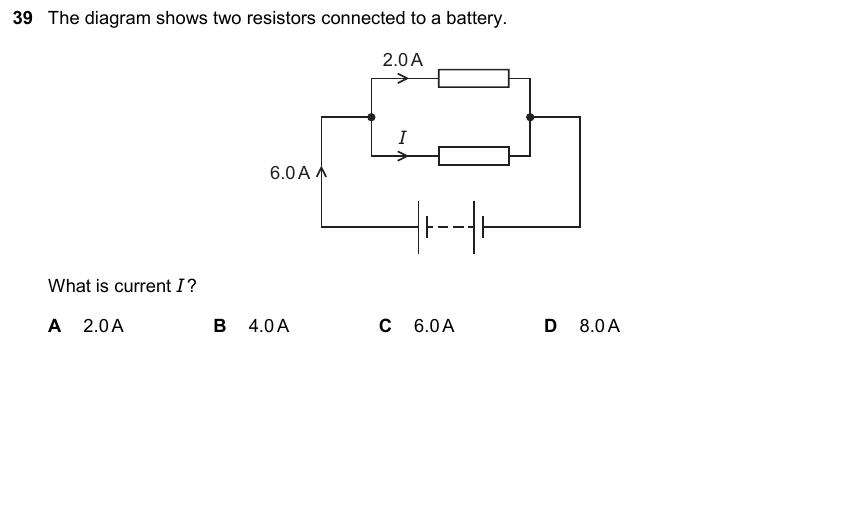

Question 35 — IGCSE 0653 May/Jun 2025 Paper 23 Q39
Show answer
Correct answer: B

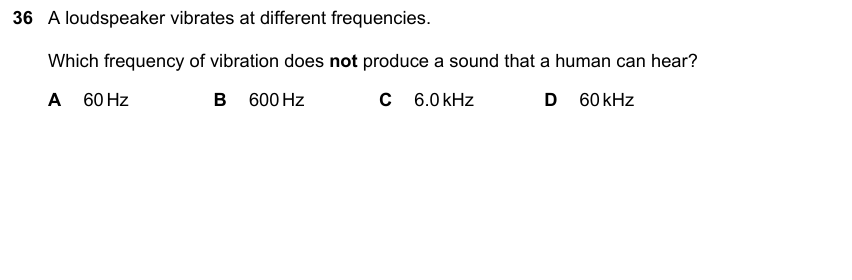

Question 36 — IGCSE 0653 Oct/Nov 2023 Paper 22 Q36
Show answer
Correct answer: D

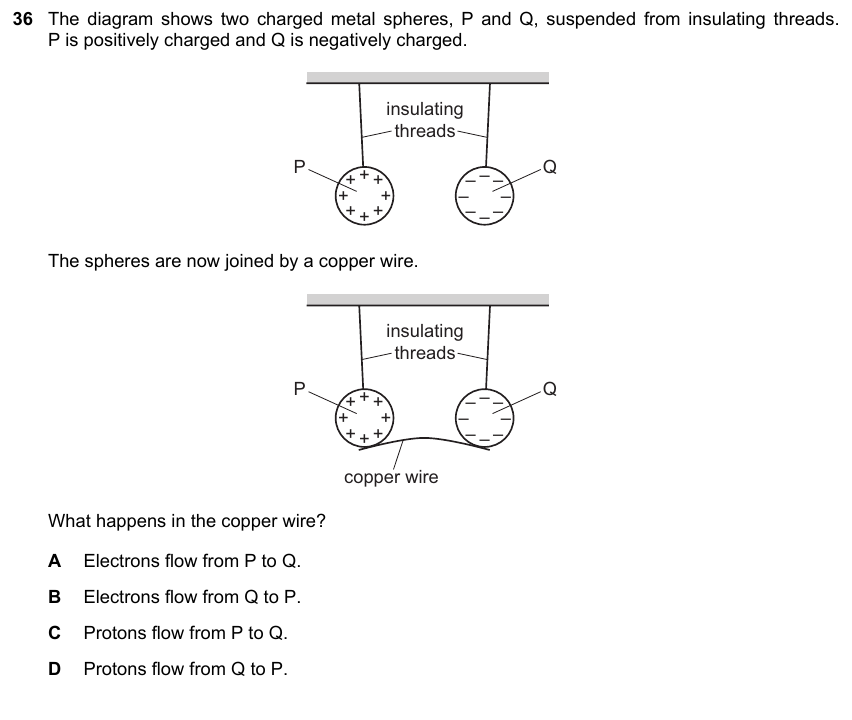

Question 37 — IGCSE 0653 Oct/Nov 2023 Paper 23 Q36
Show answer
Correct answer: B

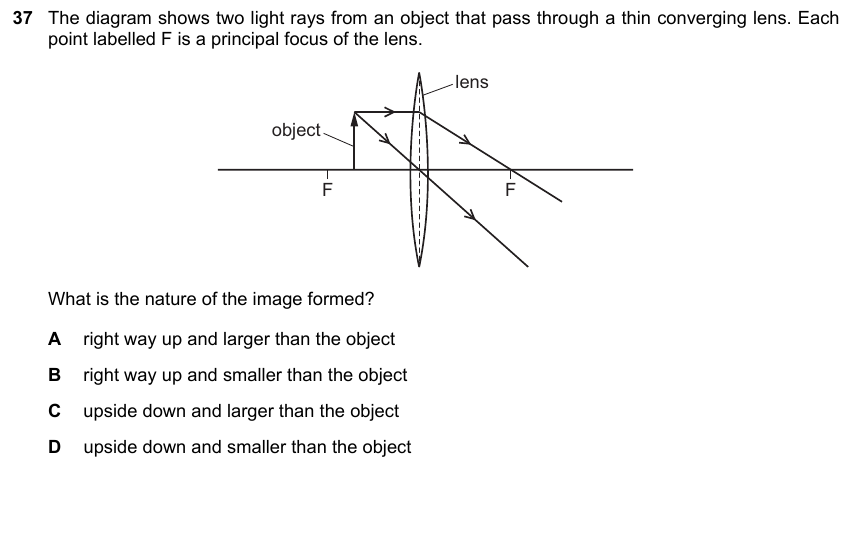

Question 38 — IGCSE 0653 Oct/Nov 2023 Paper 21 Q37
Show answer
Correct answer: A
Question 39 — IGCSE 0653 Oct/Nov 2023 Paper 22 Q37
Show answer
Correct answer: D

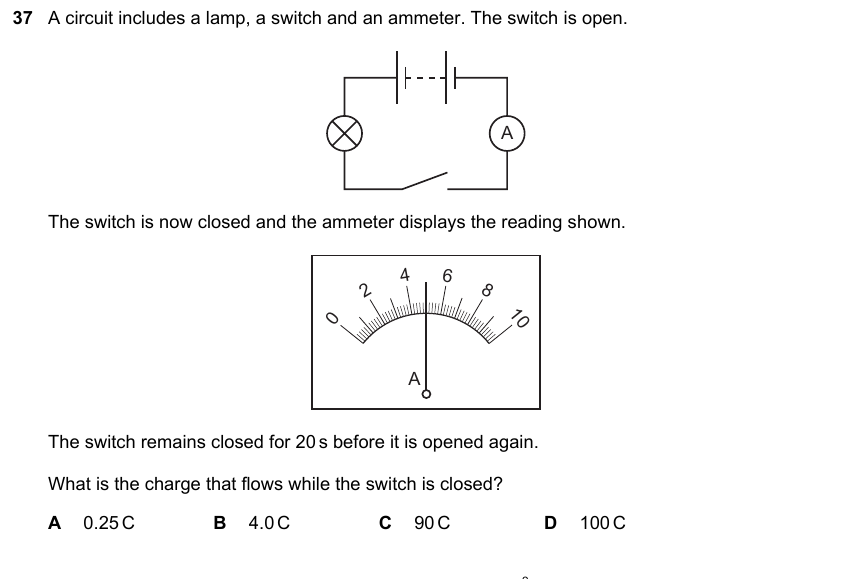

Question 40 — IGCSE 0653 Oct/Nov 2023 Paper 23 Q37
Show answer
Correct answer: D

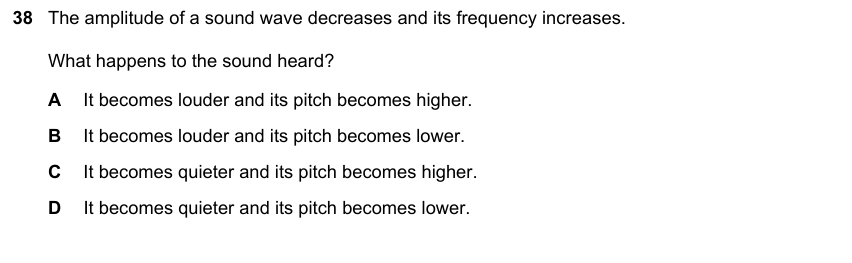

Question 41 — IGCSE 0653 Oct/Nov 2023 Paper 21 Q38
Show answer
Correct answer: C

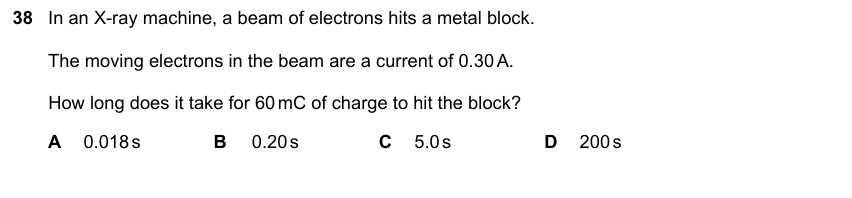

Question 42 — IGCSE 0653 Oct/Nov 2023 Paper 22 Q38
Show answer
Correct answer: B

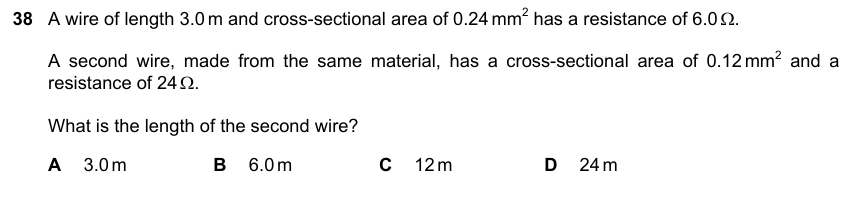

Question 43 — IGCSE 0653 Oct/Nov 2023 Paper 23 Q38
Show answer
Correct answer: B

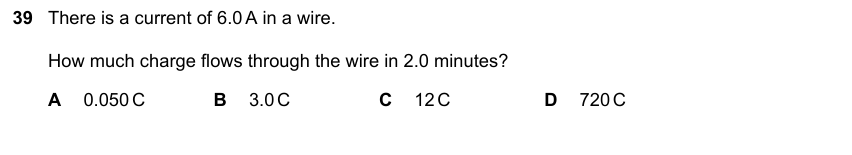

Question 44 — IGCSE 0653 Oct/Nov 2023 Paper 21 Q39
Show answer
Correct answer: D

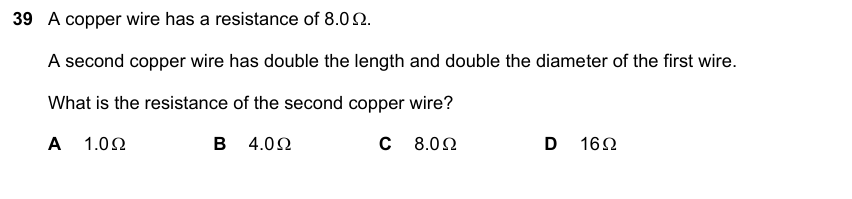

Question 45 — IGCSE 0653 Oct/Nov 2023 Paper 22 Q39
Show answer
Correct answer: B

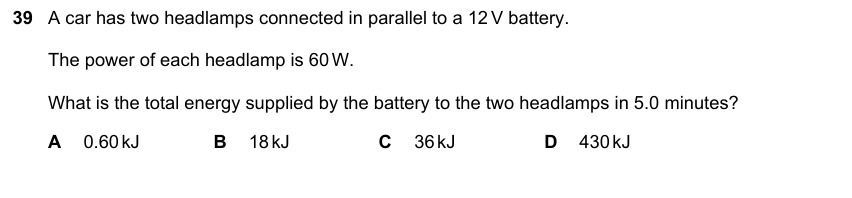

Question 46 — IGCSE 0653 Oct/Nov 2023 Paper 23 Q39
Show answer
Correct answer: C
Alternative to practical
Electricity & Magnetism — ATP10 questions

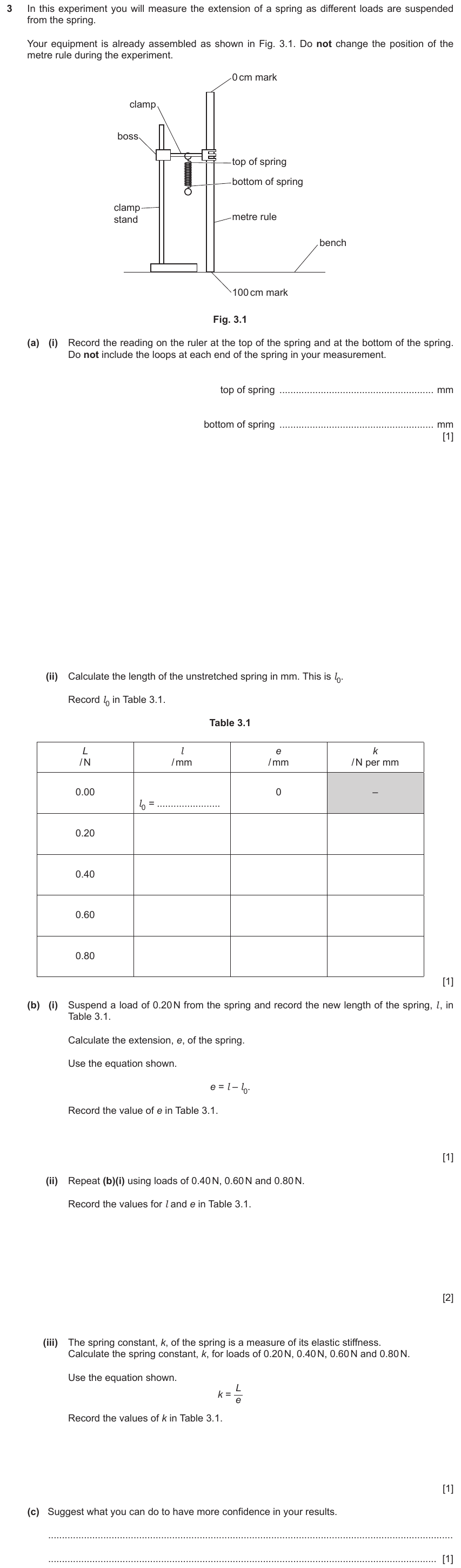

Exercise 1 — IGCSE 0653 Mar 2023 Paper 52 Q3
Show mark scheme
top of spring < bottom of spring, both in mm

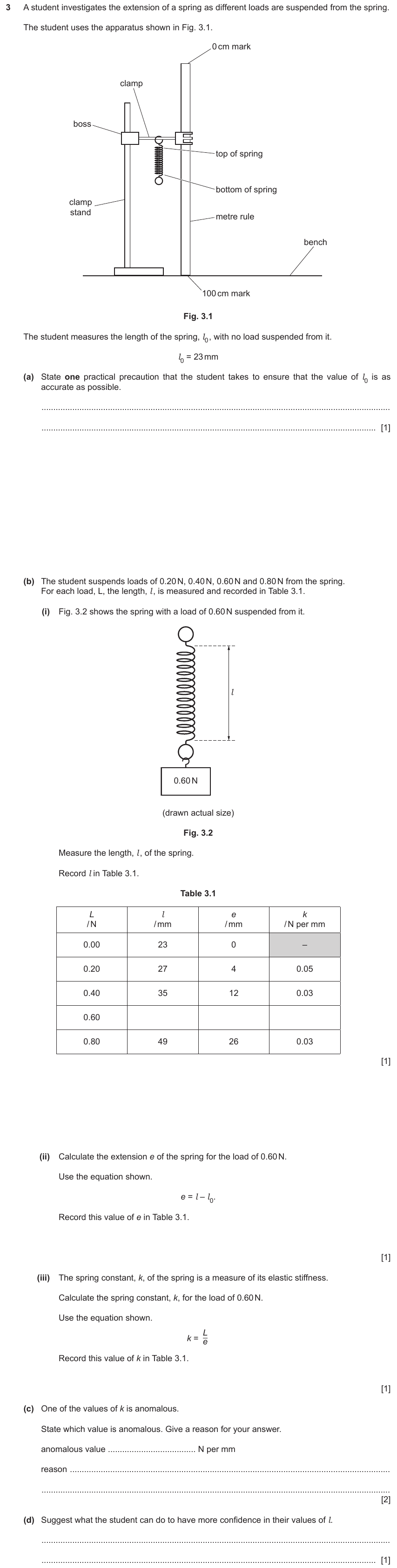

Exercise 2 — IGCSE 0653 Mar 2023 Paper 62 Q3
Show mark scheme
keep your eyes level with the, point being measured / top of the spring / avoid parallax / look perpendicular to the, point

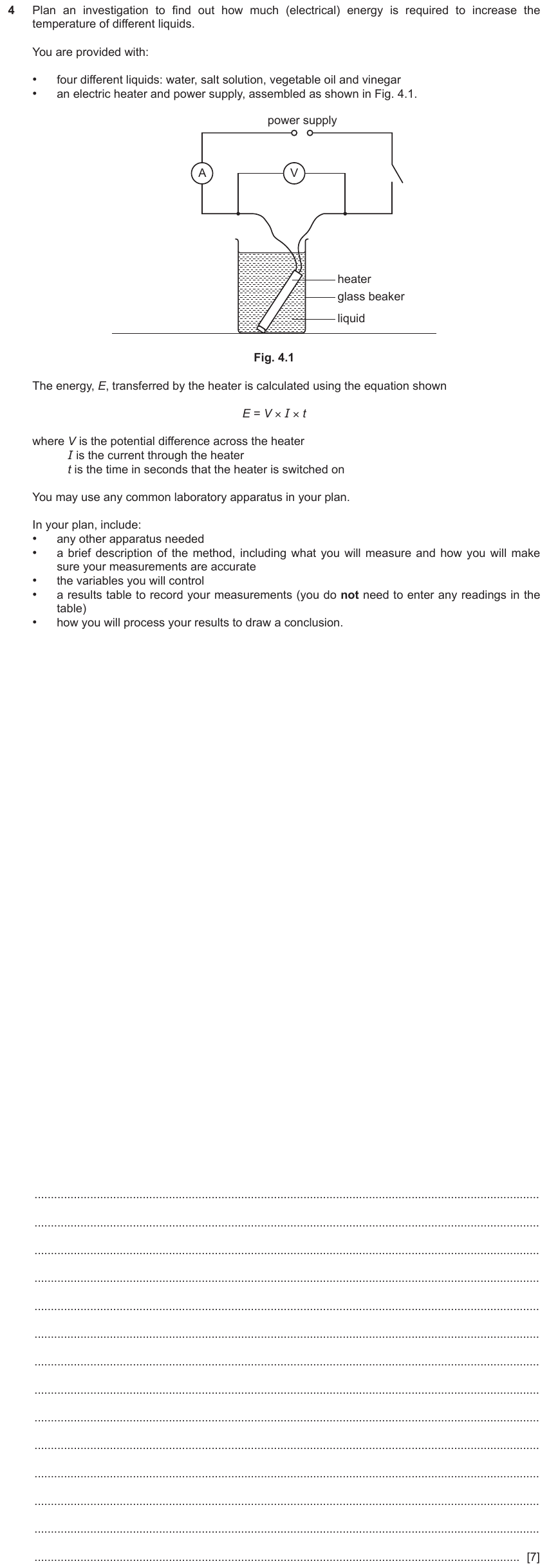

Exercise 3 — IGCSE 0653 Mar 2023 Paper 62 Q4
Show mark scheme
One mark from each section and any two other marking points:

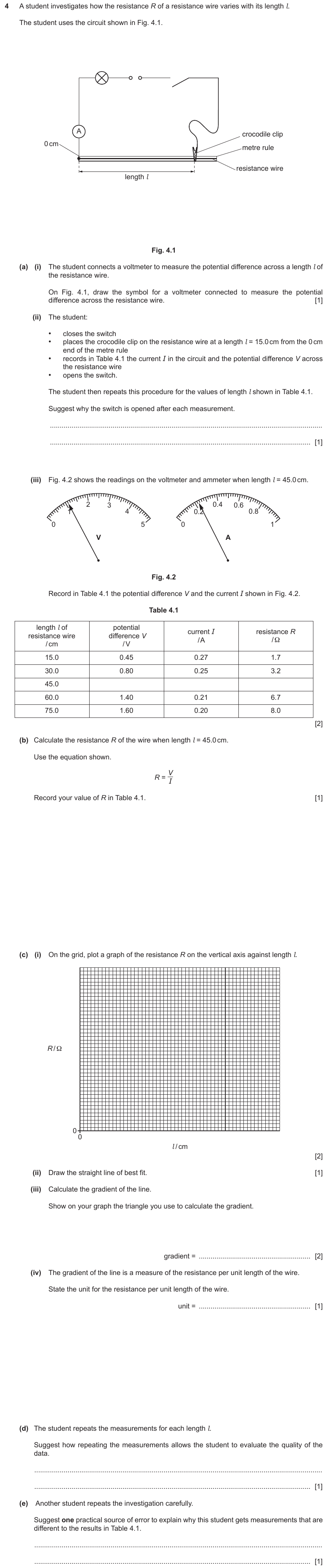

Exercise 4 — IGCSE 0653 Mar 2024 Paper 62 Q4
Show mark scheme
correct symbol for voltmeter connected across the resistance wire

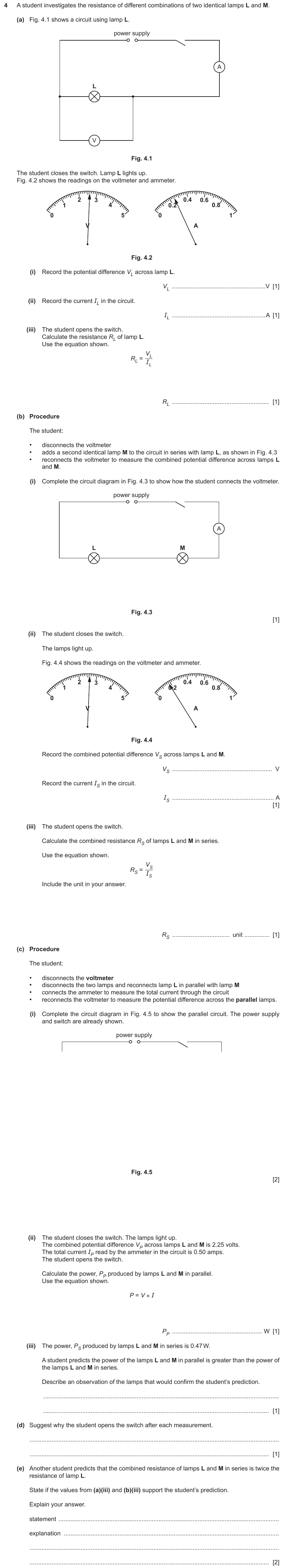

Exercise 5 — IGCSE 0653 May/Jun 2023 Paper 61 Q4
Show mark scheme
V = 2.6 (V)

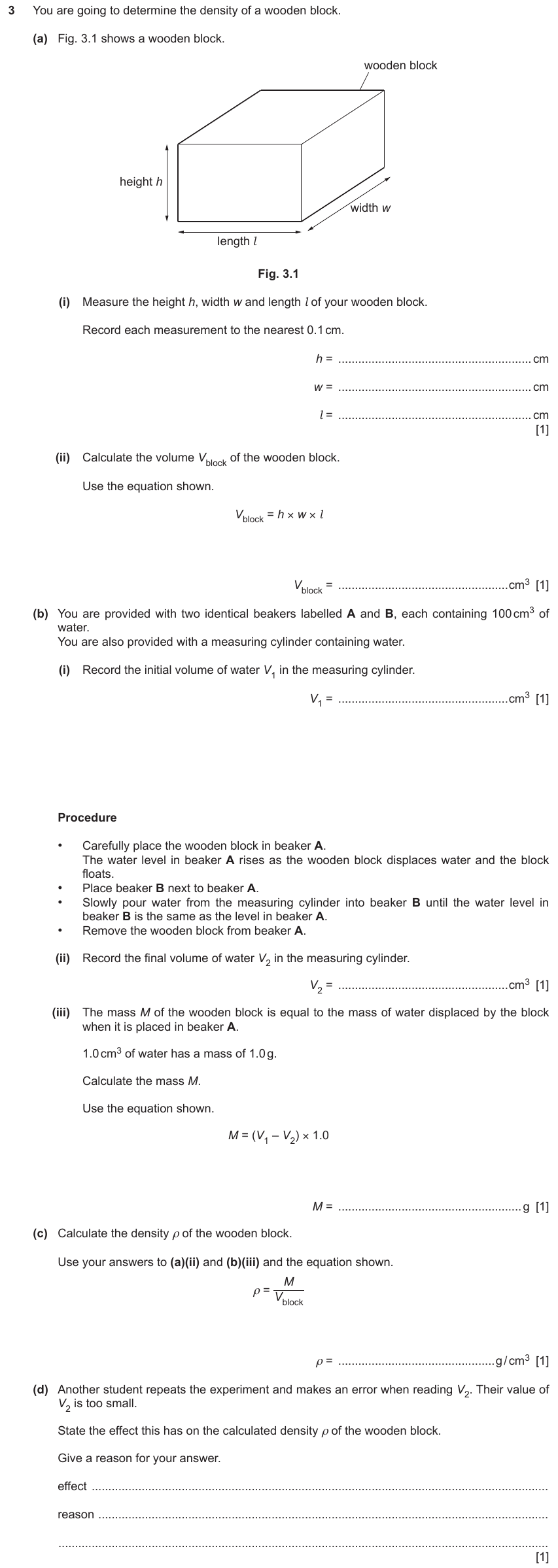

Exercise 6 — IGCSE 0653 May/Jun 2024 Paper 51 Q3
Show mark scheme
values for h, w and l all recorded to 0.1 cm

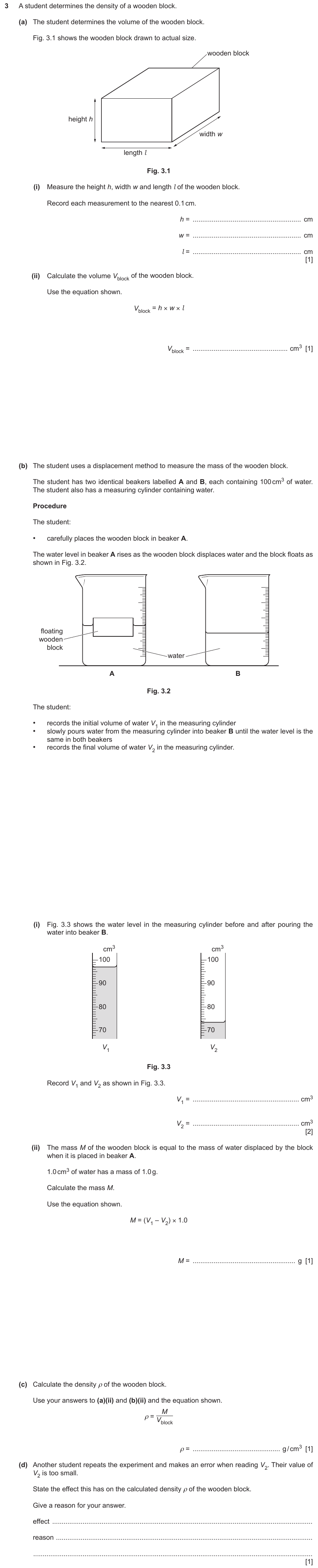

Exercise 7 — IGCSE 0653 May/Jun 2024 Paper 61 Q3
Show mark scheme
h = 2.5 (cm)

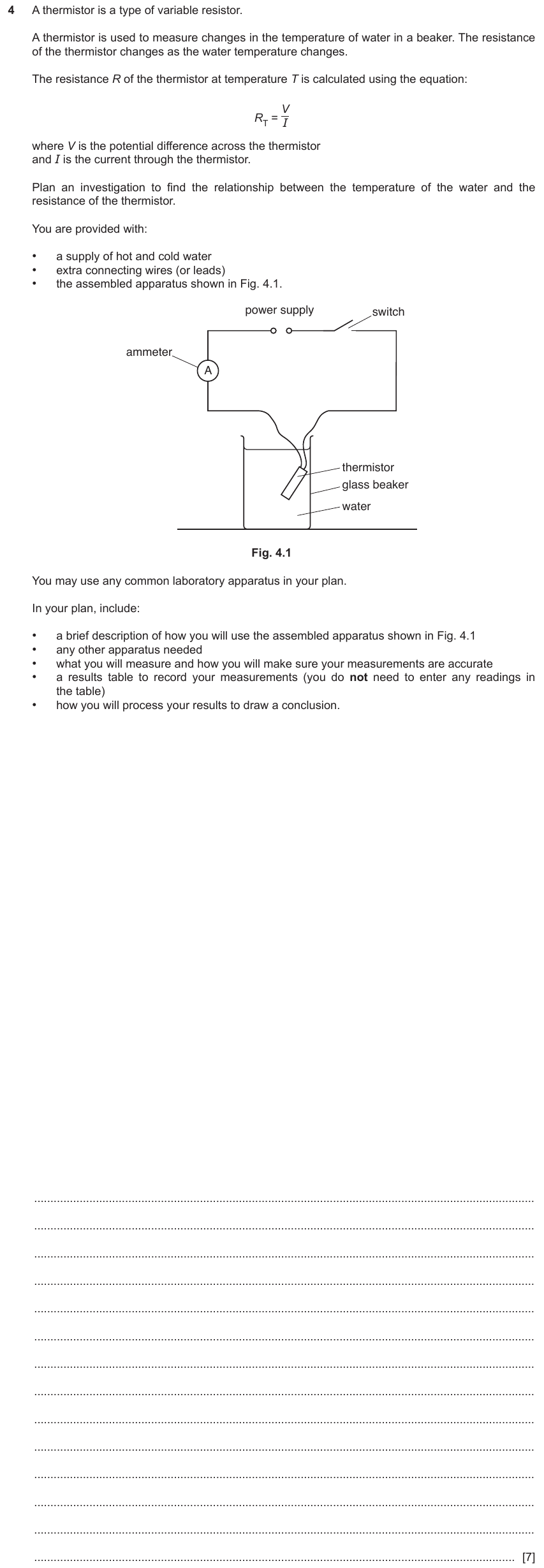

Exercise 8 — IGCSE 0653 May/Jun 2024 Paper 61 Q4
Show mark scheme
One mark from each section and any two other marking points:

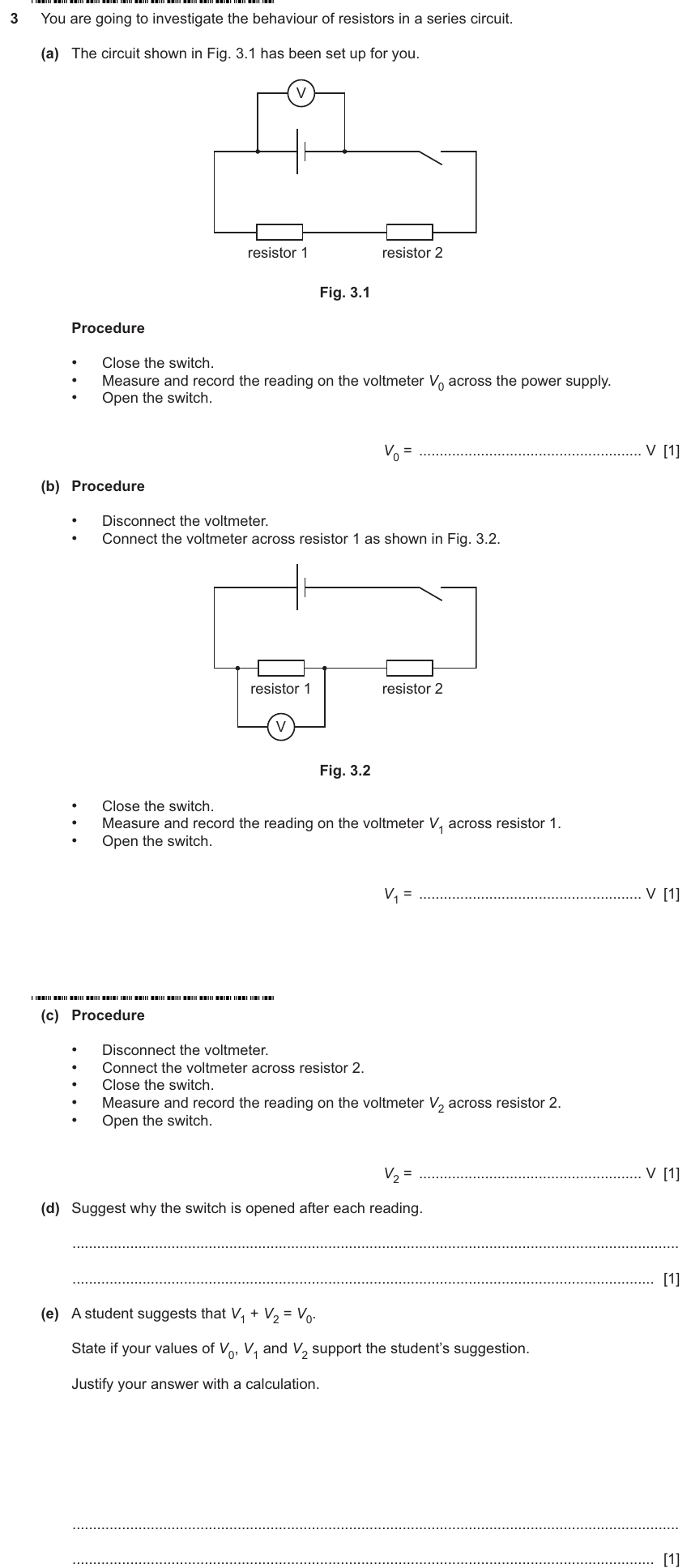

Exercise 9 — IGCSE 0653 May/Jun 2025 Paper 52 Q3
Show mark scheme
value of V

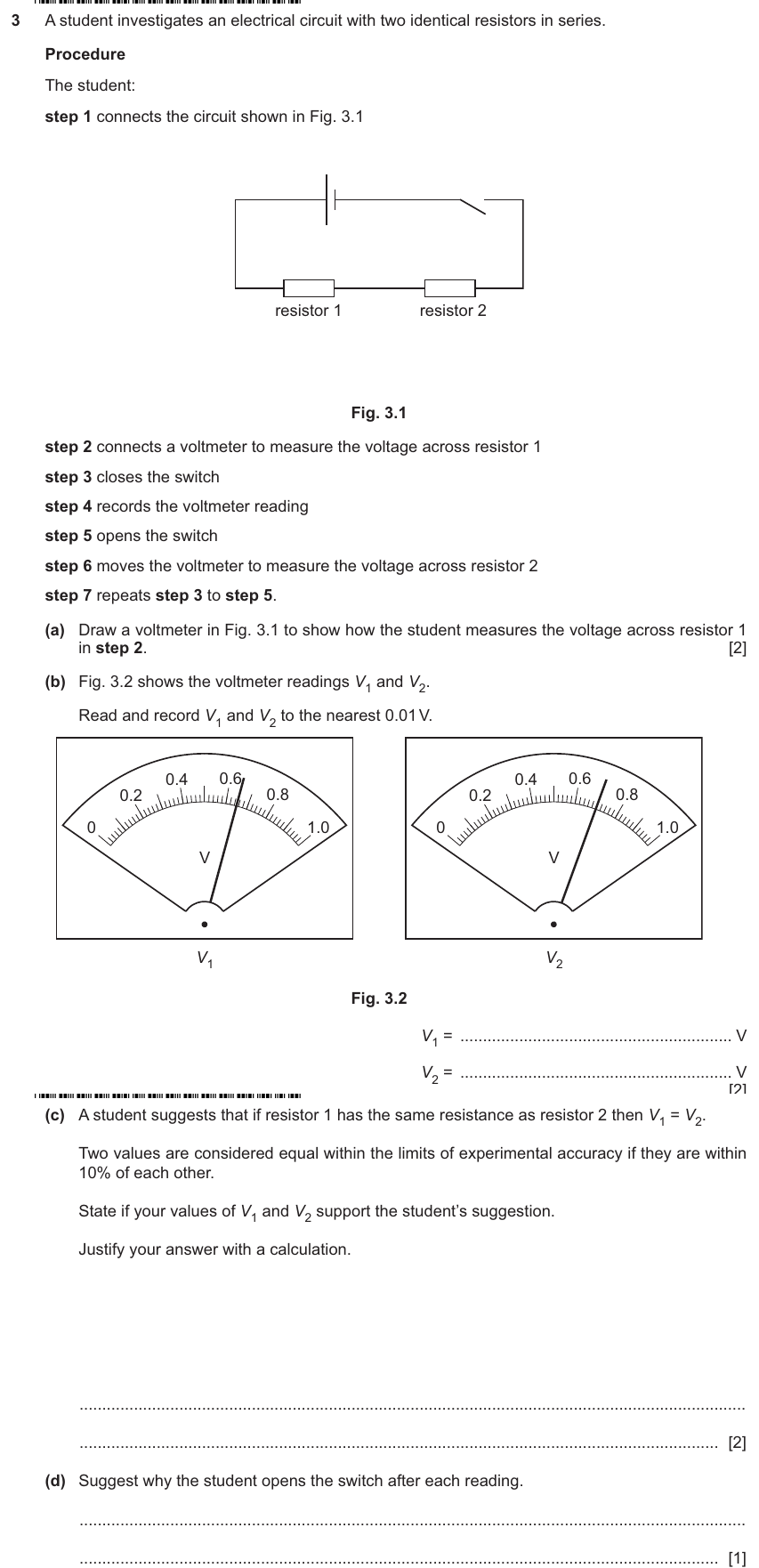

Exercise 10 — IGCSE 0653 May/Jun 2025 Paper 62 Q3
Show mark scheme
correct voltmeter symbol
All Electricity & Magnetism questions in this collection
| Type | Level | Paper | Session | Q# | Marks | Answer / key |
|---|---|---|---|---|---|---|
| ATP | Core | Paper 52 | Mar 2023 | Q3 | 7 marks | top of spring < bottom of spring, both in mm |
| ATP | Core | Paper 51 | May/Jun 2024 | Q3 | 7 marks | values for h, w and l all recorded to 0.1 cm |
| ATP | Core | Paper 52 | May/Jun 2025 | Q3 | 7 marks | value of V |
| ATP | Extended | Paper 62 | Mar 2023 | Q3 | 7 marks | keep your eyes level with the, point being measured / top of the spring / avoid … |
| ATP | Extended | Paper 62 | Mar 2023 | Q4 | 7 marks | One mark from each section and any two other marking points: |
| ATP | Extended | Paper 62 | Mar 2024 | Q4 | 13 marks | correct symbol for voltmeter connected across the resistance wire |
| ATP | Extended | Paper 61 | May/Jun 2023 | Q4 | 13 marks | V = 2.6 (V) |
| ATP | Extended | Paper 61 | May/Jun 2024 | Q3 | 7 marks | h = 2.5 (cm) |
| ATP | Extended | Paper 61 | May/Jun 2024 | Q4 | 7 marks | One mark from each section and any two other marking points: |
| ATP | Extended | Paper 62 | May/Jun 2025 | Q3 | 7 marks | correct voltmeter symbol |
| MCQ | Core | Paper 12 | Mar 2023 | Q38 | 1 mark | C |
| MCQ | Core | Paper 12 | Mar 2023 | Q39 | 1 mark | B |
| MCQ | Core | Paper 12 | Mar 2024 | Q36 | 1 mark | C |
| MCQ | Core | Paper 12 | Mar 2024 | Q37 | 1 mark | D |
| MCQ | Core | Paper 12 | Mar 2024 | Q38 | 1 mark | B |
| MCQ | Core | Paper 12 | Mar 2024 | Q39 | 1 mark | D |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q29 | 1 mark | C |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q30 | 1 mark | C |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q31 | 1 mark | B |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q32 | 1 mark | D |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q33 | 1 mark | C |
| MCQ | Core | Paper 13 | May/Jun 2023 | Q36 | 1 mark | A |
| MCQ | Core | Paper 11 | May/Jun 2023 | Q37 | 1 mark | A |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q37 | 1 mark | D |
| MCQ | Core | Paper 13 | May/Jun 2023 | Q37 | 1 mark | B |
| MCQ | Core | Paper 11 | May/Jun 2023 | Q38 | 1 mark | D |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q38 | 1 mark | D |
| MCQ | Core | Paper 13 | May/Jun 2023 | Q38 | 1 mark | B |
| MCQ | Core | Paper 11 | May/Jun 2023 | Q39 | 1 mark | A |
| MCQ | Core | Paper 12 | May/Jun 2023 | Q39 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2023 | Q39 | 1 mark | D |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q31 | 1 mark | A |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q32 | 1 mark | D |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q33 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q34 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q35 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q36 | 1 mark | C |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q37 | 1 mark | B |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q37 | 1 mark | C |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q38 | 1 mark | B |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q38 | 1 mark | B |
| MCQ | Core | Paper 11 | May/Jun 2024 | Q39 | 1 mark | D |
| MCQ | Core | Paper 13 | May/Jun 2024 | Q39 | 1 mark | D |
| MCQ | Core | Paper 13 | May/Jun 2025 | Q28 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2025 | Q29 | 1 mark | A |
| MCQ | Core | Paper 13 | May/Jun 2025 | Q30 | 1 mark | C |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q34 | 1 mark | B |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q35 | 1 mark | C |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q36 | 1 mark | D |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q37 | 1 mark | D |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q38 | 1 mark | D |
| MCQ | Core | Paper 11 | May/Jun 2025 | Q39 | 1 mark | C |
| MCQ | Core | Paper 11 | Oct/Nov 2023 | Q36 | 1 mark | C |
| MCQ | Core | Paper 11 | Oct/Nov 2023 | Q37 | 1 mark | C |
| MCQ | Core | Paper 12 | Oct/Nov 2023 | Q37 | 1 mark | D |
| MCQ | Core | Paper 13 | Oct/Nov 2023 | Q37 | 1 mark | D |
| MCQ | Core | Paper 11 | Oct/Nov 2023 | Q38 | 1 mark | D |
| MCQ | Core | Paper 12 | Oct/Nov 2023 | Q38 | 1 mark | C |
| MCQ | Core | Paper 13 | Oct/Nov 2023 | Q38 | 1 mark | C |
| MCQ | Core | Paper 11 | Oct/Nov 2023 | Q39 | 1 mark | B |
| MCQ | Core | Paper 12 | Oct/Nov 2023 | Q39 | 1 mark | C |
| MCQ | Core | Paper 13 | Oct/Nov 2023 | Q39 | 1 mark | C |
| MCQ | Extended | Paper 22 | Mar 2023 | Q37 | 1 mark | A |
| MCQ | Extended | Paper 22 | Mar 2023 | Q38 | 1 mark | B |
| MCQ | Extended | Paper 22 | Mar 2023 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 22 | Mar 2024 | Q37 | 1 mark | C |
| MCQ | Extended | Paper 22 | Mar 2024 | Q38 | 1 mark | B |
| MCQ | Extended | Paper 22 | Mar 2024 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2023 | Q31 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2023 | Q32 | 1 mark | A |
| MCQ | Extended | Paper 22 | May/Jun 2023 | Q33 | 1 mark | C |
| MCQ | Extended | Paper 22 | May/Jun 2023 | Q34 | 1 mark | B |
| MCQ | Extended | Paper 23 | May/Jun 2023 | Q36 | 1 mark | D |
| MCQ | Extended | Paper 21 | May/Jun 2023 | Q37 | 1 mark | B |
| MCQ | Extended | Paper 23 | May/Jun 2023 | Q37 | 1 mark | A |
| MCQ | Extended | Paper 21 | May/Jun 2023 | Q38 | 1 mark | A |
| MCQ | Extended | Paper 23 | May/Jun 2023 | Q38 | 1 mark | C |
| MCQ | Extended | Paper 21 | May/Jun 2023 | Q39 | 1 mark | C |
| MCQ | Extended | Paper 22 | May/Jun 2023 | Q39 | 1 mark | D |
| MCQ | Extended | Paper 23 | May/Jun 2023 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q28 | 1 mark | C |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q29 | 1 mark | D |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q30 | 1 mark | C |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q34 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q35 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q36 | 1 mark | D |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q37 | 1 mark | A |
| MCQ | Extended | Paper 21 | May/Jun 2024 | Q38 | 1 mark | B |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q38 | 1 mark | A |
| MCQ | Extended | Paper 21 | May/Jun 2024 | Q39 | 1 mark | A |
| MCQ | Extended | Paper 22 | May/Jun 2024 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 21 | May/Jun 2025 | Q35 | 1 mark | B |
| MCQ | Extended | Paper 21 | May/Jun 2025 | Q36 | 1 mark | B |
| MCQ | Extended | Paper 21 | May/Jun 2025 | Q37 | 1 mark | B |
| MCQ | Extended | Paper 23 | May/Jun 2025 | Q37 | 1 mark | B |
| MCQ | Extended | Paper 23 | May/Jun 2025 | Q38 | 1 mark | A |
| MCQ | Extended | Paper 23 | May/Jun 2025 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 22 | Oct/Nov 2023 | Q36 | 1 mark | D |
| MCQ | Extended | Paper 23 | Oct/Nov 2023 | Q36 | 1 mark | B |
| MCQ | Extended | Paper 21 | Oct/Nov 2023 | Q37 | 1 mark | A |
| MCQ | Extended | Paper 22 | Oct/Nov 2023 | Q37 | 1 mark | D |
| MCQ | Extended | Paper 23 | Oct/Nov 2023 | Q37 | 1 mark | D |
| MCQ | Extended | Paper 21 | Oct/Nov 2023 | Q38 | 1 mark | C |
| MCQ | Extended | Paper 22 | Oct/Nov 2023 | Q38 | 1 mark | B |
| MCQ | Extended | Paper 23 | Oct/Nov 2023 | Q38 | 1 mark | B |
| MCQ | Extended | Paper 21 | Oct/Nov 2023 | Q39 | 1 mark | D |
| MCQ | Extended | Paper 22 | Oct/Nov 2023 | Q39 | 1 mark | B |
| MCQ | Extended | Paper 23 | Oct/Nov 2023 | Q39 | 1 mark | C |
| Theory | Core | Paper 32 | Mar 2023 | Q9 | 8 marks | parallel |
| Theory | Core | Paper 32 | Mar 2024 | Q9 | 7 marks | electromagnetic |
| Theory | Core | Paper 33 | May/Jun 2023 | Q6 | 10 marks | parallel |
| Theory | Core | Paper 32 | May/Jun 2023 | Q9 | 8 marks | resistance = voltage current (in any form) / (R) = 9 1.5 |
| Theory | Core | Paper 31 | Oct/Nov 2023 | Q6 | 9 marks | current |
| Theory | Extended | Paper 42 | Mar 2023 | Q9 | 10 marks | series |
| Theory | Extended | Paper 43 | May/Jun 2023 | Q6 | 9 marks | parallel |
| Theory | Extended | Paper 42 | May/Jun 2023 | Q9 | 6 marks | resistance = p.d. current (stated or evidence of use) / (R =) 6.0 0.75 |
| Theory | Extended | Paper 41 | May/Jun 2025 | Q9 | 10 marks | current in motor = 6.6 – 0.30 = 6.3 A |
| Theory | Extended | Paper 41 | Oct/Nov 2023 | Q3 | 7 marks | air resistance |
