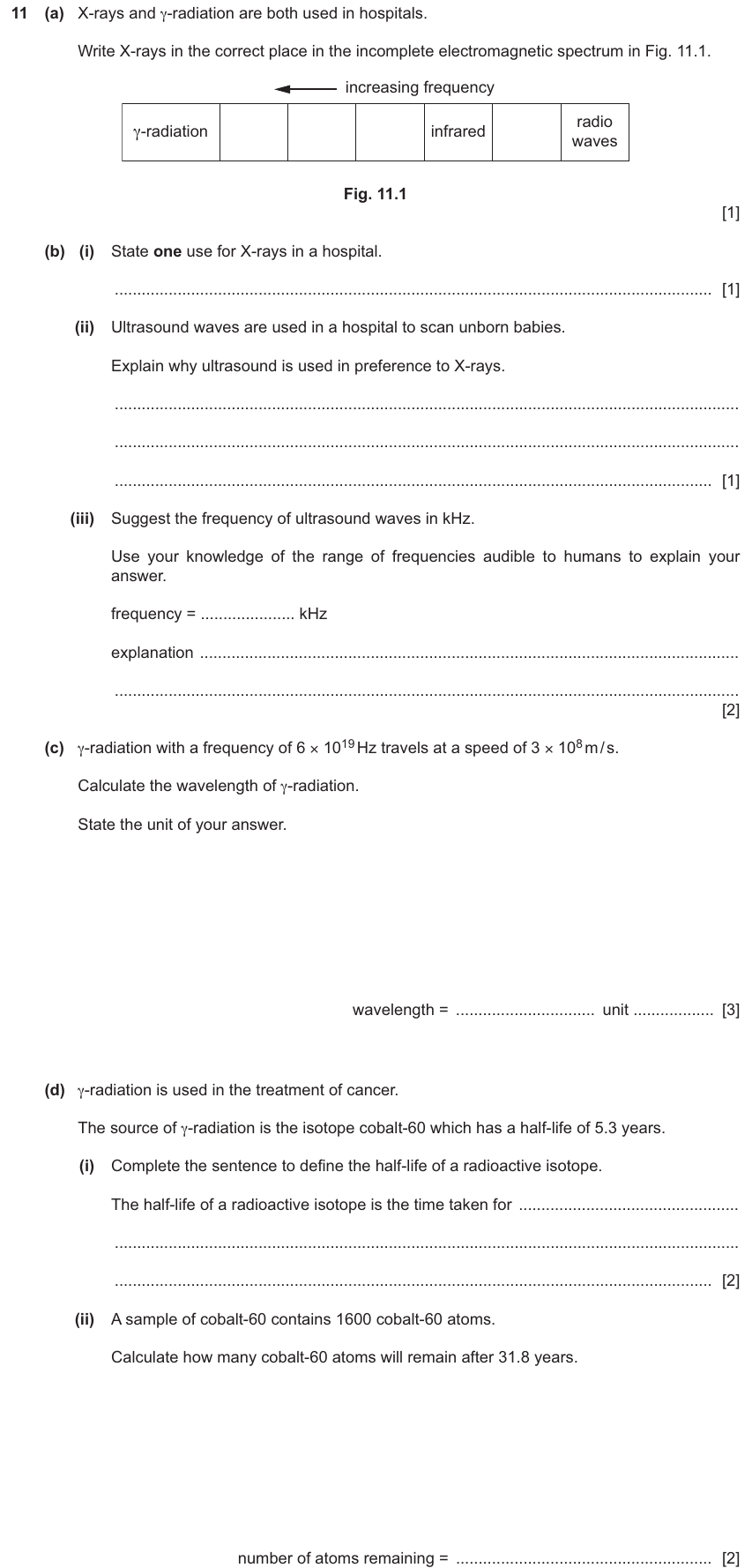

Exercise 1 — IGCSE 0654 Nov 2025 Paper 31 Q11

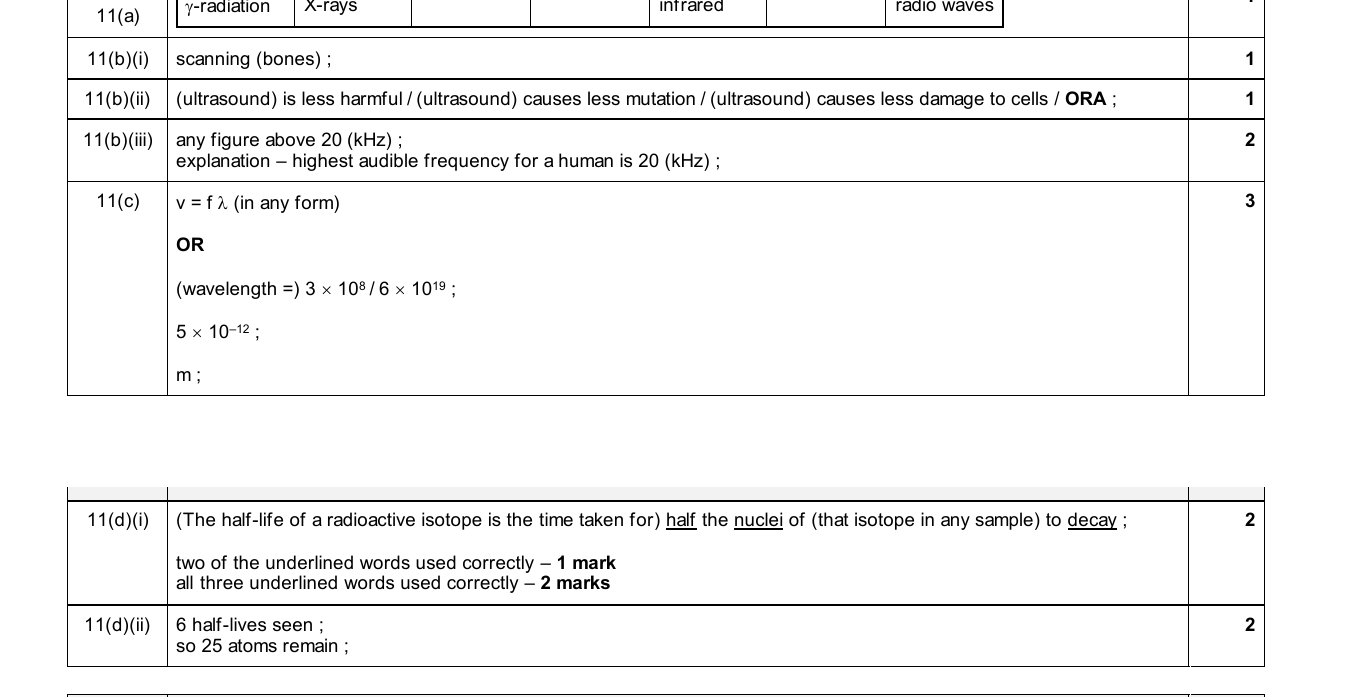

Show mark scheme
Cambridge IGCSE·Co-ordinated Sciences 0654·Physics
Electromagnetic Spectrum
Key knowledge — Waves
Formulas & equations
Wave speed = frequency × wavelength (v = fλ)Period = 1 ÷ frequency (T = 1/f)Snell's law: n₁ sin θ₁ = n₂ sin θ₂Refractive index: n = sin i ÷ sin r = speed in vacuum ÷ speed in mediumCritical angle: sin C = 1/n
Key facts & rules
- Transverse wave: oscillations perpendicular to direction of travel (light, water, EM waves).
- Longitudinal wave: oscillations parallel to direction of travel (sound, P-waves).
- Amplitude: maximum displacement from equilibrium — related to energy/loudness.
- Frequency (Hz): number of complete waves per second.
- Wavelength: distance between two adjacent identical points.
- Reflection: angle of incidence = angle of reflection (measured from normal).
- Refraction: wave changes speed when entering a new medium → changes direction.
- Total internal reflection: occurs when angle of incidence > critical angle (light going dense → less dense).
- Electromagnetic spectrum (low to high frequency): radio → microwave → infrared → visible → UV → X-ray → gamma.
- All EM waves travel at 3 × 10⁸ m/s in a vacuum.
IGCSE Physics — Electromagnetic spectrum
33 Cambridge IGCSE 0654 questions on electromagnetic spectrum, across all three components.
About electromagnetic spectrum on IGCSE 0654
Every Cambridge IGCSE Co-ordinated Sciences 0654 question on electromagnetic spectrum (Waves, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.
Theory
Electromagnetic spectrum — Core theory questions17 total · Paper 3

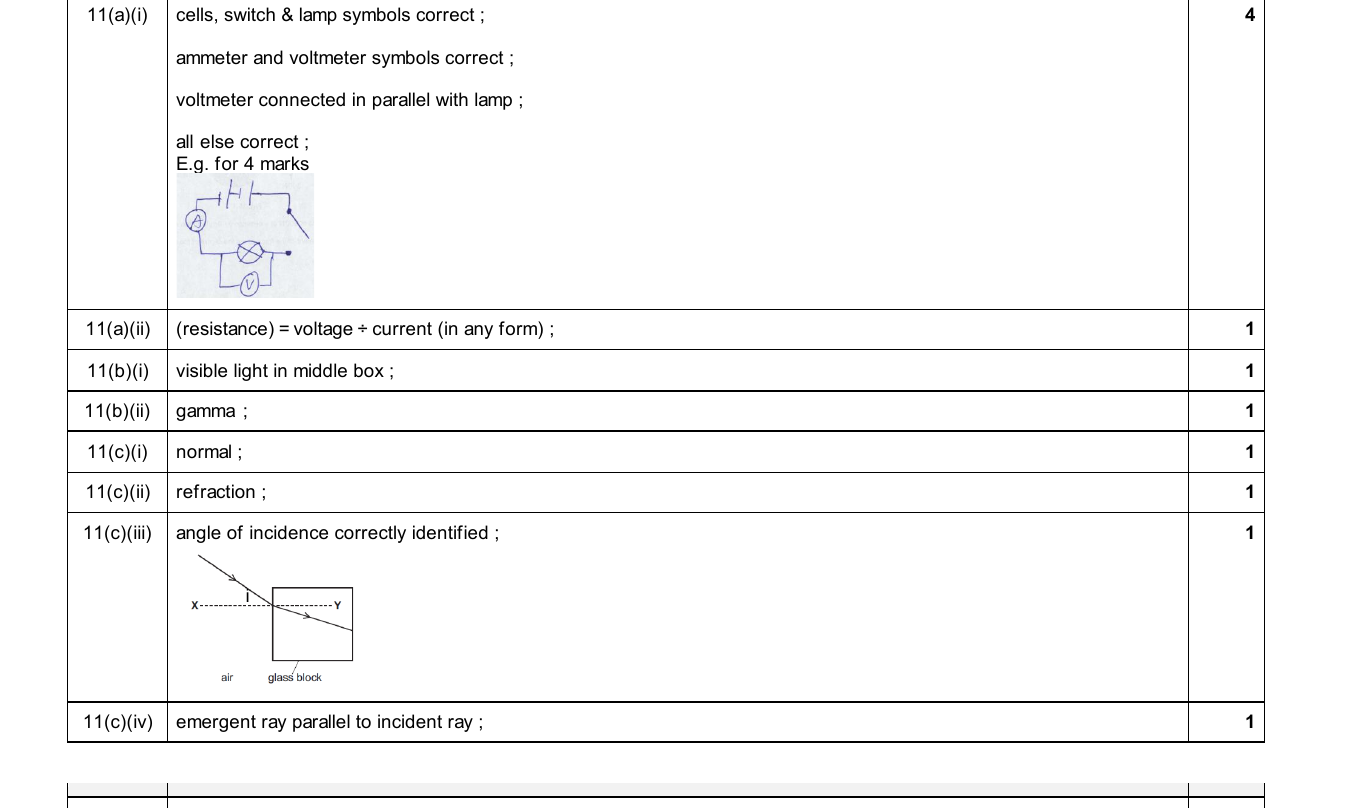

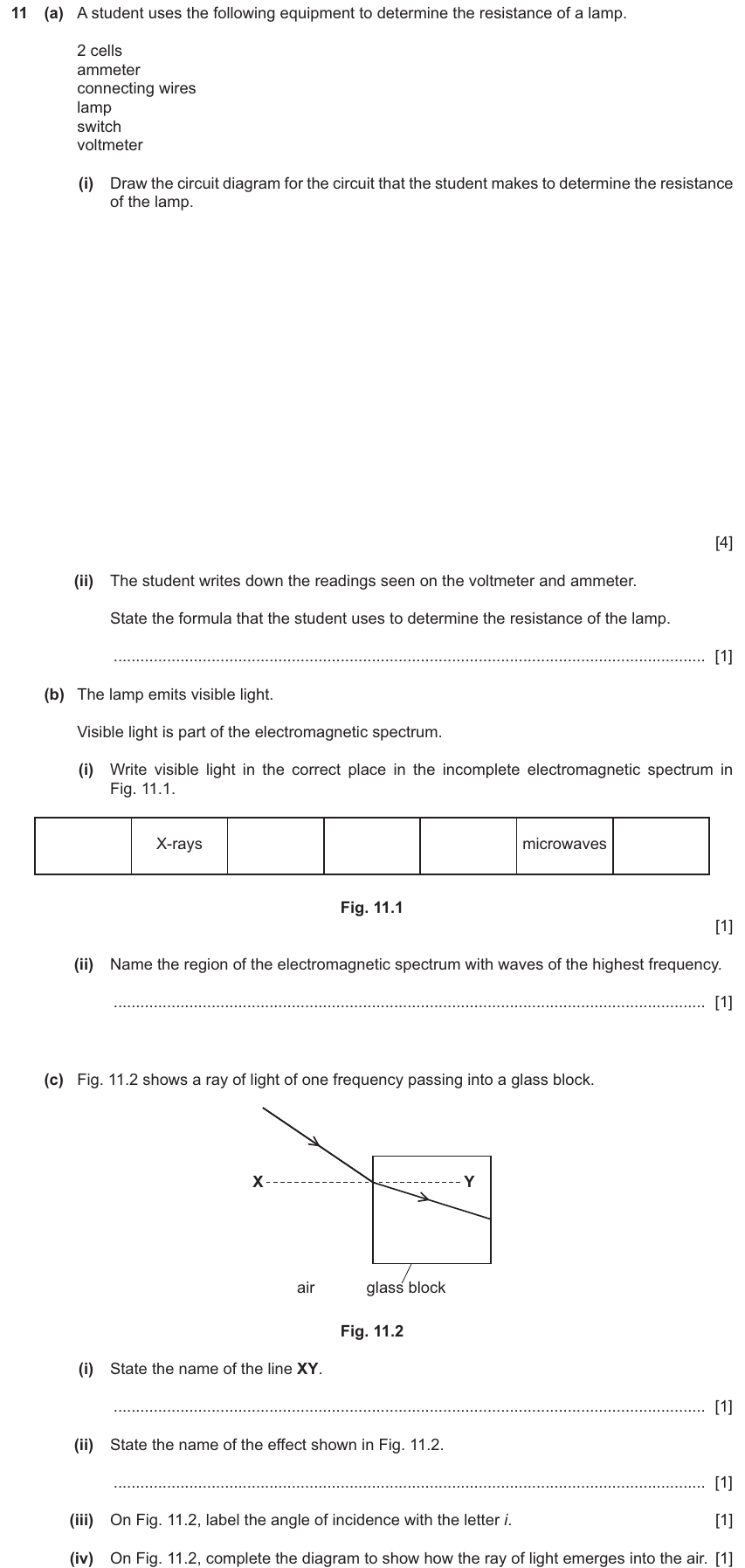

Exercise 2 — IGCSE 0654 Jun 2025 Paper 31 Q11
Show mark scheme

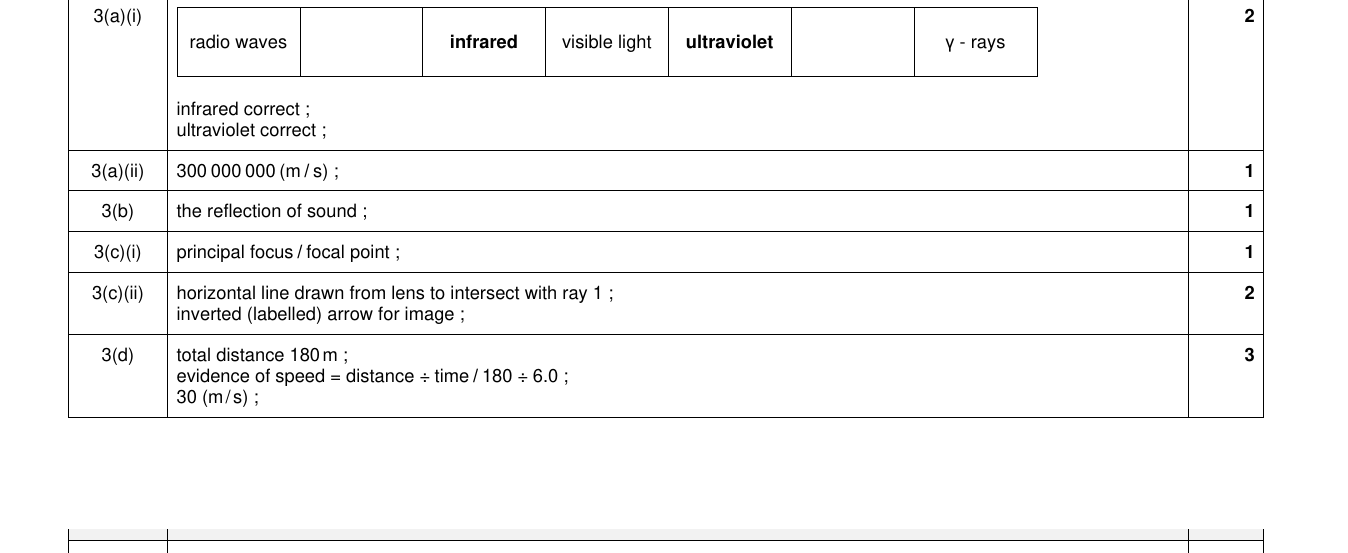

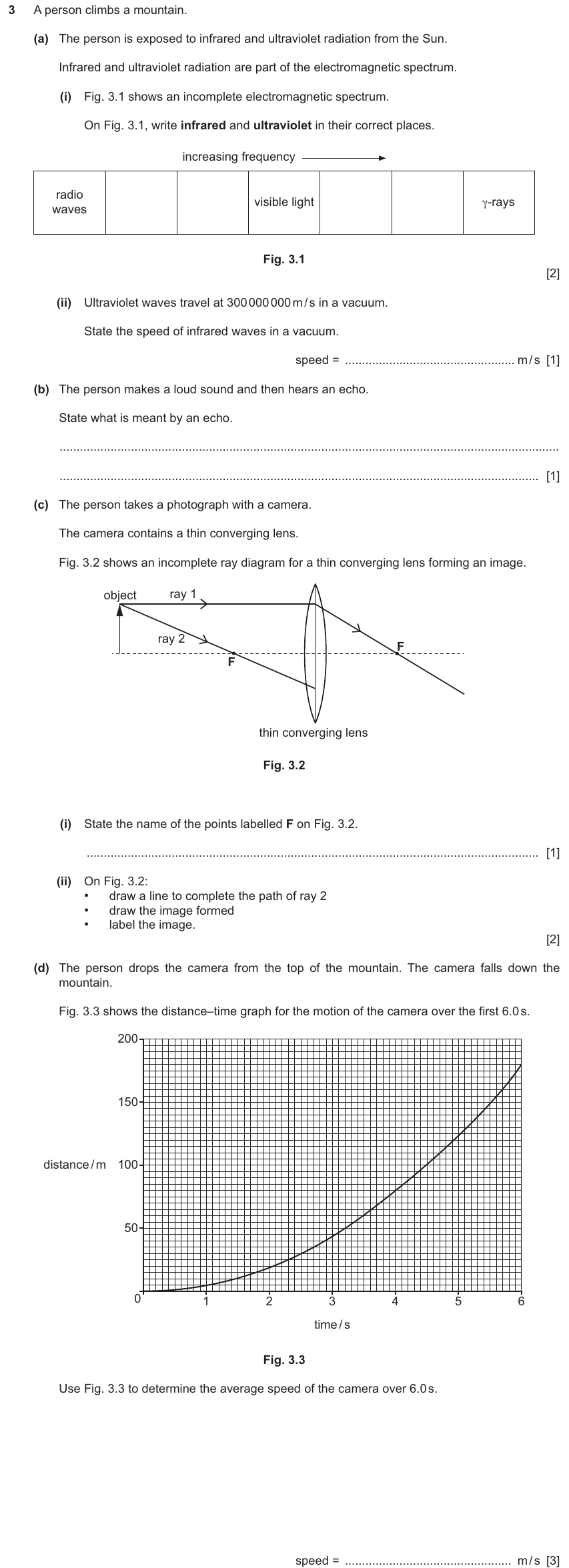

Exercise 3 — IGCSE 0654 Nov 2024 Paper 32 Q3
Show mark scheme
Electromagnetic spectrum — Extended theory questions2 total · Paper 4

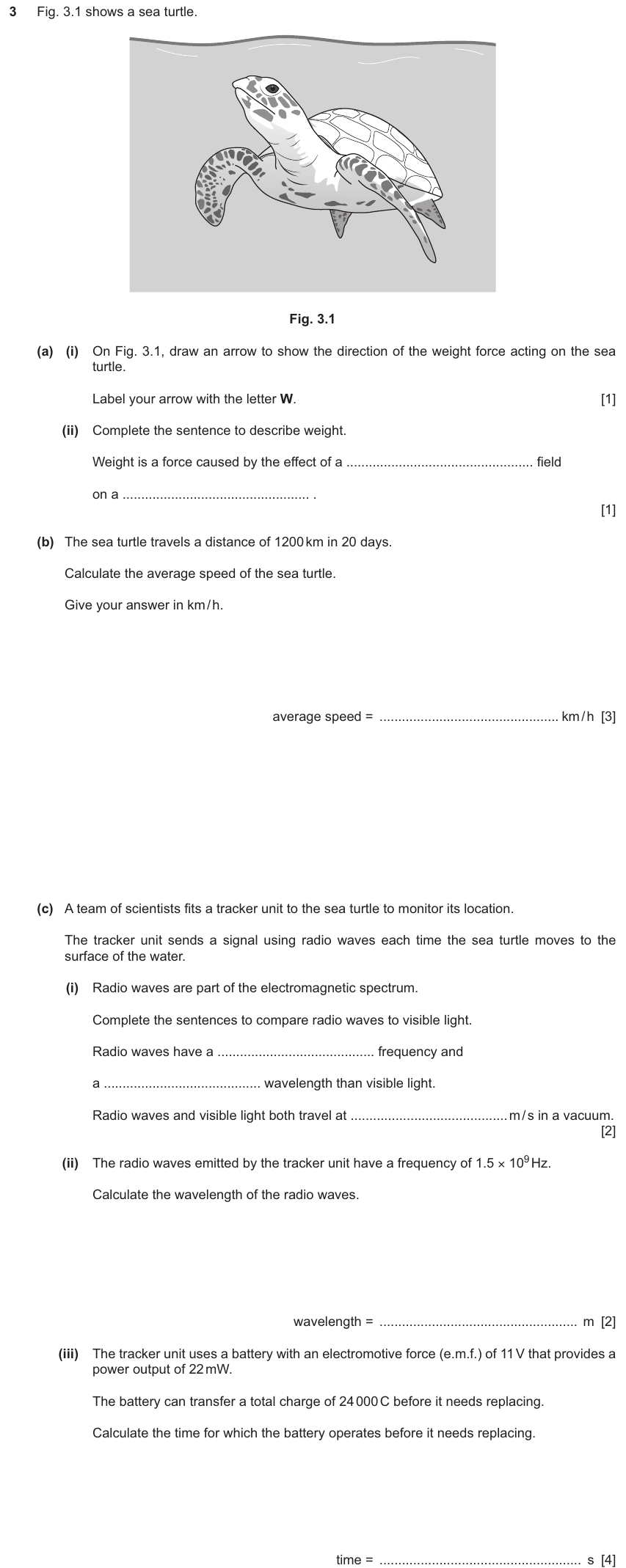

Exercise 4 — IGCSE 0654 Jun 2024 Paper 42 Q3

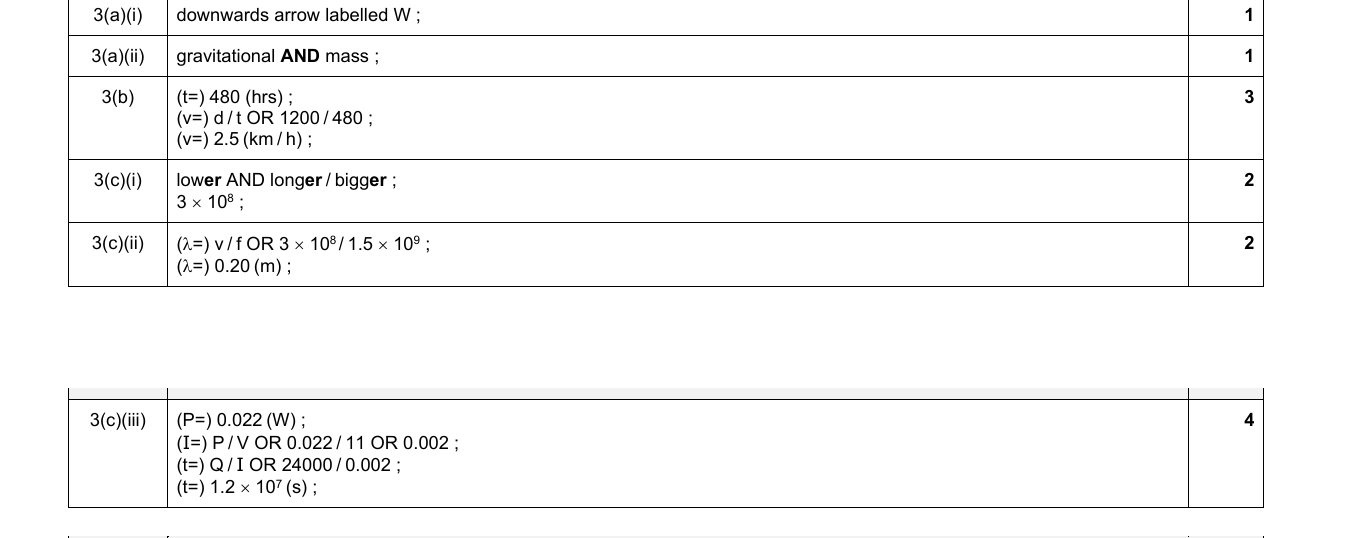

Show mark scheme

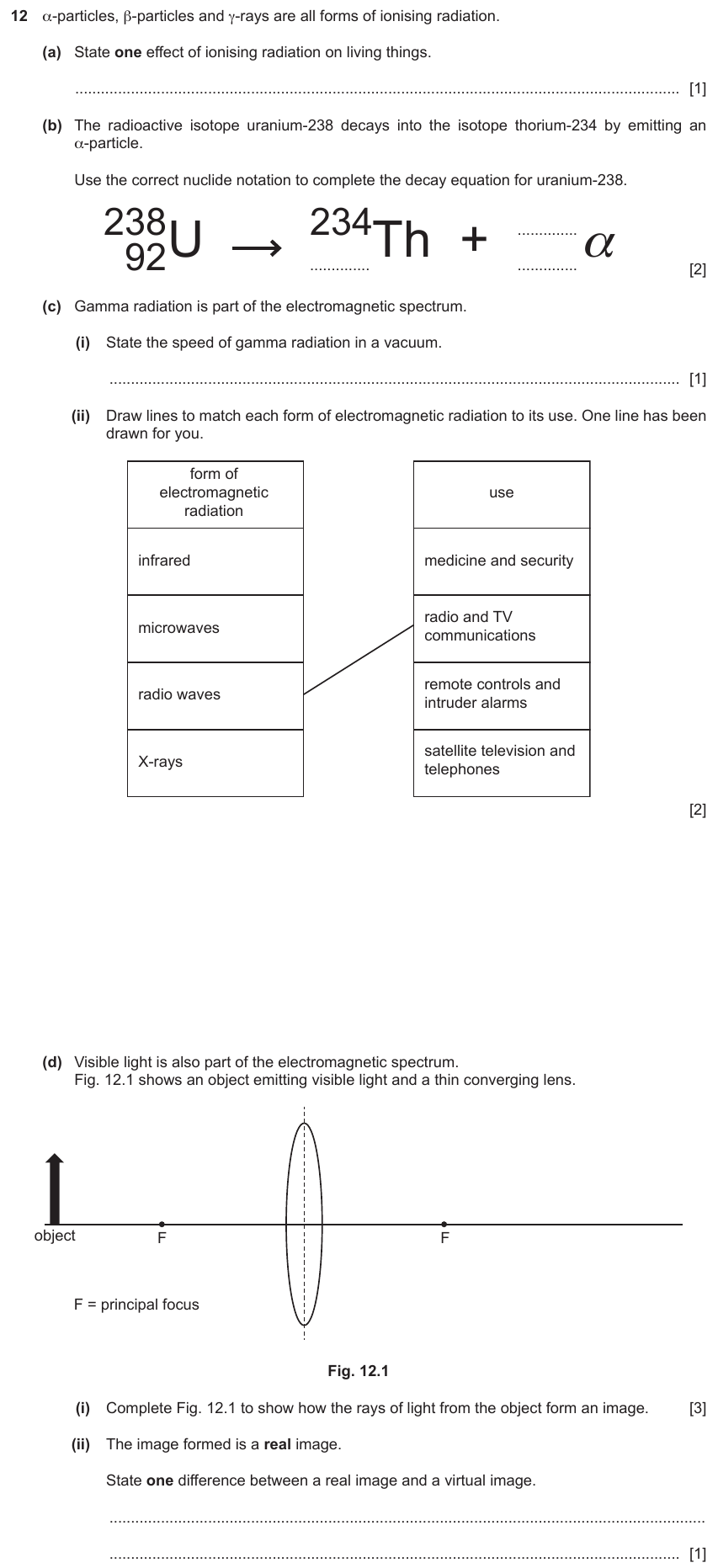

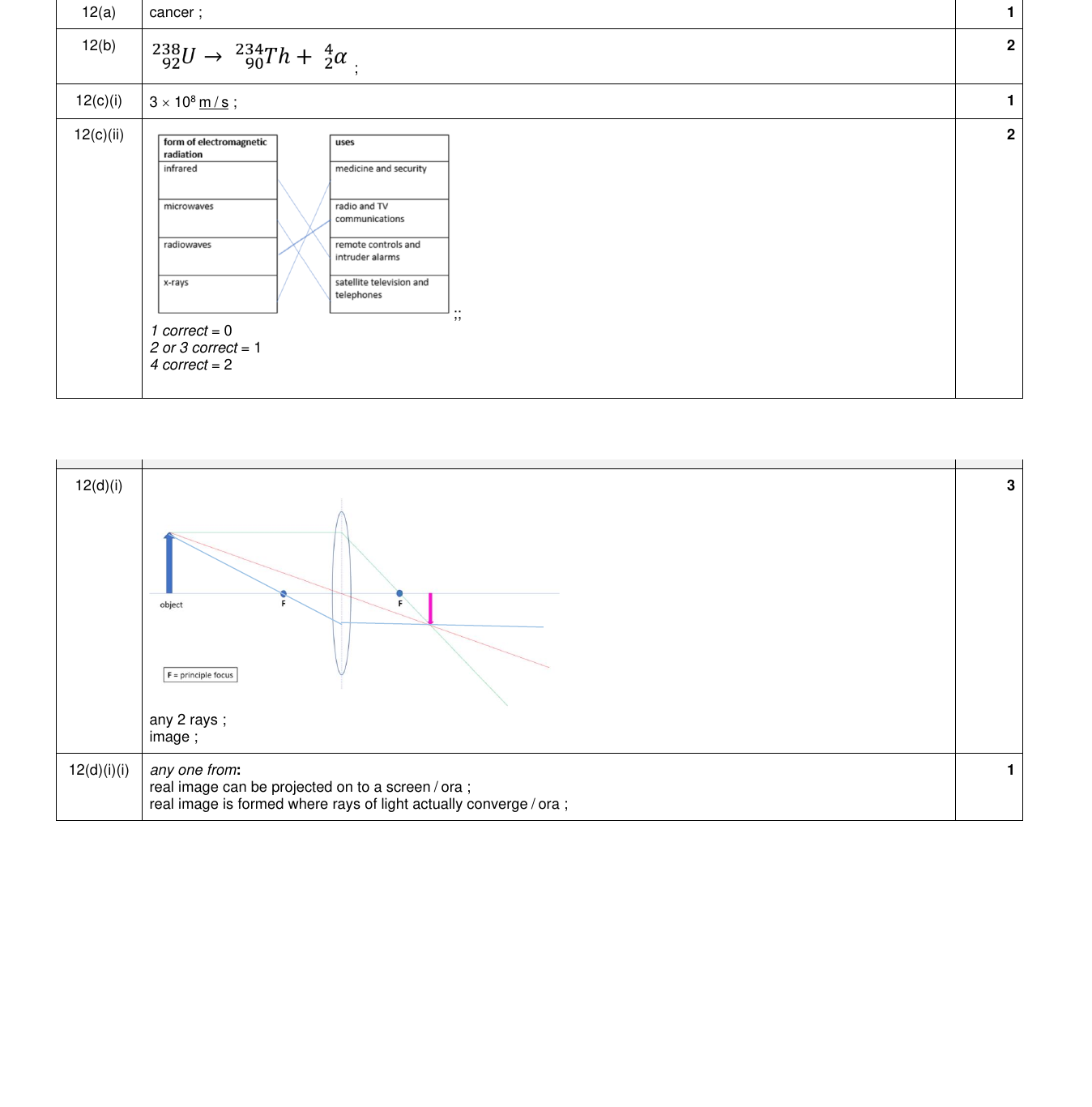

Exercise 5 — IGCSE 0654 Nov 2022 Paper 41 Q12
Show mark scheme
Multiple choice
Electromagnetic spectrum — Core multiple choice questions6 total · Paper 1

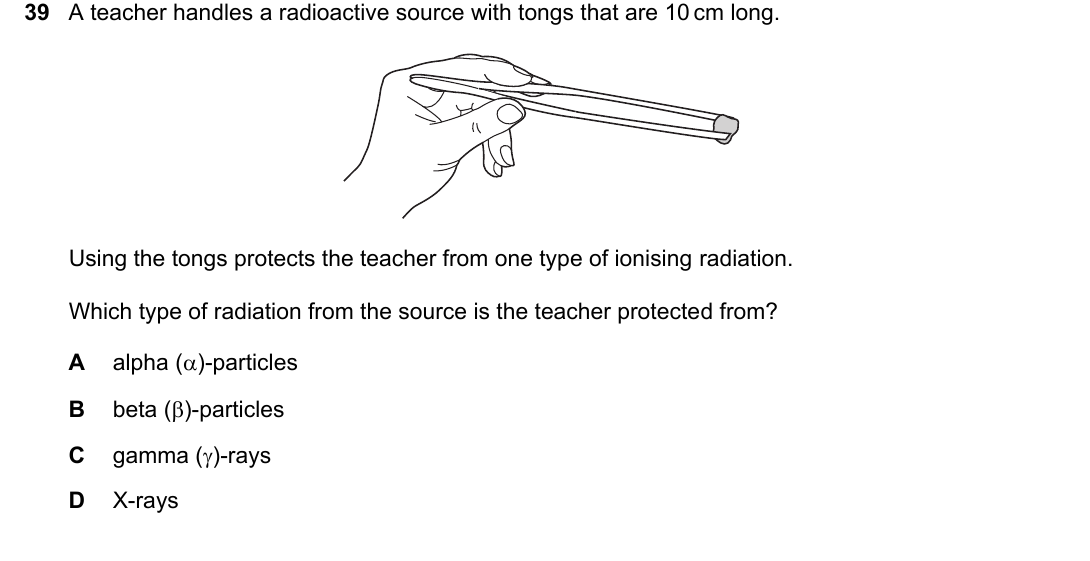

Exercise 1 — IGCSE 0654 May/June 2025 Paper 11 Q39
Show answer
Correct answer: A

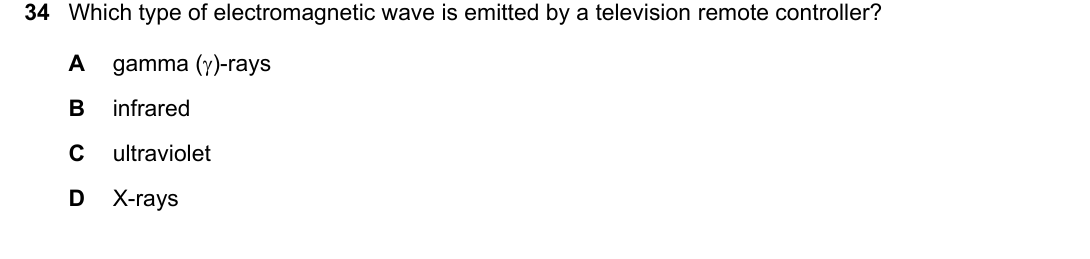

Exercise 2 — IGCSE 0654 May/June 2024 Paper 11 Q34
Show answer
Correct answer: B

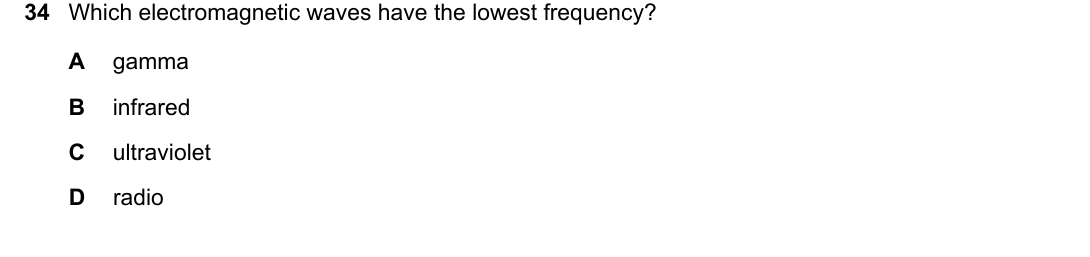

Exercise 3 — IGCSE 0654 Oct/Nov 2024 Paper 11 Q34
Show answer
Correct answer: D

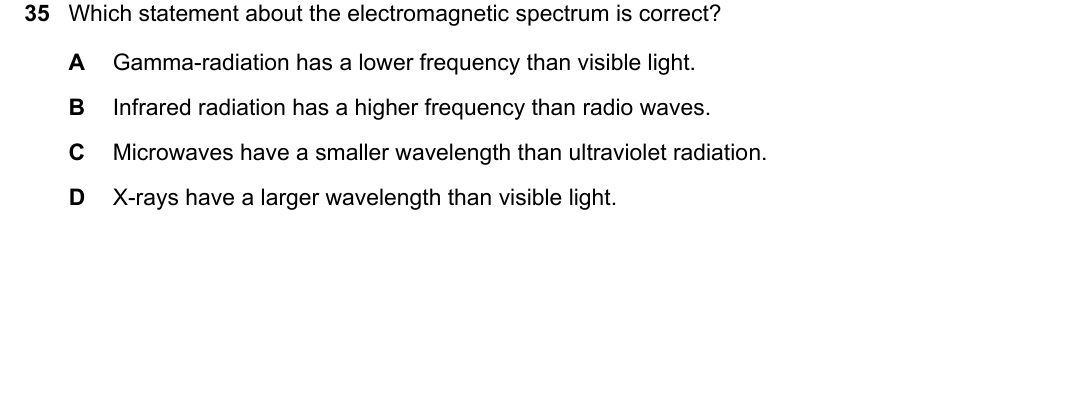

Exercise 4 — IGCSE 0654 May/June 2022 Paper 12 Q35
Show answer
Correct answer: B
Electromagnetic spectrum — Extended multiple choice questions8 total · Paper 2

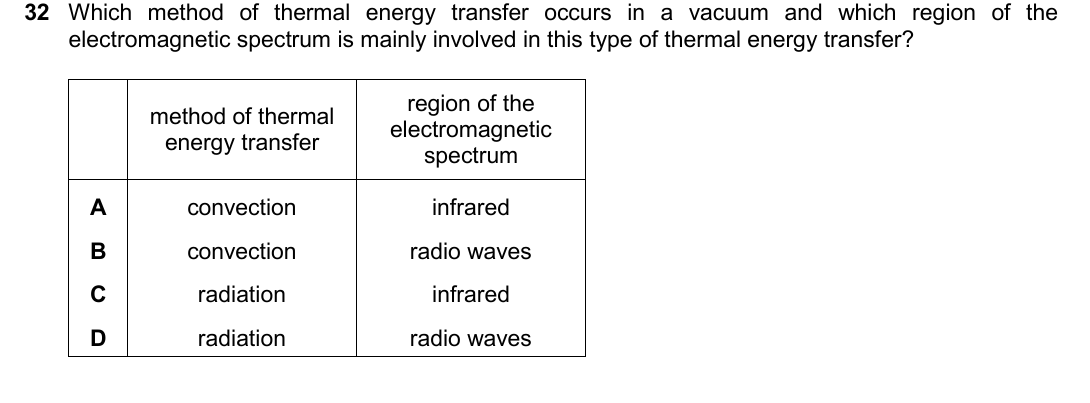

Exercise 5 — IGCSE 0654 March 2025 Paper 22 Q32
Show answer
Correct answer: C

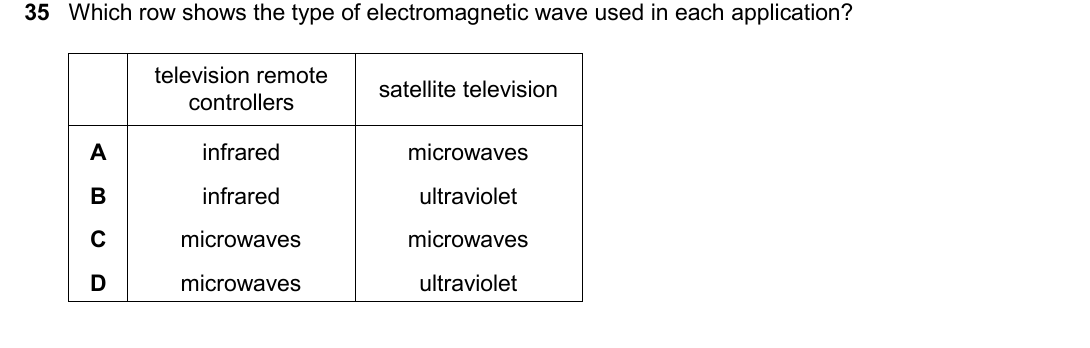

Exercise 6 — IGCSE 0654 May/June 2025 Paper 22 Q35
Show answer
Correct answer: A

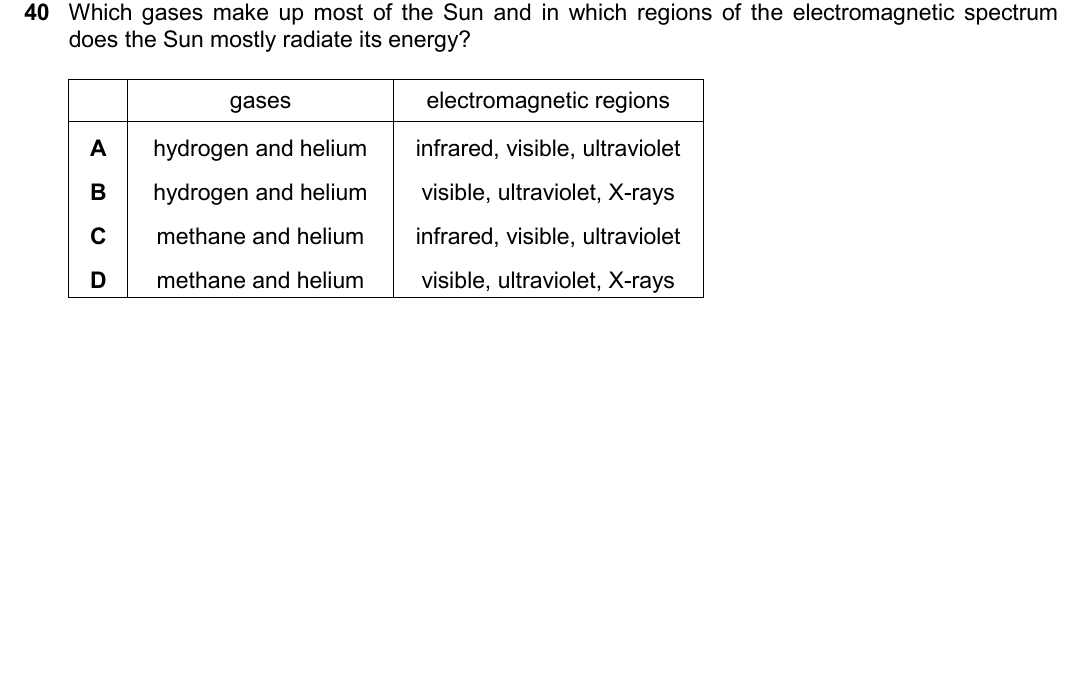

Exercise 7 — IGCSE 0654 May/June 2025 Paper 23 Q40
Show answer
Correct answer: A

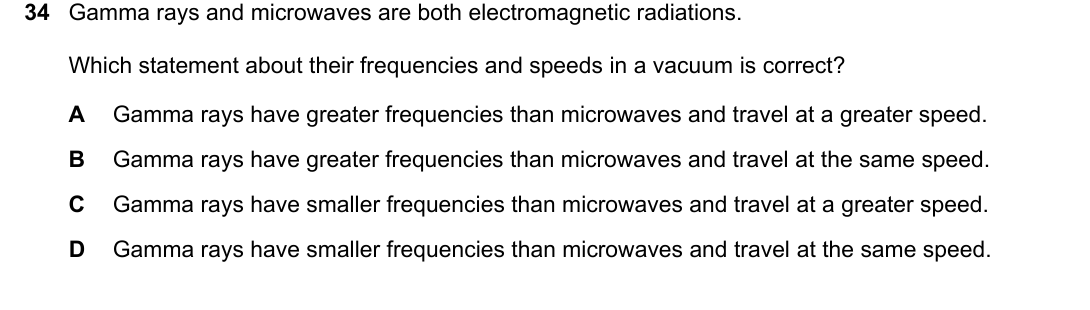

Exercise 8 — IGCSE 0654 Oct/Nov 2024 Paper 21 Q34
Show answer
Correct answer: B
