Cambridge IGCSE·Co-ordinated Sciences 0654·Physics Conduction Convection Radiation
📋Key knowledge — Thermal Physics

Formulas & equations

  • Thermal energy = mass × specific heat capacity × temperature change (Q = mcΔT)
  • Pressure × Volume = constant (Boyle's law, constant temperature)
  • P/T = constant (pressure law, constant volume)
  • V/T = constant (Charles' law, constant pressure)
  • Combined gas law: PV/T = constant

Key facts & rules

  • Conduction: energy transfer through a solid via vibrating particles/free electrons — metals are best conductors.
  • Convection: energy transfer in fluids — heated fluid rises (less dense), cool fluid sinks.
  • Radiation: energy transfer by infrared waves — no medium needed; black/dull surfaces best emitters and absorbers.
  • Specific heat capacity (SHC): energy needed to raise 1 kg of a substance by 1 K (or 1°C).
  • Latent heat: energy needed to change state WITHOUT temperature change.
  • Temperature in Kelvin: T(K) = T(°C) + 273.
  • Gas laws: temperature must be in KELVIN.
  • Thermal expansion: most substances expand when heated; used in thermostats, bimetal strips.

IGCSE Physics — Conduction, convection & radiation

33 Cambridge IGCSE 0654 questions on conduction, convection & radiation, across all three components.

About conduction, convection & radiation on IGCSE 0654

Every Cambridge IGCSE Co-ordinated Sciences 0654 question on conduction, convection & radiation (Thermal physics, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.

Theory

Papers 3 & 4 · 5 questions · Structured written questions, each with its full mark scheme.
Conduction, convection & radiation — Core theory questions4 total · Paper 3

Exercise 1 — IGCSE 0654 Mar 2025 Paper 32 Q10

Cambridge past paperCore13 marks Paper 32Mar 2025

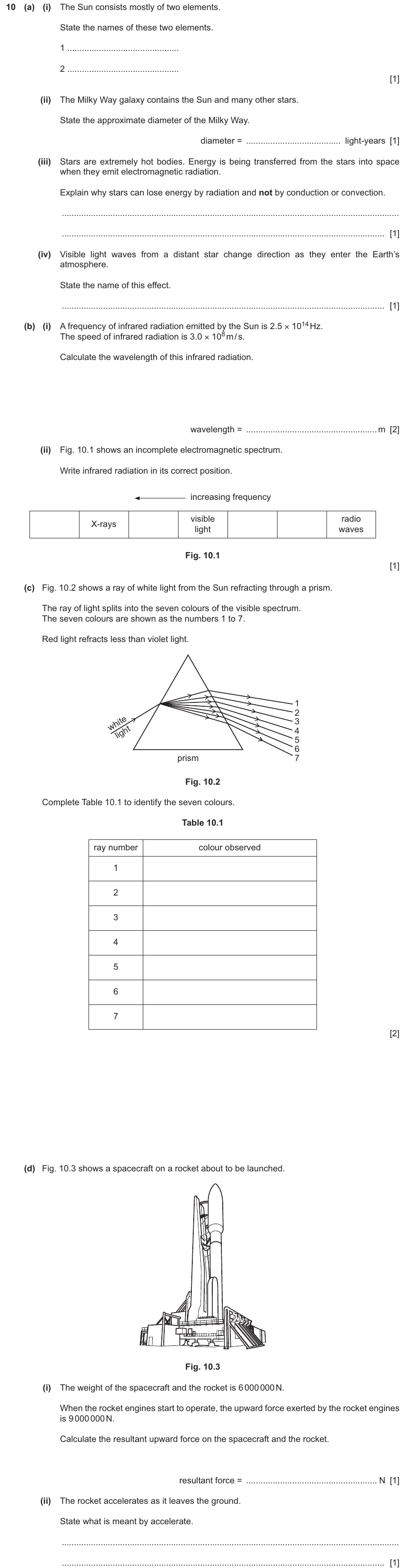

IGCSE 0654 Mar 2025 Paper 32 Question 10 — Conduction, convection & radiation
Show mark scheme

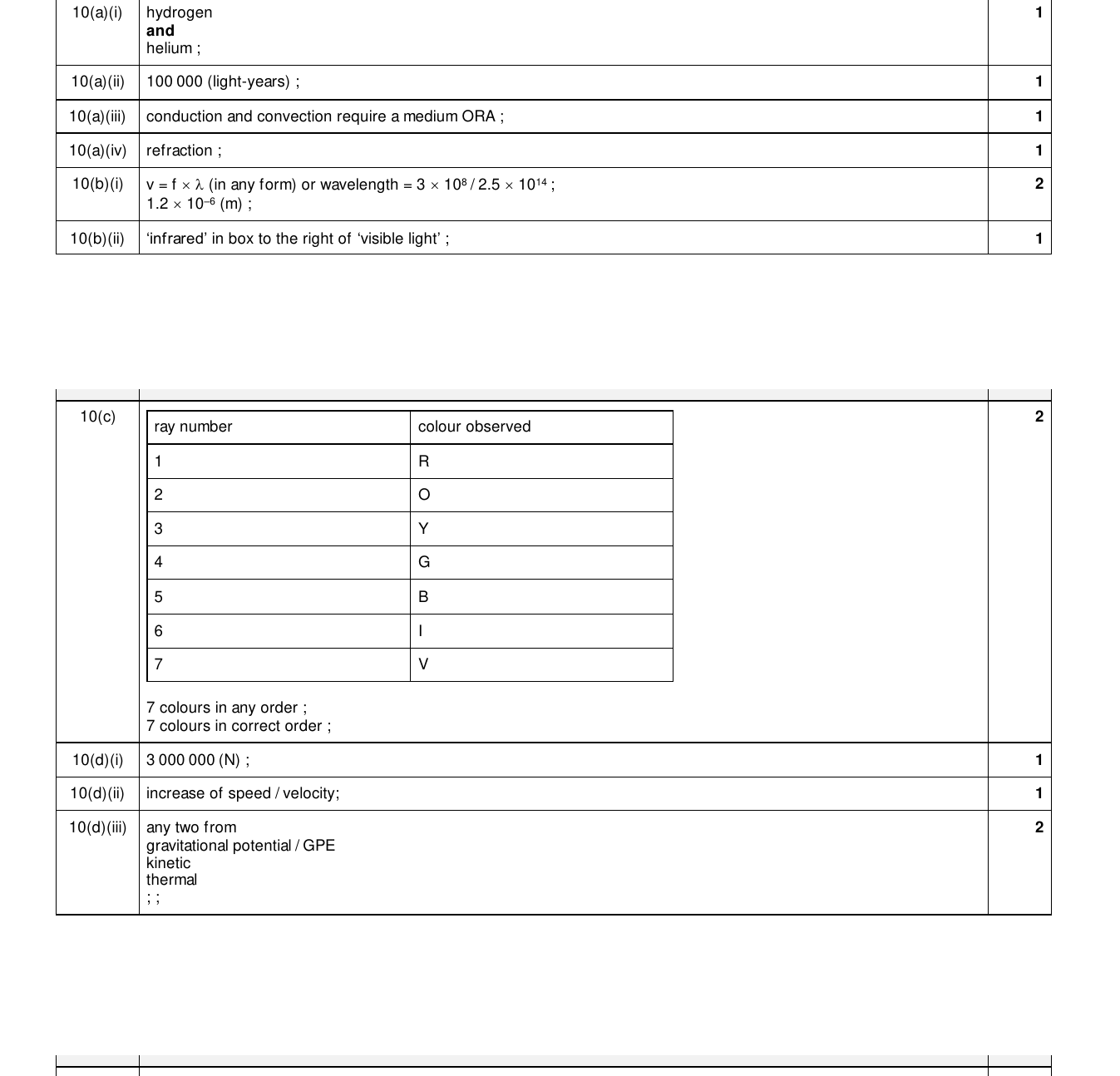

Mark scheme for IGCSE 0654 Mar 2025 Paper 32 Q10

Exercise 2 — IGCSE 0654 Jun 2024 Paper 32 Q9

Cambridge past paperCore11 marks Paper 32Jun 2024

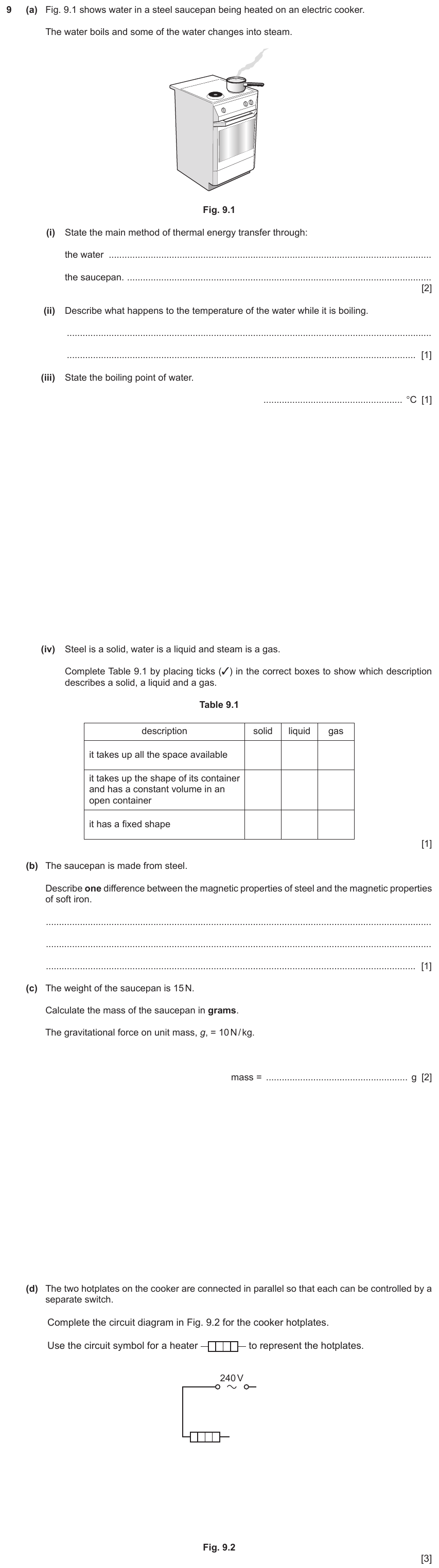

IGCSE 0654 Jun 2024 Paper 32 Question 9 — Conduction, convection & radiation
Show mark scheme
Mark scheme for IGCSE 0654 Jun 2024 Paper 32 Q9

Exercise 3 — IGCSE 0654 Jun 2024 Paper 33 Q9

Cambridge past paperCore11 marks Paper 33Jun 2024
IGCSE 0654 Jun 2024 Paper 33 Question 9 — Conduction, convection & radiation
Show mark scheme

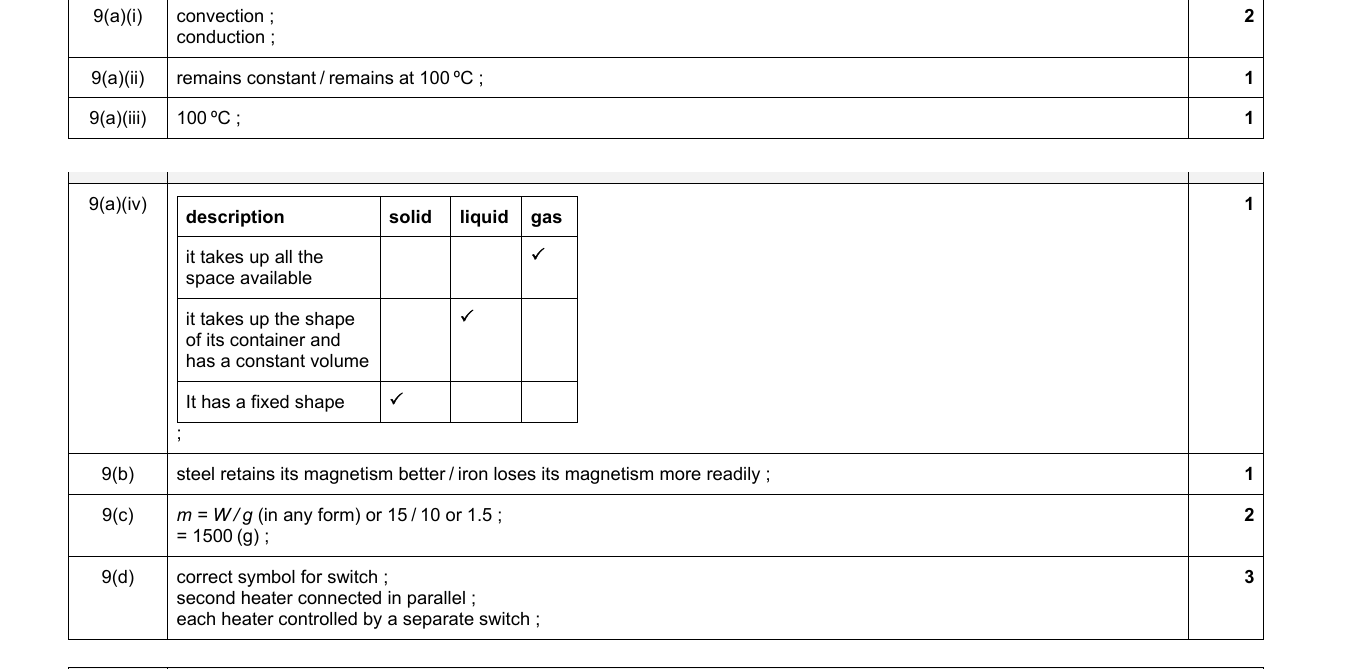

Mark scheme for IGCSE 0654 Jun 2024 Paper 33 Q9
Conduction, convection & radiation — Extended theory questions1 total · Paper 4

Exercise 4 — IGCSE 0654 Mar 2024 Paper 42 Q9

Cambridge past paperExtended12 marks Paper 42Mar 2024

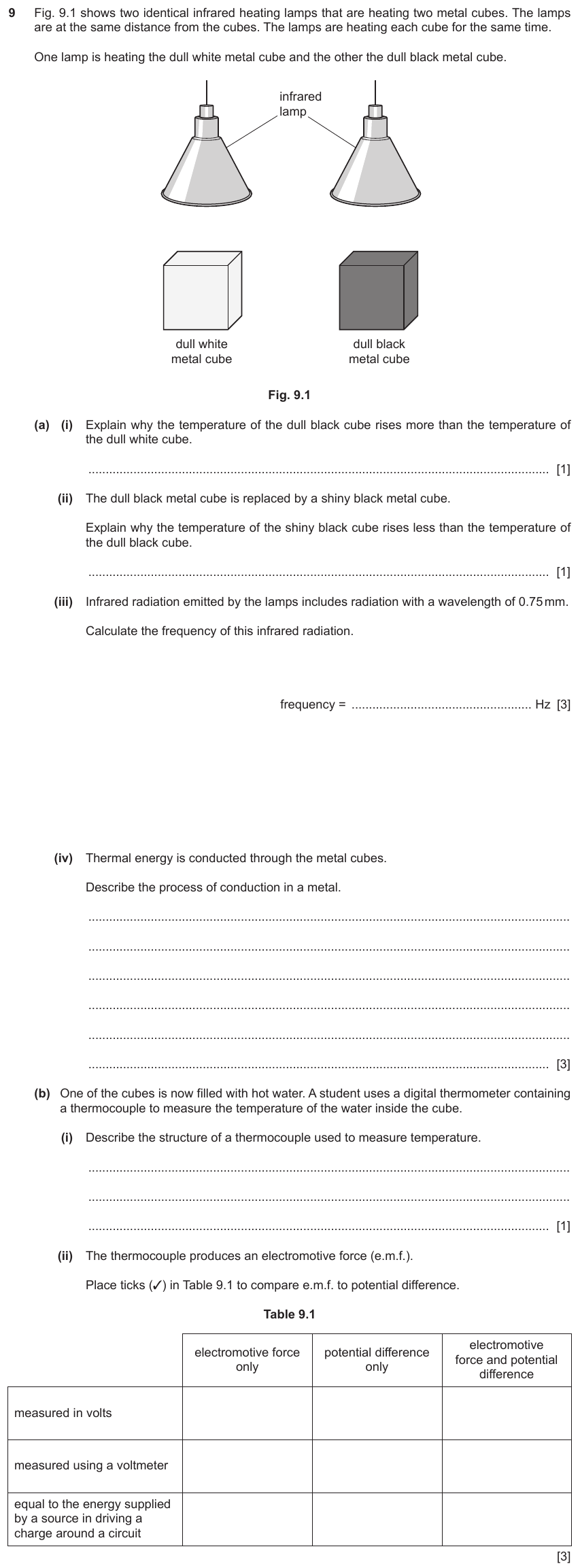

IGCSE 0654 Mar 2024 Paper 42 Question 9 — Conduction, convection & radiation
Show mark scheme

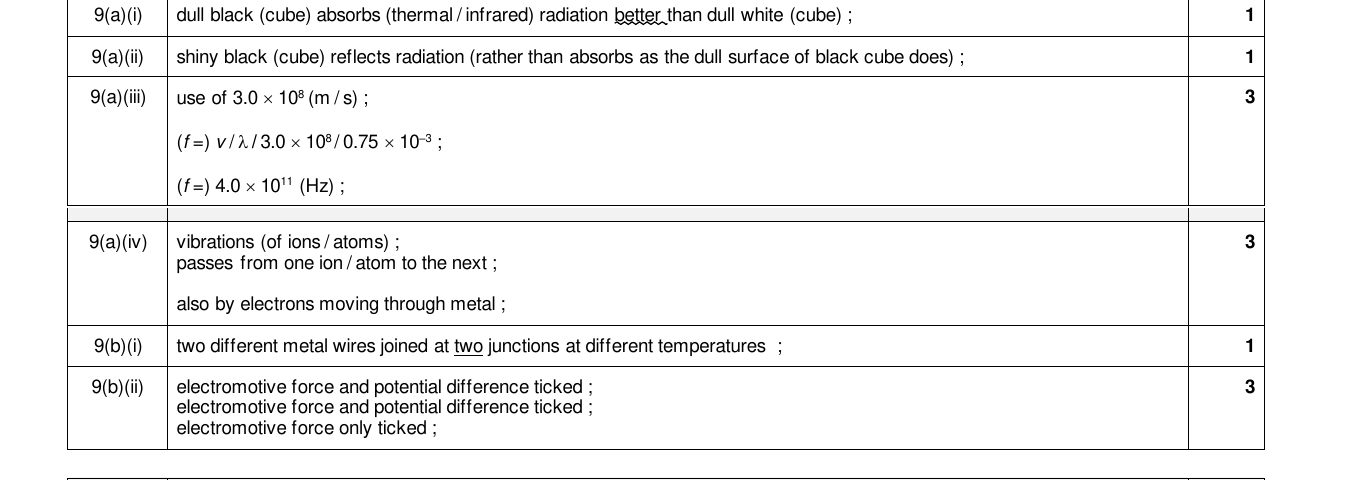

Mark scheme for IGCSE 0654 Mar 2024 Paper 42 Q9
↑ Back to top

Multiple choice

Papers 1 & 2 · 28 questions · Click an option (A–D) to check your answer instantly.
Conduction, convection & radiation — Core multiple choice questions19 total · Paper 1

Exercise 1 — IGCSE 0654 May/June 2025 Paper 11 Q31

Cambridge past paperCore1 mark Paper 11May/June 2025

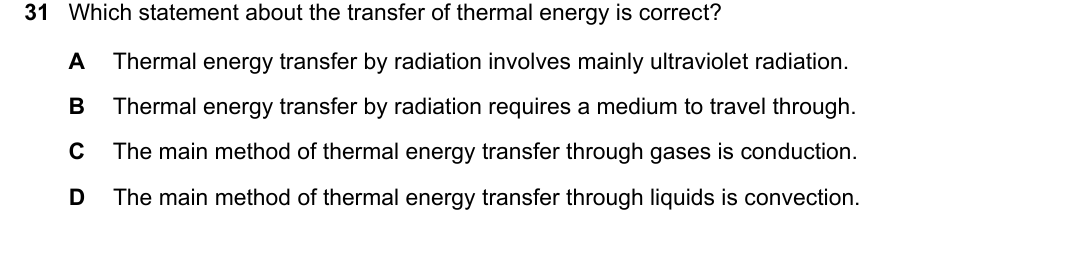

IGCSE 0654 May/June 2025 Paper 11 Question 31 — Conduction, convection & radiation
Show answer
Correct answer: D

Exercise 2 — IGCSE 0654 Oct/Nov 2025 Paper 11 Q32

Cambridge past paperCore1 mark Paper 11Oct/Nov 2025

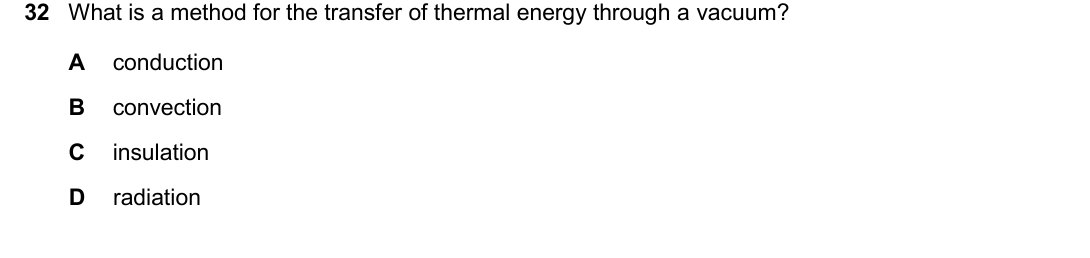

IGCSE 0654 Oct/Nov 2025 Paper 11 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: D

Exercise 3 — IGCSE 0654 March 2025 Paper 12 Q31

Cambridge past paperCore1 mark Paper 12March 2025

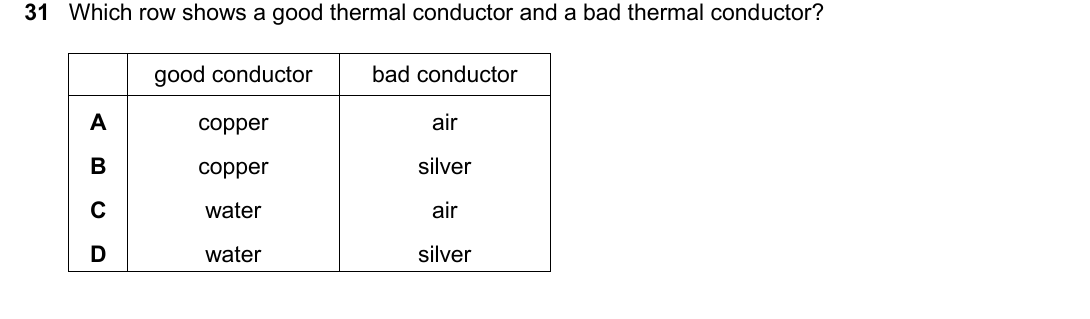

IGCSE 0654 March 2025 Paper 12 Question 31 — Conduction, convection & radiation
Show answer
Correct answer: A

Exercise 4 — IGCSE 0654 March 2025 Paper 12 Q32

Cambridge past paperCore1 mark Paper 12March 2025

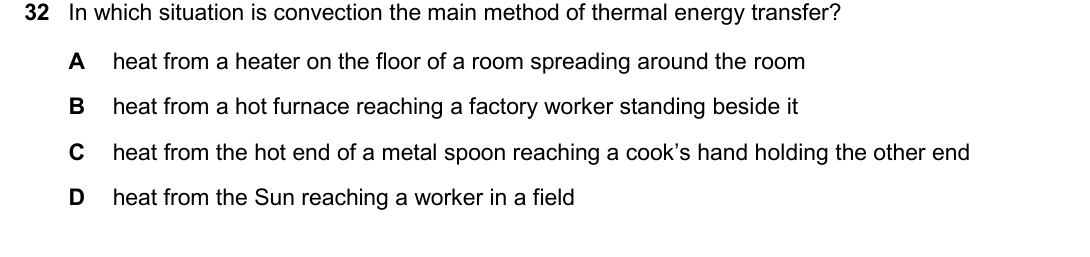

IGCSE 0654 March 2025 Paper 12 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: A
Conduction, convection & radiation — Extended multiple choice questions9 total · Paper 2

Exercise 5 — IGCSE 0654 Oct/Nov 2025 Paper 22 Q32

Cambridge past paperExtended1 mark Paper 22Oct/Nov 2025

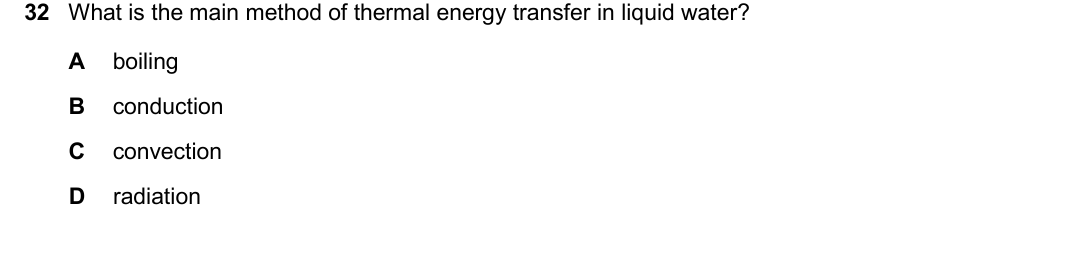

IGCSE 0654 Oct/Nov 2025 Paper 22 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: C

Exercise 6 — IGCSE 0654 May/June 2024 Paper 21 Q32

Cambridge past paperExtended1 mark Paper 21May/June 2024

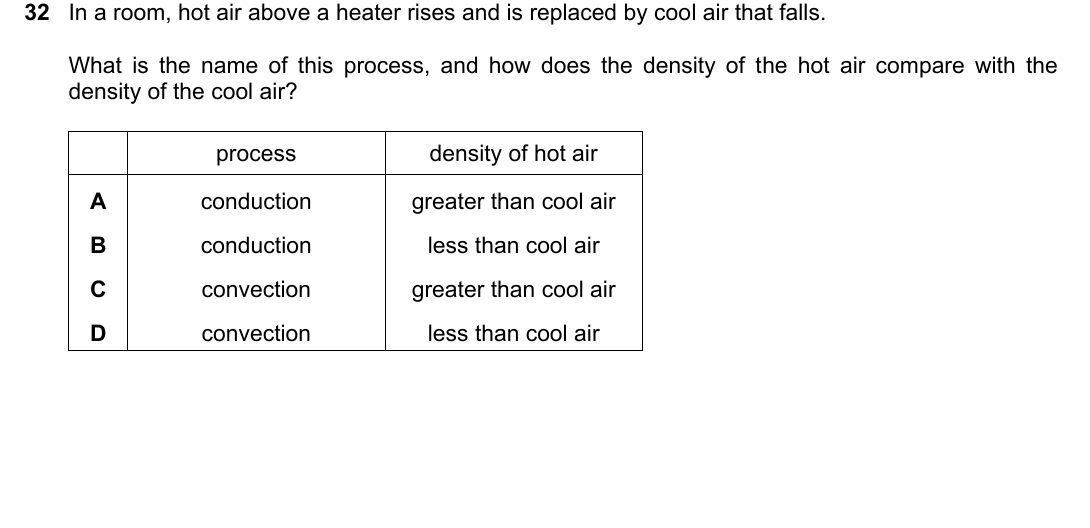

IGCSE 0654 May/June 2024 Paper 21 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: D

Exercise 7 — IGCSE 0654 Oct/Nov 2024 Paper 22 Q32

Cambridge past paperExtended1 mark Paper 22Oct/Nov 2024

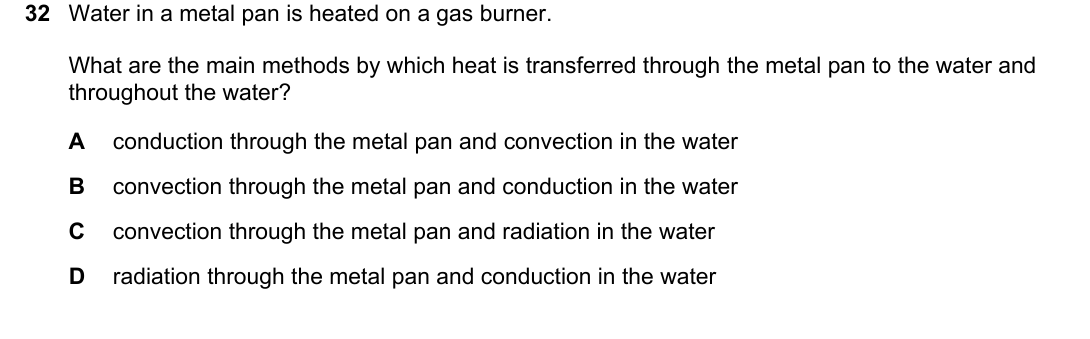

IGCSE 0654 Oct/Nov 2024 Paper 22 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: A

Exercise 8 — IGCSE 0654 Oct/Nov 2024 Paper 23 Q32

Cambridge past paperExtended1 mark Paper 23Oct/Nov 2024

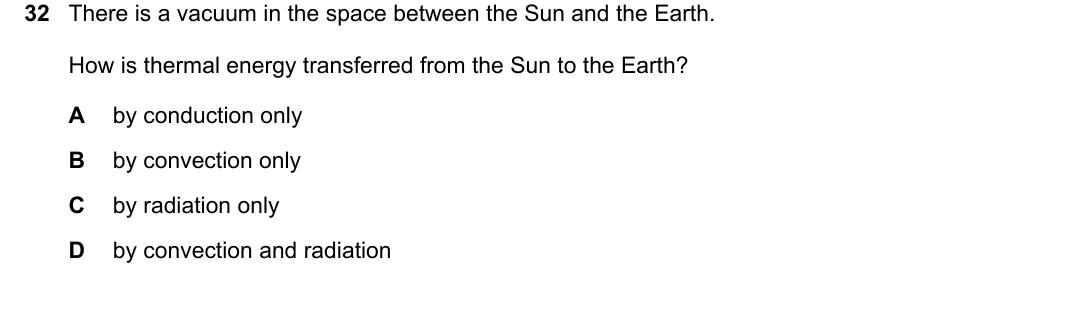

IGCSE 0654 Oct/Nov 2024 Paper 23 Question 32 — Conduction, convection & radiation
Show answer
Correct answer: C
↑ Back to top
