📋Key knowledge — Forces

Formulas & equations

  • Weight = mass × gravitational field strength (W = mg)
  • Newton's 2nd law: F = ma
  • Moment = force × perpendicular distance from pivot
  • Pressure = force ÷ area (P = F/A)
  • Hooke's law: F = kx (extension proportional to force, up to elastic limit)
  • Momentum = mass × velocity (p = mv)
  • Impulse = force × time = change in momentum (Ft = Δmv)

Key facts & rules

  • Newton's 1st law: object stays at rest or constant velocity unless acted on by a net force.
  • Newton's 3rd law: every action has an equal and opposite reaction (different objects, same type of force).
  • Terminal velocity: when drag force = weight → net force = 0 → constant velocity.
  • Principle of moments: for equilibrium, sum of clockwise moments = sum of anticlockwise moments.
  • Centre of gravity: point where weight acts. Lower CG = more stable.
  • Friction: force opposing relative motion between surfaces.

IGCSE Physics — Resultant forces & Newton's laws

16 Cambridge IGCSE 0654 questions on resultant forces & newton's laws, across all three components.

About resultant forces & newton's laws on IGCSE 0654

Every Cambridge IGCSE Co-ordinated Sciences 0654 question on resultant forces & newton's laws (Forces, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.

Theory

Papers 3 & 4 · 2 questions · Structured written questions, each with its full mark scheme.
Resultant forces & Newton's laws — Core theory questions2 total · Paper 3

Exercise 1 — IGCSE 0654 Nov 2024 Paper 31 Q6

Cambridge past paperCore10 marks Paper 31Nov 2024

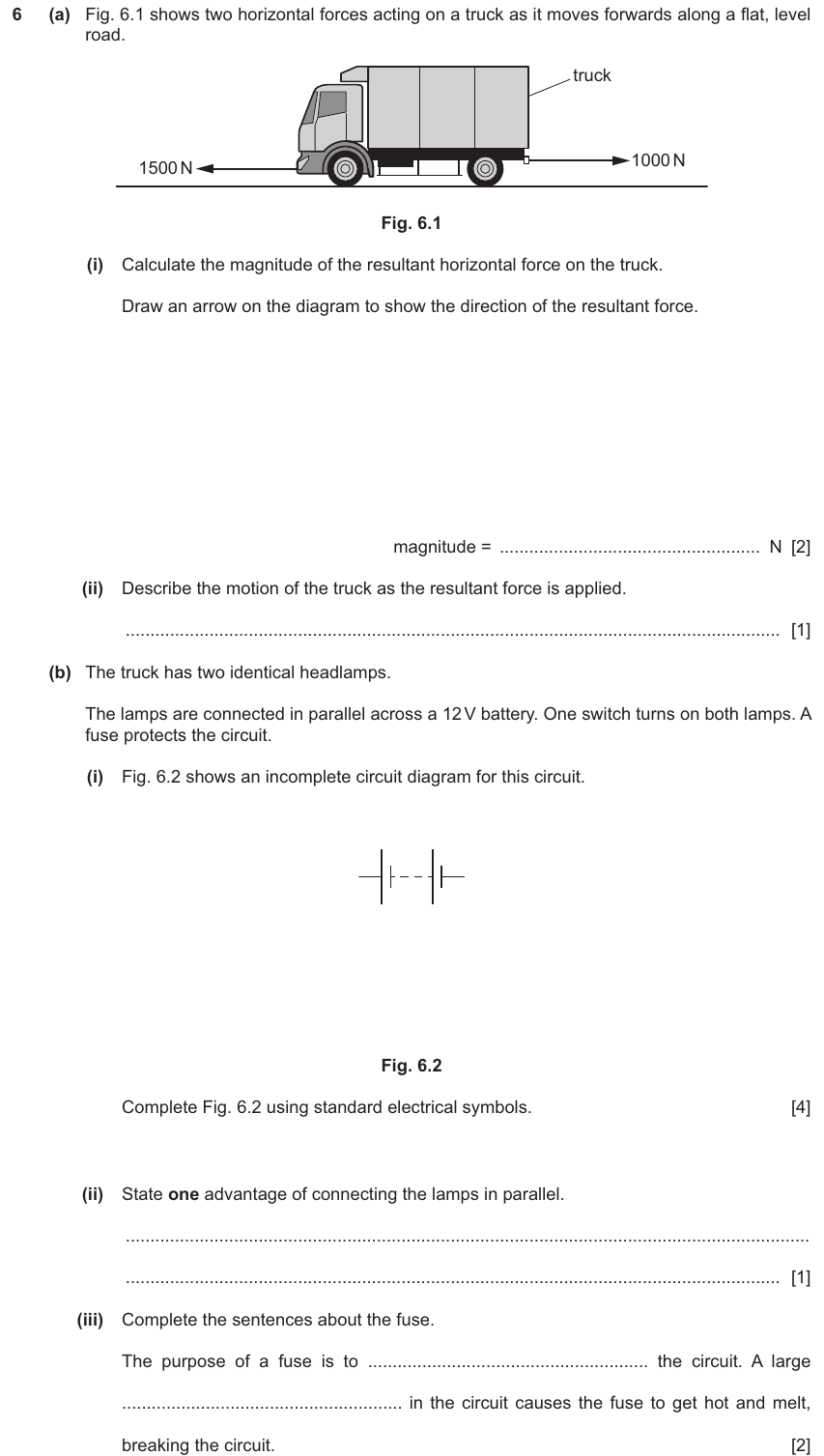

IGCSE 0654 Nov 2024 Paper 31 Question 6 — Resultant forces & Newton's laws
Show mark scheme

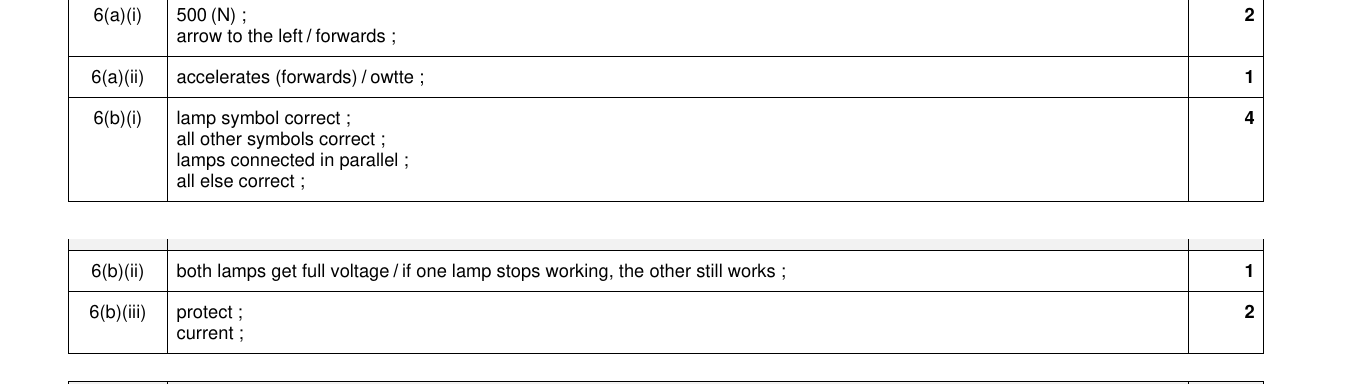

Mark scheme for IGCSE 0654 Nov 2024 Paper 31 Q6

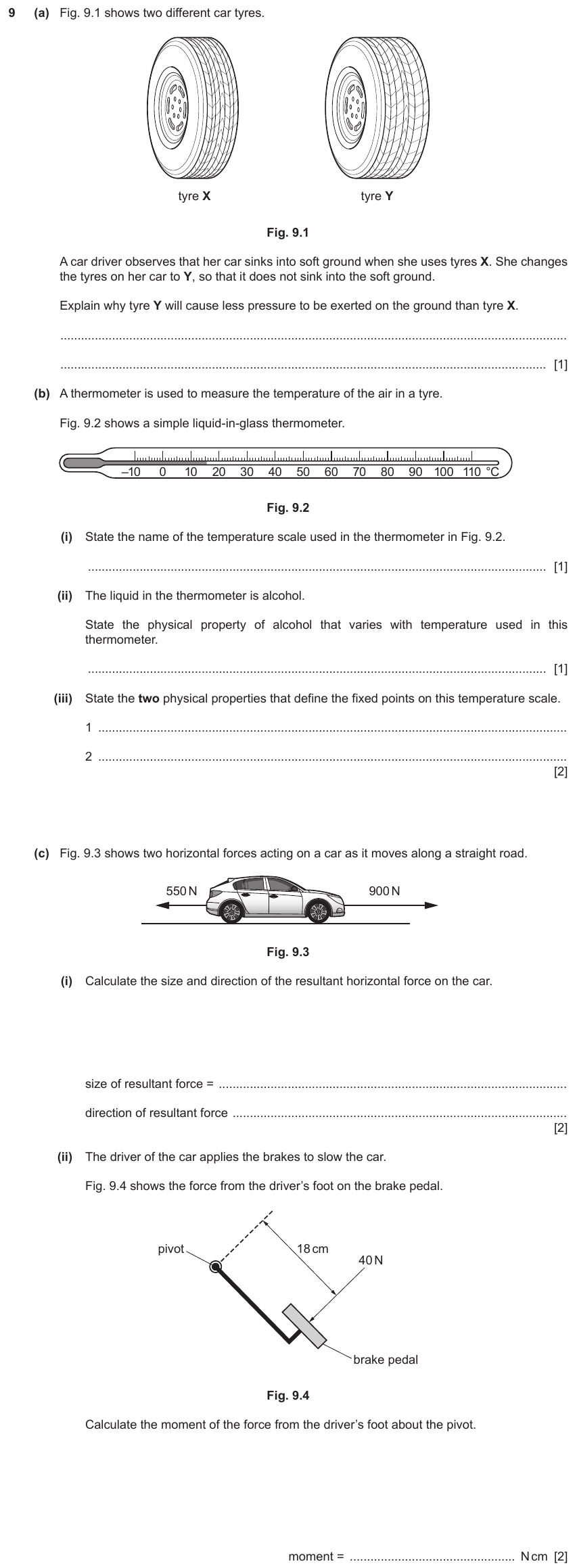

Exercise 2 — IGCSE 0654 Mar 2023 Paper 32 Q9

Cambridge past paperCore9 marks Paper 32Mar 2023
IGCSE 0654 Mar 2023 Paper 32 Question 9 — Resultant forces & Newton's laws
Show mark scheme

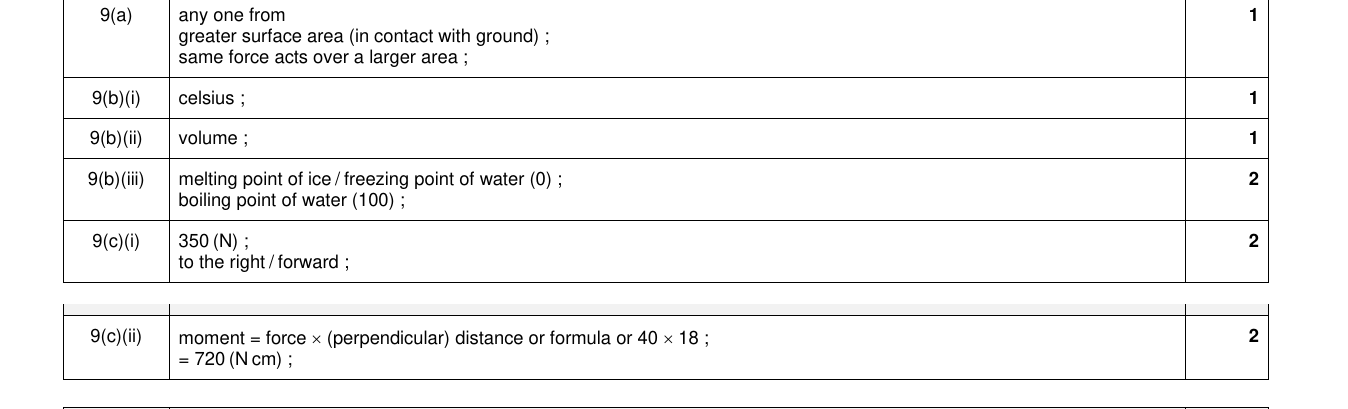

Mark scheme for IGCSE 0654 Mar 2023 Paper 32 Q9
↑ Back to top

Multiple choice

Papers 1 & 2 · 14 questions · Click an option (A–D) to check your answer instantly.
Resultant forces & Newton's laws — Core multiple choice questions11 total · Paper 1

Exercise 1 — IGCSE 0654 May/June 2025 Paper 11 Q30

Cambridge past paperCore1 mark Paper 11May/June 2025

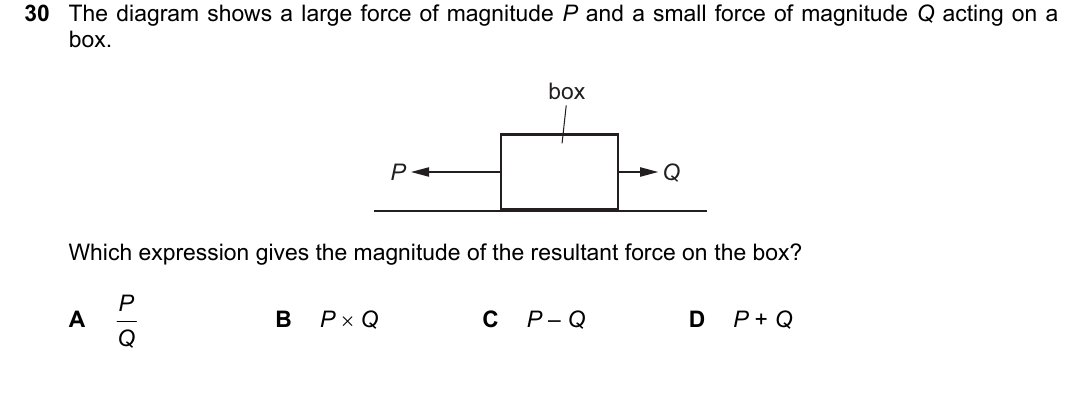

IGCSE 0654 May/June 2025 Paper 11 Question 30 — Resultant forces & Newton's laws
Show answer
Correct answer: C

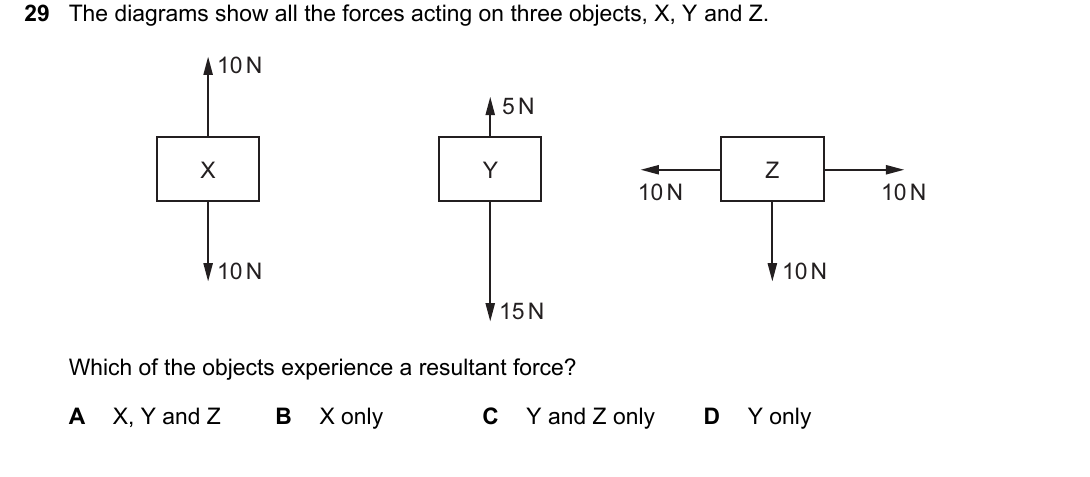

Exercise 2 — IGCSE 0654 May/June 2024 Paper 11 Q29

Cambridge past paperCore1 mark Paper 11May/June 2024
IGCSE 0654 May/June 2024 Paper 11 Question 29 — Resultant forces & Newton's laws
Show answer
Correct answer: C

Exercise 3 — IGCSE 0654 Oct/Nov 2024 Paper 11 Q29

Cambridge past paperCore1 mark Paper 11Oct/Nov 2024

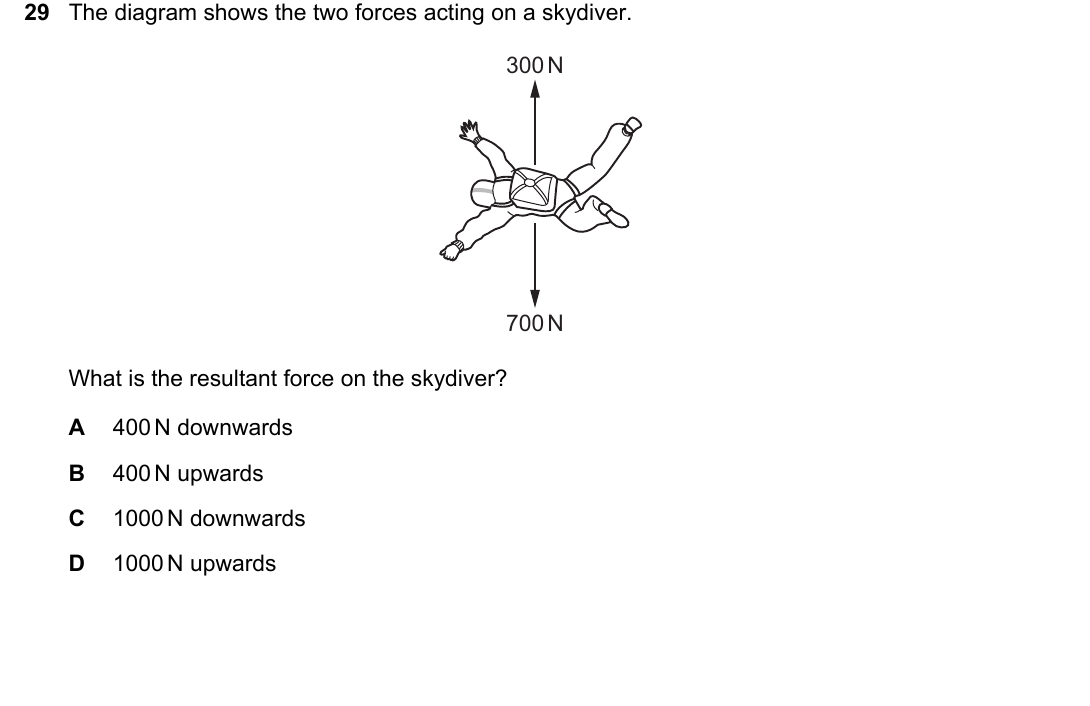

IGCSE 0654 Oct/Nov 2024 Paper 11 Question 29 — Resultant forces & Newton's laws
Show answer
Correct answer: A

Exercise 4 — IGCSE 0654 March 2024 Paper 12 Q29

Cambridge past paperCore1 mark Paper 12March 2024

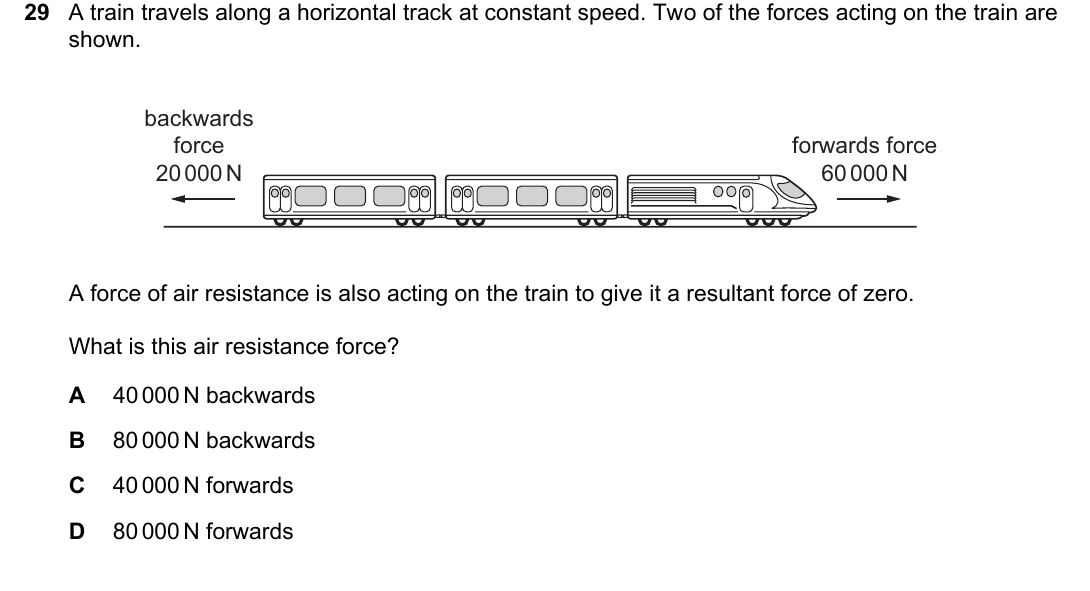

IGCSE 0654 March 2024 Paper 12 Question 29 — Resultant forces & Newton's laws
Show answer
Correct answer: A
Resultant forces & Newton's laws — Extended multiple choice questions3 total · Paper 2

Exercise 5 — IGCSE 0654 Oct/Nov 2025 Paper 23 Q29

Cambridge past paperExtended1 mark Paper 23Oct/Nov 2025

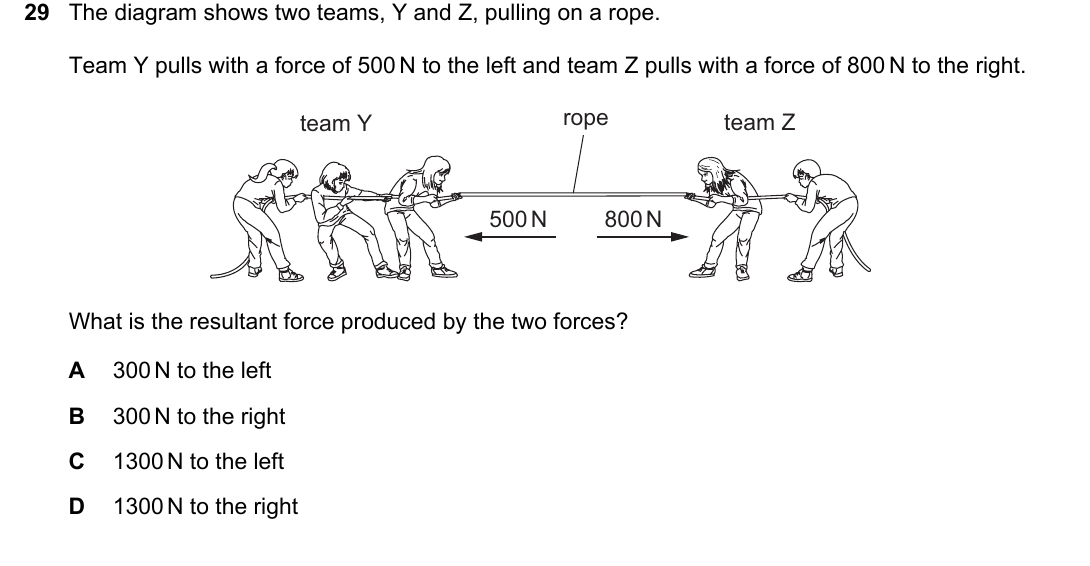

IGCSE 0654 Oct/Nov 2025 Paper 23 Question 29 — Resultant forces & Newton's laws
Show answer
Correct answer: B

Exercise 6 — IGCSE 0654 May/June 2024 Paper 21 Q28

Cambridge past paperExtended1 mark Paper 21May/June 2024

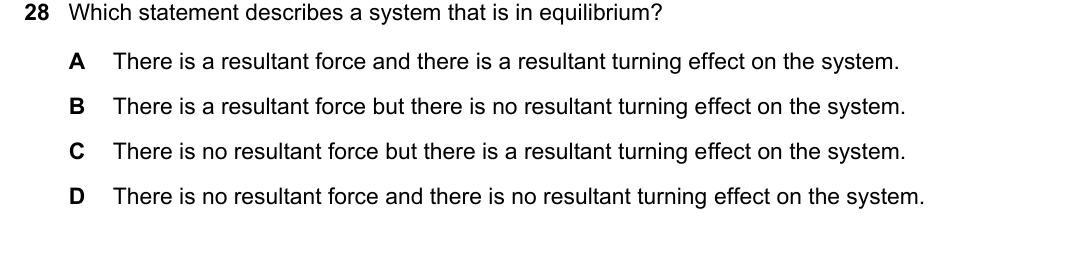

IGCSE 0654 May/June 2024 Paper 21 Question 28 — Resultant forces & Newton's laws
Show answer
Correct answer: D

Exercise 7 — IGCSE 0654 May/June 2022 Paper 23 Q29

Cambridge past paperExtended1 mark Paper 23May/June 2022

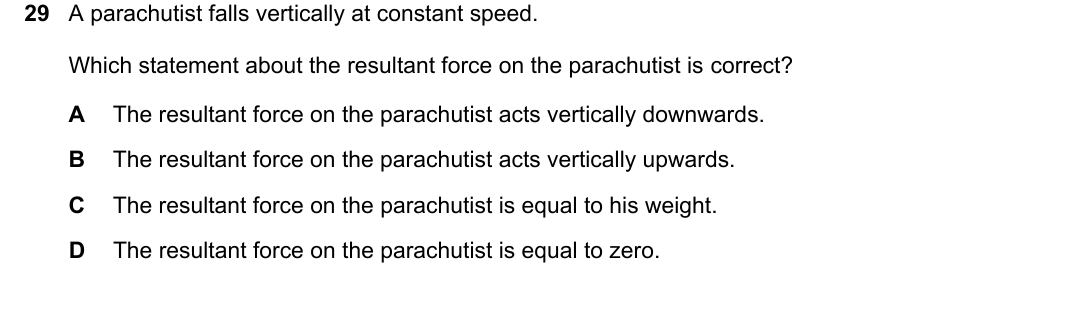

IGCSE 0654 May/June 2022 Paper 23 Question 29 — Resultant forces & Newton's laws
Show answer
Correct answer: D
