📋Key knowledge — Forces

Formulas & equations

  • Weight = mass × gravitational field strength (W = mg)
  • Newton's 2nd law: F = ma
  • Moment = force × perpendicular distance from pivot
  • Pressure = force ÷ area (P = F/A)
  • Hooke's law: F = kx (extension proportional to force, up to elastic limit)
  • Momentum = mass × velocity (p = mv)
  • Impulse = force × time = change in momentum (Ft = Δmv)

Key facts & rules

  • Newton's 1st law: object stays at rest or constant velocity unless acted on by a net force.
  • Newton's 3rd law: every action has an equal and opposite reaction (different objects, same type of force).
  • Terminal velocity: when drag force = weight → net force = 0 → constant velocity.
  • Principle of moments: for equilibrium, sum of clockwise moments = sum of anticlockwise moments.
  • Centre of gravity: point where weight acts. Lower CG = more stable.
  • Friction: force opposing relative motion between surfaces.

IGCSE Physics — Mass & weight

30 Cambridge IGCSE 0654 questions on mass & weight, across all three components.

About mass & weight on IGCSE 0654

Every Cambridge IGCSE Co-ordinated Sciences 0654 question on mass & weight (Forces, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.

Theory

Papers 3 & 4 · 9 questions · Structured written questions, each with its full mark scheme.
Mass & weight — Core theory questions6 total · Paper 3

Exercise 1 — IGCSE 0654 Jun 2024 Paper 31 Q6

Cambridge past paperCore9 marks Paper 31Jun 2024
IGCSE 0654 Jun 2024 Paper 31 Question 6 — Mass & weight
Show mark scheme
Mark scheme for IGCSE 0654 Jun 2024 Paper 31 Q6

Exercise 2 — IGCSE 0654 Jun 2024 Paper 32 Q6

Cambridge past paperCore9 marks Paper 32Jun 2024
IGCSE 0654 Jun 2024 Paper 32 Question 6 — Mass & weight
Show mark scheme
Mark scheme for IGCSE 0654 Jun 2024 Paper 32 Q6

Exercise 3 — IGCSE 0654 Jun 2024 Paper 33 Q6

Cambridge past paperCore9 marks Paper 33Jun 2024

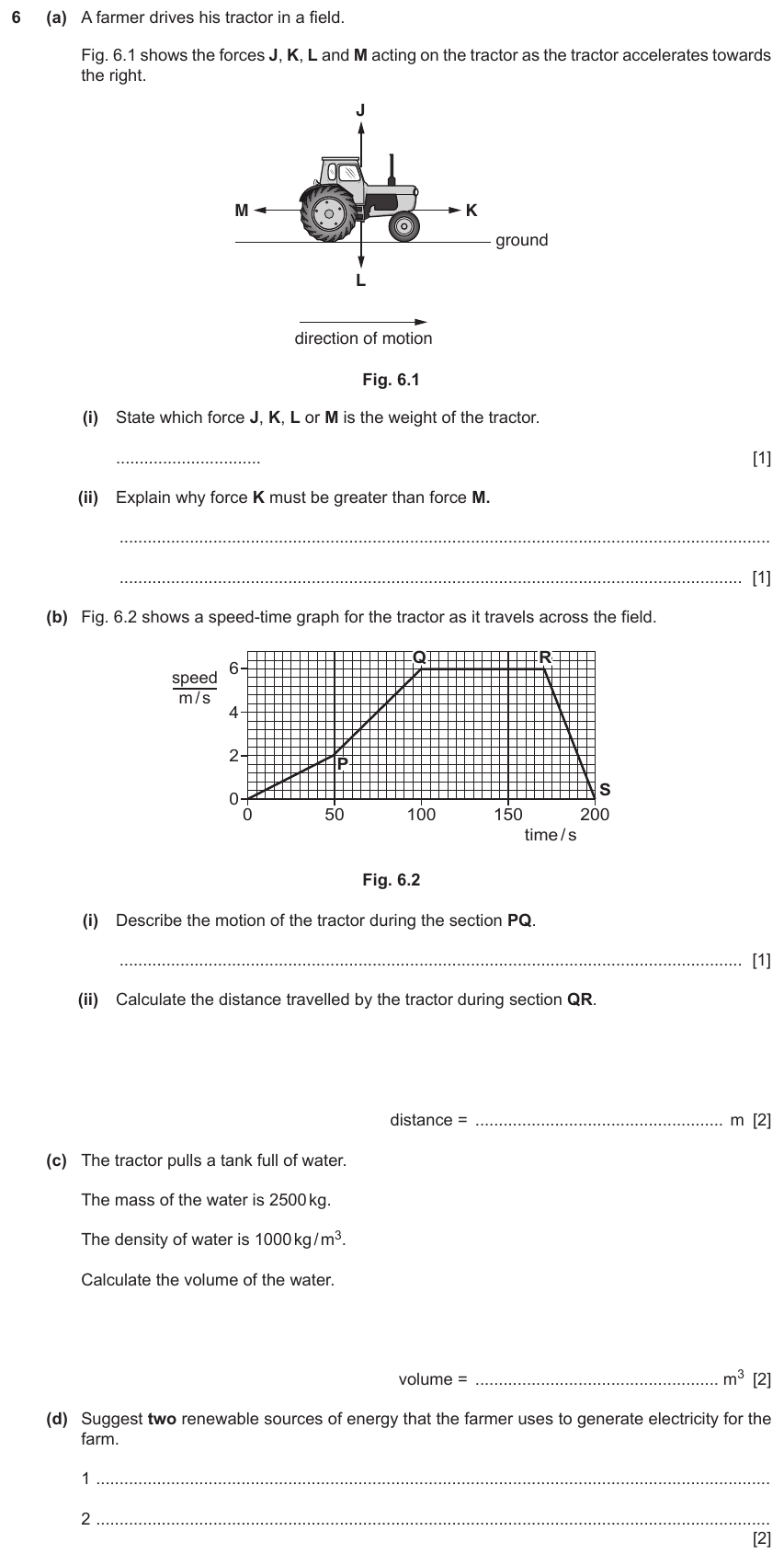

IGCSE 0654 Jun 2024 Paper 33 Question 6 — Mass & weight
Show mark scheme

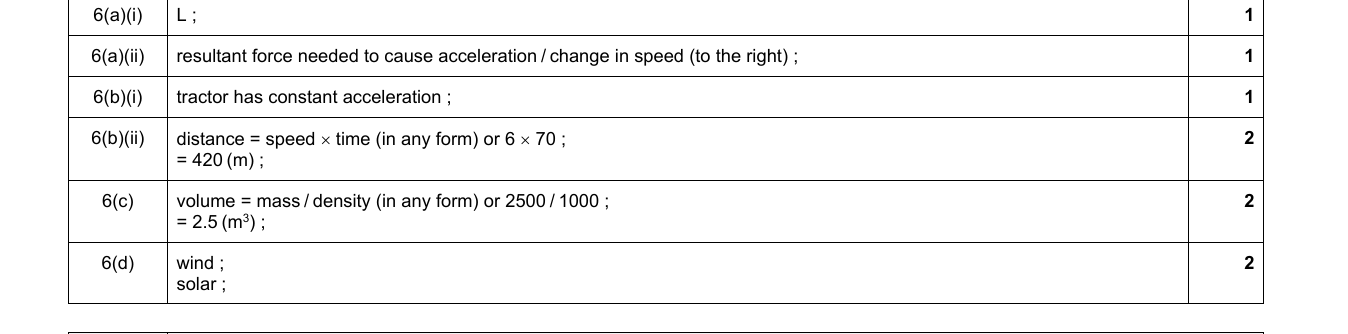

Mark scheme for IGCSE 0654 Jun 2024 Paper 33 Q6
Mass & weight — Extended theory questions3 total · Paper 4

Exercise 4 — IGCSE 0654 Nov 2025 Paper 41 Q9

Cambridge past paperExtended8 marks Paper 41Nov 2025

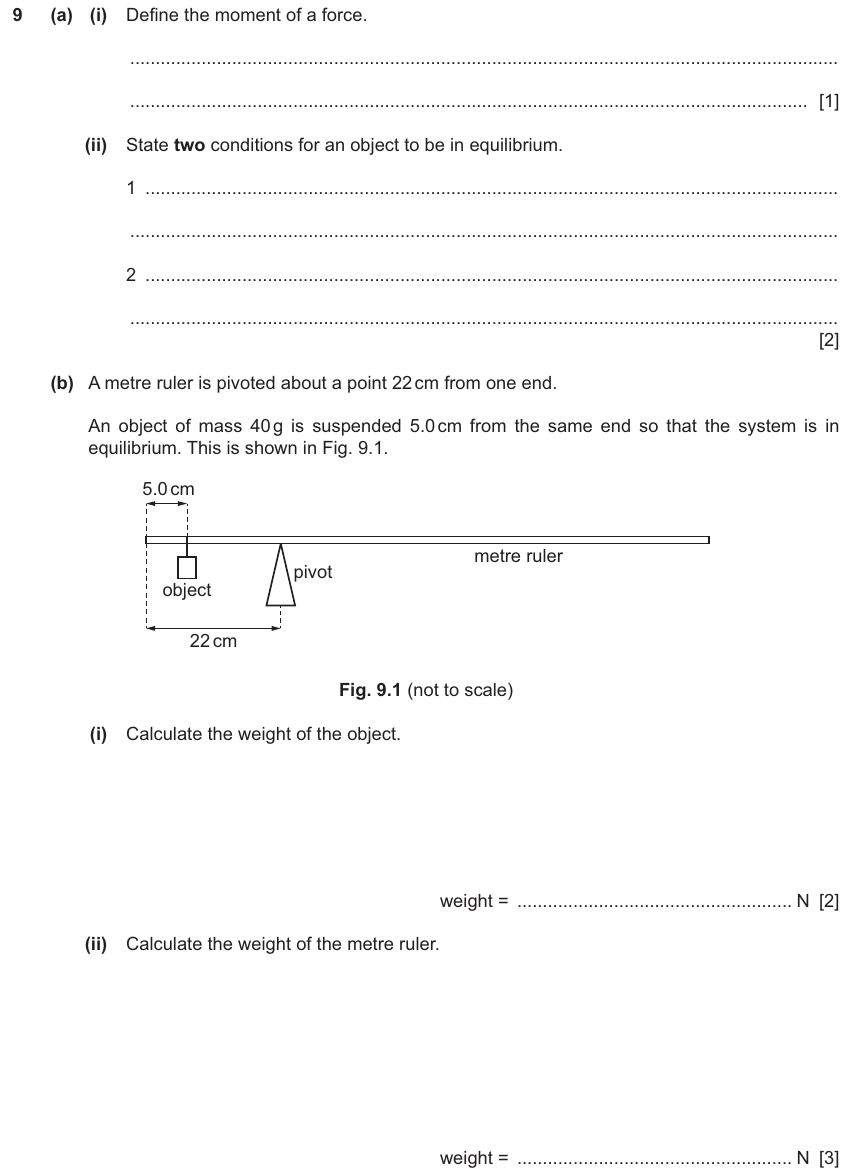

IGCSE 0654 Nov 2025 Paper 41 Question 9 — Mass & weight
Show mark scheme

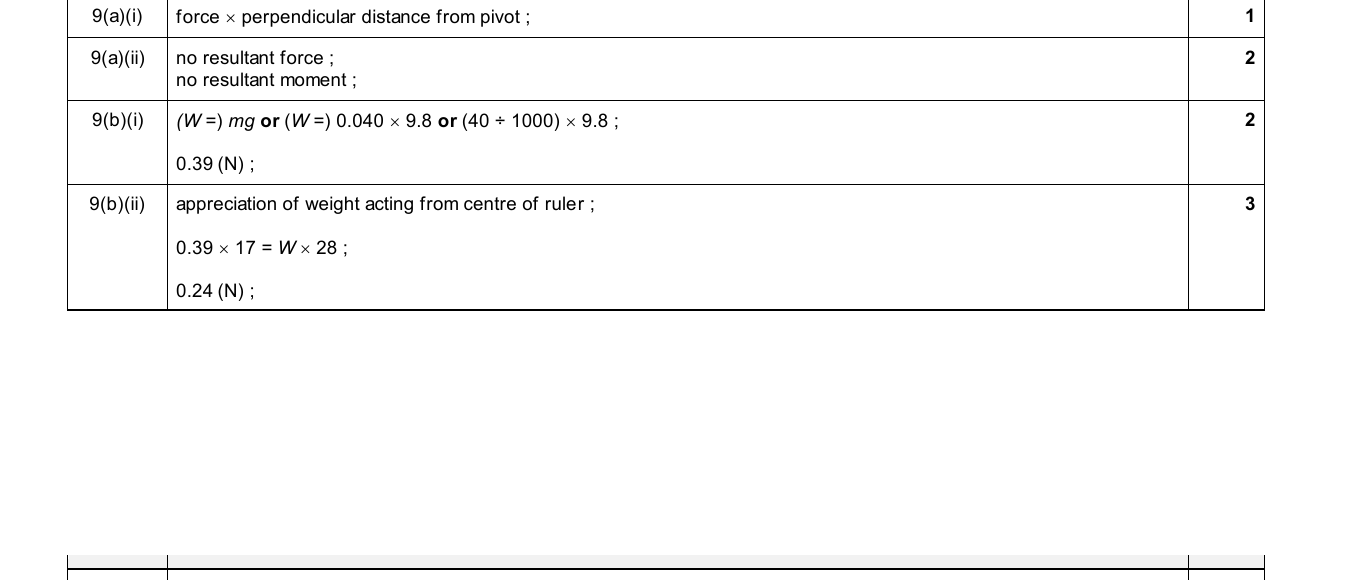

Mark scheme for IGCSE 0654 Nov 2025 Paper 41 Q9

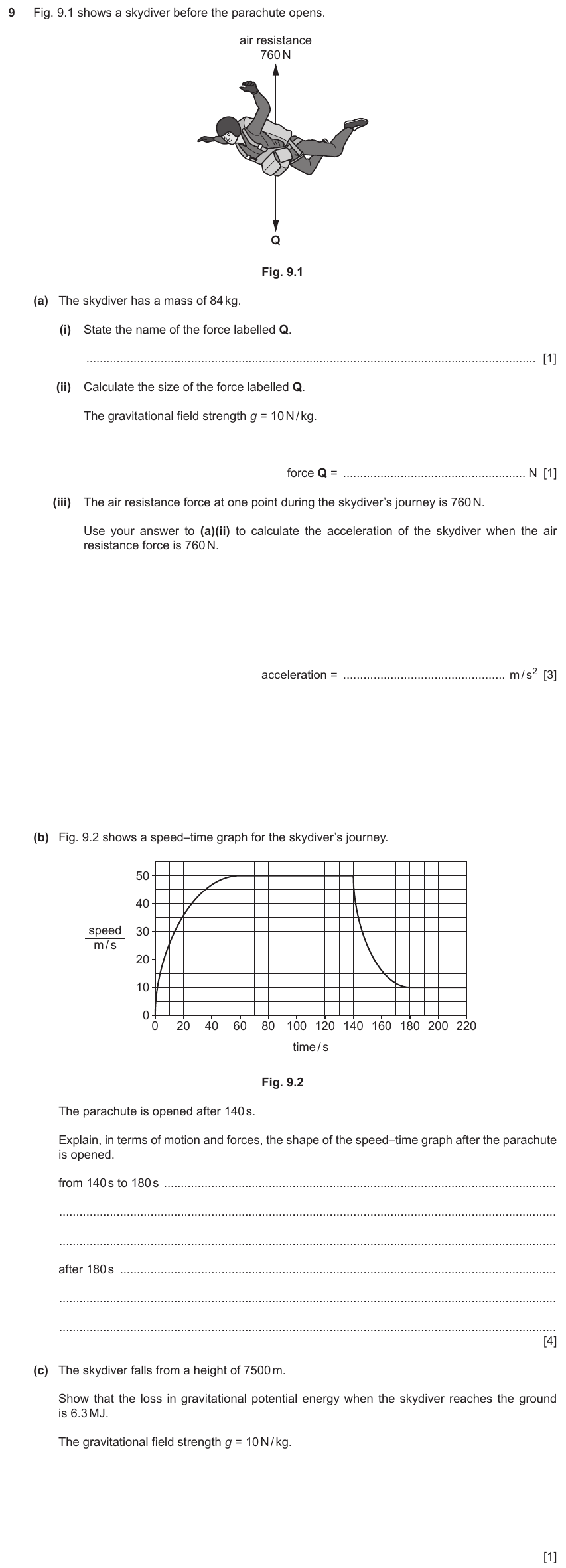

Exercise 5 — IGCSE 0654 Jun 2024 Paper 41 Q9

Cambridge past paperExtended10 marks Paper 41Jun 2024
IGCSE 0654 Jun 2024 Paper 41 Question 9 — Mass & weight
Show mark scheme

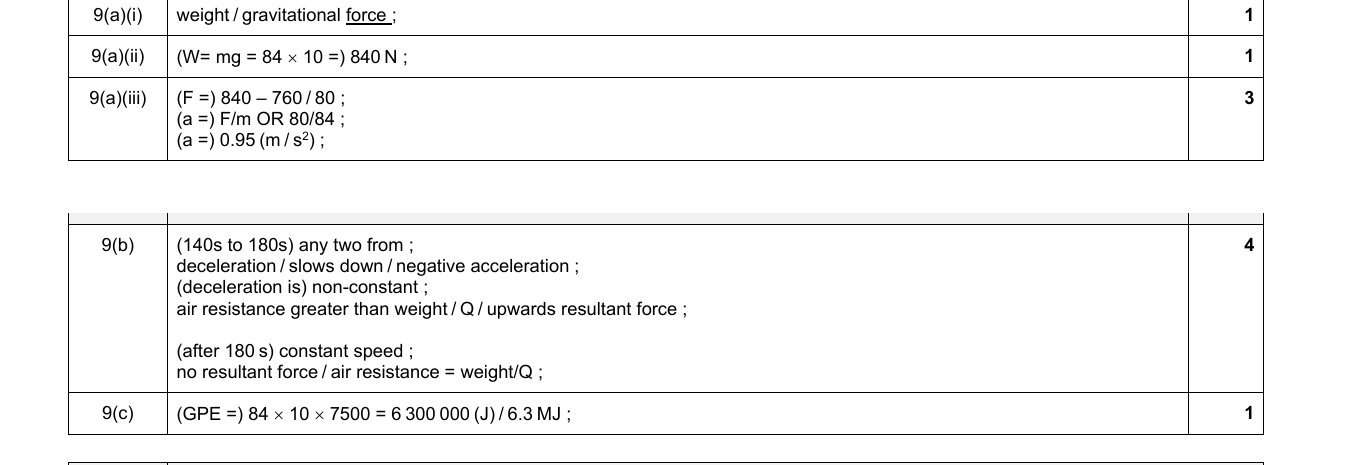

Mark scheme for IGCSE 0654 Jun 2024 Paper 41 Q9

Exercise 6 — IGCSE 0654 Nov 2023 Paper 42 Q12

Cambridge past paperExtended10 marks Paper 42Nov 2023

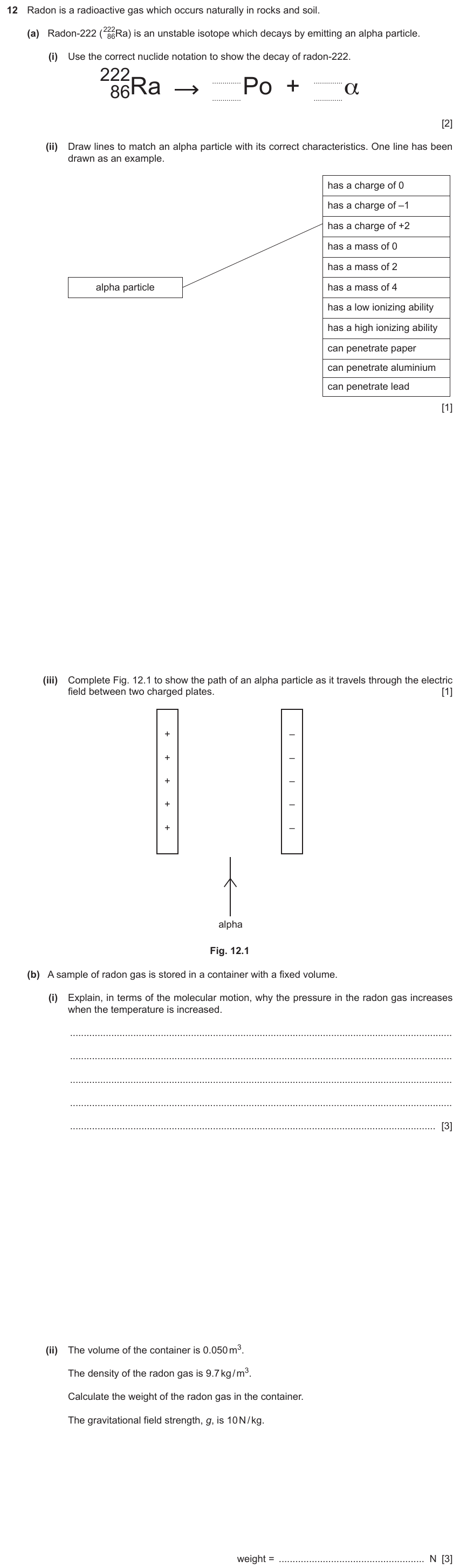

IGCSE 0654 Nov 2023 Paper 42 Question 12 — Mass & weight
Show mark scheme

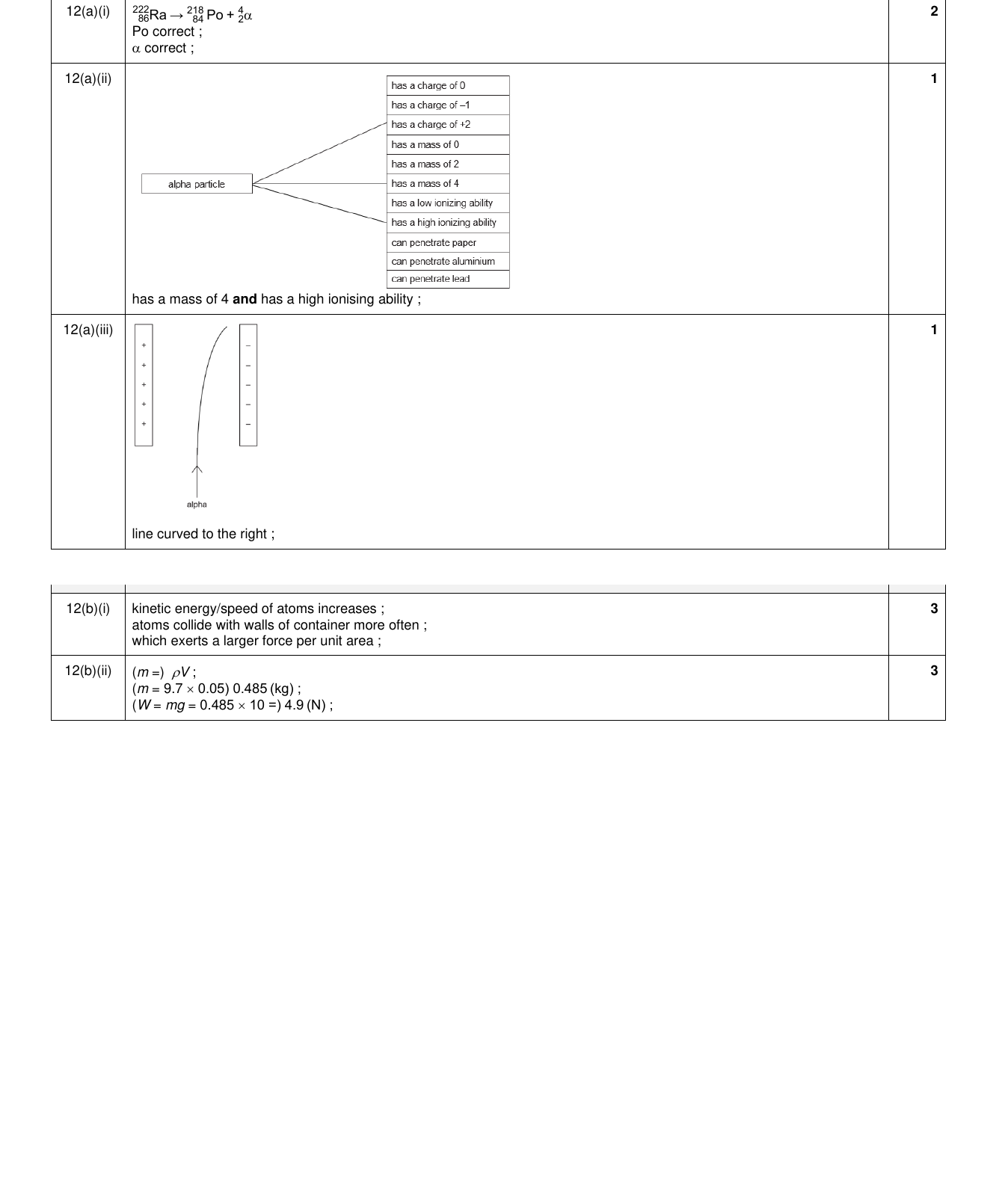

Mark scheme for IGCSE 0654 Nov 2023 Paper 42 Q12
↑ Back to top

Multiple choice

Papers 1 & 2 · 21 questions · Click an option (A–D) to check your answer instantly.
Mass & weight — Core multiple choice questions8 total · Paper 1

Exercise 1 — IGCSE 0654 May/June 2024 Paper 11 Q31

Cambridge past paperCore1 mark Paper 11May/June 2024

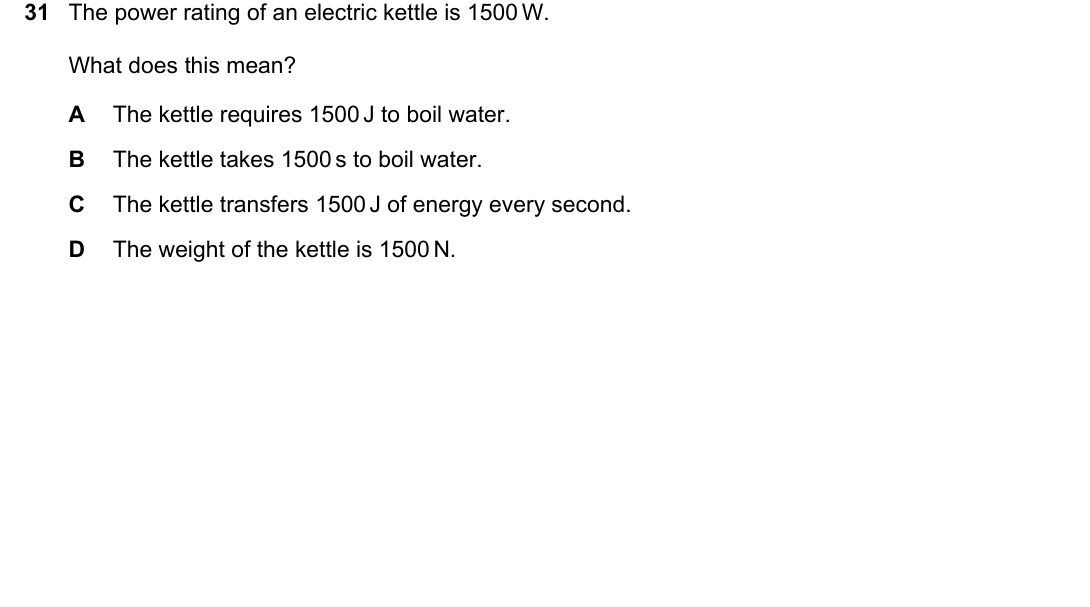

IGCSE 0654 May/June 2024 Paper 11 Question 31 — Mass & weight
Show answer
Correct answer: C

Exercise 2 — IGCSE 0654 Oct/Nov 2024 Paper 11 Q31

Cambridge past paperCore1 mark Paper 11Oct/Nov 2024

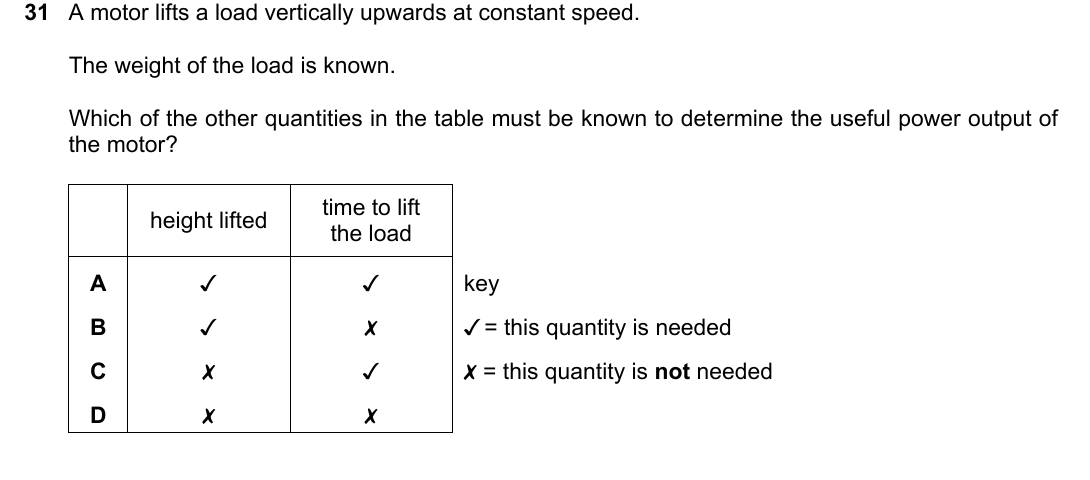

IGCSE 0654 Oct/Nov 2024 Paper 11 Question 31 — Mass & weight
Show answer
Correct answer: A

Exercise 3 — IGCSE 0654 Oct/Nov 2024 Paper 12 Q28

Cambridge past paperCore1 mark Paper 12Oct/Nov 2024
IGCSE 0654 Oct/Nov 2024 Paper 12 Question 28 — Mass & weight
Show answer
Correct answer: B

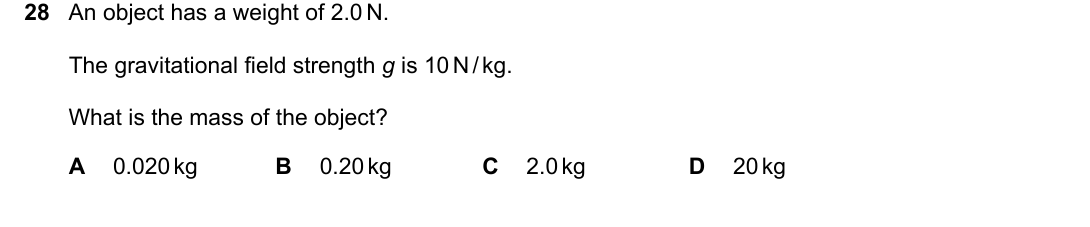

Exercise 4 — IGCSE 0654 Oct/Nov 2024 Paper 13 Q28

Cambridge past paperCore1 mark Paper 13Oct/Nov 2024
IGCSE 0654 Oct/Nov 2024 Paper 13 Question 28 — Mass & weight
Show answer
Correct answer: B
Mass & weight — Extended multiple choice questions13 total · Paper 2

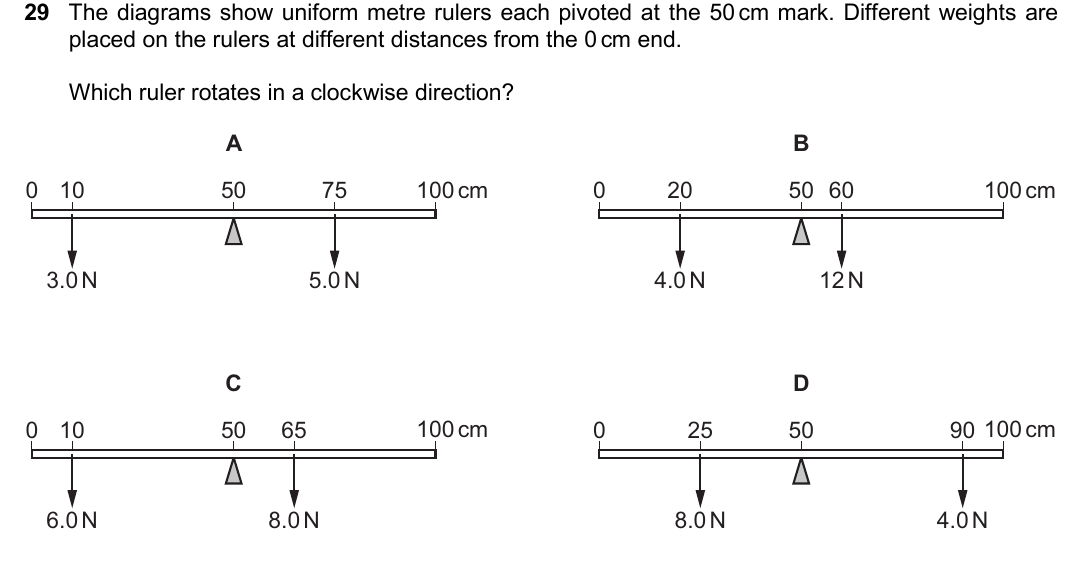

Exercise 5 — IGCSE 0654 March 2025 Paper 22 Q29

Cambridge past paperExtended1 mark Paper 22March 2025
IGCSE 0654 March 2025 Paper 22 Question 29 — Mass & weight
Show answer
Correct answer: A

Exercise 6 — IGCSE 0654 May/June 2025 Paper 23 Q28

Cambridge past paperExtended1 mark Paper 23May/June 2025

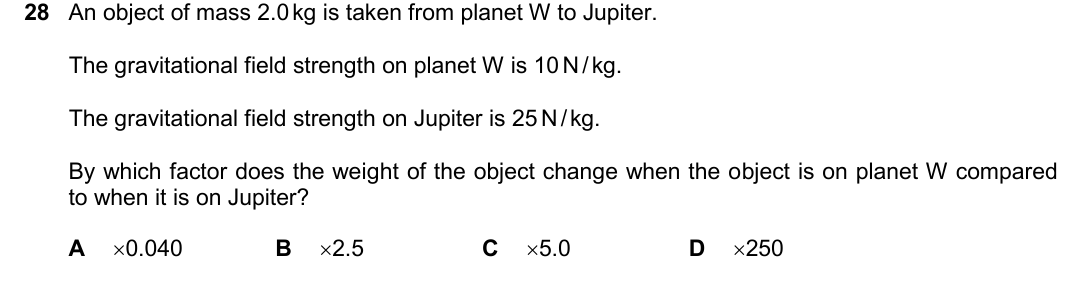

IGCSE 0654 May/June 2025 Paper 23 Question 28 — Mass & weight
Show answer
Correct answer: B

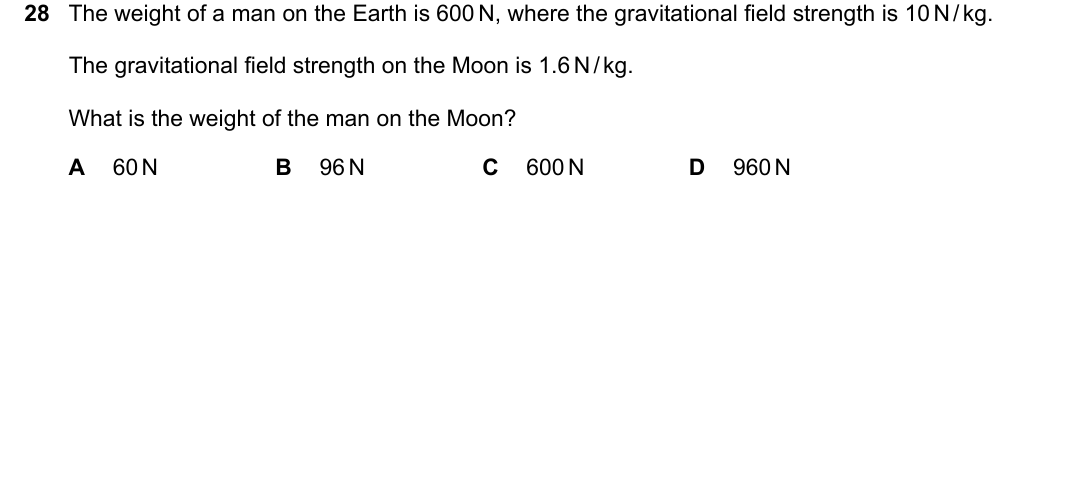

Exercise 7 — IGCSE 0654 Oct/Nov 2024 Paper 22 Q28

Cambridge past paperExtended1 mark Paper 22Oct/Nov 2024
IGCSE 0654 Oct/Nov 2024 Paper 22 Question 28 — Mass & weight
Show answer
Correct answer: B

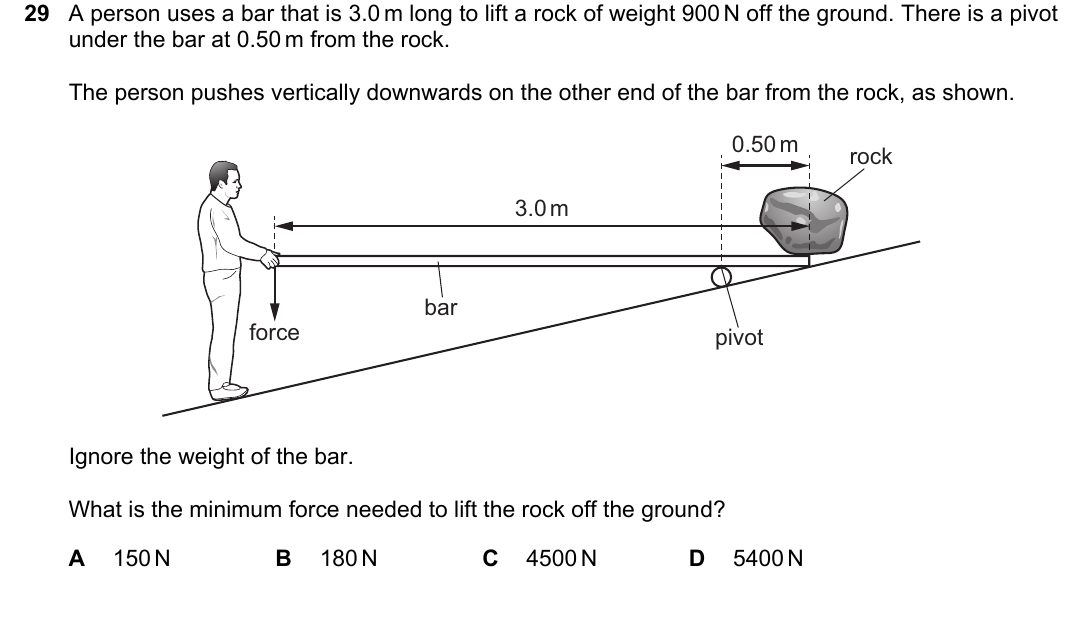

Exercise 8 — IGCSE 0654 Oct/Nov 2024 Paper 23 Q29

Cambridge past paperExtended1 mark Paper 23Oct/Nov 2024
IGCSE 0654 Oct/Nov 2024 Paper 23 Question 29 — Mass & weight
Show answer
Correct answer: B
