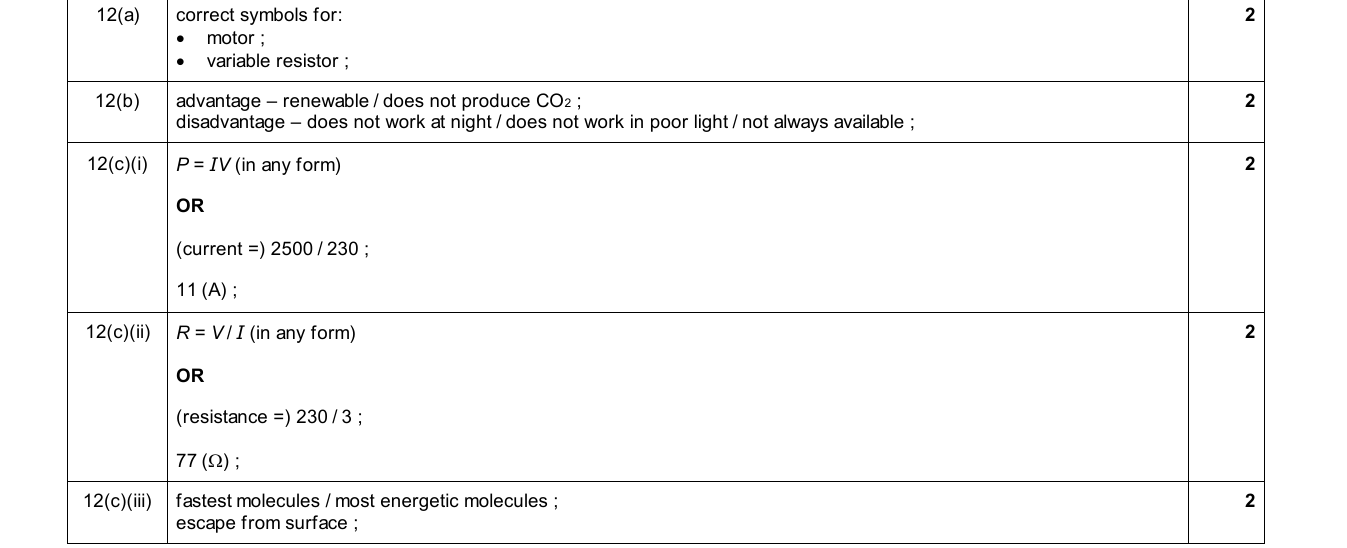

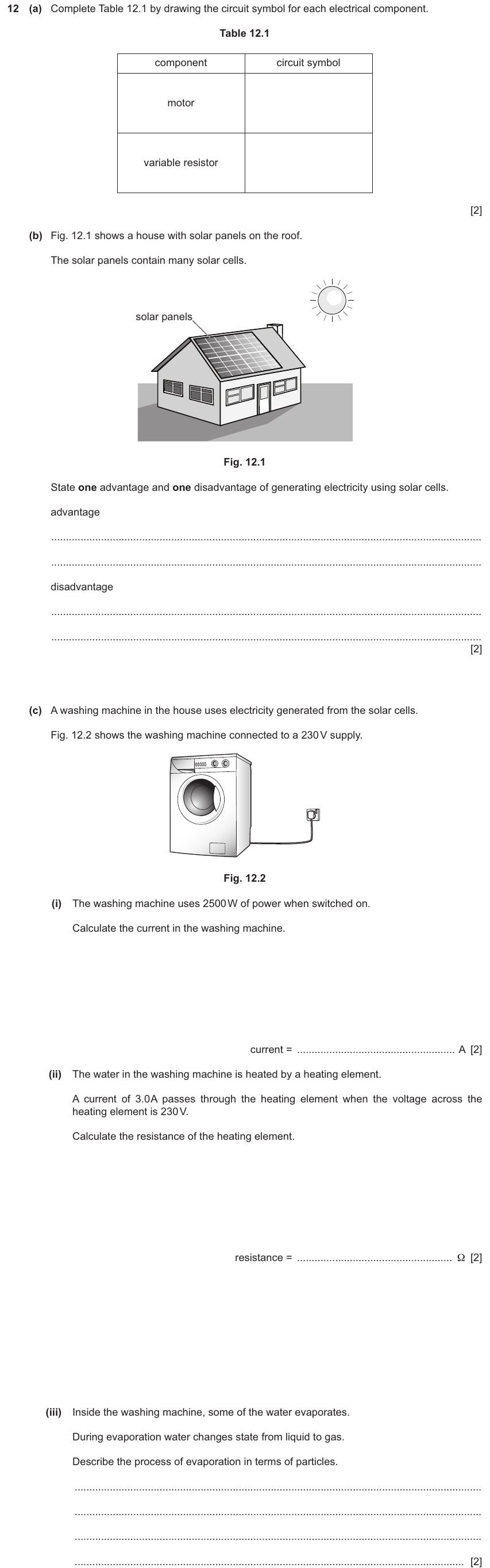

Exercise 1 — IGCSE 0654 Nov 2025 Paper 31 Q12
Show mark scheme
Cambridge IGCSE·Co-ordinated Sciences 0654·Physics
Energy Resources
Key knowledge — Energy Work Power
Formulas & equations
Work done = force × distance in direction of force (W = Fd, unit: J)Kinetic energy = ½mv²Gravitational PE = mghPower = work done ÷ time = energy transferred ÷ time (P = W/t, unit: W)Efficiency = useful energy output ÷ total energy input (× 100 for %)Electrical energy = power × time (E = Pt)
Key facts & rules
- Conservation of energy: energy cannot be created or destroyed, only transferred or converted.
- All energy eventually becomes thermal energy (heat).
- 1 kWh (kilowatt-hour) = 3.6 × 10⁶ J.
- Renewable energy: solar, wind, hydroelectric, tidal, geothermal, wave, biomass.
- Non-renewable: fossil fuels (coal, oil, gas), nuclear (uranium).
- The Sankey diagram shows energy transfers — width of arrow ∝ amount of energy.
IGCSE Physics — Energy resources
37 Cambridge IGCSE 0654 questions on energy resources, across all three components.
About energy resources on IGCSE 0654
Every Cambridge IGCSE Co-ordinated Sciences 0654 question on energy resources (Energy, work & power, Physics), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.
Theory
Energy resources — Core theory questions11 total · Paper 3

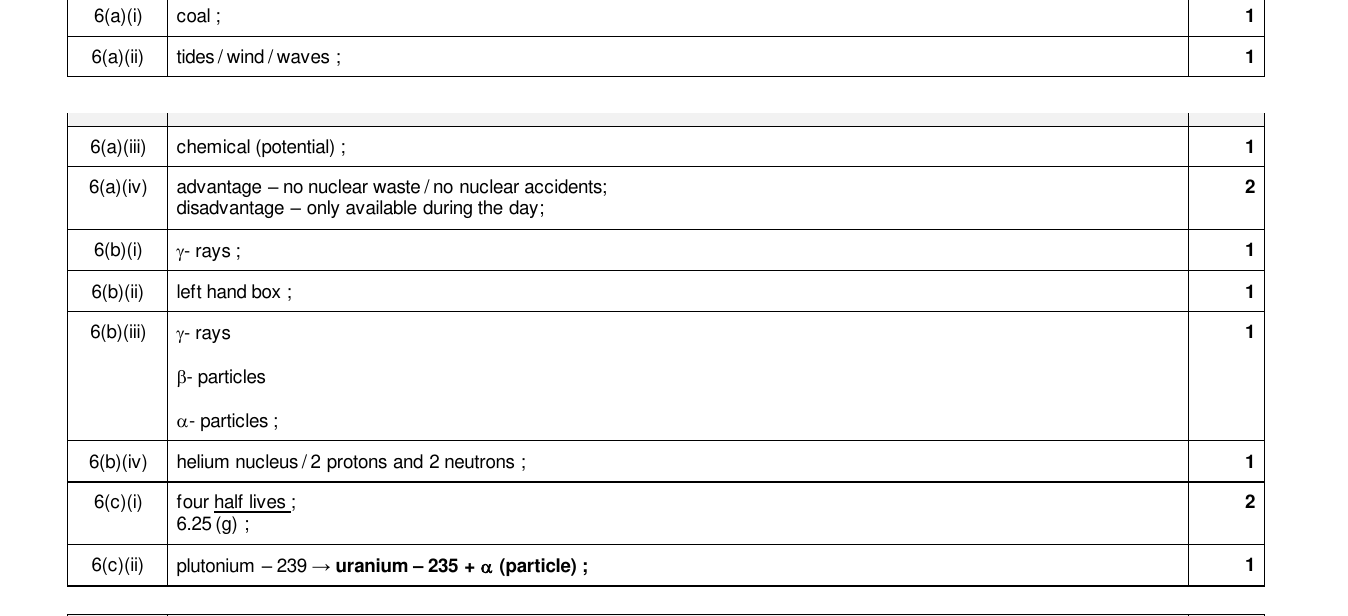

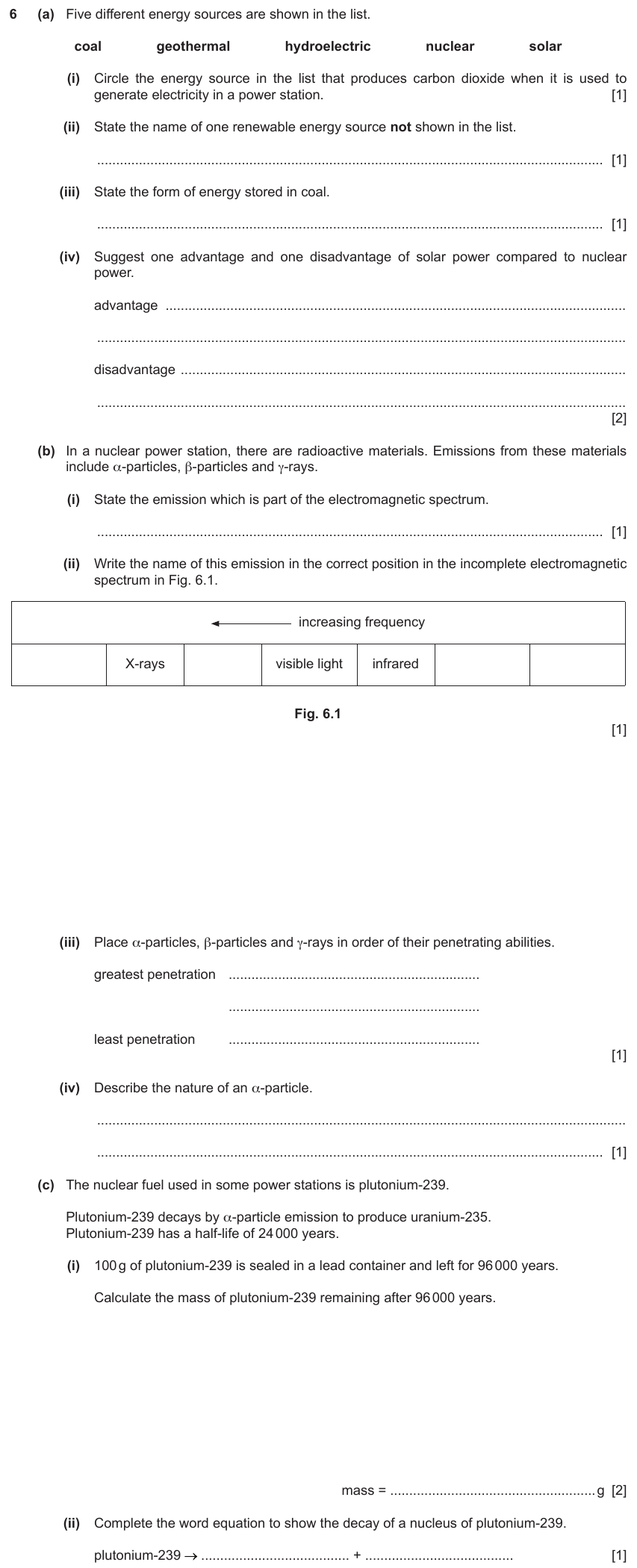

Exercise 2 — IGCSE 0654 Mar 2024 Paper 32 Q6
Show mark scheme

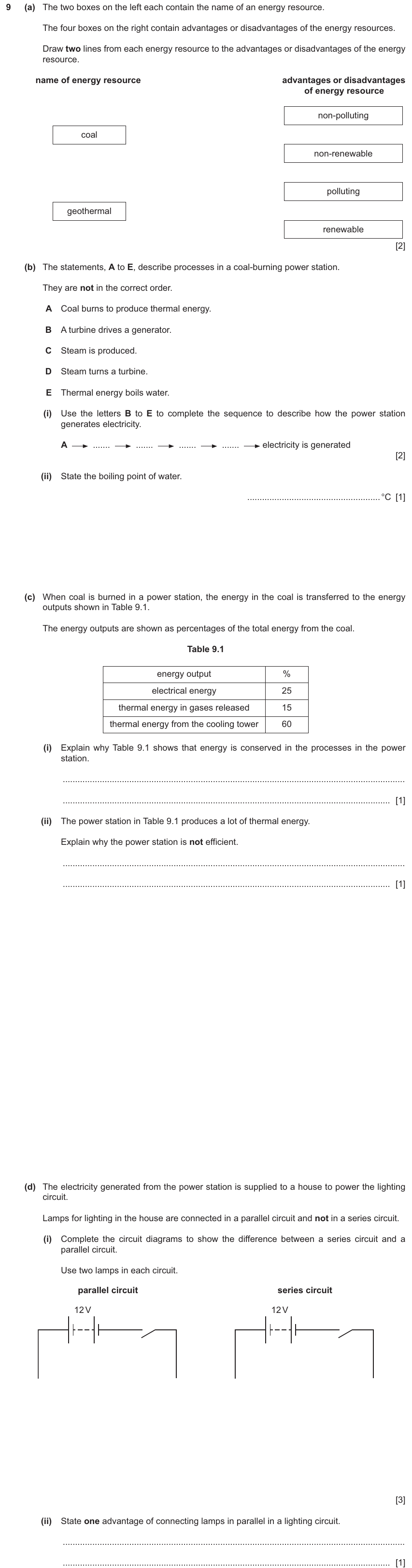

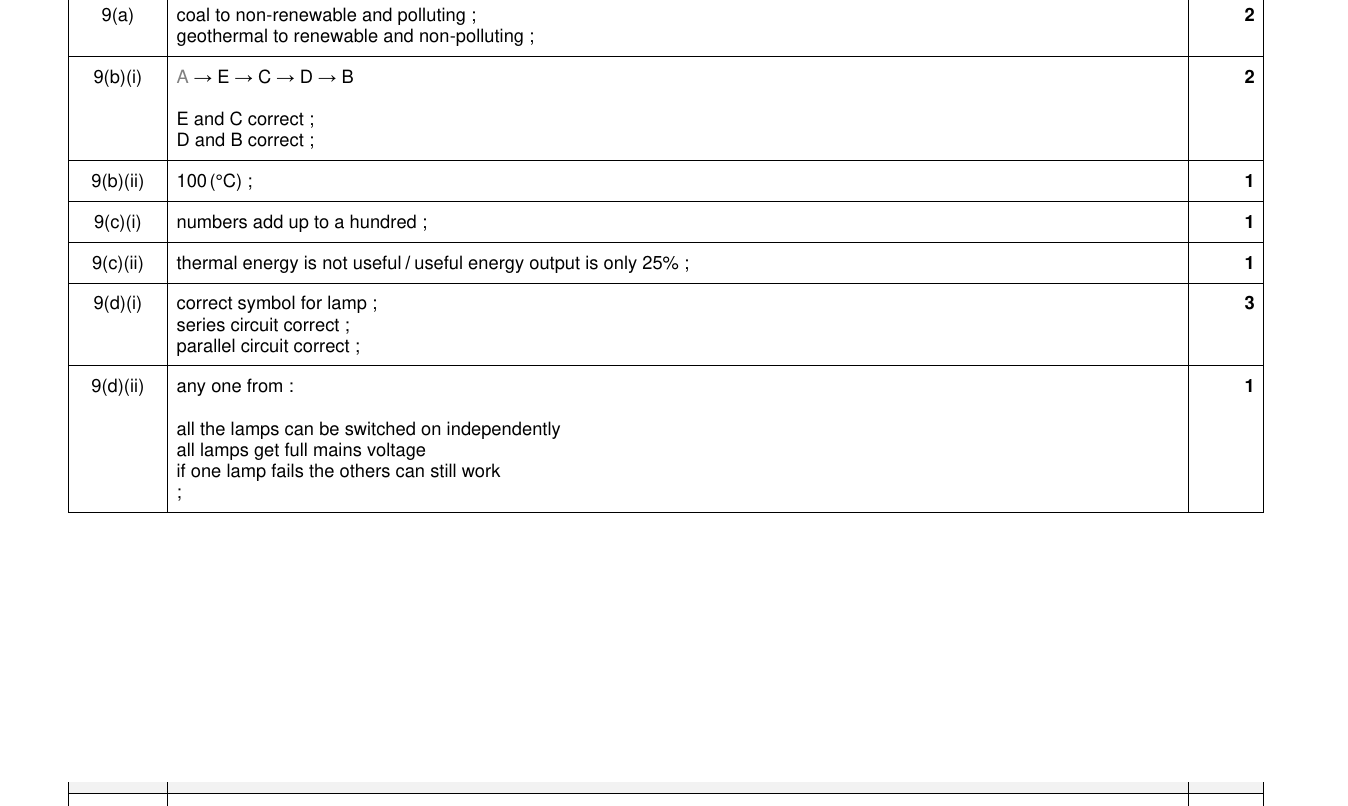

Exercise 3 — IGCSE 0654 Nov 2024 Paper 32 Q9
Show mark scheme
Energy resources — Extended theory questions5 total · Paper 4

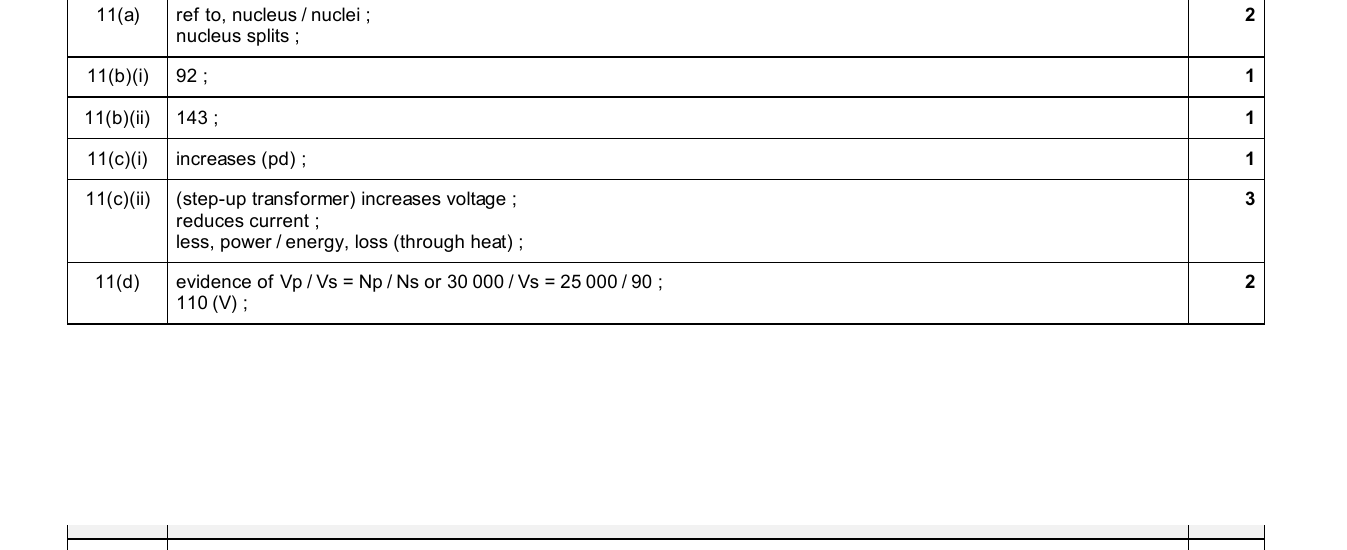

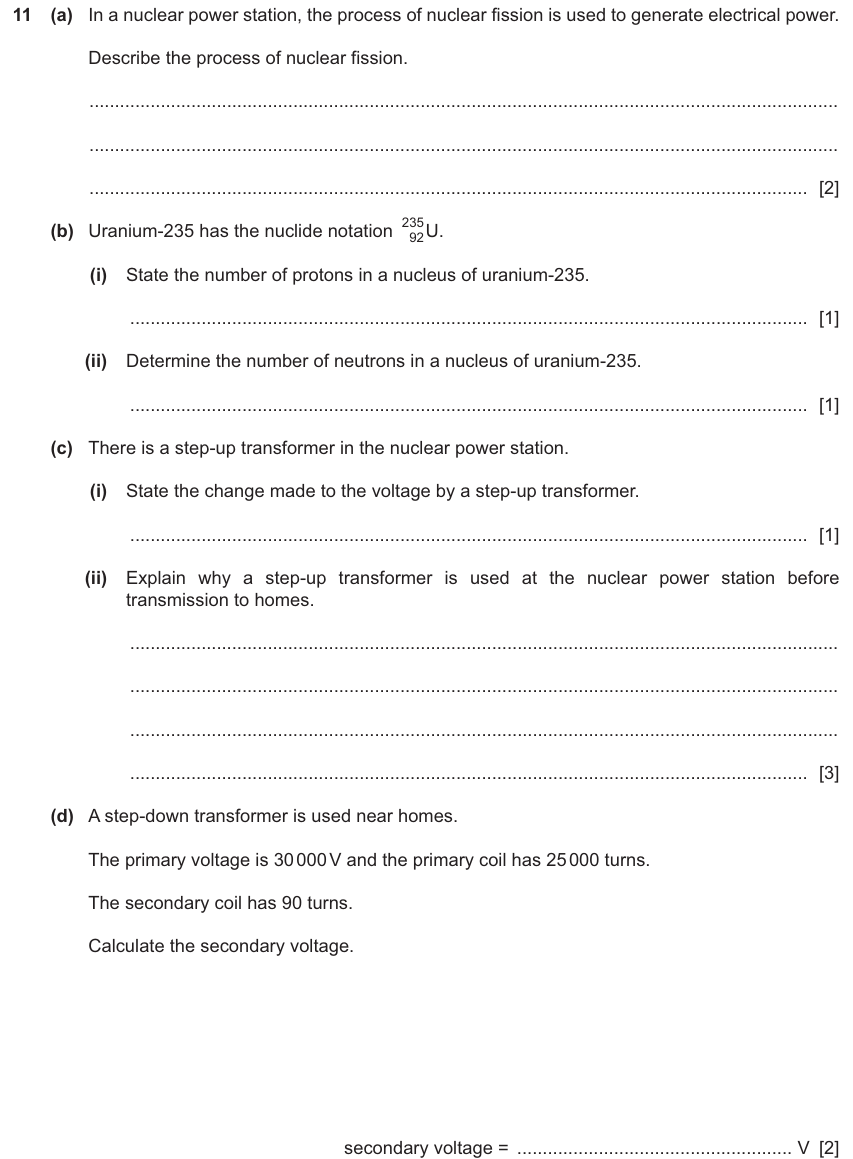

Exercise 4 — IGCSE 0654 Jun 2025 Paper 42 Q11
Show mark scheme

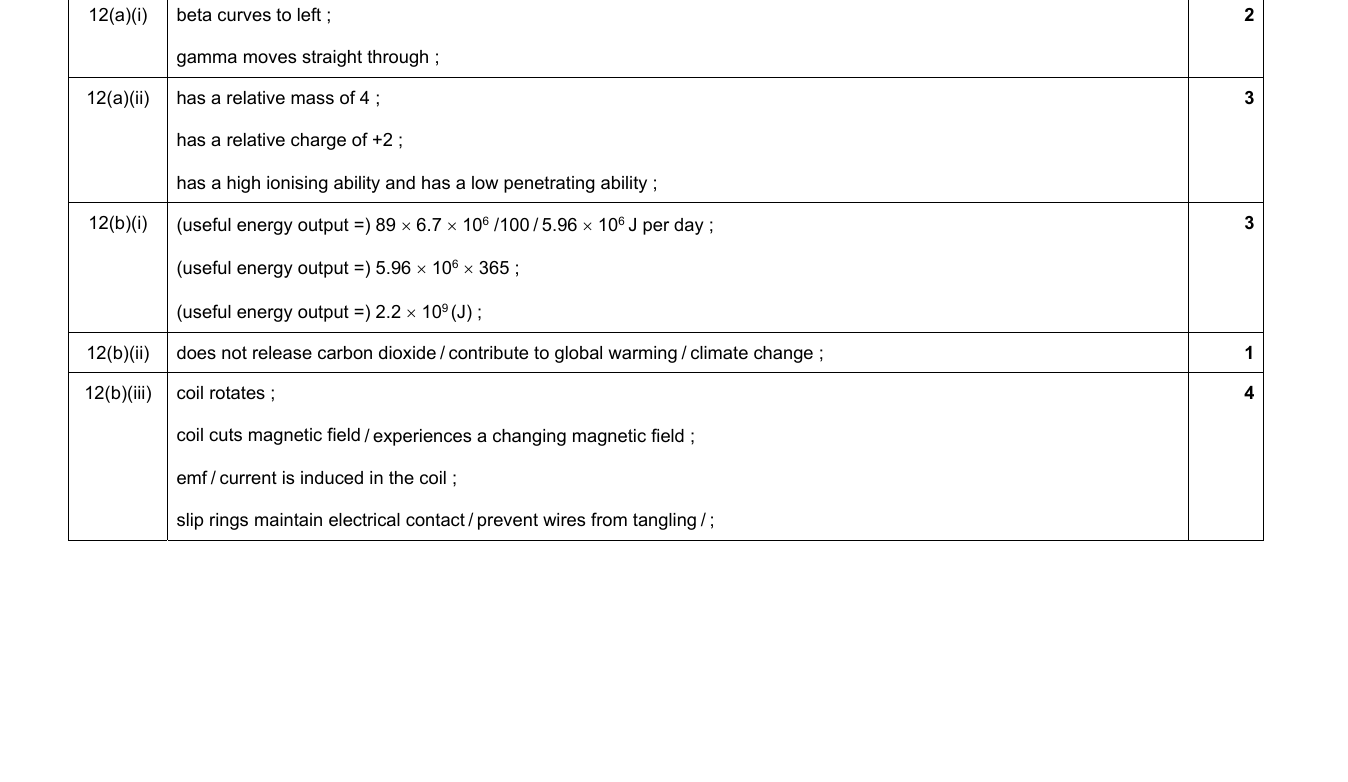

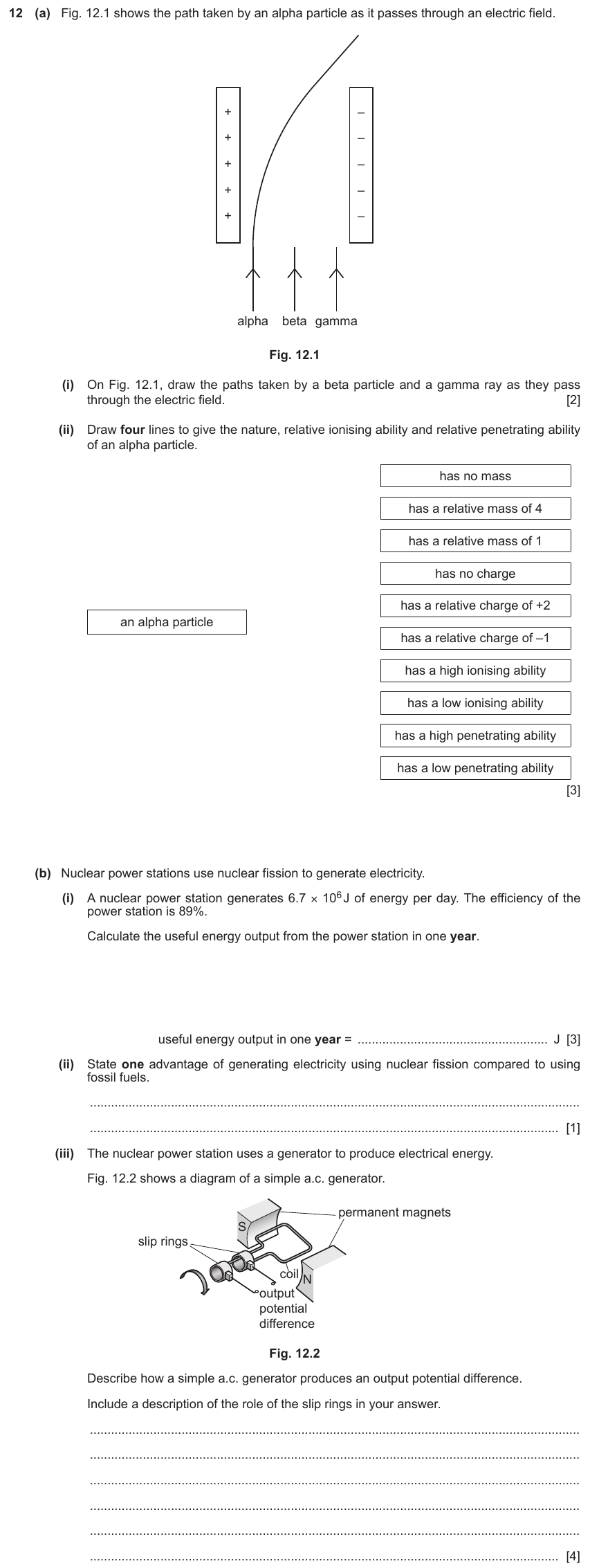

Exercise 5 — IGCSE 0654 Jun 2024 Paper 43 Q12
Show mark scheme

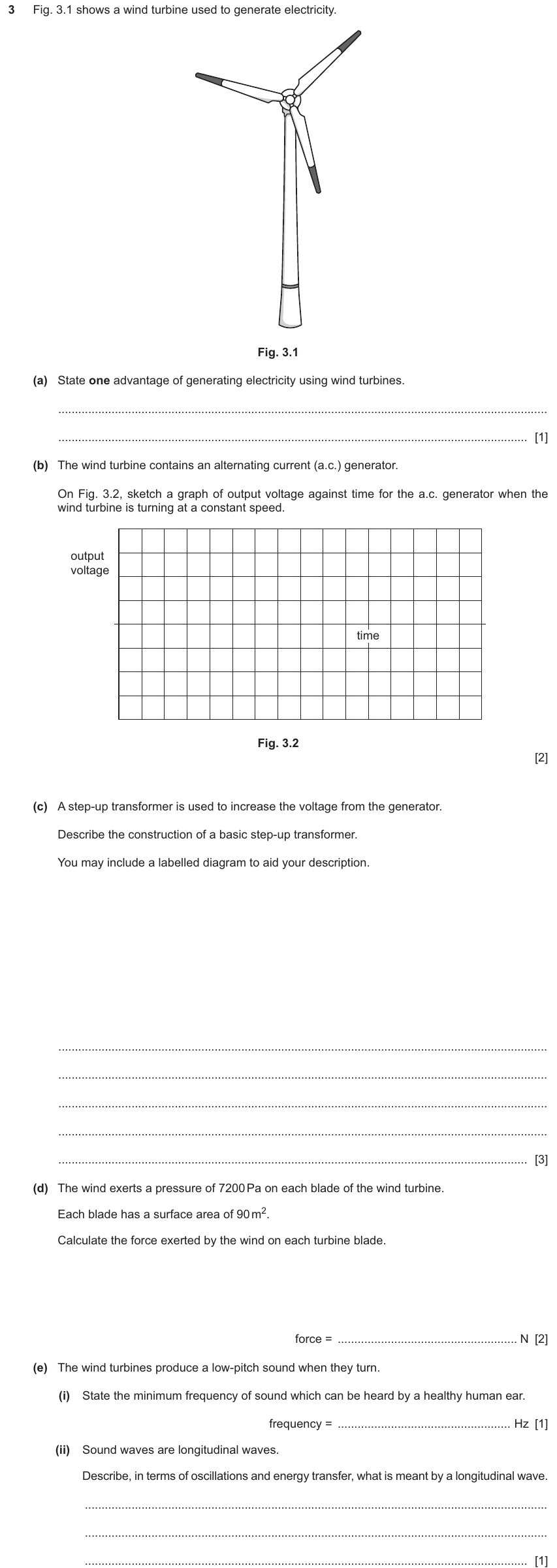

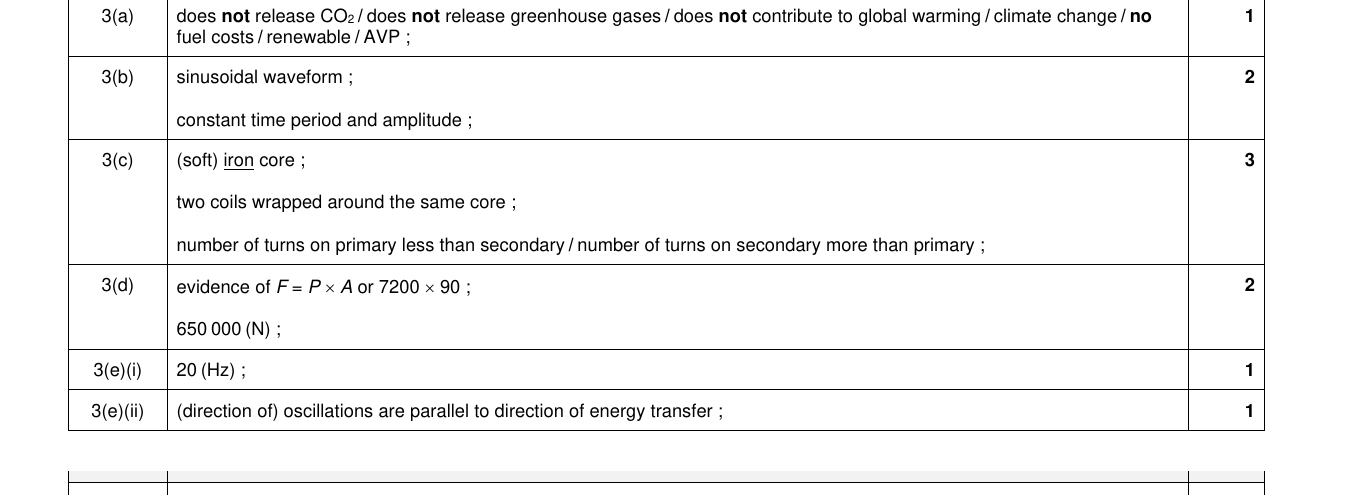

Exercise 6 — IGCSE 0654 Nov 2024 Paper 42 Q3
Show mark scheme
Multiple choice
Energy resources — Core multiple choice questions11 total · Paper 1

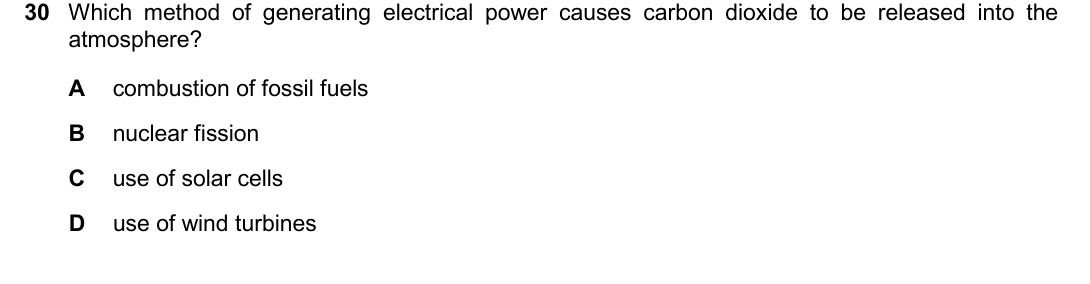

Exercise 1 — IGCSE 0654 Oct/Nov 2025 Paper 11 Q30
Show answer
Correct answer: A

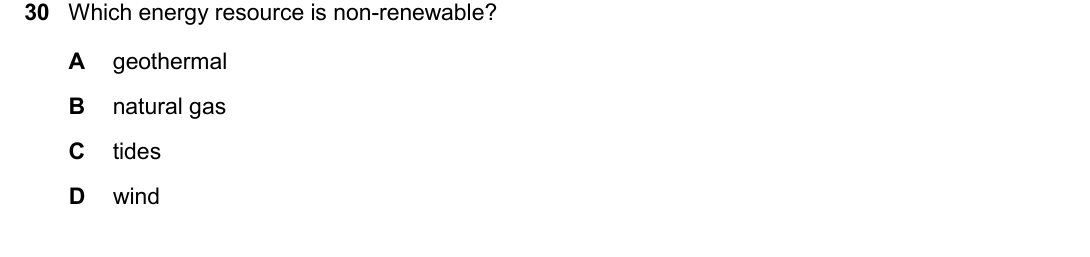

Exercise 2 — IGCSE 0654 March 2025 Paper 12 Q30
Show answer
Correct answer: B

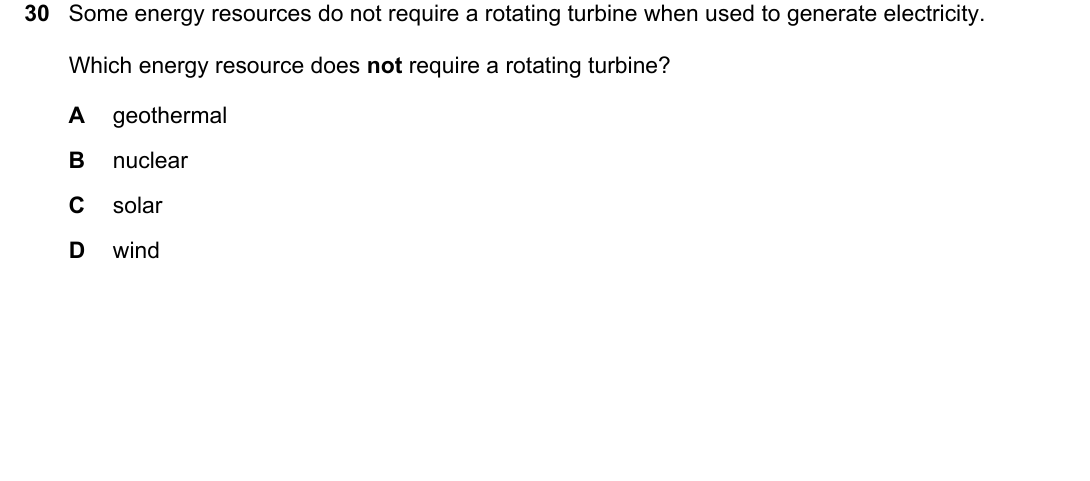

Exercise 3 — IGCSE 0654 March 2024 Paper 12 Q30
Show answer
Correct answer: C

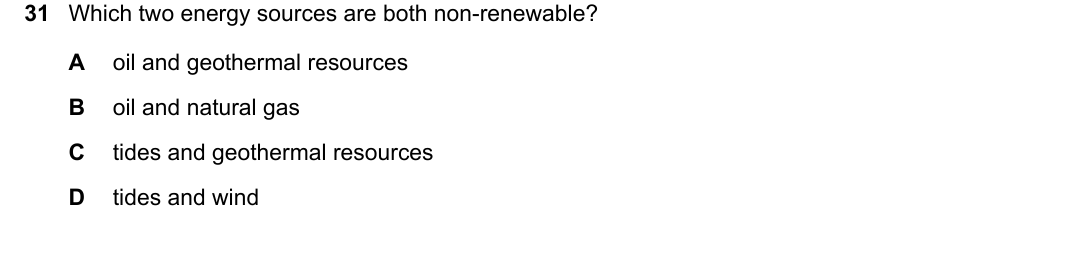

Exercise 4 — IGCSE 0654 Oct/Nov 2023 Paper 11 Q31
Show answer
Correct answer: B
Energy resources — Extended multiple choice questions10 total · Paper 2

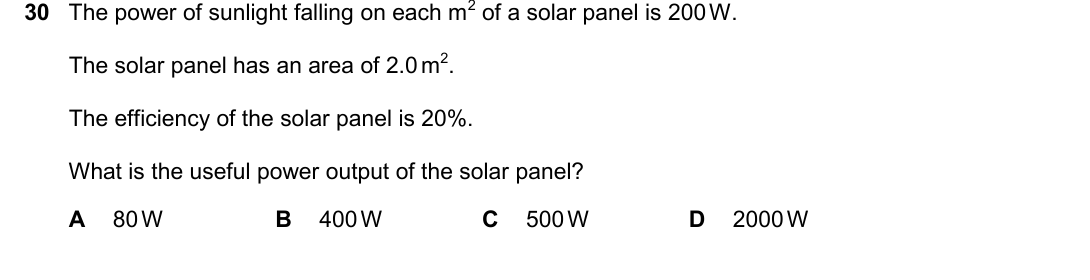

Exercise 5 — IGCSE 0654 Oct/Nov 2025 Paper 21 Q30
Show answer
Correct answer: A

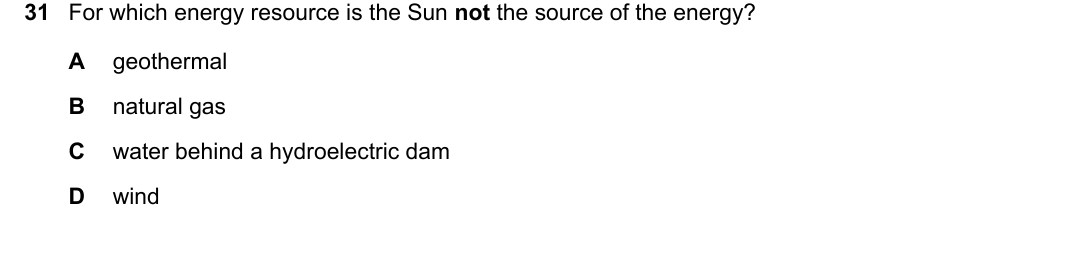

Exercise 6 — IGCSE 0654 May/June 2024 Paper 21 Q31
Show answer
Correct answer: A

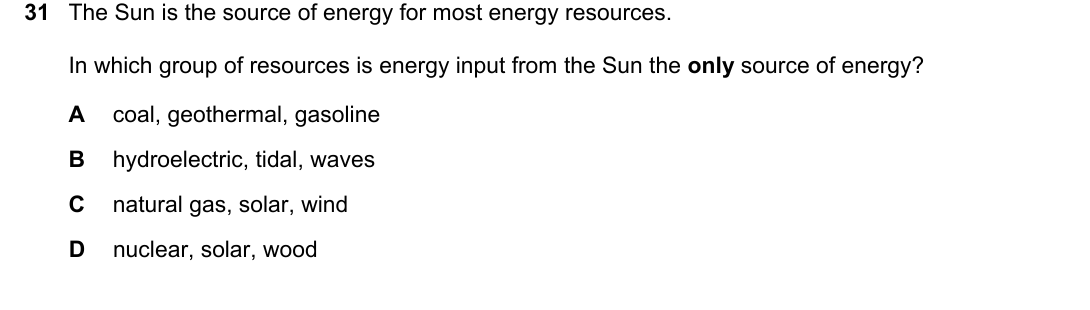

Exercise 7 — IGCSE 0654 Oct/Nov 2024 Paper 21 Q31
Show answer
Correct answer: C

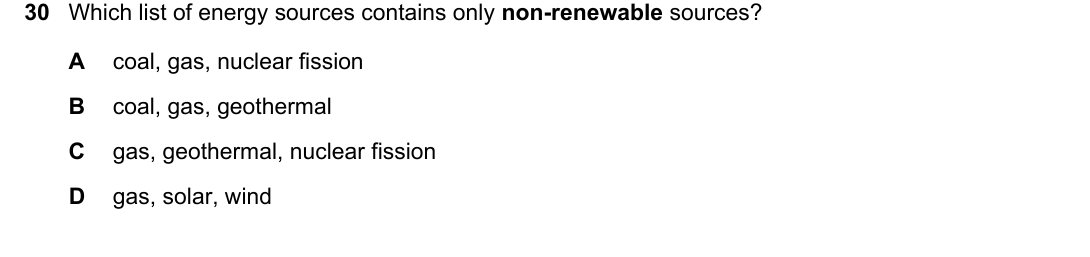

Exercise 8 — IGCSE 0654 March 2024 Paper 22 Q30
Show answer
Correct answer: A
