Question 4 — IGCSE 0580 Oct/Nov 2023 Paper 31
Cambridge IGCSE Mathematics 0580, Core tier, calculator. Topic: Mensuration · Perimeter, Area and Volume. Worth 9 marks.
Open in interactive question bank →

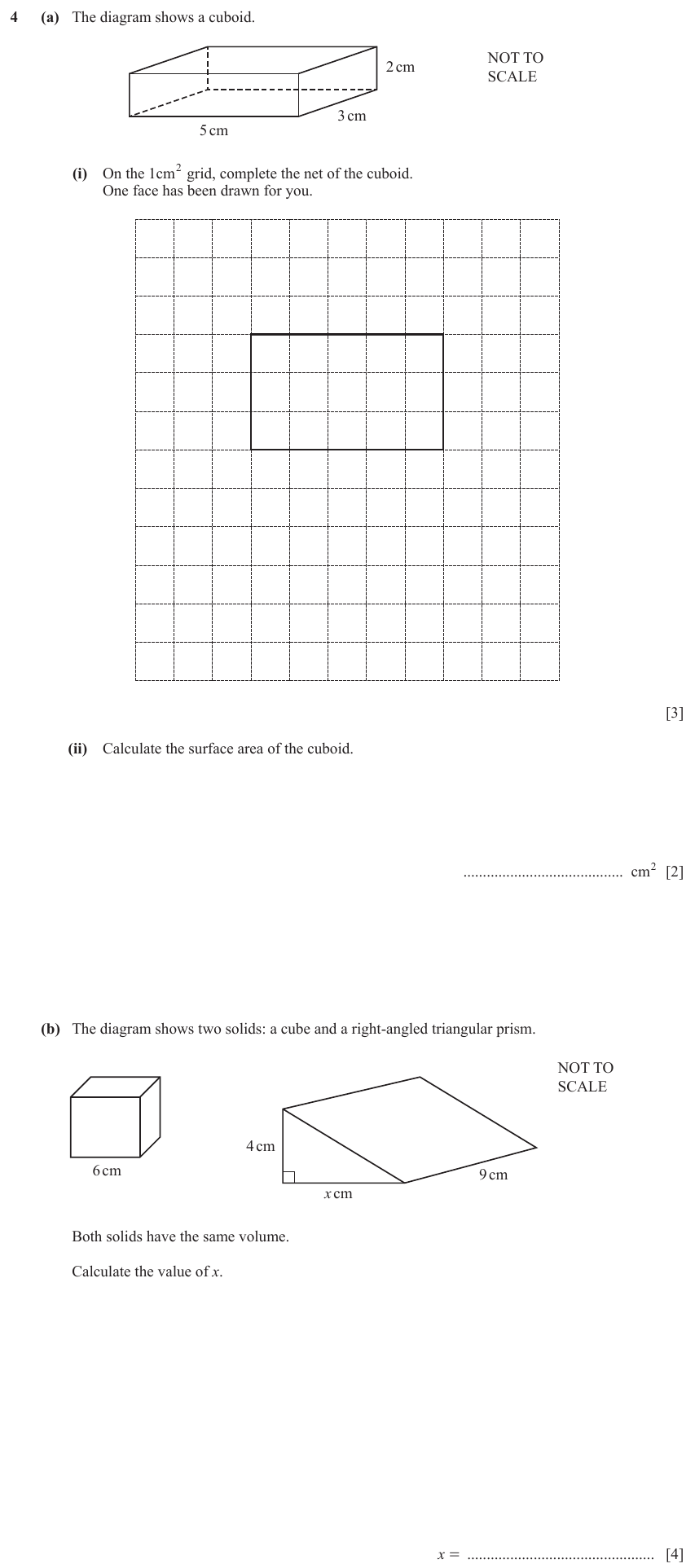

Question text
4 (a) The diagram shows a cuboid.
NOT TO
2 cm
SCALE
3 cm
5 cm
(i) On the 1cm2 grid, complete the net of the cuboid.
One face has been drawn for you.
[3]
(ii) Calculate the surface area of the cuboid.
......................................... cm2 [2]
© UCLES 2023 0580/31/O/N/23
9
(b) The diagram shows two solids: a cube and a right-angled triangular prism.
NOT TO
SCALE
4 cm
6 cm 9 cm
x cm
Both solids have the same volume.
Calculate the value of x.
x = ................................................ [4]
© UCLES 2023 0580/31/O/N/23 [Turn over
10

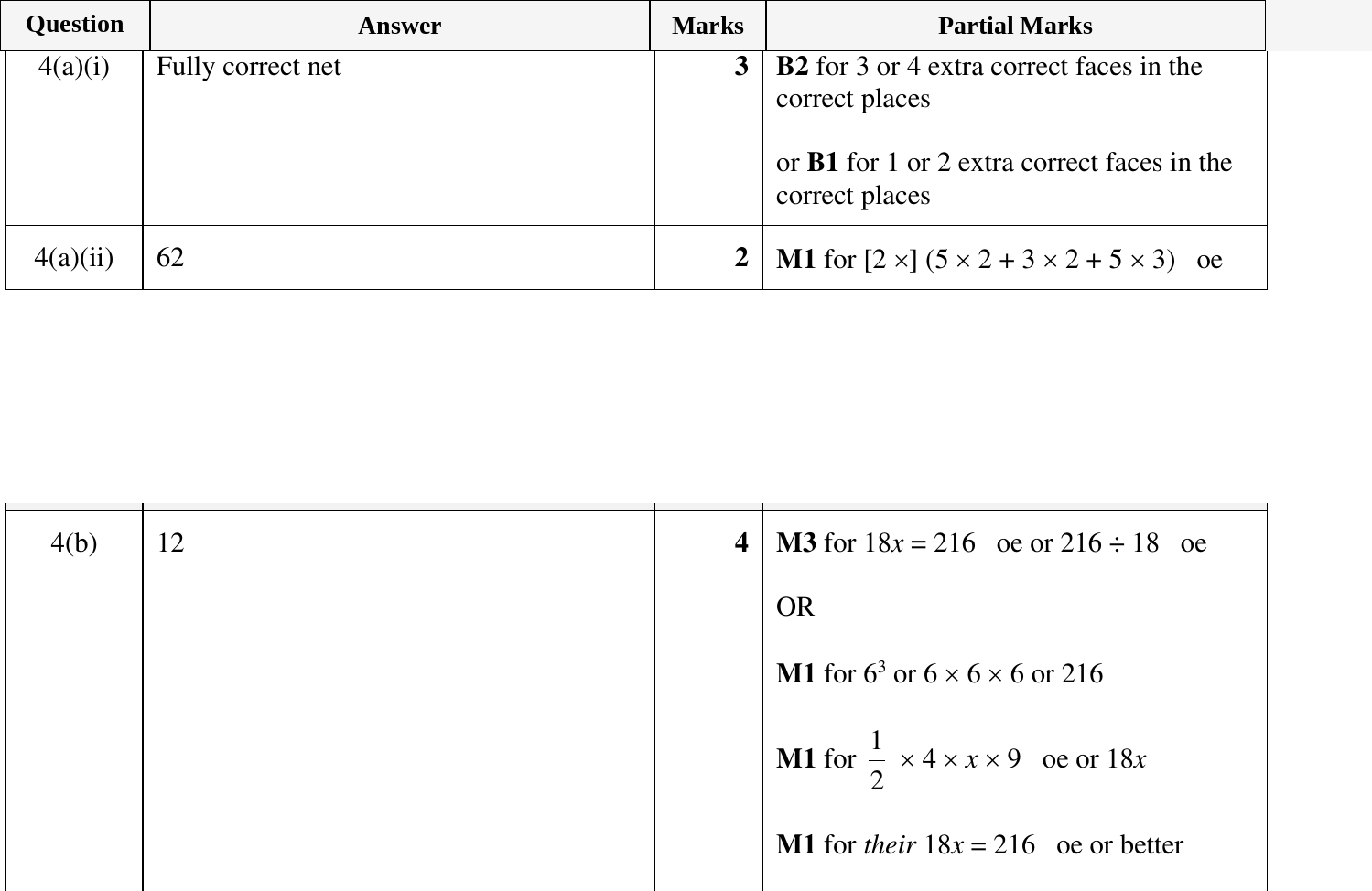

Mark scheme
