Question 24 — IGCSE 0580 May/June 2024 Paper 22

Cambridge IGCSE Mathematics 0580, Extended tier, non-calculator. Topic: Geometry · Geometrical terms and vocabulary. Worth 5 marks.

GeometryGeometrical terms and vocabulary5 marksExtendedNon-calculatorPaper 22May/June 2024
Open in interactive question bank →IGCSE Mathematics 0580 May/June 2024 Paper 22 Question 24 – Geometry, Geometrical terms and vocabulary, 5 marks

Question text

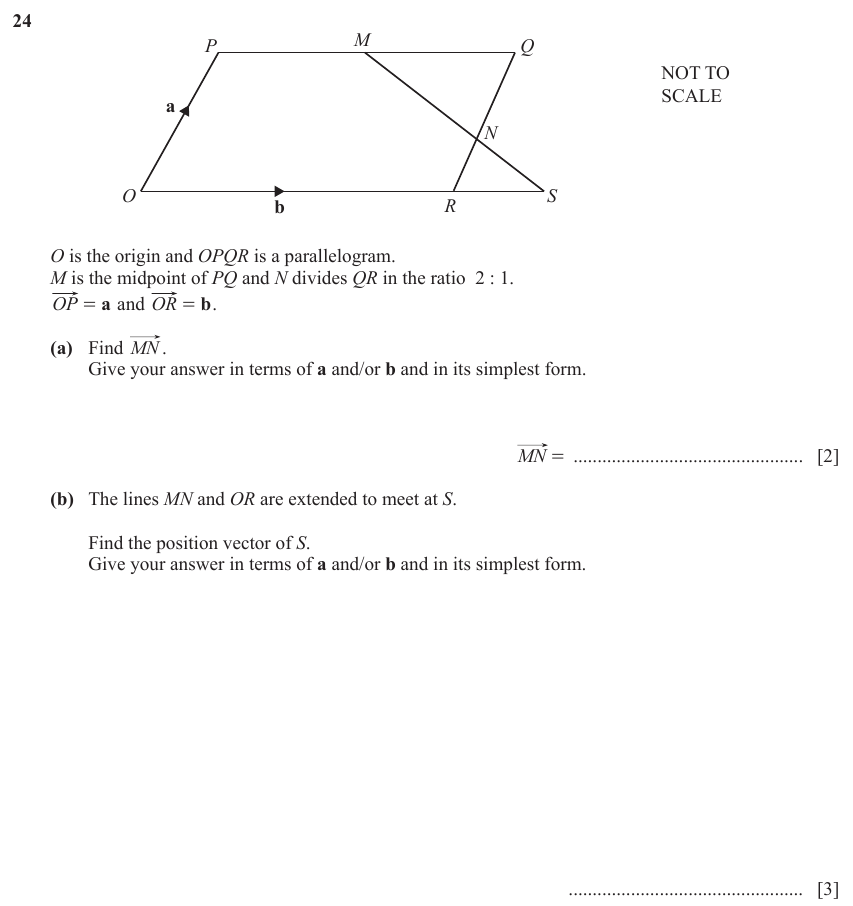

24 M P Q NOT TO SCALE a N O S b R O is the origin and OPQR is a parallelogram. M is the midpoint of PQ and N divides QR in the ratio 2 : 1. OP = a and OR = b. (a) Find MN. Give your answer in terms of a and/or b and in its simplest form. MN = ................................................ [2] (b) The lines MN and OR are extended to meet at S. Find the position vector of S. Give your answer in terms of a and/or b and in its simplest form. ................................................. [3] Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. © UCLES 2024 0580/22/M/J/24

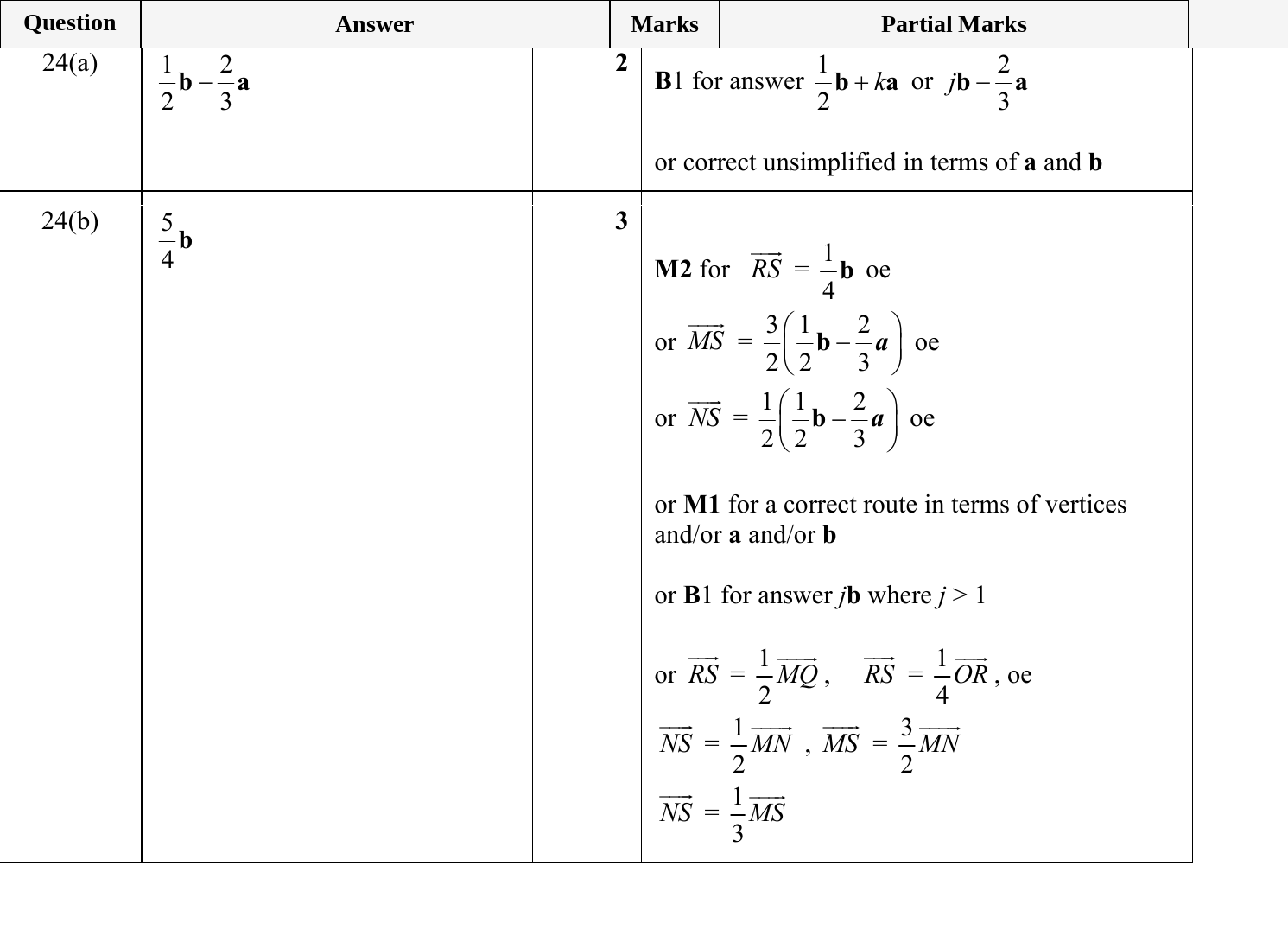

Mark scheme

Mark scheme for IGCSE 0580 May/June 2024 Paper 22 Question 24
