Cambridge IGCSE·Co-ordinated Sciences 0654·Chemistry Atomic Structure
📋Key knowledge — Atoms Elements Compounds

Formulas & equations

  • Mass number = protons + neutrons
  • Atomic number = number of protons = number of electrons (neutral atom)

Key facts & rules

  • Protons: +1 charge, in nucleus. Neutrons: neutral, in nucleus. Electrons: −1 charge, in shells.
  • Isotopes: same element (same proton number), different mass number (different neutrons). Same chemical properties.
  • Electronic configuration: fill shells 2, 8, 8, 18 … (first shell max 2, second max 8).
  • Group number = number of outer electrons. Period number = number of occupied shells.
  • Ion: atom that has gained or lost electrons. Cation (+): lost electrons. Anion (−): gained electrons.
  • Relative atomic mass (Ar): weighted average mass of an atom compared to 1/12 of ¹²C.
  • Compound: two or more elements chemically bonded — fixed ratio, different properties from elements.
  • Mixture: can be separated by physical means (filtration, distillation, chromatography).

IGCSE Chemistry — Atomic structure

94 Cambridge IGCSE 0654 questions on atomic structure, across all three components.

About atomic structure on IGCSE 0654

Every Cambridge IGCSE Co-ordinated Sciences 0654 question on atomic structure (Atoms, elements & compounds, Chemistry), across all three exam components. Theory and alternative-to-practical come with full mark schemes; multiple choice is interactive — click an option to check it.

Theory

Papers 3 & 4 · 22 questions · Structured written questions, each with its full mark scheme.
Atomic structure — Core theory questions11 total · Paper 3

Exercise 1 — IGCSE 0654 Jun 2025 Paper 31 Q5

Cambridge past paperCore10 marks Paper 31Jun 2025

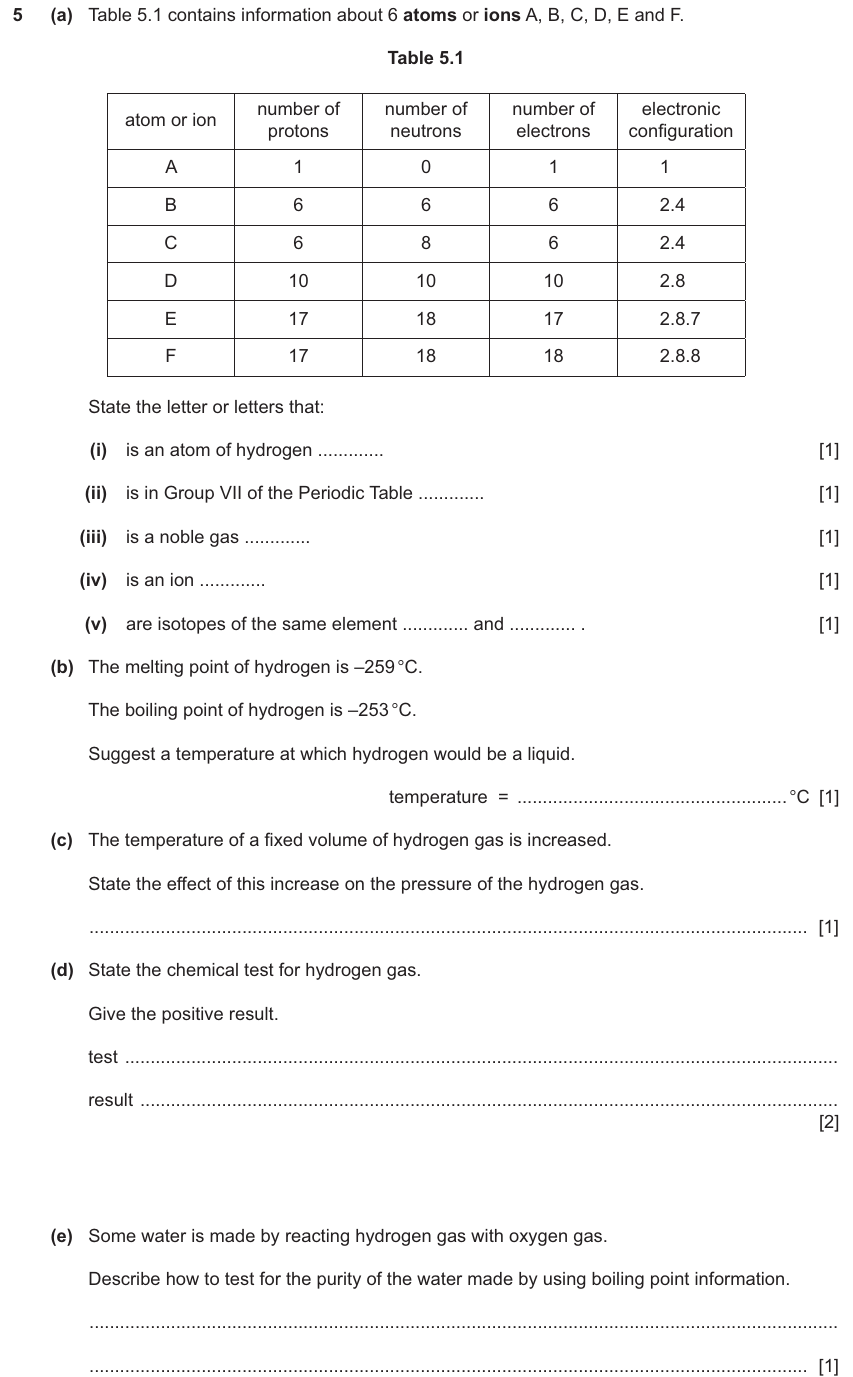

IGCSE 0654 Jun 2025 Paper 31 Question 5 — Atomic structure
Show mark scheme

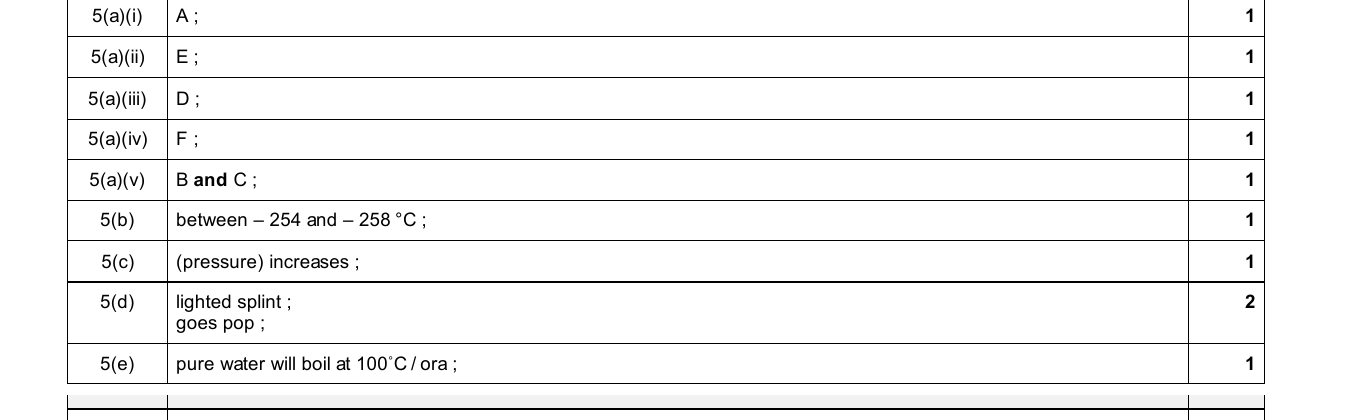

Mark scheme for IGCSE 0654 Jun 2025 Paper 31 Q5

Exercise 2 — IGCSE 0654 Jun 2024 Paper 31 Q11

Cambridge past paperCore10 marks Paper 31Jun 2024

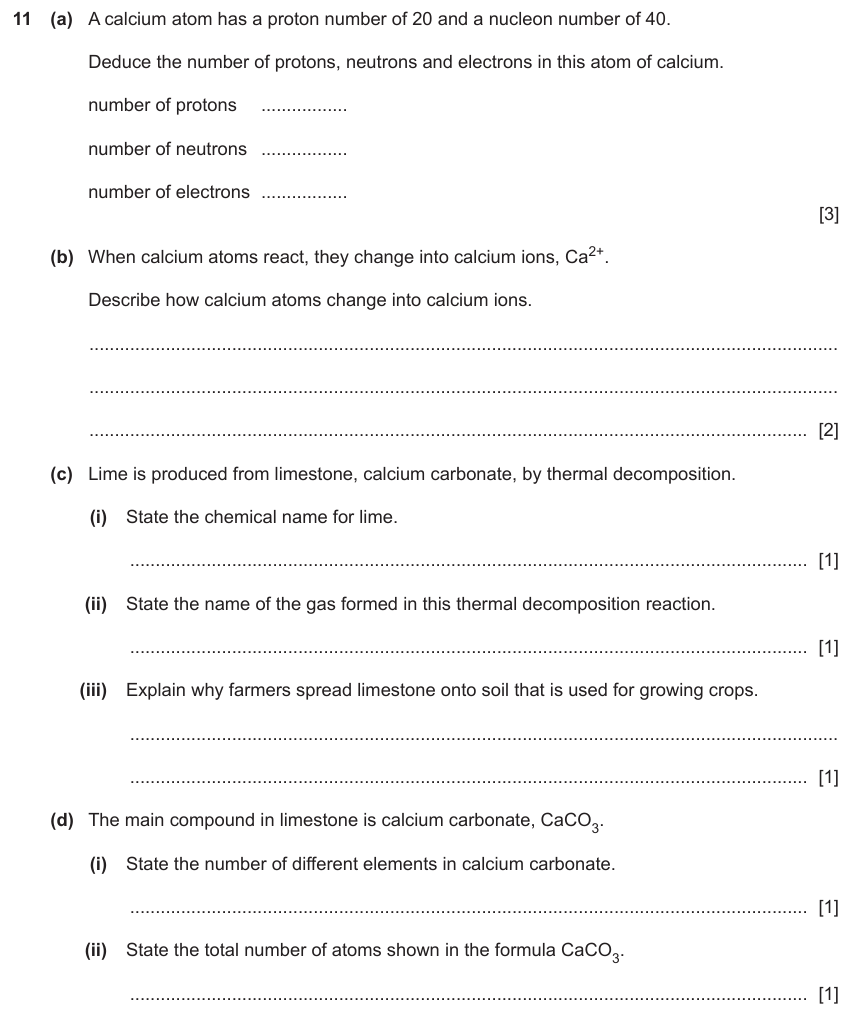

IGCSE 0654 Jun 2024 Paper 31 Question 11 — Atomic structure
Show mark scheme

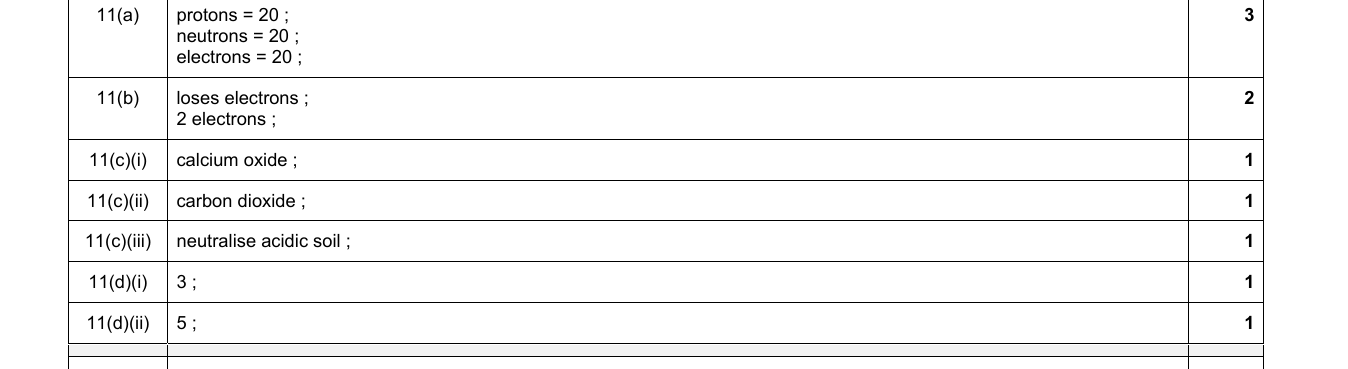

Mark scheme for IGCSE 0654 Jun 2024 Paper 31 Q11

Exercise 3 — IGCSE 0654 Jun 2024 Paper 32 Q2

Cambridge past paperCore9 marks Paper 32Jun 2024

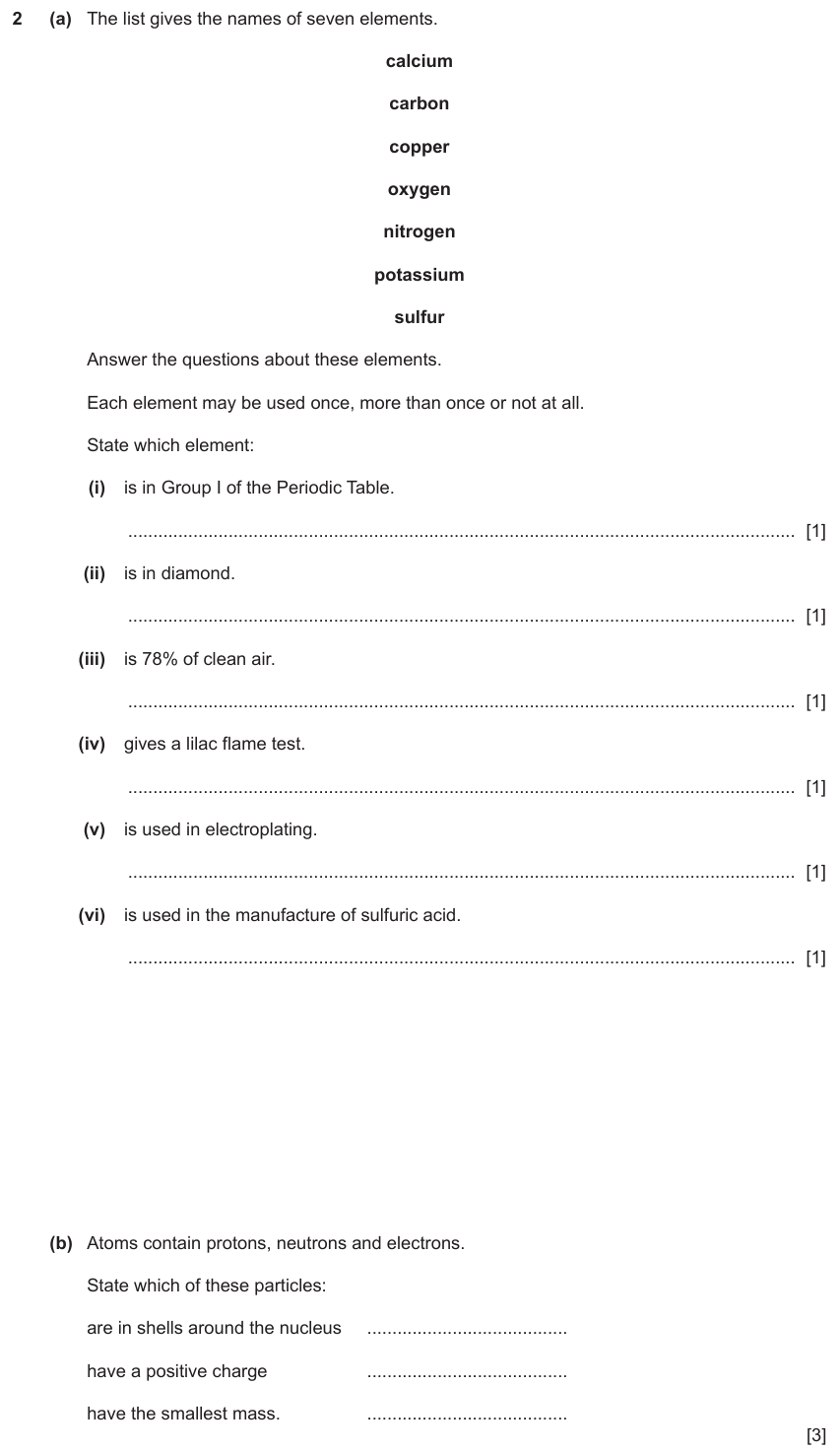

IGCSE 0654 Jun 2024 Paper 32 Question 2 — Atomic structure
Show mark scheme

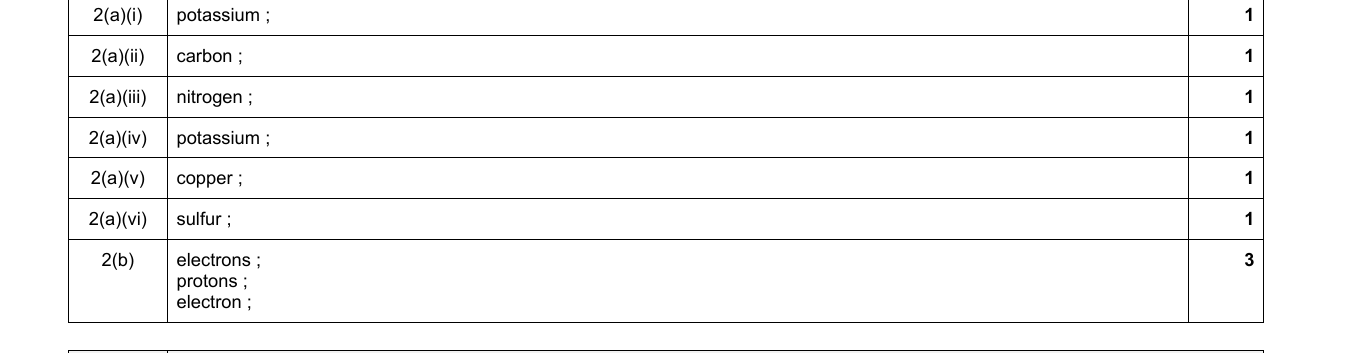

Mark scheme for IGCSE 0654 Jun 2024 Paper 32 Q2
Atomic structure — Extended theory questions11 total · Paper 4

Exercise 4 — IGCSE 0654 Jun 2025 Paper 42 Q5

Cambridge past paperExtended10 marks Paper 42Jun 2025

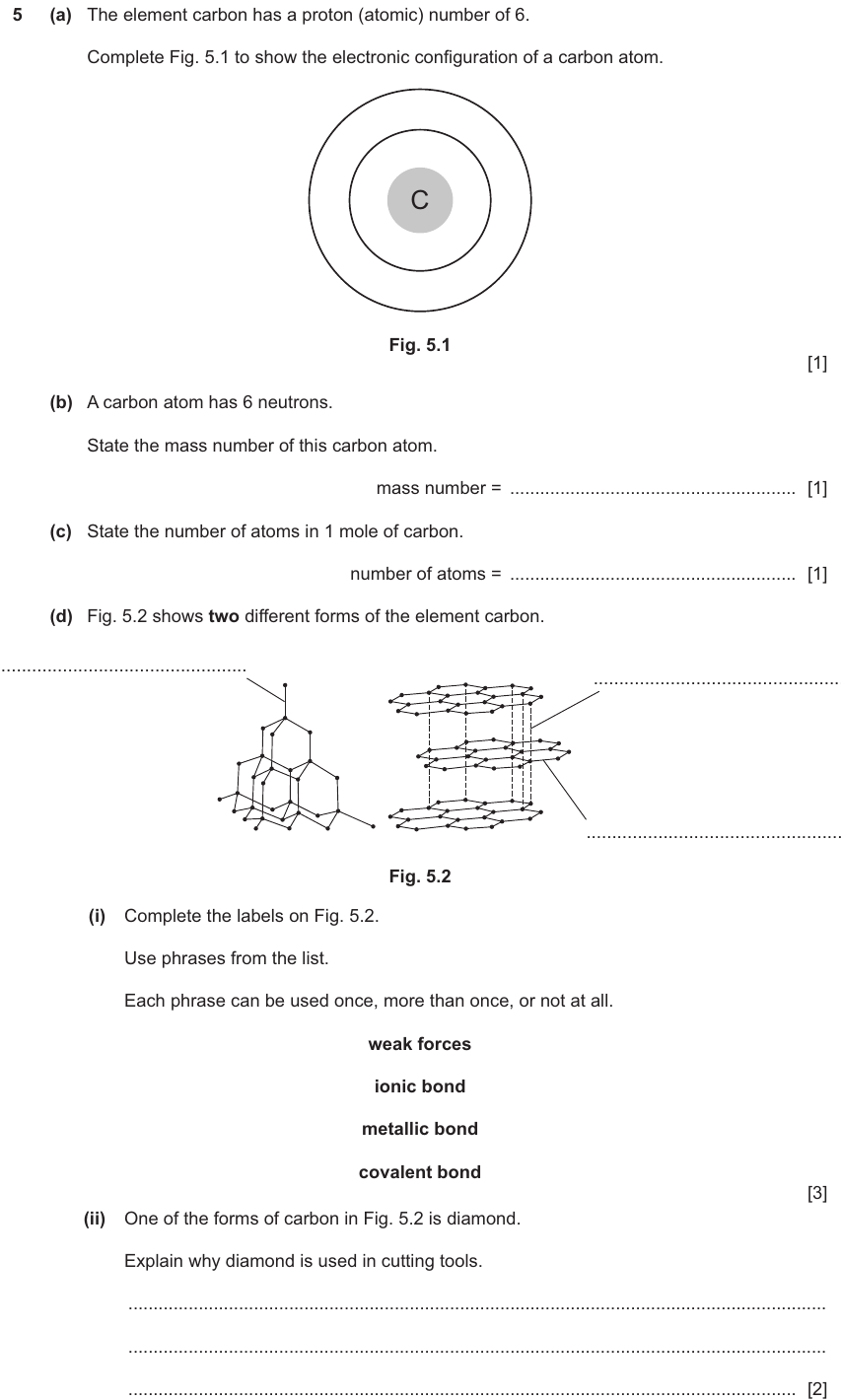

IGCSE 0654 Jun 2025 Paper 42 Question 5 — Atomic structure
Show mark scheme

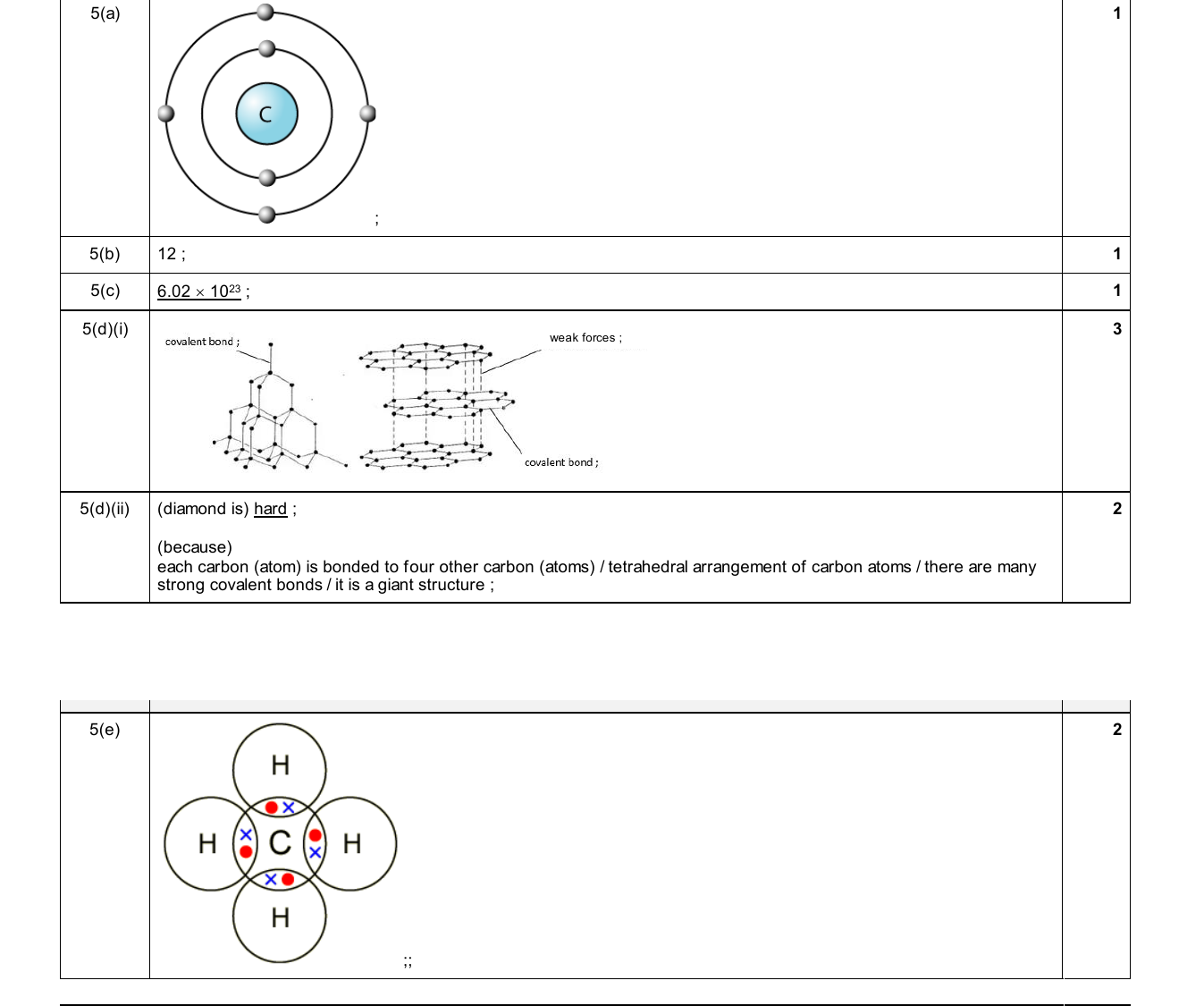

Mark scheme for IGCSE 0654 Jun 2025 Paper 42 Q5

Exercise 5 — IGCSE 0654 Nov 2025 Paper 43 Q6

Cambridge past paperExtended10 marks Paper 43Nov 2025

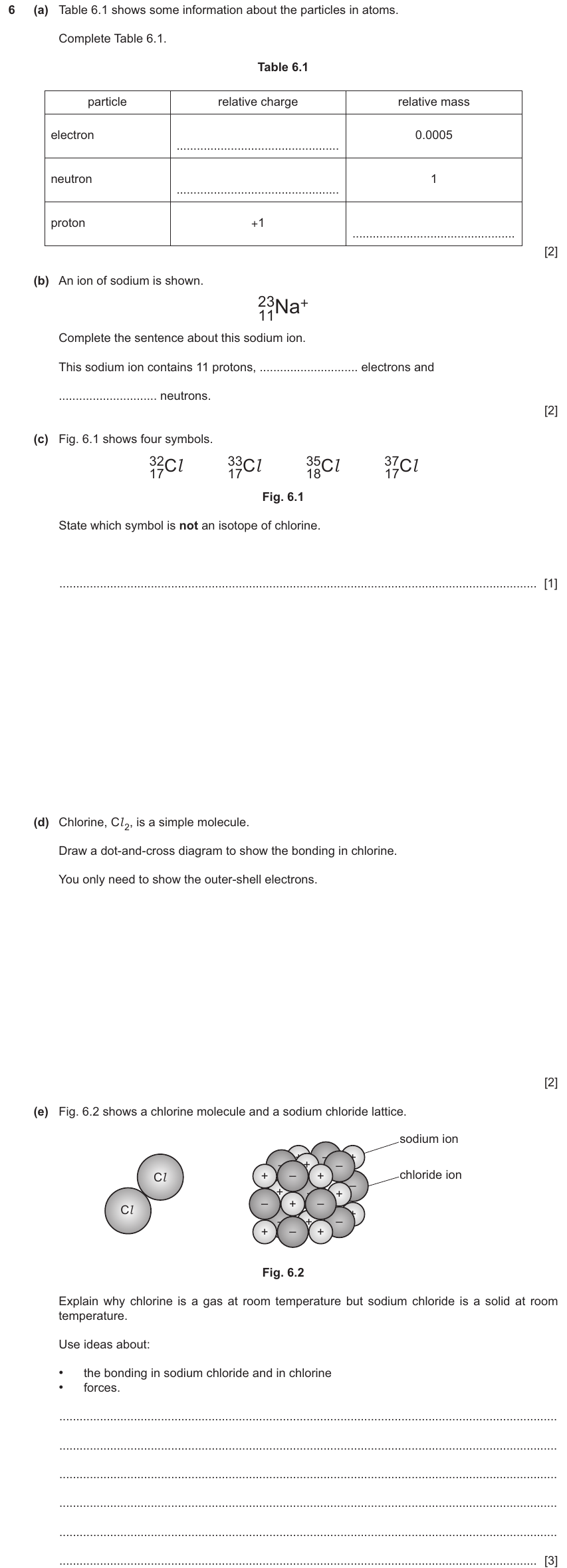

IGCSE 0654 Nov 2025 Paper 43 Question 6 — Atomic structure
Show mark scheme

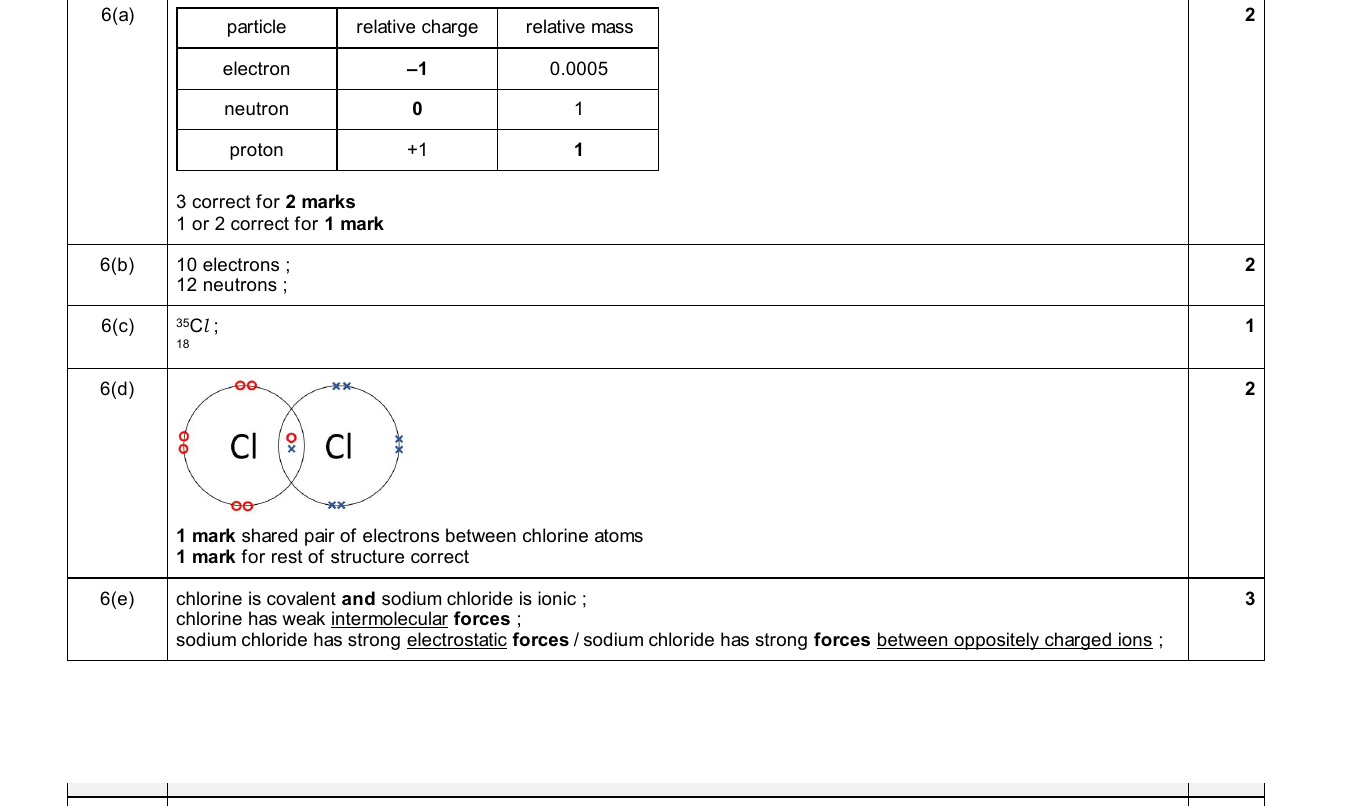

Mark scheme for IGCSE 0654 Nov 2025 Paper 43 Q6

Exercise 6 — IGCSE 0654 Nov 2025 Paper 42 Q12

Cambridge past paperExtended9 marks Paper 42Nov 2025

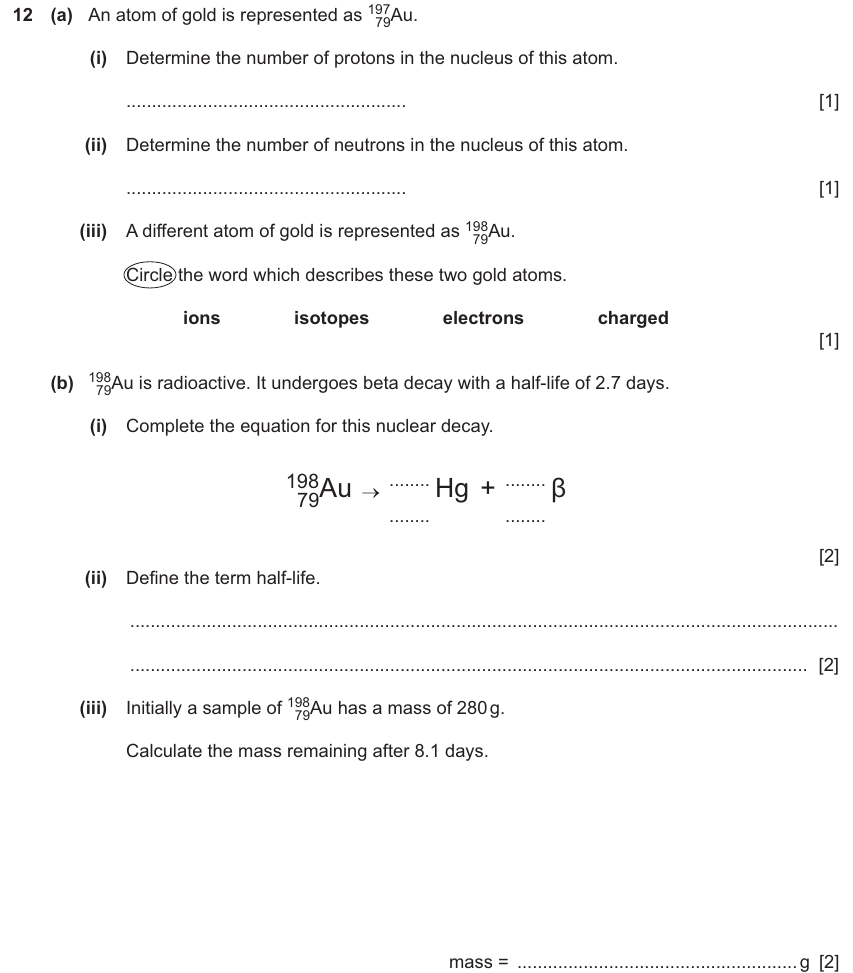

IGCSE 0654 Nov 2025 Paper 42 Question 12 — Atomic structure
Show mark scheme

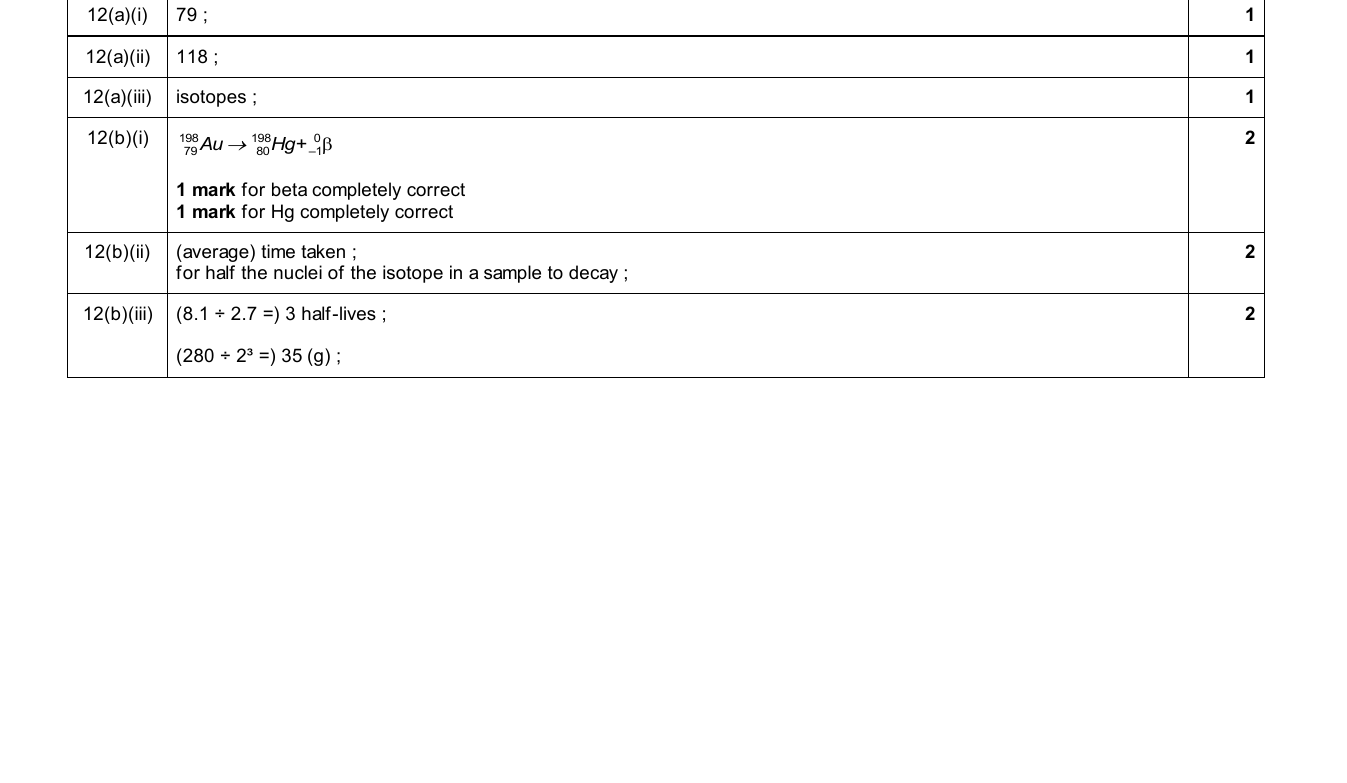

Mark scheme for IGCSE 0654 Nov 2025 Paper 42 Q12
↑ Back to top

Multiple choice

Papers 1 & 2 · 72 questions · Click an option (A–D) to check your answer instantly.
Atomic structure — Core multiple choice questions42 total · Paper 1

Exercise 1 — IGCSE 0654 May/June 2025 Paper 11 Q15

Cambridge past paperCore1 mark Paper 11May/June 2025

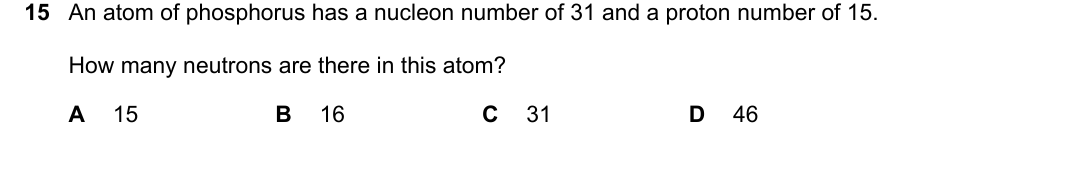

IGCSE 0654 May/June 2025 Paper 11 Question 15 — Atomic structure
Show answer
Correct answer: B

Exercise 2 — IGCSE 0654 Oct/Nov 2025 Paper 11 Q15

Cambridge past paperCore1 mark Paper 11Oct/Nov 2025

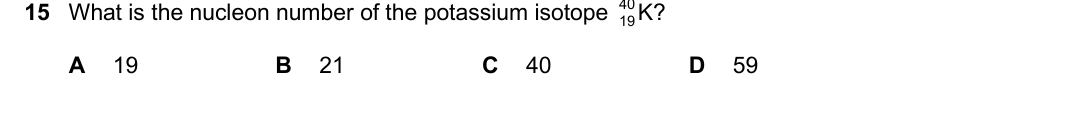

IGCSE 0654 Oct/Nov 2025 Paper 11 Question 15 — Atomic structure
Show answer
Correct answer: C

Exercise 3 — IGCSE 0654 May/June 2025 Paper 11 Q17

Cambridge past paperCore1 mark Paper 11May/June 2025

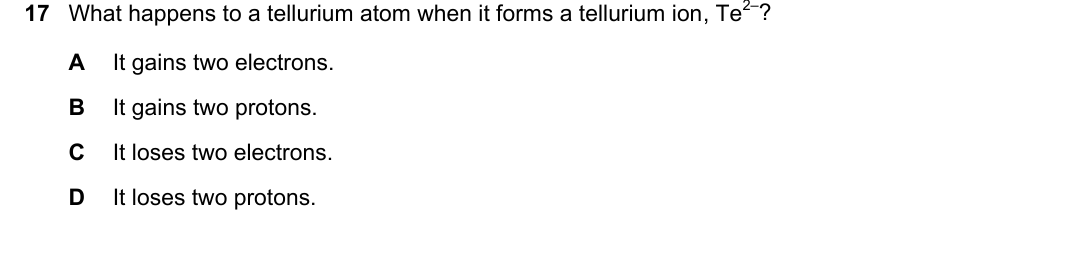

IGCSE 0654 May/June 2025 Paper 11 Question 17 — Atomic structure
Show answer
Correct answer: A

Exercise 4 — IGCSE 0654 May/June 2025 Paper 12 Q14

Cambridge past paperCore1 mark Paper 12May/June 2025

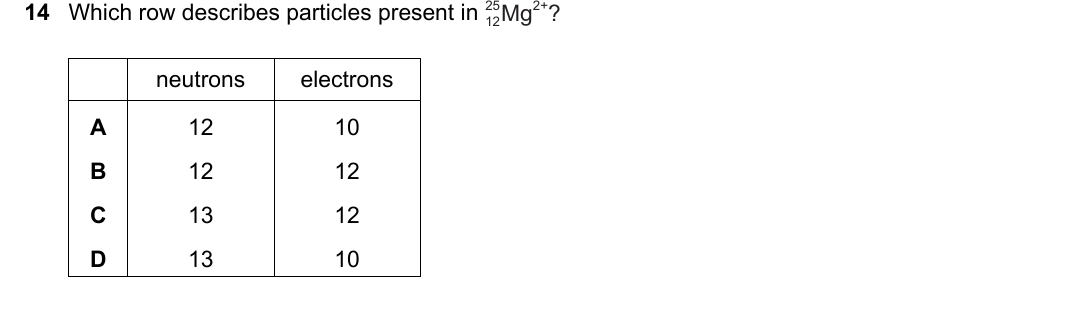

IGCSE 0654 May/June 2025 Paper 12 Question 14 — Atomic structure
Show answer
Correct answer: D
Atomic structure — Extended multiple choice questions30 total · Paper 2

Exercise 5 — IGCSE 0654 May/June 2025 Paper 21 Q16

Cambridge past paperExtended1 mark Paper 21May/June 2025

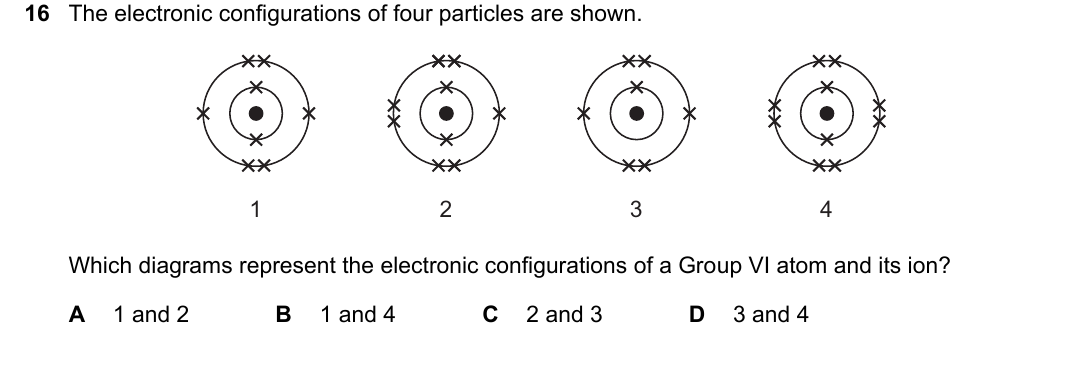

IGCSE 0654 May/June 2025 Paper 21 Question 16 — Atomic structure
Show answer
Correct answer: B

Exercise 6 — IGCSE 0654 May/June 2025 Paper 21 Q17

Cambridge past paperExtended1 mark Paper 21May/June 2025

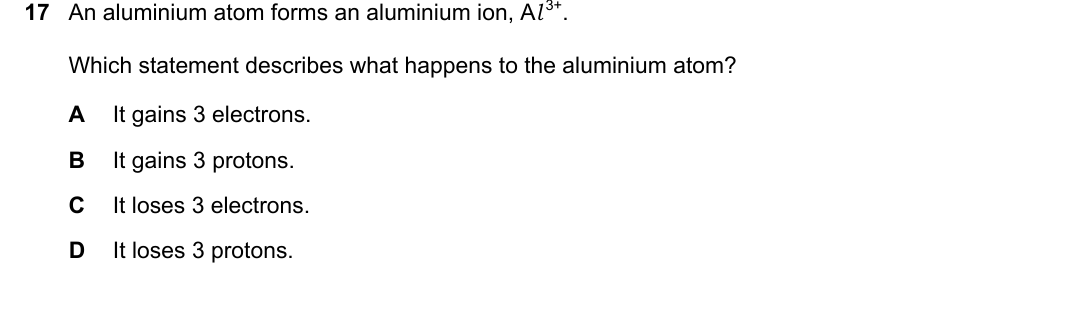

IGCSE 0654 May/June 2025 Paper 21 Question 17 — Atomic structure
Show answer
Correct answer: C

Exercise 7 — IGCSE 0654 Oct/Nov 2025 Paper 22 Q14

Cambridge past paperExtended1 mark Paper 22Oct/Nov 2025

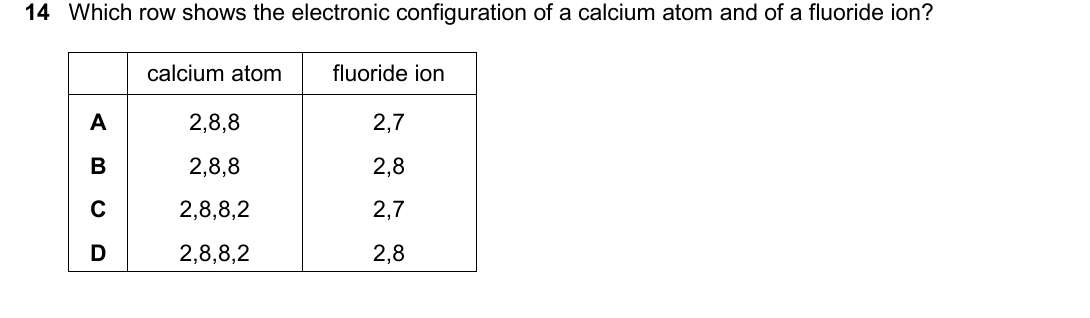

IGCSE 0654 Oct/Nov 2025 Paper 22 Question 14 — Atomic structure
Show answer
Correct answer: D

Exercise 8 — IGCSE 0654 Oct/Nov 2025 Paper 22 Q15

Cambridge past paperExtended1 mark Paper 22Oct/Nov 2025

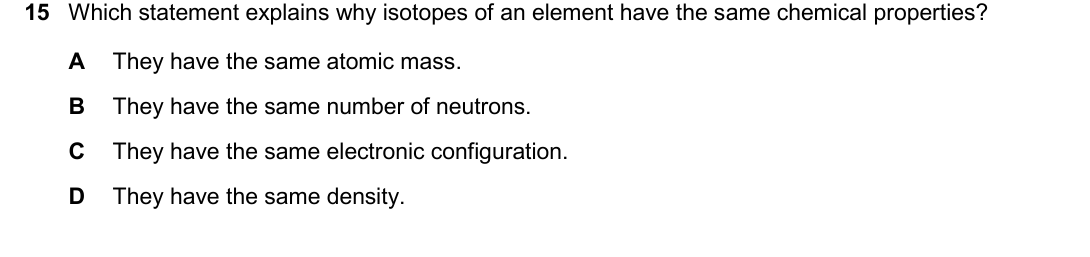

IGCSE 0654 Oct/Nov 2025 Paper 22 Question 15 — Atomic structure
Show answer
Correct answer: C
